Description

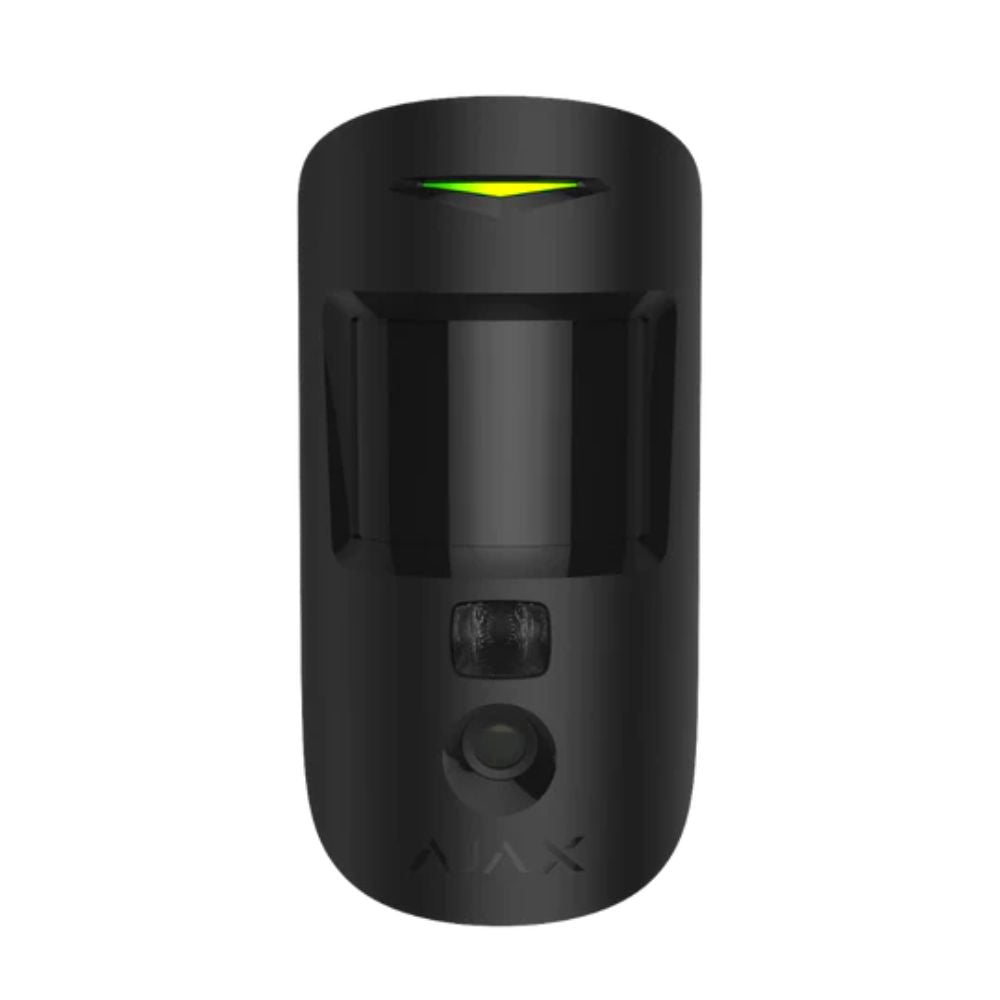

MotionCam is a wireless motion detector with visual alarm verification for indoor use. It operates for up to 4 years on bundled batteries, detects movement at up to 12 meters, ignores animals, but recognizes a human move instantly. MotionCam works within Ajax security systems, connecting to a hub through the two secure radio protocols. The detector uses Jeweller to transmit alarms and events, and Wings to transmit photos. Wireless coverage may reach up 1,700 m line-of-sight.
Features
- Intellect against false alarms
- Special lens
- Professional installation
- Filter for thermal interferences
- Temperature compensation
- Sensitivity level
- More than a photo. Faster than a video
- Less concern
- More security
- Evidence in a smartphone
- Privacy as a top priority
- Intuitive installation and connection
Complete Set
- MotionCam Jeweller
- SmartBracket mounting panel
- Installation kit
- 2 × CR123A battery
- Pre-installed.
- Quick Start Guide
More info about MotionCam (Black) on Ajax website: https://ajax.systems/products/motioncam/
Download
Video
Tech specs
| Sensitive element |
PIR sensor |
| Motion detection range |
Up to 12 m |
| Motion detector viewing angle (H/V) |
88.5°/80° |
| Time for motion detection |
From 0.3 to 2 m/s |
| Image resolution |
Up to 640 × 480 pixels |
| Number of photos taken when alarm is raised |
Up to 5 photos/single alarm |
| Infrared illumination for shooting in the dark |
Yes |
| Pet immunity |
Weight up to 20 kg, height up to 50 cm
Why motion detectors react to animals and how to avoid it >
|
| Tamper protection |
Yes |
| Radio communication protocols with Ajax detectors and devices |
Jeweller — for transmitting events and alarms.
Learn more
Wings — for transmitting photos.
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Compatibility with hubs |
|
| Compatibility with radio signal range extenders |
ReX 2 |
| CMS compatibility |
Motion alarms are transmitted to CMSs that support SIA (DC-09), SurGuard (Contact ID), ADEMCO 685, and other proprietary protocols.
CMS software supporting visual alarms verification
List of supported protocols
|
| Maximum RF output power |
Up to 20 mW |
| Radio signal modulation |
GFSK |
| Radio signal range (line-of-sight) |
Up to 1,700 m
Learn more
|
| Power supply |
2 CR123A batteries, 3 V |
| Battery life |
Up to 4 years |
| Installation |
Indoors |
| Operating temperature range |
From 0°C to +40°C (manufacture date up to June 1, 2020)
From -10°C to +40°C (manufacture date from June 1, 2020)
How to find the manufacture date of a detector or device
|
| Operating humidity |
Up to 75% |
| Overall dimensions |
135 × 70 × 60 mm |
| Weight |
167 g |
| Service life |
10 years |
