Description

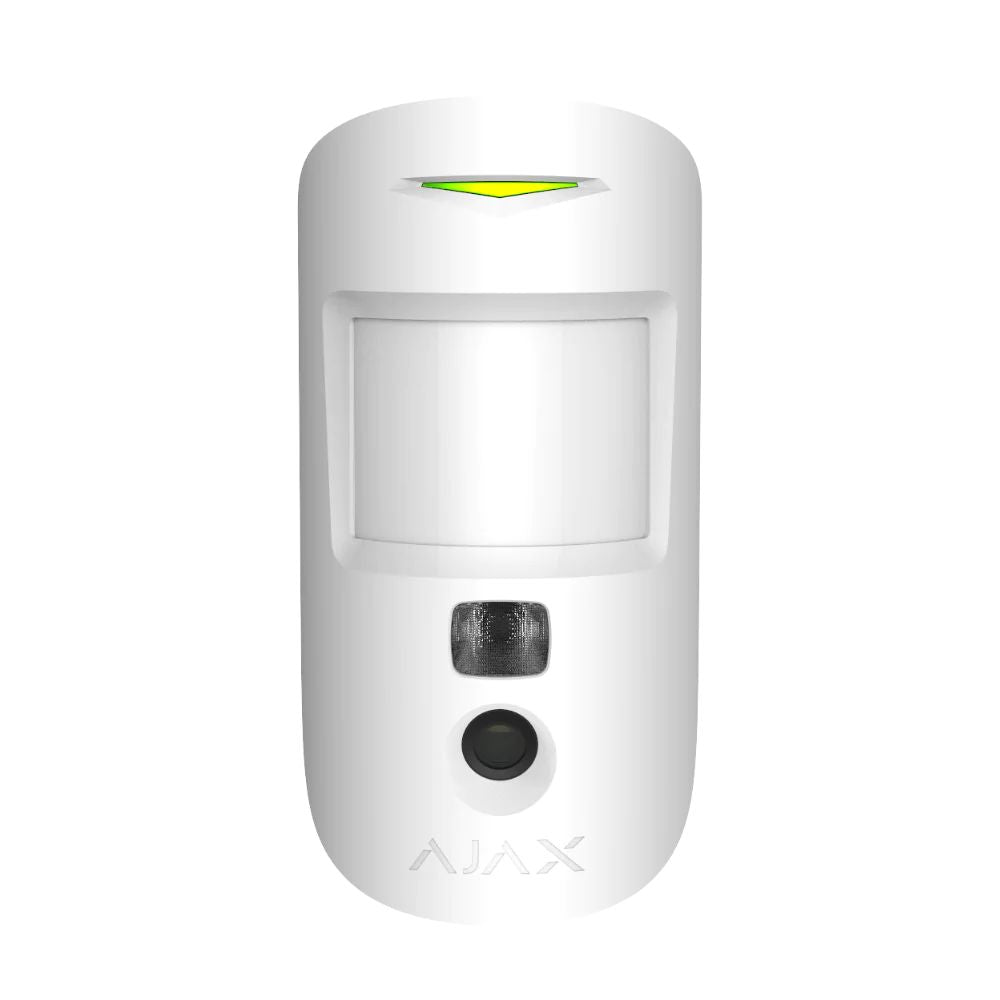

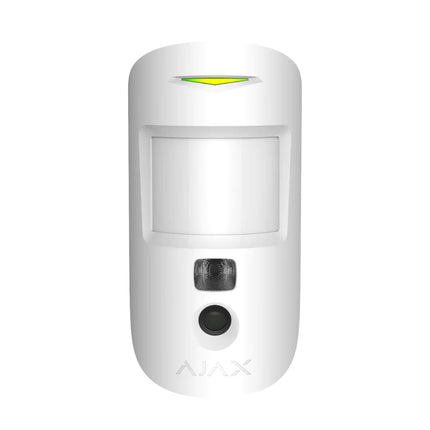

MotionCam is a wireless motion detector with visual alarm verification for indoor use. It operates for up to 4 years on bundled batteries, detects movement at up to 12 meters, ignores animals, but recognizes a human move instantly. MotionCam works within Ajax security systems, connecting to a hub through the two secure radio protocols. The detector uses Jeweller to transmit alarms and events, and Wings to transmit photos. Wireless coverage may reach up 1,700 m line-of-sight.
Features
- Intellect against false alarms
- Special lens
- Professional installation
- Filter for thermal interferences
- Temperature compensation
- Sensitivity level
- More than a photo. Faster than a video.
- Less concern
- More security
- Evidence in a smartphone
- Privacy as a top priority
- Photos are protected from prying eyes at the detector, system and software levels.
- Intuitive installation and connection
Complete Set
- MotionCam Jeweller
- SmartBracket mounting panel
- Installation kit
- 2 × CR123A battery
- Pre-installed.
- Quick Start Guide
More info about MotionCam on Ajax website: https://ajax.systems/products/motioncam/
Download
Video
Tech specs
| Sensitive element |
PIR sensor |
| Motion detection range |
Up to 12 m |
| Motion detector viewing angle (H/V) |
88.5°/80° |
| Time for motion detection |
From 0.3 to 2 m/s |
| Image resolution |
Up to 640 × 480 pixels |
| Number of photos taken when alarm is raised |
Up to 5 photos/single alarm |
| Infrared illumination for shooting in the dark |
Yes |
| Pet immunity |
Weight up to 20 kg, height up to 50 cm
Why motion detectors react to animals and how to avoid it >
|
| Tamper protection |
Yes |
| Radio communication protocols with Ajax detectors and devices |
Jeweller — for transmitting events and alarms.
Learn more
Wings — for transmitting photos.
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Compatibility with hubs |
|
| Compatibility with radio signal range extenders |
ReX 2 |
| CMS compatibility |
Motion alarms are transmitted to CMSs that support SIA (DC-09), SurGuard (Contact ID), ADEMCO 685, and other proprietary protocols.
CMS software supporting visual alarms verification
List of supported protocols
|
| Maximum RF output power |
Up to 20 mW |
| Radio signal modulation |
GFSK |
| Radio signal range (line-of-sight) |
Up to 1,700 m
Learn more
|
| Power supply |
2 CR123A batteries, 3 V |
| Battery life |
Up to 4 years |
| Installation |
Indoors |
| Operating temperature range |
From 0°C to +40°C (manufacture date up to June 1, 2020)
From -10°C to +40°C (manufacture date from June 1, 2020)
How to find the manufacture date of a detector or device
|
| Operating humidity |
Up to 75% |
| Overall dimensions |
135 × 70 × 60 mm |
| Weight |
167 g |
| Service life |
10 years |
2 Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
