Description

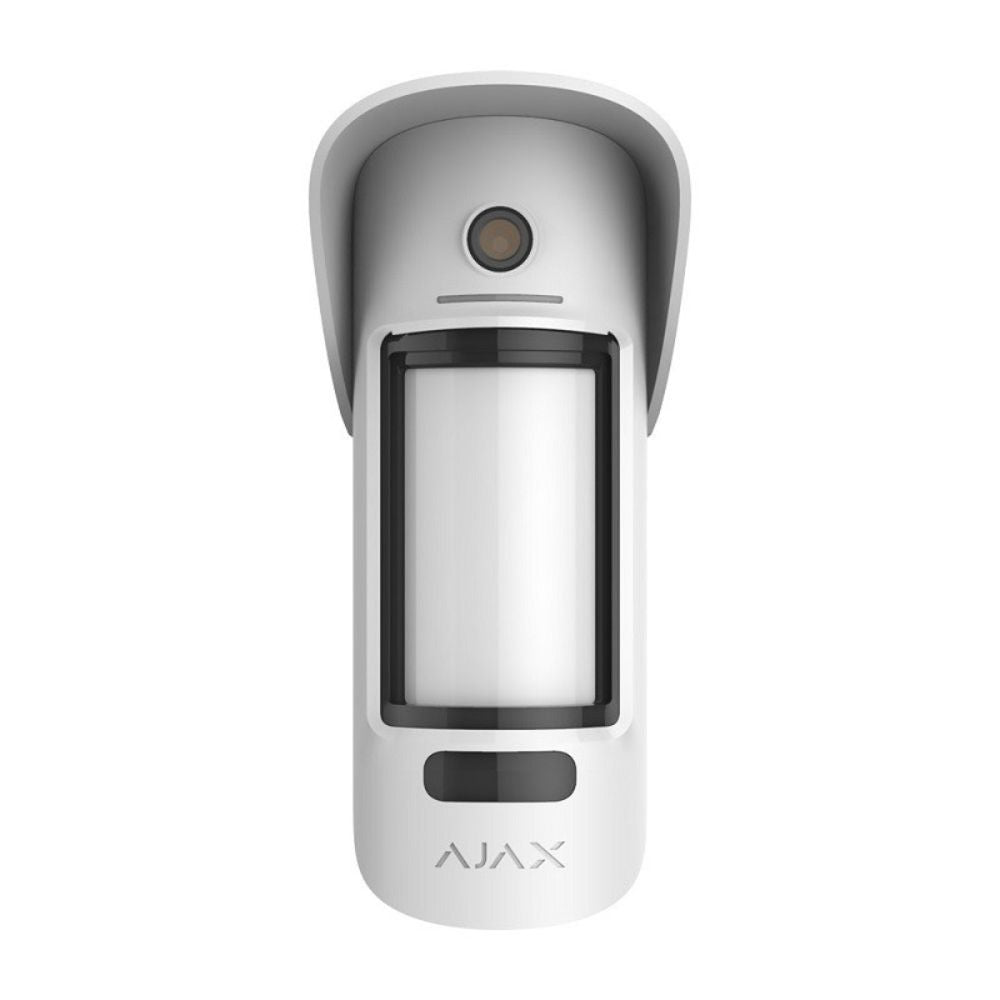

Motion Cam Outdoor is a wireless outdoor motion detector with a camera for alarm verification. Detects movement at a distance of up to 15 meters. Has anti-masking protection, ignores animals when correctly configured and installed.
Features
- Lightning-fast alarms. Verified
- Don't miss a thing
- Intelligent false alarm filter
- Multilevel anti-sabotage protection
- Effective security in any weather
- Uncompromising communication reliability
- Less manual labor. More settings in the app
Complete Set
- MotionCam Outdoor motion detector
- SmartBracket mounting panel
- Hood visor
- 4 × CR123A batteries (pre-installed)
- Installation kit
- User’s guide
More info about MotionCam Outdoor on Ajax website:
https://ajax.systems/products/motioncam-outdoor/
Download
Video
Tech specs
Classification |
Radio-interlinked photoelectric security detector |
Installation method |
Outdoors and indoors |
Type of detector |
Wireless |
Compatibility |
Hub 2, Hub 2 Plus, ReX 2
Doesn’t work with ReX range extenders
|
Sensing element |
Two IR sensors |
Sensitivity |
Adjustable, 3 levels |
Motion detection distance |
3 to 15 meters when installed at 0.8–1.3 meters (set by user)
1 to 13 meters when installed at 0.5 meters (set by user)
|
Horizontal viewing angle of the detector |
90° |
Motion detection speed |
From 0.3 to 2.0 m/s |
Pet immunity option |
Yes. When installed at 0.8–1.3 meters and set up correctly, the detector ignores animals up to 80 centimetres tall
Learn more
|
Camera angle |
- Horizontal — 105°
- Vertical — 50°
|
TV distortion (EBU standard) |
Barrel — 17% |
Sending photo in case of alarm |
Photo resolution:
- 320 × 176 pixels (default)
- 640 × 352 pixels
Shooting series of up to 5 photos
Learn more
|
Infrared backlight for shooting in the dark |
Yes |
Protection against false triggering |
+ |
Tamper protection |
+ |
Protection against masking |
+ |
Temperature sensor |
+ |
CMS compatibility |
Motion alarms are transmitted to CMSs that support SIA (DC-09), ADEMCO 685, SurGuard (Contact ID), and other proprietary protocols.
CMS software with support for photo-verification of alarms
|
Radio communication protocols with Ajax detectors and devices |
Jeweller — for transmitting events and alarms.
Learn more
Wings — for transmitting photos.
Learn more
|
Radio frequency band |
866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depends on the region of sale. |
Maximum radio signal strength |
≤ 20 mW |
Radio signal modulation |
GFSK |
TDMA |
+ |
Radio signal range |
Up to 1,700 m (without obstacles)
Learn more
|
Ping interval |
From 12 to 300 seconds |
Power supply |
4 CR123 batteries |
Power supply voltage |
6 V |
Battery life |
Up to 3 years (up to 2.5 years with Entry Delay setting enabled)
Calculate the battery life
|
Protection class |
IP55 |
Operating temperature range |
From –25°C to +60°C |
Operating humidity |
Up to 95% |
Dimensions |
206 × 108 × 93 mm |
Weight |
470 g |
Service life |
10 years |
Warranty |
24 months
Learn more
|
