Description

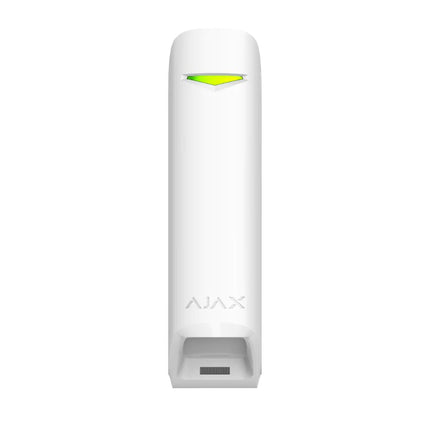

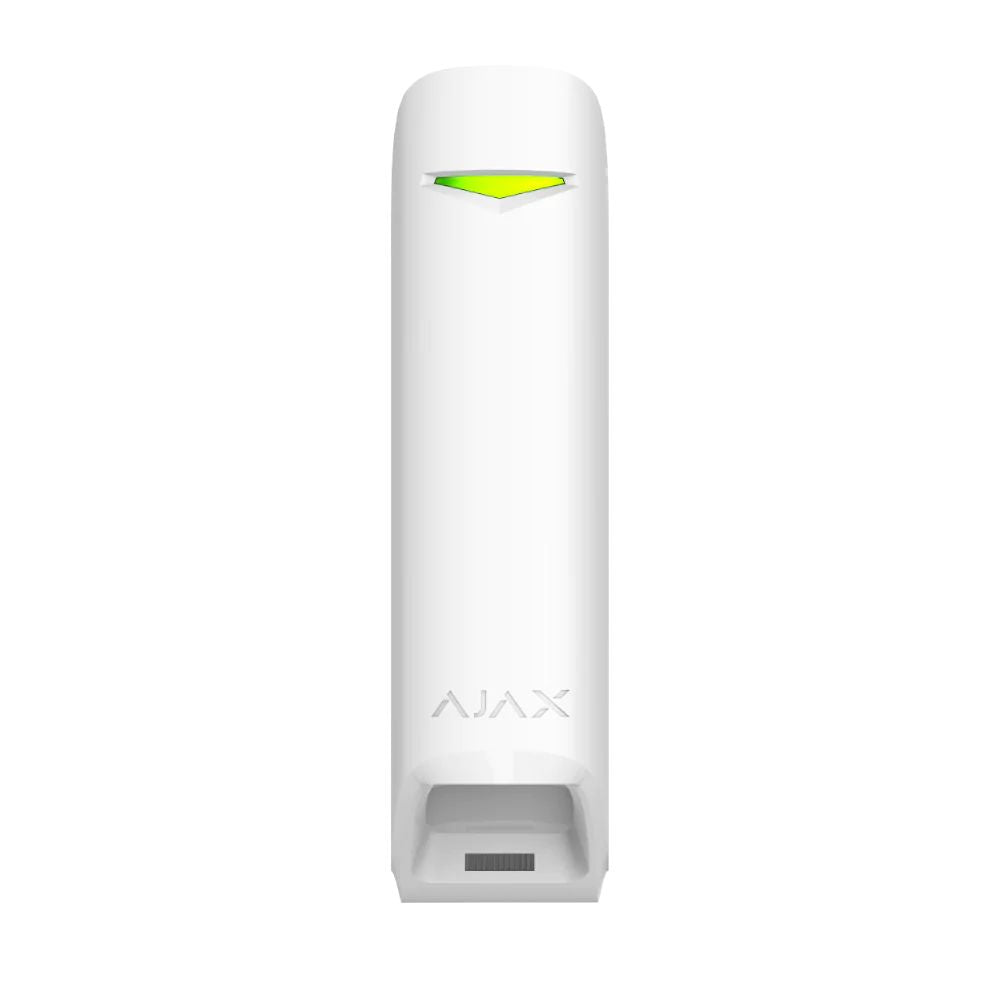

MotionProtect Curtain is a curtain type wireless motion detector. The detector has a narrow horizontal detection angle and is designed for indoor perimeter control: windows, doorways, and other entrances or exits of the guarded facility. Maximum motion detection distance is 15 m.
MotionProtect Curtain integrates into Ajax security systems, connecting to a hub through the Jeweller secure protocol. Wireless coverage may reach up 1,700 m line-of-sight. The pre-installed battery ensures up to 3 years of autonomous operation.
Features
- Detects motion with a range of up to 15 meters
- Works up to 3 years on the pre-installed battery
- Transmits alarms at a distance of up to 1,700 meters away from the hub
- Reliable perimeter protection
- Proprietary optical technology
- Rapid reaction to threats
- Reliable radio communication
- 2-minute set-up
Complete Set
- MotionProtect Curtain motion detector
- SmartBracket mounting panel
- CR123A batteries (pre-installed)
- Bracket
- Installation kit
- User’s guide
More info about MotionProtect Curtain on Ajax website: https://ajax.systems/products/motionprotect-curtain/
Download
Video
Tech specs
Sensor |
PIR sensor, 2 pcs |
Detection angles |
Horizontal — 6°; vertical — 90° |
Time for motion detection |
From 0.3 to 2 m/s |
Placement |
Indoor only |
Motion detection range |
Up to 15/13/11 m (up to 8/7/6 m with Correlation Signal Processing enabled depending on sensitivity settings) |
False alarm reduction |
Available — Correlation Signal Processing |
Tamper Protection |
Available — detector body detachment and damage |
Radio communication protocol |
Jeweller
Learn more
|
Radio frequency band |
866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depends on the region of sale. |
Compatibility |
Operates only with all Ajax hubs, and radio signal range extenders
|
RF signal strength |
Up to 20 mW |
Radio signal modulation |
GFSK |
Radio signal range |
Up to 1700 m line-of-sight |
Power supply |
1 battery CR123A, 3 V |
Battery life |
Up to 3 years |
Installation method |
Indoors only |
Operating temperature range |
From -10°С to +40°С |
Protection class |
IP54 |
Overall dimensions |
134 × 44 × 34 mm |
Weight |
118 g |
Service life |
10 years |
2 Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
