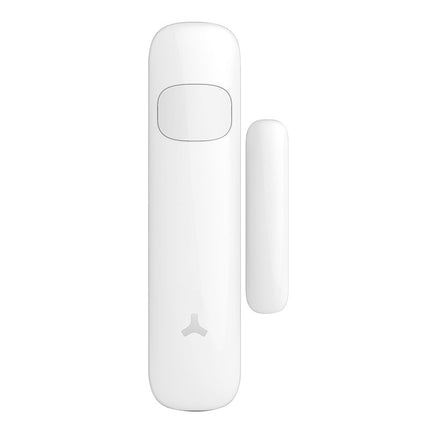

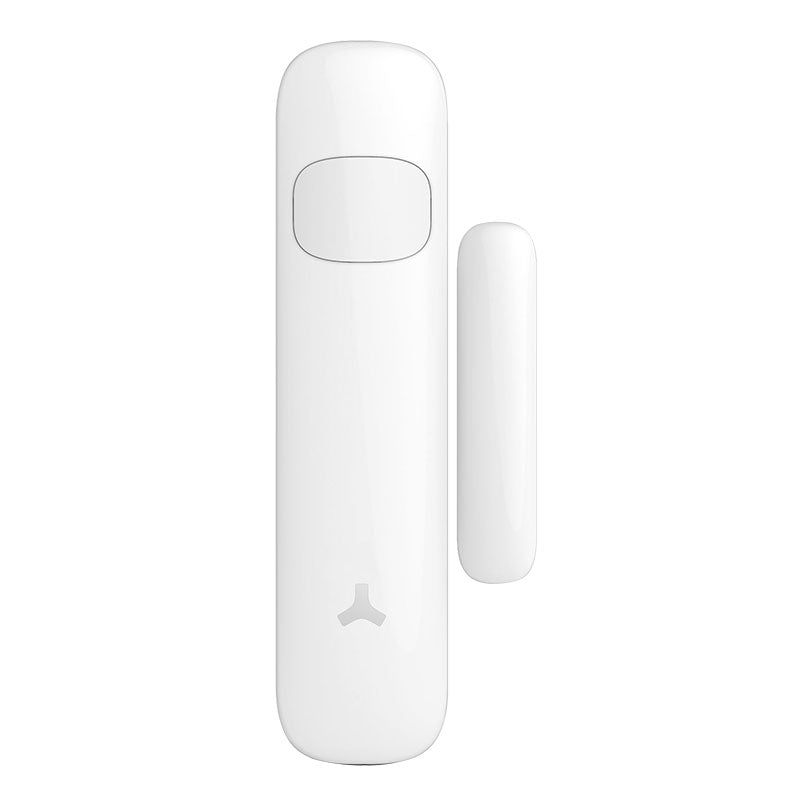

The ALL-PIR1 Wireless PIR Sensor + Reed Switch is an alarm built for indoor environments with a wide angle detection range up to 8m. The ALL-PIR1 combines a PIR motion detector and reed switch, it can detect the opening / closing of windows, doors and human movement.
Product Features:
• Combines PIR sensor and door/window reed switch
• Up to 8m detection range with 90° field of detection
• Features LED light indicator for alarm/battery status
• Tamper switch for vandal protection
• 3VDC power supply, requires 2 x AAAA LR61 batteries
• Up to 12 months of battery life depending on usage
• Monitor and receive alerts to your phone with the Smart Life app
Datasheets
Tech Specs
| Alarm Current | <39mA |
| Detection Range | 8m range / 90° angle |
| Dimensions | 21 x 90 x 18mm (detector) / 10 x 45 x 11mm (magnet) |
| Operating Environment | -20°C~55°C / RH <80% |
| Power Supply | 3VDC (2 x AAAA LR61 batteries) |
| Standby Current | <50?A |
| Wireless RF Frequency | 433MHz |
| Wireless Transmit Distance | <80m (open area) |
