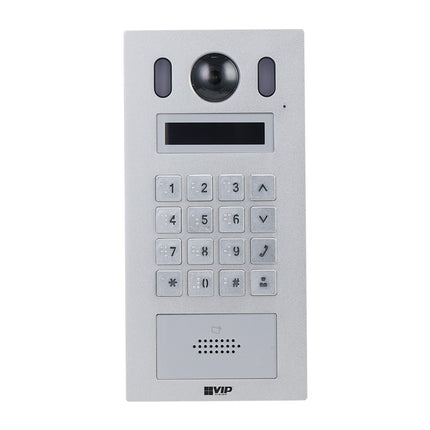

The INTIPADSD is an outdoors video intercom solution, ideal for large access control applications such as apartment complexes, hotels and gated villas. Features a 2.0MP camera and embedded microphone and speakers for two-way talk between the door station and indoor monitors.
Product features:
• 1/2.9’’ 2.0MP 2mm lens camera with 158° diagonal FOV
• Call individual residences for two-way talk via indoor monitor
• Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
• Connect with intercom monitor(s) via Ethernet
• Backlit OLED interface & supplemental white light
• Mechanical buttons with Braille
• Intuitive, easy-to-use interface
• Power over Ethernet (12VDC, 802.3af)
• IP55/IK08 weather & vandal resistant aluminum alloy body (front plate)
* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.
*Please note that this model does not have remote access i.e it can not be used with the DMSS app.
Datasheets
Tech Specs
| App Connection | N/A |
| Audio Input | Omni-directional Microphone |
| Audio Output | Embedded Loudspeaker |
| Bidirectional Talk | Support |
| Button Illumination | Backlit 2.3" OLED, Supplemental White Light (AGC) |
| Camera System | 1/2.9" 2 Megapixel CMOS with 2mm lens (FoV: 138°(H), 78°(V), 158°(D)) |
| Card Support | Built-in NFC Card Reader, Supports up to 10,000 13.56MHz NFC cards |
| Dimensions | 200 x 98 x 32mm |
| Ethernet | 10M/100Mbps Self-adaptive |
| Ingress Protection | IP55 (Front plate) |
| Installation | Surface mount / Flush mount |
| Main Processor | Embedded Microprocessor |
| Max. Additional Door Stations | 10 |
| Max. Indoor Monitors | 200 |
| Network Protocol | TCP/IP |
| Power Consumption | Standby <2W / Operation <6W |
| Power Input | 12VDC, PoE (802.3af) |
| Tamper Detection | Yes |
| Vandal Resistant | IK08 |
| Weight | 1.50kg |
