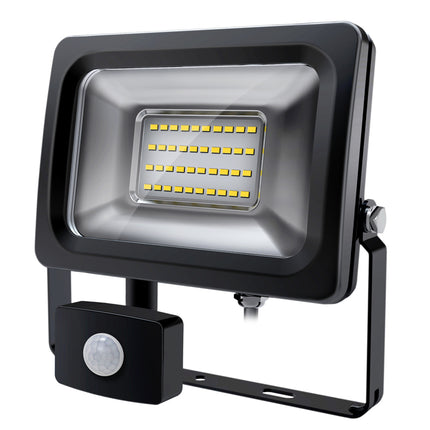

The LFL-C2 Series combines efficient LED flood lighting with customisable motion-sensing technology to compound your energy savings. Available in 20W with adjustable ambient light sensitivity, on-time delay and passive infrared (PIR) motion detection to deliver energy efficient lighting and ideal for security and general purpose lighting.
The LFL-C2 Series is built with a metal, IP65 rated weather resistant chassis, making them suitable for outdoor lighting in residential, commercial and industrial applications.
• Available in 5000K cool white with 120lm/W light output
• Effective light distribution with 120° beam angle
• Adjustable PIR detection up to 12m with a 140° arc.
• Adjustable on-time delay (5s ~ 5min)
• Adjustable U-shape mount with over 180° of motion

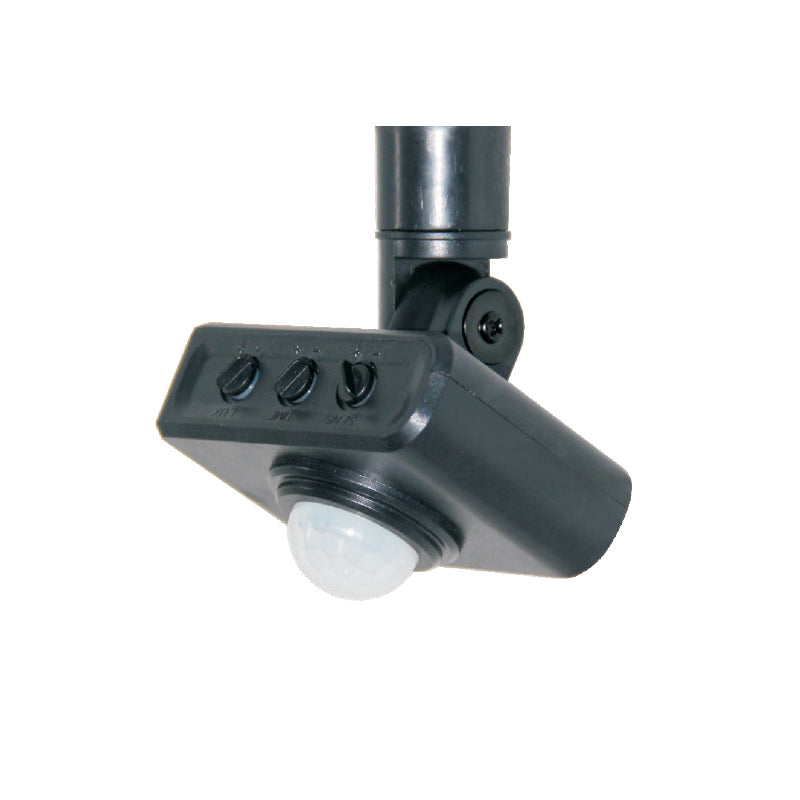

• Adjustable PIR bracket (180° panning with 90°~-90° tilt)
Datasheets
Tech Specs
| Ambient Sensor | 2~2000lx (adjustable) |
| Beam Angle | 120° |
| Colour Rendering Index | >80 |
| Colour Temperature | 5000K |

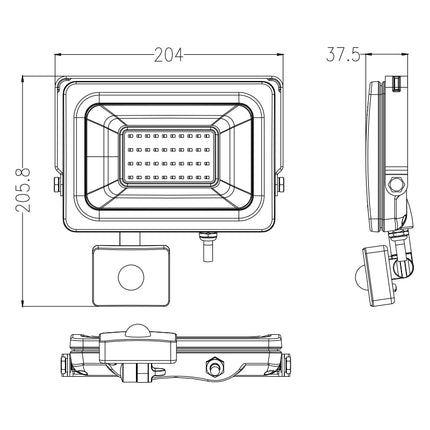

| Dimensions | 204 x 206 x 37.5mm |
| Dimmable | N/A |
| Housing Adjustments | +180° angle adjustable U-shape bracket / Fully adjustable PIR sensor stalk Adjustable PIR sensor bracket (180° panning, 90°~-90° tilt) |
| Ingress Protection | IP65 |
| Input Voltage | 100 ~ 240VAC 50 / 60Hz |
| Light Decay | L70 at 35,000 hours |
| Light Output | 2400lm |
| Luminous Efficacy | 120lm/W |
| Motion Activated | PIR: 140° arc up to 12m range (horizontally), Ø6m range (ceiling) |
| NSW ESS Accepted | N/A |
| Operating Environment | -20° ~ 50°C |
| Plug / Socket / Base | Requires 3-pin AC plugBare wire, unterminated |
| Power Consumption | 20W |
| Power Factor | >0.95 |
| Rated Lifespan | 35,000 hours |
| Reflector / Diffuser | Aluminium reflector / Tempered glass front |
