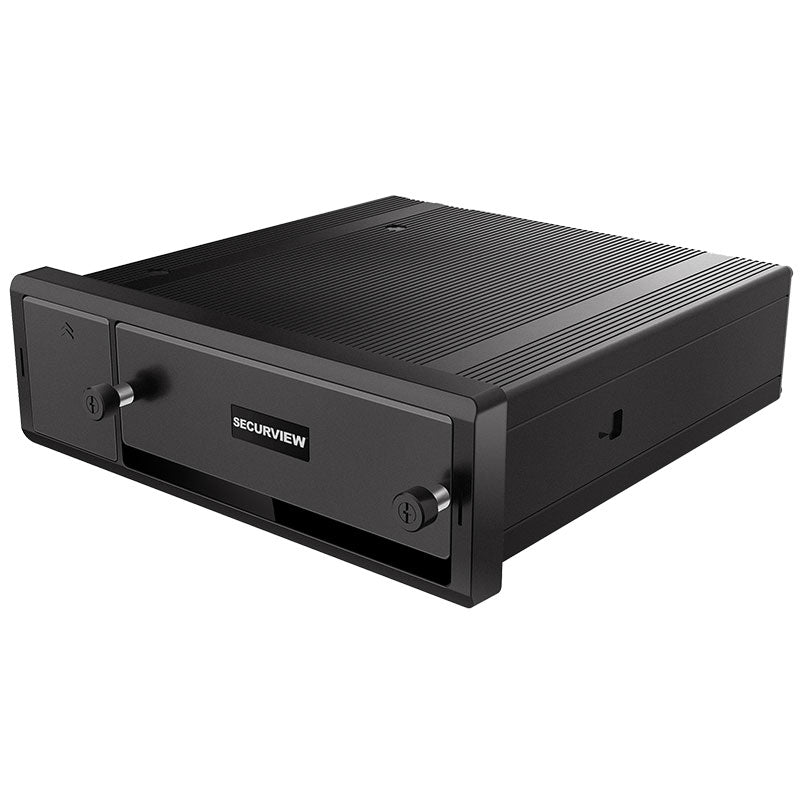

The MCVR-GPS8GW is an 8 channel mobile HDCVI DVR with Full HD 1080p recording, high precision GPS for vehicle tracking and remote view via 4G, all in a robust, lockable case. Perform essential functions such as monitoring driver and passenger behaviour, gathering video evidence in the event of an accident, proof of delivery and GPS vehicle tracking.
Product features:
• Records 8 channels up to Full HD 1080p (1920 x 1080p) at 25fps
• Combines video footage with GPS tracking overlay
• Ideal for public transport, cash transit, shipping, etc.
• 2 x 2.5'' SATA HDD bay & SD card slot up to 128GB
• Audio, alarm, RS485 and RS232 inputs
• Robust housing; vibration-dampening construction
• Heavy duty M12 video input connectors
• Single DIN standard size
• 4G & WiFi allows for mobile remote viewing from anywhere (SIM not included)
Datasheets
Tech Specs
| Alarm Input/Output | 7 channels input / 2 channels output |
| Audio Input/Output | 4 channels input / 1 channel output |
| Auxiliary inputs | 1 x RS232 / 1 x RS485 |
| Backup Modes | USB Device / Network |
| Bit Rate | 48~8192Kbps |
| Camera Configurations | 8 channels up to 1080p/25fps (HDCVI), 8 channels up to 960H/25fps (analogue) |

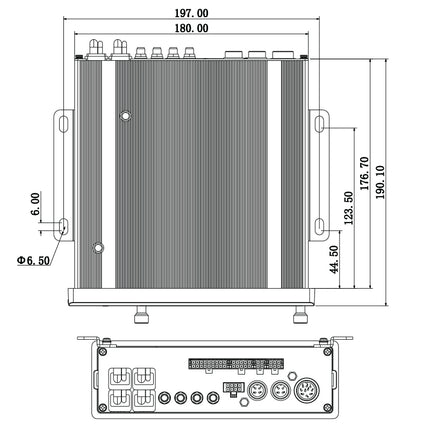

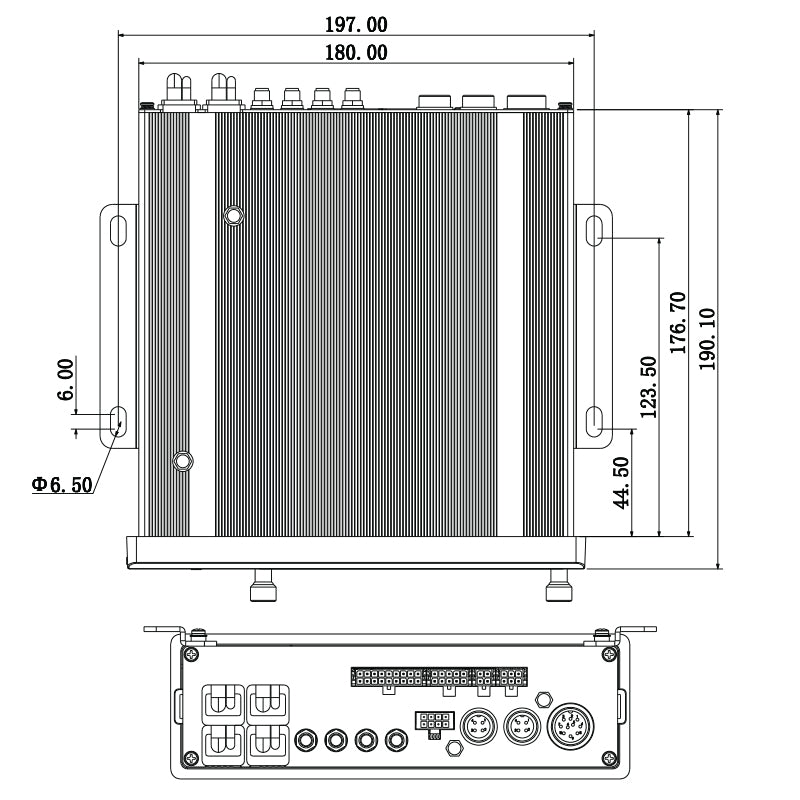

| Dimensions | 180mm x 190mm x 50mm |
| DIN Size | Single DIN |
| Display Resolution | 1920 x 1080 to 800 x 600 |
| Display Split | 1 / 4 / 8 / 9 |
| Ethernet | 1x RJ-45 port (10/100/1000M) |
| Frame Rate (Main) | 1080p (1~25fps) |
| Frame Rate (Sub) | 960H (1~6fps) / CIF (1~25fps) |
| Frame Rate (Third) | N/A |
| GPS | Built-in highly accurate GPS module / Overlay: car number, time, position, speed |
| Internal HDD | 2 x 2.5’’ SATA ports / 1 x SD card slot, up to 128GB |
| Main Processor | Embedded Processor |
| Max. Recording Bandwidth | 64Mbps |
| Max. User Access | 128 users |
| Maximum Resolution | 1080p (1920 x 1080) / 720p (1280 x 720) |
| Network Functions | TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server |
| Operating Environment | -30 ~ +60°C / 0~90%RH |
| Operating System | Embedded Linux |
| OSD | Camera title, time, video loss, camera lock, motion detection, recording |
| Playback Sync | 44565 |
| Power Consumption | <12W (without HDD) |
| Power Supply | 6 ~ 36VDC |
| Record Interval | 1~120 min (default: 60 min) / Pre: 1~30s / Post: 10~300s |
| Record Modes | Manual / Schedule (Regular, Continuous), Motion Detection, Alarm, Stop |
| Remote View | iOS (iPhone, iPad); Android devices, Windows Phone (Requires optional 3G/4G module) |
| Search Modes | Time/Date; Alarm; Motion detection; Exact search |
| Trigger Events | Recording; PTZ; tour; alarm; email notification; FTP upload; internal buzzer; and screen tip overlay |
| Two-Way Talk | Reuse channel 1 audio input/output |
| USB Interface | 3 ports: 2 x USB3.0 (front), 1 x USB2.0 (rear) |
| Video Compression | H.264 / G.711 |
| Video Detection | MD zones: 396 (22 × 18) / Video loss / Camera blank |
| Video Input | 8 channel HDCVI / Analogue |
| Video Output | 1 x VGA (cable sold separately) / 2 x TV |
| Weight | 2.2kg (without HDD) |
