| Alarm Input / Output | N/A |
| Auxiliary Inputs | N/A |
| Backup Modes | USB Device / Network |
| Bit Rate | N/A |
| Decoding Capacity | 8 channels: 1080p (25fps) |

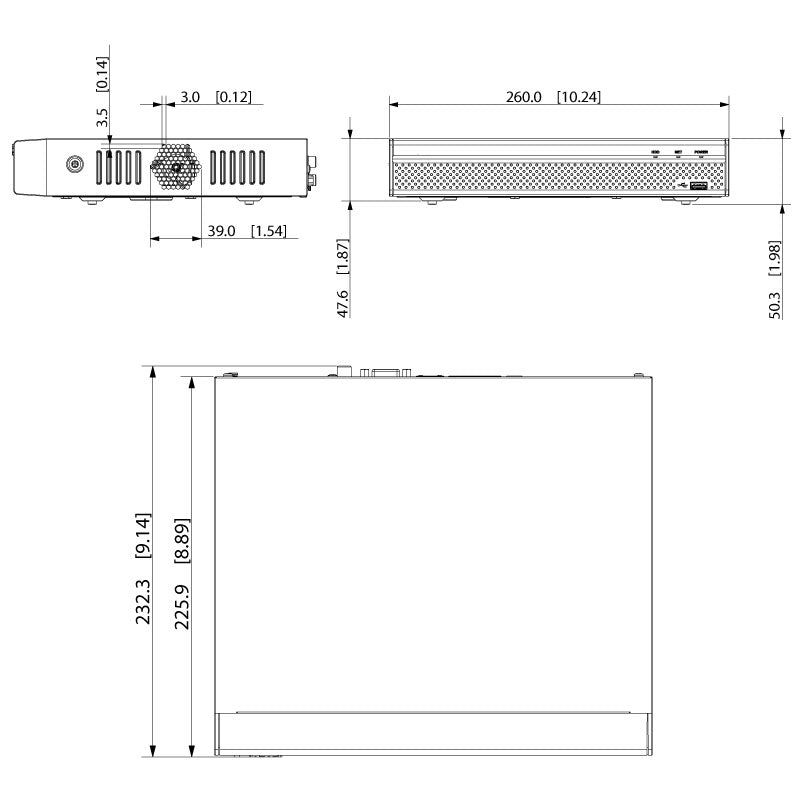

| Dimensions | 260mm x 225mm x 48mm |
| Display Resolution | Configurable from 3840 x 2160 to 1024 x 768 |
| Display Split | 1/4/8/9 |
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| HDD Modes | Single (no RAID compatibility) |
| Incoming Bandwidth | 80Mbps |
| Internal HDD | 1 x SATA port up to 10TB, max. 10TB HDD capacity |
| Interoperability | ONVIF (Profile S), CGI, SDK, RTSP |
| Main Processor | Industrial grade embedded processor |
| Max. User Access | 128 users |
| Network Functions | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, P2P |
| Operating Environment | -10 ~+55°C / 10~90%RH |
| Operating System | Embedded Linux |
| Optical Interface | N/A |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Playback Sync | 36989 |
| PoE | Yes |
| Power Consumption | NVR: <10W (without HDD) / PoE: Max 25.5W per port, 72W total |
| Power over Ethernet | 8 ports (IEEE802.3at/af, 10/100Mbps) |
| Power Supply | 48 ~ 53VDC / 1.8 ~ 2A |
| Rackmount Units | Compact 1RU |
| Rackmountable | No |
| Record Interval | N/A |
| Record Modes | Manual / Schedule (Regular [Continuous], Motion Detection, Alarm, Timed) / Stop |
| Recording Resolution | Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288) |
| Remote View | iOS (iPhone, iPad) / Android devices |
| Search Modes | Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search |
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips, Log |
| Two-way Talk | 1 channel input, 1 channel output, RCA |
| USB Interface | 2 ports: Rear USB2.0 / Front USB2.0 |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Video Detection | General: Motion Detection, Smart Motion Detection, Video Loss, Privacy Masking, IPC Alarm / Anomlay: Device Offline, Storage Error, Network Security, IP/MAC Conflict |
| Video Input | 8 channels |
| Video Output | 1 HDMI / 1 VGA |
| Weight | 0.92kg (without HDD) |
