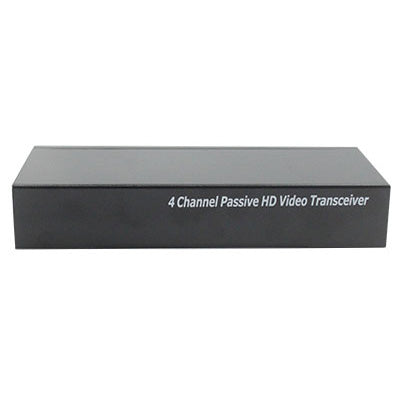

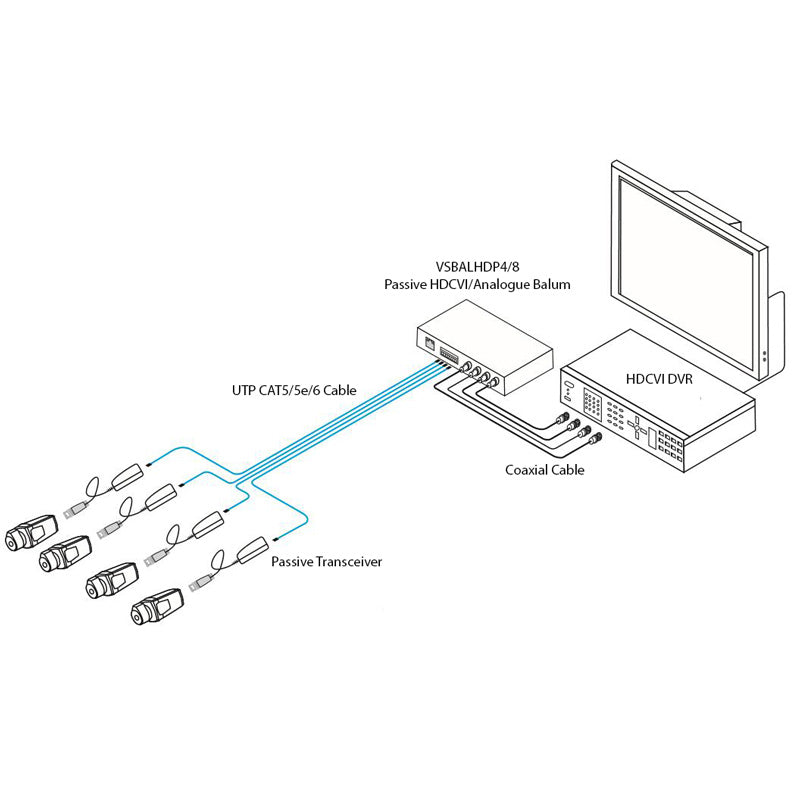

The VSBALHDP4 4 channel video balun minimises the cost of CCTV installations allowing network cabling (CAT5/5e/6) to be used instead of coax cable in HDCVI installations.
Product features:
• Compatible with up to 4 HDCVI, HDTVI and AHD signals
• Transmit HD video up to 400m (passive to passive)
• Transmit HD video up to 600m (passive to active)
• Compatible with CAT5/CAT5e/CAT6 UTP cable

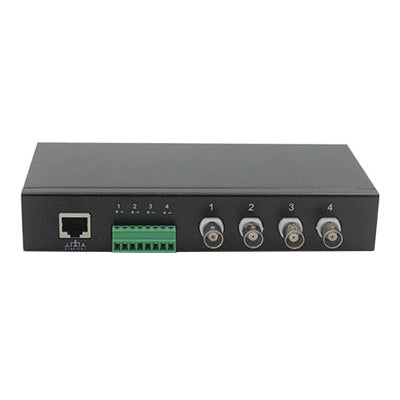

• RJ45/green terminal block connects UTP cable
• Compact design with surge protection
• Passive - no power supply required
Includes:
1 x 4 Channel Passive HDCVI/Analogue Balun
1 x Installation manual
2 x Rack-mount ears
8 x Rack-mount screws
4 x Rubber base pads
Datasheets
Tech Specs
| Channels | 4 |
| Dimensions | 180 x 100 x 45mm |
| Interference Rejection | >60dB |
| Signal Compatibility | HDCVI / HDTVI / AHD |
| Signal Transmission Band | 0-65MHz |
| Transmission Distance (AHD) | 720p: 350m / 1080p: 200m |
| Transmission Distance (HDCVI) | 720p: 400m / 1080p: 250m / 4.0MP: 200m |
| Transmission Distance (HDTVI) | 720p/1080p: 250m |
| UTP Cable Connector | 8 pin green terminal block / RJ-45 |
| UTP Cable Connector Protection | 2KV (different mode) / 4KV (common mode) |
| Video Connector | BNC-F |
| Video Connector Protection | 2KV (common mode) |
| Weight | 0.4kg |
