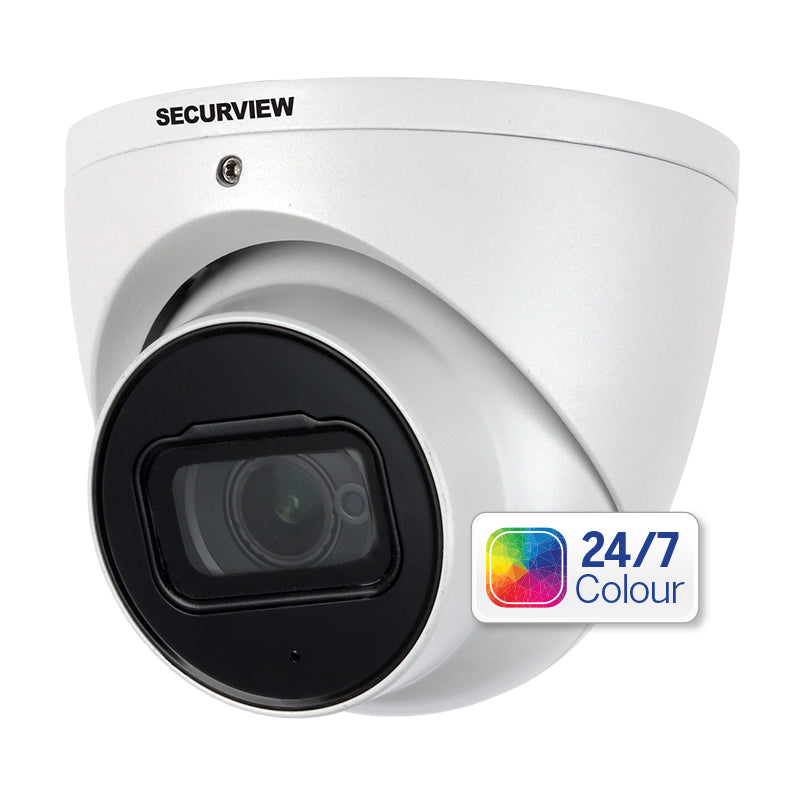

Designed specially for low light applications, the VSCVI-2DFCG 24/7 Colour HDCVI dome is capable of capturing vivid colour footage in the most challenging lighting conditions, with a high performance image sensor and large aperture lens.
Camera features:
• Stream up to Full HD 1080p (1980x 1020) at 25fps
• 3.6mm fixed lens with 90° viewing angle
• 24/7 Colour low light footage at 0.001lx
• Large 1/2.8'' sensor for excellent low light performance
• HDCVI / AHD / TVI / Composite switchable via DIP switch
• Up to 700m video transmission over coaxial cable
• True WDR (120dB) and 2D/3D noise reduction
• IP67 rated weather resistant metal housing
• Supports HDCVI, AHD, HDTVI & Composite video format modes

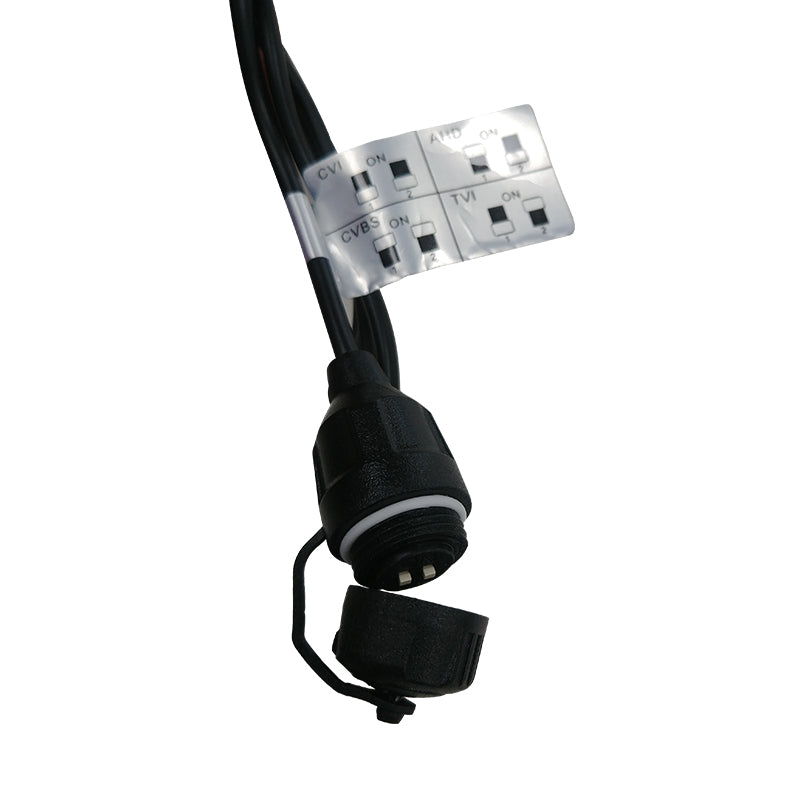

• Switch modes via DIP switches
Datasheets
Tech Specs
| Alarm Interface | N/A |
| Angle of View | 90° |
| Audio Input | 1 channel in & Built-in Mic |
| Camera Type | Turret |
| Day/Night | Auto (ICR) / Manual |
| Detect (25px/m) | 53m |

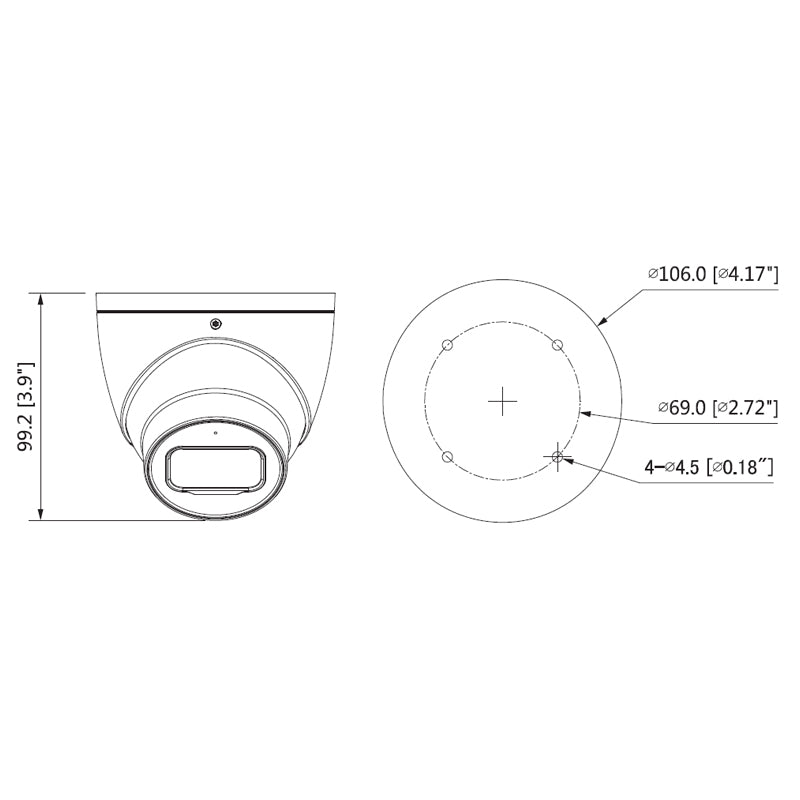

| Dimensions | Ø106 x 99mm |
| Effective Pixels | 1920(H)×1080(V) |
| Electronic Shutter | 1/4s ~ 1/100,000s |
| Focus | Fixed / 1.6m Min. Focus Distance |
| Frame Rate | 25fps (1080p and lower) |
| Gain Control | Auto |
| Housing | Aluminium |
| Identify (250px/m) | 5m |
| Image Sensor | 1/2.8” 2.0 Megapixel CMOS |
| Infrared Range | N/A |
| Ingress Protection | IP67 |
| Lens | 3.6mm F1.0 Fixed Lens |
| Lens Type | Fixed |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| Max. Resolution | 2.0 Megapixel |
| Minimum Illumination | 0.001 Lux at F1.0 (Colour) |

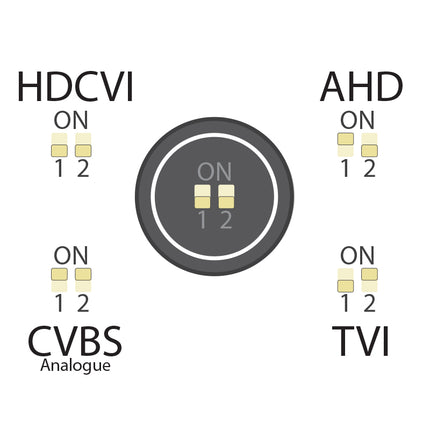

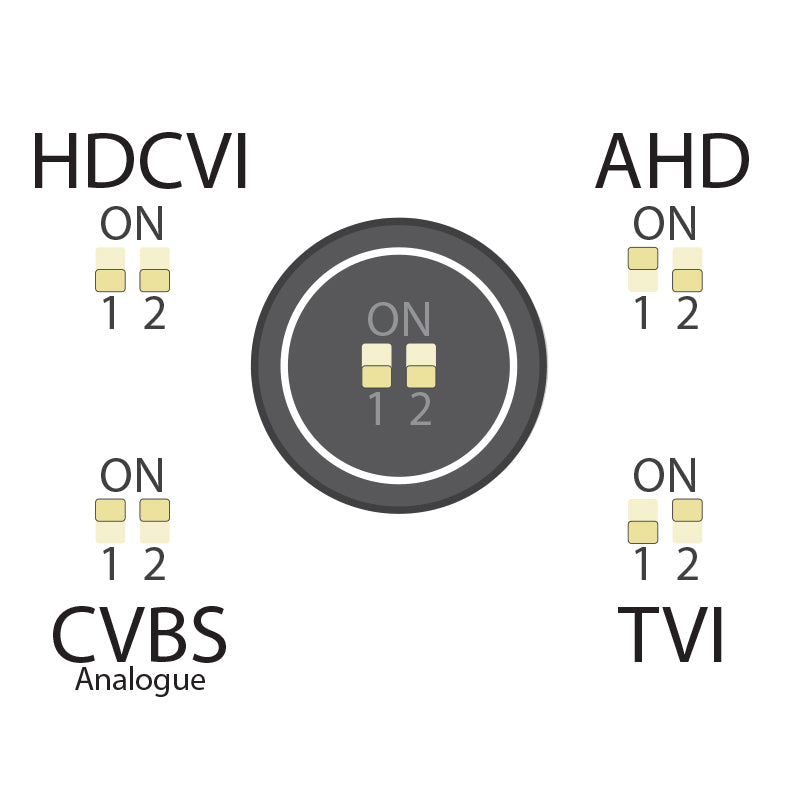

| Mode Switching | DIP Switches |
| Modes Supported | HDCVI, AHD, HDTVI & Composite |
| Noise Reduction | 2D / 3D |
| Observe (63px/m) | 21m |
| Operating Environment | -30° to 60°C / RH90% (max) |
| OSD Menu | Support |
| Power Consumption | <7W |
| Power Input | 12VDC |
| Recognise (125px/m) | 11m |
| Resolution | 2.0MP 1920 x 1080 |
| Series | Professional Series |
| Signal Noise Ratio | > 65dB |
| Synchronisation | Internal |
| Transmission Distance | Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions) |
| Tri-Axis Mounting | N/A |
| Vandal Resistant | N/A |
| Video Output | 1 x HDCVI / AHD / TVI / Composite video output |
| Weight | 0.50kg |
| White Balance | Auto / Manual |
