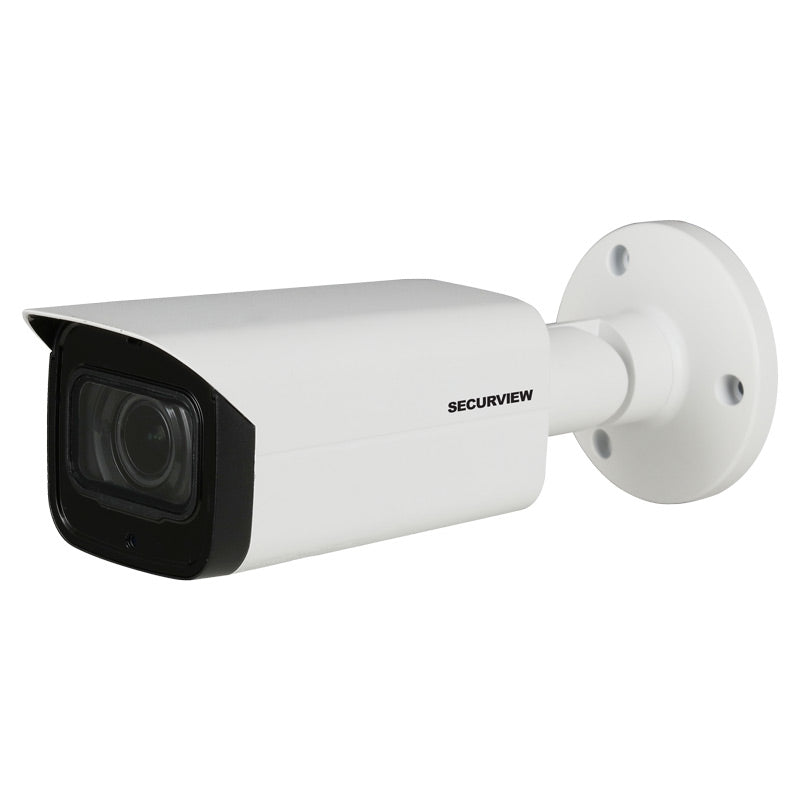

With superior 80m infrared illumination, 4K resolution and ultra low light colour, the VSCVI-8BIRMG captures clear footage at all hours, featuring a motorised varifocal lens for easy remote image adjustment.
Camera features:
• Stream up to UHD/4K/8.0MP (3840 x 2160) at 15fps
• Motorised varifocal 3.7~11mm lens with fixed iris
• Large 1/2'' sensor for excellent low light performance
• Smart infrared illumination, up to 80m range
• HDCVI / AHD / Composite switchable via DIP switch
• Up to 700m video transmission over coaxial cable
• True WDR (120dB) and 2D/3D noise reduction
• IP67 rated weather resistant metal housing
• Supports HDCVI, AHD, HDTVI & Composite video format modes

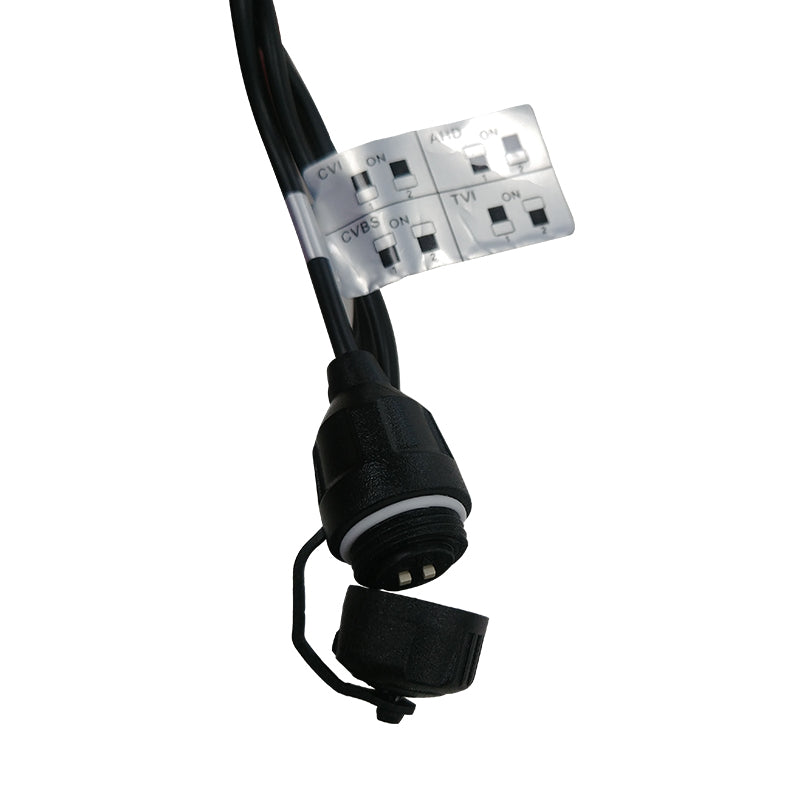

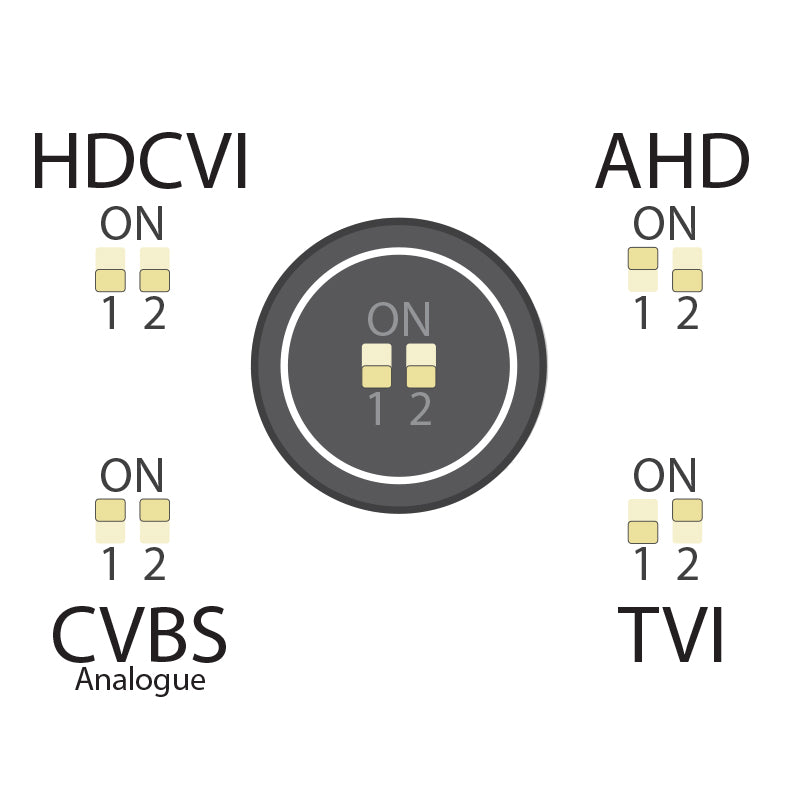

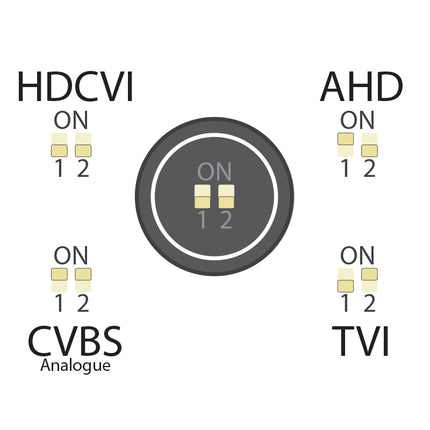

• Switch modes via DIP switches
Datasheets
Tech Specs
| Alarm Interface | N/A |
| Angle of View | 112° (wide) ~ 46° (tele) |
| Audio Input | Built-in Microphone / 1 Input |
| Camera Type | Bullet |
| Day/Night | Auto (ICR) / Colour / B&W |
| Detect (25px/m) | 83m (wide) / 190m (tele) |

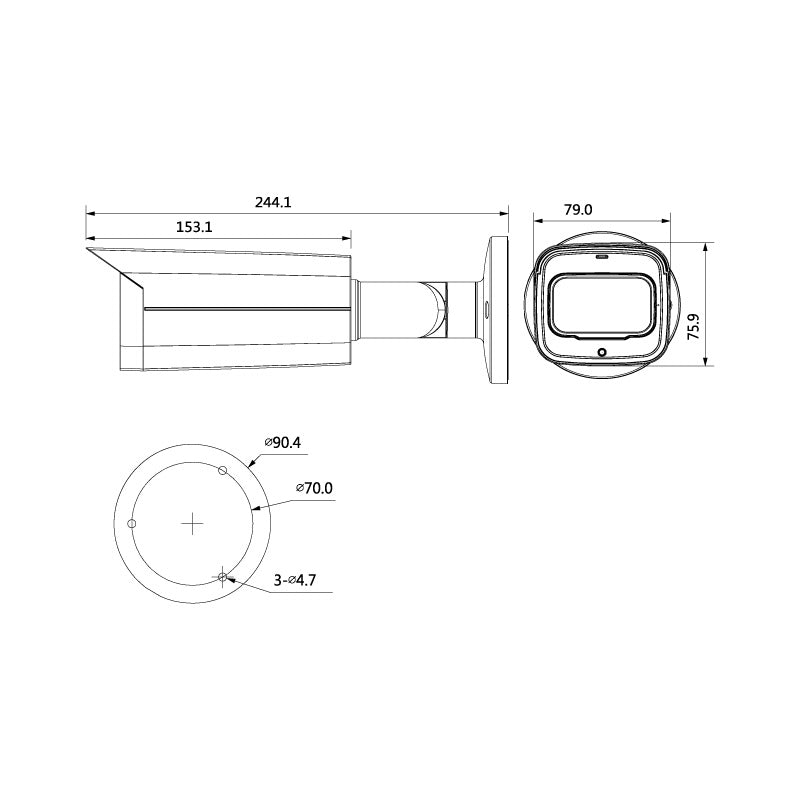

| Dimensions | 244 x 90 x 90mm |
| Effective Pixels | 3840 (H) x 2160 (V) |
| Electronic Shutter | 1/4s ~ 1/100,000s |
| Focus | Fixed / 1.8m Min. Focus Distance |
| Frame Rate | 15fps (8.0MP) / 20fps (6.0MP) / 25fps (4.0MP and lower) |
| Gain Control | AGC |
| Housing | Aluminium |
| Identify (250px/m) | 8m (wide) / 19m (tele) |
| Image Sensor | 1/2” 8.0 Megapixel CMOS |
| Infrared Range | 80m |
| Ingress Protection | IP67 |
| Lens | 3.7mm ~ 11mm F1.5 Motorized Lens |
| Lens Type | Motorised Varifocal |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| Max. Resolution | 8.0 Megapixel |
| Minimum Illumination | 0.005 Lux at F1.5 (Colour) / 0 Lux IR Active |
| Mode Switching | DIP Switches |
| Modes Supported | HDCVI, AHD, HDTVI & Composite |
| Noise Reduction | 2D / 3D |
| Observe (63px/m) | 33m (wide) / 76m (tele) |
| Operating Environment | -30° to 60°C / RH90% (max) |
| OSD Menu | Support |
| Power Consumption | < 12.5W |
| Power Input | 12VDC |
| Recognise (125px/m) | 17m (wide) / 38m (tele) |
| Resolution | 8.0MP (3840 x 2160) to CIF (352 x 288) |
| Series | Professional Series |
| Signal Noise Ratio | > 65dB |
| Synchronisation | Internal |
| Transmission Distance | Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions) |
| Tri-Axis Mounting | N/A |
| Vandal Resistant | N/A |
| Video Output | 1 x HDCVI / AHD / TVI / Composite video output |
| Weight | 0.76kg |
| White Balance | Auto / Manual |
