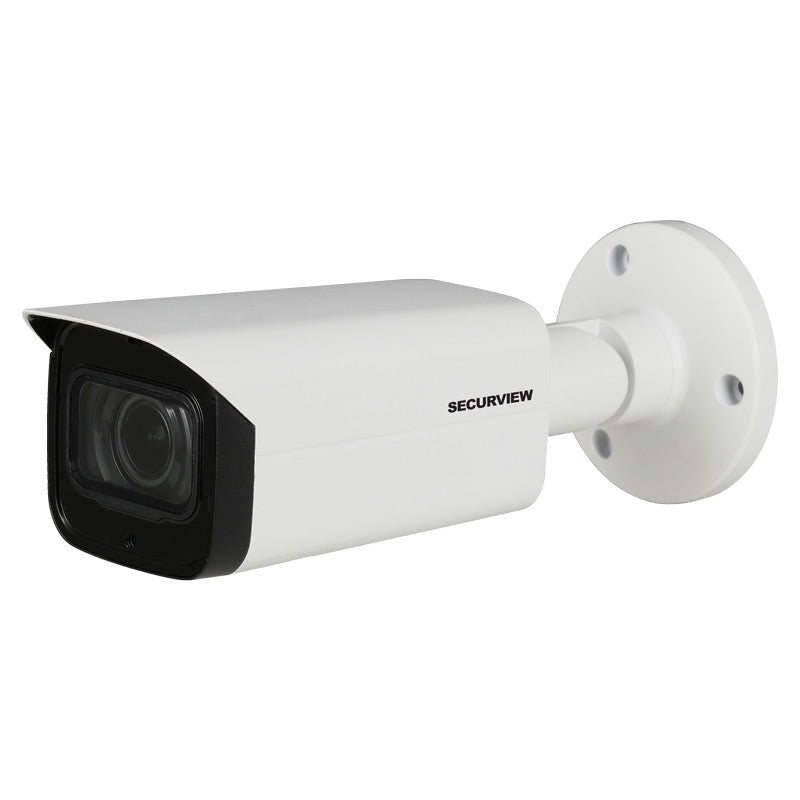

With superior 80m infrared illumination, 1080p resolution and ultra low light colour, the VSCVI2MPFBIRMV4 captures clear footage at all hours, featuring a motorised varifocal lens for easy remote image adjustment.
Camera features:
• Stream up to 2.0MP (1920 x 1080) at 25fps
• Motorised varifocal 2.7 ~ 13.5mm lens with fixed iris
• Superb colour low light performance 0.004lx
• Up to 700m video transmission over coaxial cable
• Smart infrared illumination, up to 80m range
• Switchable BNC output for HD and composite video
• True WDR (120dB) and 2D/3D noise reduction
• Dual voltage compatible: 12VDC and 24VAC
• IP67 rated weather resistant metal housing
• Supports HDCVI, AHD, HDTVI & Composite video format modes

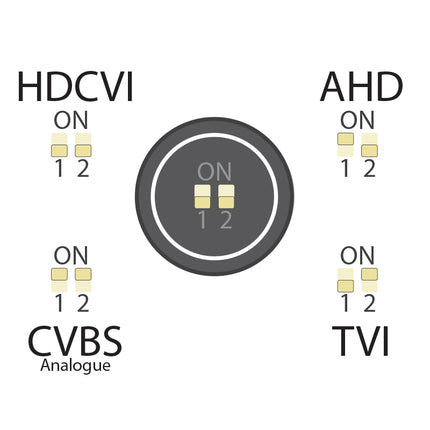

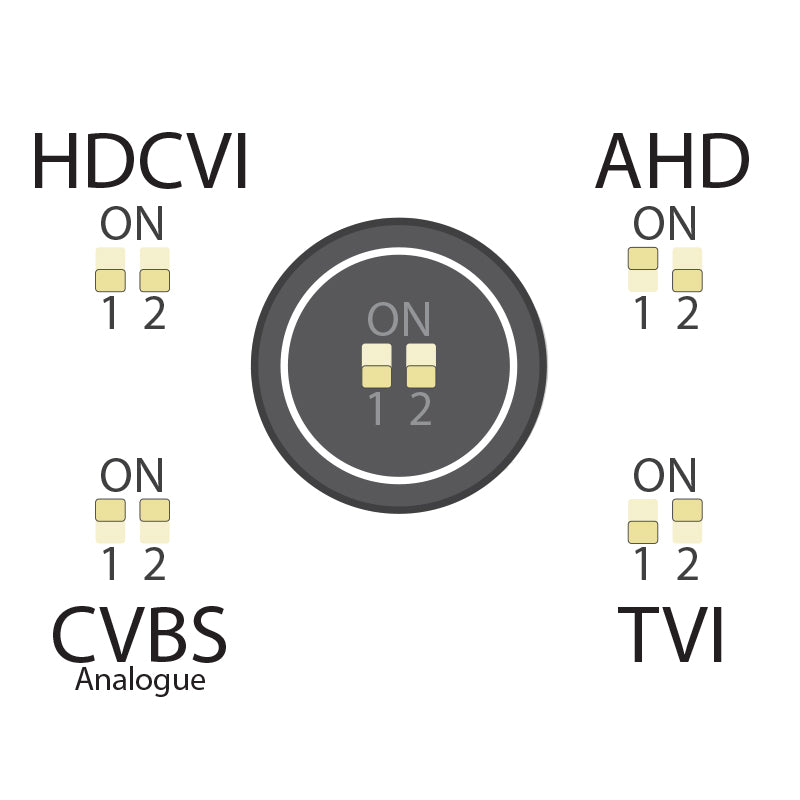

• Switch modes via DIP switches
Datasheets
Tech Specs
| Alarm Interface | N/A |
| Angle of View | 109° (wide) ~ 29° (tele) |
| Audio Input | Built-in Microphone / 1 input |
| Camera Type | Bullet |
| Day/Night | Auto (ICR) / Colour / B&W |
| Detect (25px/m) | 44m (wide) / 153m (tele) |
| Dimensions | 244 x 90 x 90mm |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Electronic Shutter | 1/4 ~ 1/100,000s |
| Focus | Auto/Manual / 0.2m Min. Focus Distance |
| Frame Rate | 25fps (1080p and lower) |
| Gain Control | AGC |
| Housing | Aluminium |
| Identify (250px/m) | 4m (wide) / 15m (tele) |
| Image Sensor | 1/2.8” 2.0 Megapixel CMOS |
| Infrared Range | 80m |
| Ingress Protection | IP67 |
| Lens | 2.7 ~ 13.5mm F1.6 Motorised Lens; Fixed Iris |
| Lens Type | Motorised Varifocal |
| Lighting Compensation | BLC / HLC/ WDR (120dB) |
| Max. Resolution | 2.0 Megapixel |
| Minimum Illumination | 0.004 Lux at F1.6 (Colour) / 0 Lux IR Active |
| Mode Switching | DIP Switches |
| Modes Supported | HDCVI, AHD, HDTVI & Composite |
| Noise Reduction | 2D / 3D |
| Observe (63px/m) | 18m (wide) / 61m (tele) |
| Operating Environment | -30° to 60°C / RH90% (max) |
| OSD Menu | Multi language |
| Power Consumption | <11.1W |
| Power Input | 12VDC / 24VAC |
| Recognise (125px/m) | 9m (wide) / 31m (tele) |
| Resolution | 1080p (1920 x 1080) to CIF (352 x 288) |
| Series | Professional Series |
| Signal Noise Ratio | > 65dB |
| Synchronisation | Internal |
| Transmission Distance | Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions) |
| Tri-Axis Mounting | No |
| Vandal Resistant | N/A |
| Video Output | 1 x HDCVI / AHD / TVI / Composite Video Output |
| Weight | 0.81kg |
| White Balance | Auto / Manual |
