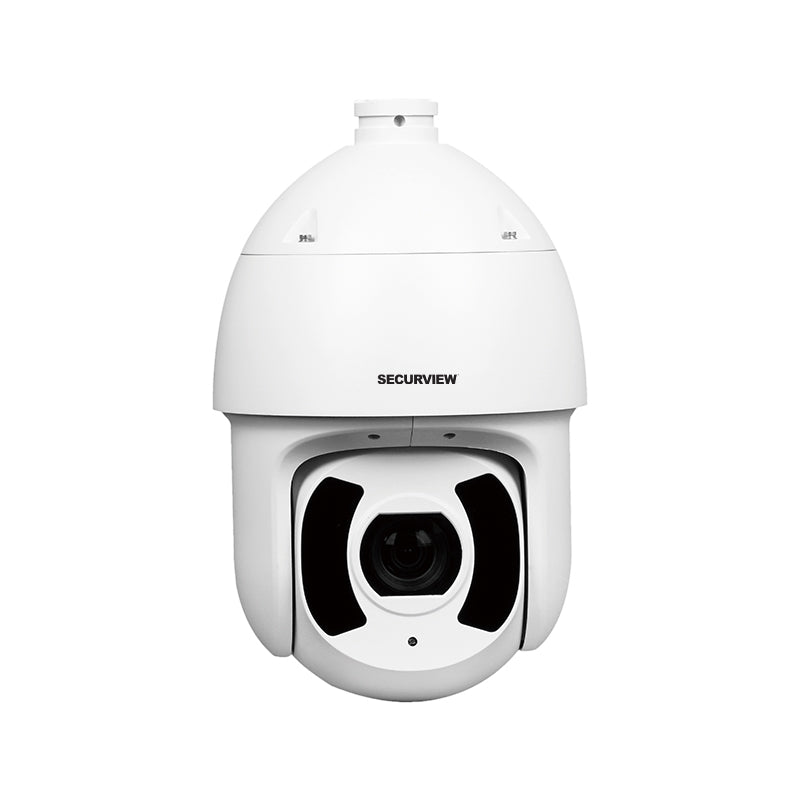

Every moment captured with the Securview HDCVI PTZ series. The VSCVIPTZ-2IRU features superior colour rendering in low light conditions, with an incredible 25x zoom distance and low light colour performance.
Camera features:
• Stream up to 1080p (1920 x 1080) at 25fps
• Motorised 4.8 ~ 120mm lens with auto iris
• 62.8° ~ 2.6° horizontal viewing angles
• Smart infrared illumination, up to 200m
• Superb low light colour performance at 0.005lx
• Endless 360° pan, 20°~90° tilt-range and auto-flip 180°
• 2/1 alarm input/output and 1 channel audio input
• True WDR (120dB) and 2D/3D noise reduction
• IK10 vandal resistant metal housing
• Supports HDCVI & Composite video format modes
• Switch modes via the PTZ internal DIP switches

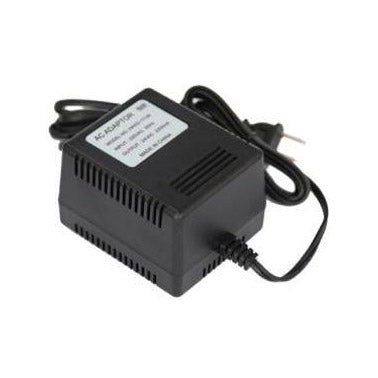

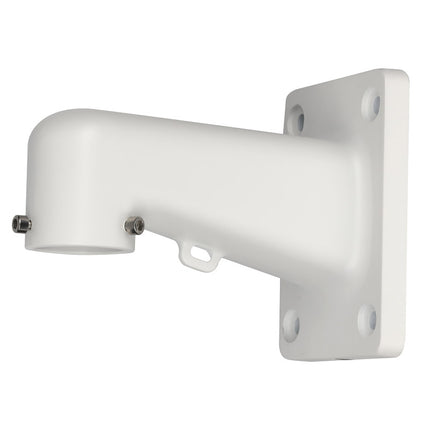

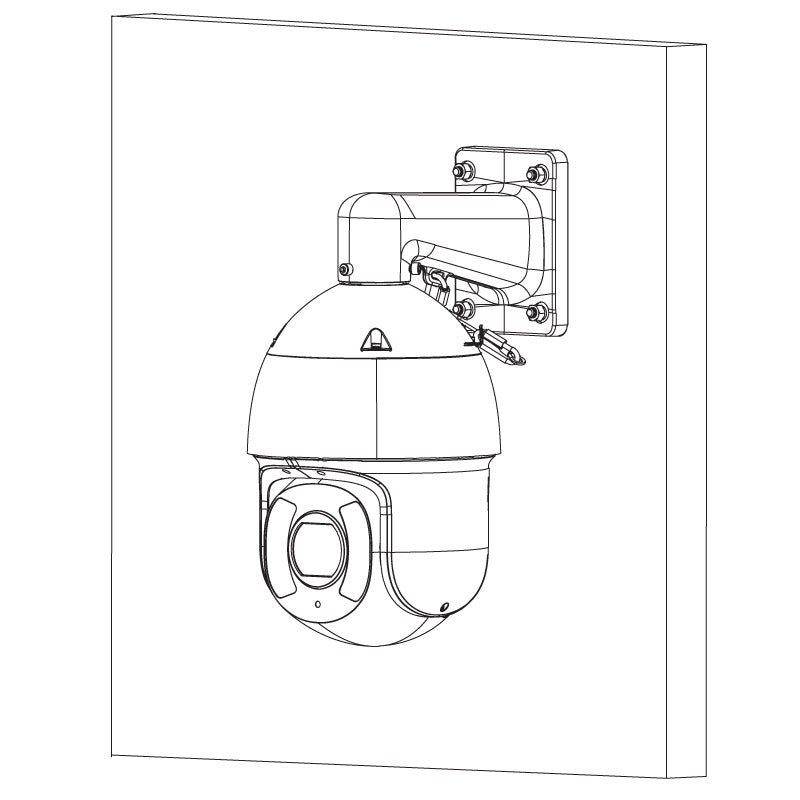

This PTZ dome camera comes standard with right angle bracket and AC power supply.
Datasheets
Tech Specs
| Alarm Interface | 1 channel in/ 1 channel out |
| Angle of View | 62.8° (wide) ~ 2.6° (tele) (25x Optical Zoom) |
| Audio Input | 1 channel in |
| Camera Type | PTZ Dome |
| Day/Night | Auto (ICR) / Colour / B&W |
| Detect (25px/m) | 1613m |

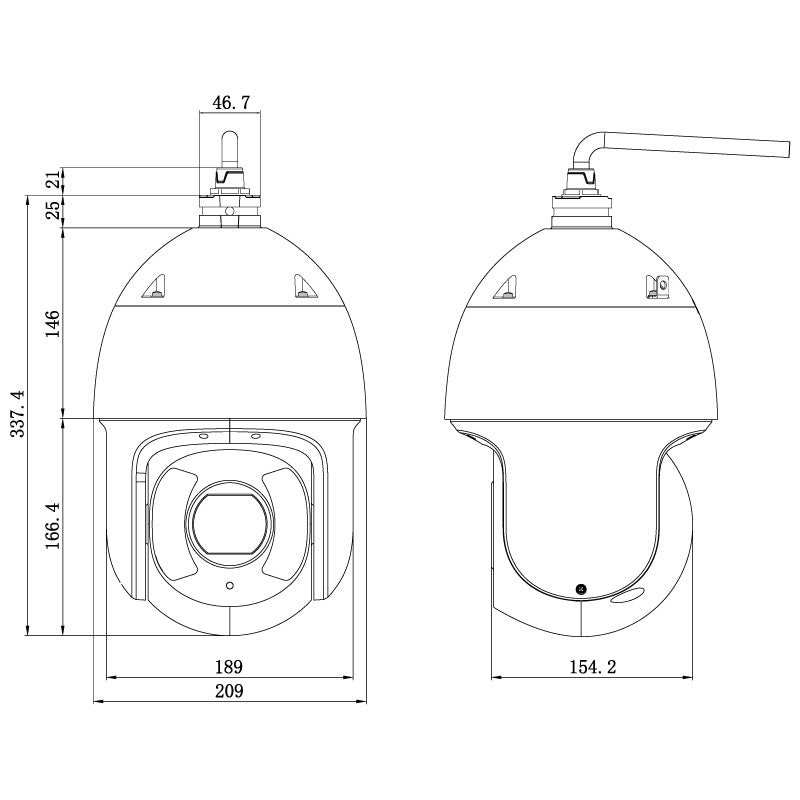

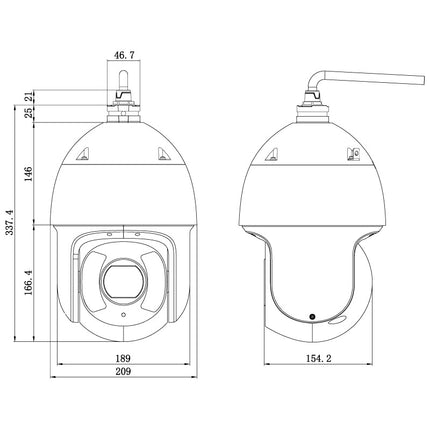

| Dimensions | Ø209 x 337mm |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Electronic Shutter | 1/1 ~ 1/30,000s |
| Focus | Auto/Manual / 0.1m Min. Focus Distance |
| Frame Rate | 25fps (4.0MP/1080p) / 60fps (720p and lower) |
| Gain Control | Auto/ Manual |
| Housing | Metal |
| Identify (250px/m) | 161m |
| Image Sensor | 1/2.8” 2.0 Megapixel CMOS |
| Infrared Range | 200m |
| Ingress Protection | IP67 |
| Lens | 4.8 ~ 120mm F1.6 ~ F4.4 Motorised Lens; Auto Iris |
| Lens Type | Motorised Varifocal |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| Manual PTZ Speed | Pan: 0.1° ~ 200°/s; Tilt: 0.1° ~ 120°/s |
| Max. Resolution | 2.0 Megapixel |
| Minimum Illumination | 0.005 Lux at F1.6 (Colour, B&W) / 0 Lux at F1.6 (IR on) |
| Mode Switching | DIP Switches |
| Modes Supported | HDCVI & Composite |
| Noise Reduction | Ultra DNR (2D / 3D) |
| Observe (63px/m) | 646m |
| Operating Environment | -40° to 70°C / RH95% (max) |
| OSD Menu | Support |
| Pan/Tilt Range | Pan: 0° ~ 360° endless / Tilt: -20° ~ 90° / Auto-flip 180° |
| Power Consumption | 17W / 25W (IR & Heater Active) |
| Power Input | 24VAC 3A ±25% |
| Preset PTZ Speed | Pan: 300°/s; Tilt: 200°/s |
| Presets | 300 |
| Protocols | DH-SD / Pelco-P/D (Auto Recognition) |
| PTZ Modes | 5 Pattern / 8 Tour / Auto Pan / Auto Scan |
| Recognise (125px/m) | 323m |
| Resolution | 4.0MP (2592 x 1520) / 1080p (1920 x 1080) / 720p (1280 x 720) |
| RS485 | 1 Input |
| Series | Ultimate Series |
| Signal Noise Ratio | > 55dB |
| Synchronisation | Internal |
| Transmission Distance | Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions) |
| Tri-Axis Mounting | Yes |
| Vandal Resistant | IK10 |
| Video Output | BNC CVI HD output / Composite SD output (switchable) |
| Weight | 9.6kg |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
