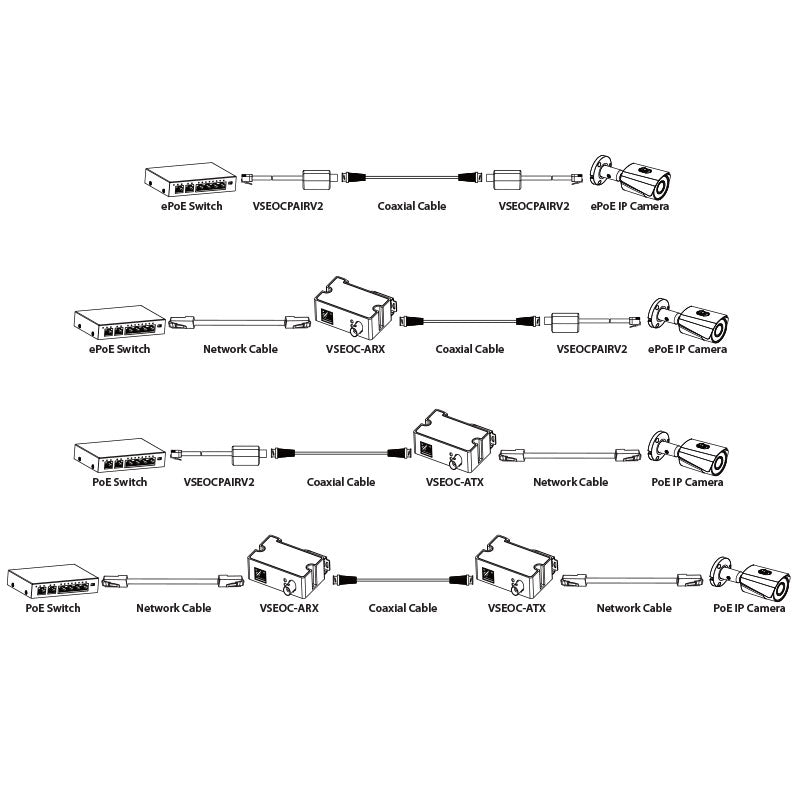

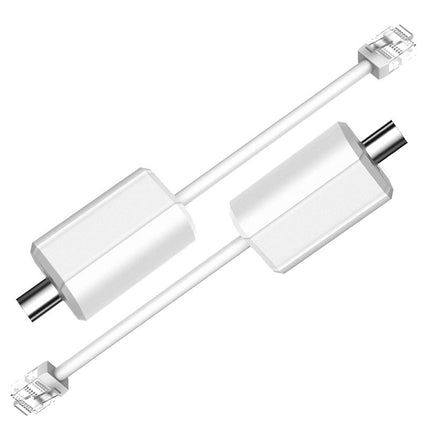

Convert RJ45 network connections to and from coaxial cable with the VSEOCPAIRV2. With these converters, you can repurpose existing coaxial cabling to be used with IP security systems, including PoE.
Product features:
• 1 x RJ45 10/100Mbps port, 1 x BNC port
• Supports IEEE802.3 & IEEE802.3u standards
• Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
• Supports MDI/MDIX self-adaption
• Supports long range power supply transmission via coaxial cable
• Two converters included
Datasheets
Tech Specs
| Dimensions | 56mm x 27mm x 21mm |
| Network Protocol | IEEE802.3, IEEE802.3u |
| Operating Environment | -40°C-60°C / <95% RH |
| PoE Protocol | Based on the power input from the ePoE switch |
| Ports | 1 x 10/100 Mbps Base-TX, 1 x BNC |
| Power Consumption | <1W |
| Surge Protection | Common Mode: 6KV / Differential Mode: 2KV |
| Transmission Bandwidth | RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps |
| Weight | 28g |
