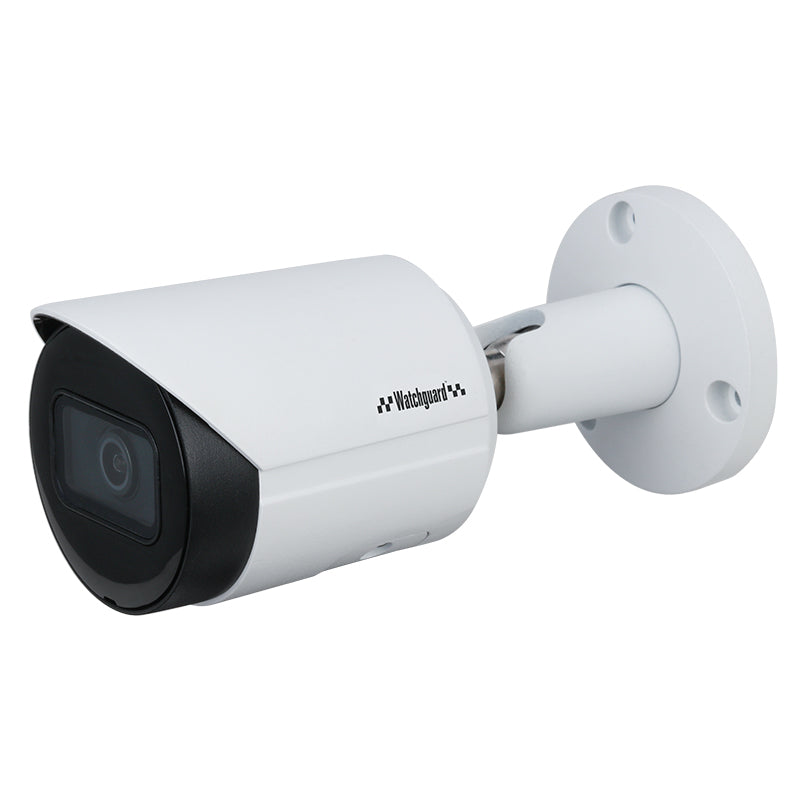

The VSIPC-8BIRS boasts impressive performance at an affordable price point, delivering high image quality at a smooth framerate, intelligent video functions and the convenience of Power over Ethernet installation.
Camera features:
• Stream up to 8.0MP (3840 x 2160) at 15fps
• 2.8mm fixed lens with wide 105° viewing angle
• 30m infrared range; true day/night (auto ICR)
• H.265 encoding for efficient storage & streaming
• 3D digital noise reduction & true WDR (120dB)
• Tripwire, Intrusion, Motion detection and more
• Power via 12VDC or Power over Ethernet (802.3af)
• IP67 weather rated metal housing
Datasheets
Tech Specs
| Alarm Interface | N/A |
| Audio Interface | N/A |
| Bit Rate | H.265: 12 ~ 8192Kbps / H.264: 32 ~ 8192Kbps |
| Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type | Bullet |
| Day/Night | Auto (ICR) / Color / B&W |
| Detect (25px/m) | 75m |

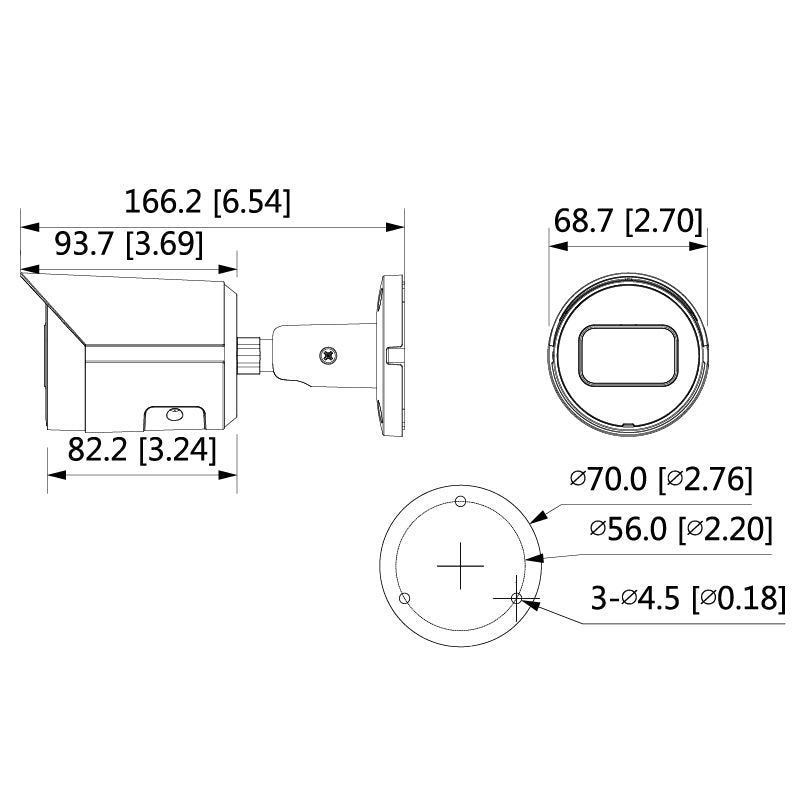

| Dimensions | 166mm x Ø70mm |
| Edge Storage | FTP / SFTP / NAS / Micro SD Card (supports max. 256GB) |
| Effective Pixels | 3840 (H) x 2160 (V) |
| ePoE | No |
| Ethernet | RJ-45 (10/100Base-T) |
| Field of View | Horizontal: 105°, Vertical: 56° |
| Focus | Fixed |
| Frame Rate (Main) | 8.0MP (1 ~ 15fps) / 4.0MP (1 ~ 25fps) |
| Frame Rate (Sub) | D1 (1 ~ 25fps) |
| Frame Rate (Third) | N/A |
| Gain Control | Auto / Manual |
| Housing | Metal |
| Identify (250px/m) | 7m |
| Image Sensor | 1/2.7" 8.0MP Progressive Scan CMOS |
| Infrared | Yes |
| Infrared System | 1 x Infrared LED, 30m range, Auto/manual on/off control |
| Ingress Protection | IP67 |
| Intelligent Functions | Tripwire, Intrusion, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared |
| Interoperability | ONVIF Profile S, G & T / CGI / P2P / Milestone / Genetec |
| IVS | Yes |
| Lens / Iris | 2.8mm F2.0 Fixed Lens |
| Lens Type | Fixed |
| Lighting Compensation | BLC / HLC / True WDR (120dB) |
| Max. Resolution | 8.0 Megapixel |
| Max. User Access | 20 Users |
| Min Illumination | 0.009 Lux/F2.0 |
| Net Weight | 0.48kg |
| Noise Reduction | 3D DNR |
| Observe (63px/m) | 30m |
| Operating Conditions | -40° ~ +60° C / Less than 95% RH |
| Pan/Tilt/Rotation | Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~360° |
| Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower for corridor mode) |
| Power Consumption | <5.5W |
| Power Supply | 12VDC / PoE (802.3af) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
| RAM / ROM | 256MB / 128MB |
| Recognise (125px/m) | 15m |
| Resolution | 8.0MP (3840 x 2160) to CIF (352 x 288) |
| RS485 | N/A |
| RTMP Support | No |
| S/N Ratio | N/A |
| Series | Compact Series |
| Smart Scene Adaptive (SSA) | No |
| Streaming Method | Unicast / Multicast |
| Tri-Axis Mounting | Yes |
| Ultra Low Light Colour | No |
| Vandal Resistance | N/A |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Video Interface | N/A |
| Weather Resistance | Yes |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
