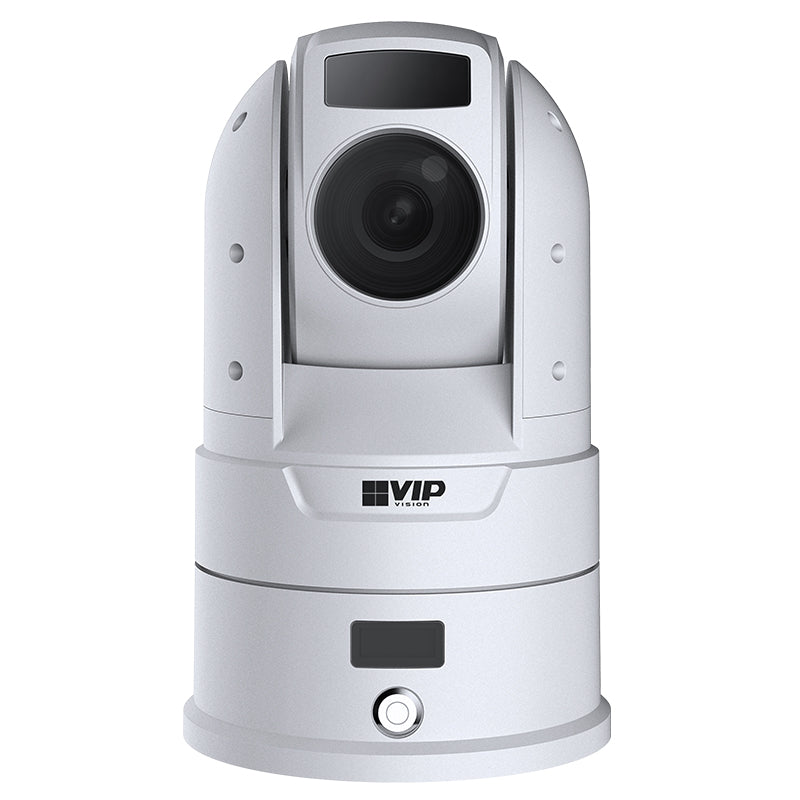

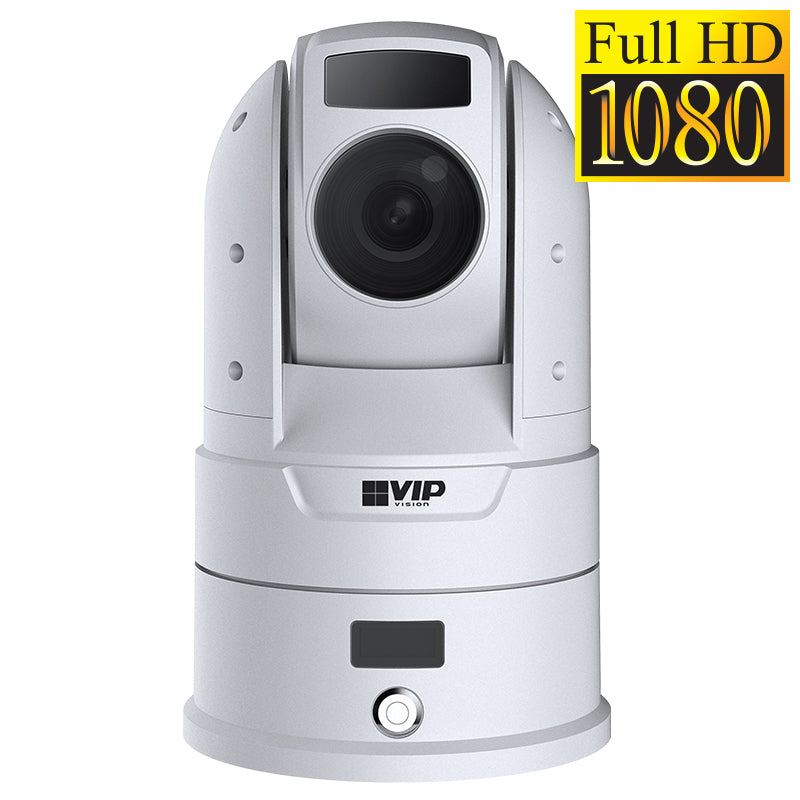

Professional Series 2.0MP 30x Zoom PTZ Positioning Camera with GPS, 4G & WiFi
Featuring a powerful optical zoom, accurate pan/tilt/zoom performance and flexible network support including 3G/4G and WiFi, the VSIPMPTZ-2G is an all-in-one solution for capturing long distance video surveillance in any setting.
Product Features:
✔️ Stream up to 2.0MP (1920 x 1080) at 50fps
✔️ 30x optical zoom lens (61.2 ~ 2.4° viewing angles)
✔️ Auto tracking, 360° panning, -20° ~ 90° tilt adjustable
✔️ Low light colour performance at 0.004lx; 100m IR
✔️ 3G/4G, WiFi and wired networking options
✔️ Built-in GPS tracking
✔️ Anti-vibration for image stability
✔️ Built-in OLED with status display
✔️ MicroSD slot for recording at the edge up to 256GB
✔️ WDR, 2D/3D DNR; auto white balance; true day/night
✔️ Soft magnetic composite base for flexible mounting
✔️ Power via 24VDC (PSU included)
✔️ IP66 weather resistant metal housing
Downloads
Tech Specs
| Alarm Interface |
2 Inputs |
| Anti-Shake DSP |
Support |
| Audio Interface |
1 Input / Compression: PCM, G.711a, G.711u |
| Auto Tracking |
Support |
| Battery |
10.05Ah / 109.45Wh (9 hours from full charge at lowest power consumption) |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type |
PTZ Positioning |
| Day/Night |
Auto (ICR) / Color / B&W |

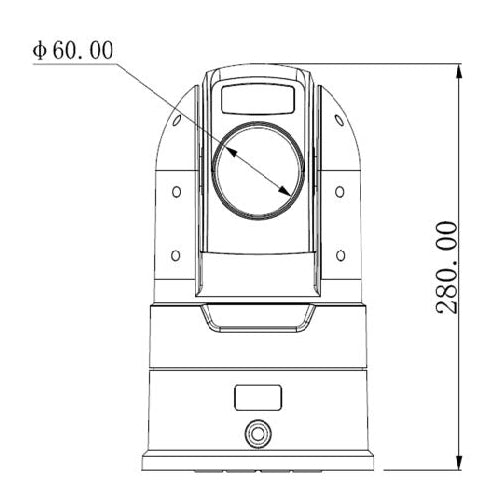

| Dimensions |
Ø171mm x 280mm |
| Edge Storage |
MicroSD Card (up to 256GB) / NAS / Local PC |
| Effective Pixels |
1920 (H) x 1080 (V) |
| ePoE |
No |
| Ethernet |
RJ-45 (10/100Base-T) |
| External Interface |
14-Core Aviation Connector (1: RJ45 Network Cable, 2: ?5.5*2.1mm Power Port, 3: GPS Port, 4: RS232), 8-Core Aviation Connector (optional) (1: Alarm Input, 2: Audio Input, 3: 12V Controllable Power (Alarm) Input, 4: RS485) |
| Field of View |
Horizontal: 61.2° ~ 2.3° (30x Optical Zoom) |
| Focus |
Auto/ Semiautomatic/ Manual |
| Frame Rate (Main) |
1080p (1 ~ 50fps) |
| Frame Rate (Sub) |
D1 (1 ~ 25fps) |
| Frame Rate (Third) |
1080p (1 ~ 25fps) |
| Gain Control |
Auto / Manual |
| Housing |
Metal |
| Image Sensor |
1/1.9" 2.0MP CMOS |
| Infrared |
Yes |
| Infrared System |
4 x Infrared LED, 100m range, Auto/manual on/off control |
| Ingress Protection |
IP66 |
| Intelligent Functions |
Motion Detection |
| Interoperability |
ONVIF / PSIA / CGI |
| IVS |
No |
| Lens / Iris |
6 ~ 180mm Motorised Lens |
| Lens Type |
Motorised Varifocal |
| Lighting Compensation |
BLC / HLC / WDR (120dB) |
| Max. Resolution |
2.0 Megapixel |
| Max. User Access |
10 Users / 20 Users |
| Min Illumination |
0.004 Lux/F1.6 (Color), 0 Lux/F1.6 (IR on) |
| Modes / Presets |
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Net Weight |
4.87kg |
| Noise Reduction |
2D/3D DNR |
| Operating Conditions |
-20° ~ +5° C / Less than 90% RH |
| Pan / Tilt Range |
Pan: 0 ~ 360° (endless) / Tilt: -15 ~ 90° / Auto-flip 180° |
| Pan/Tilt/Rotation |
Pan: 0° ~ 360 ° ; Tilt: 15° ~ 90° ; Rotation: 0° ~ 360° |
| Picture Control |
Horizontal: 0° ~ 360° Vertical: -20° ~ 90° |
| Power Consumption |
<20W (IR off: <24W, IR on: <40W , Motor IR on: <56W) |
| Power Supply |
24VDC (6~36V) |
| Protocol |
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
| PTZ Speed |
Preset: Pan: 400°/s; Tilt: 300°/s Manual: Pan: 300°/s; Tilt: 200°/s |
| Resolution |
1080p (1920 x 1080) to CIF (352 x 288) |
| RS485 |
Yes |
| RTMP Support |
No |
| S/N Ratio |
>54dB |
| Series |
Professional Series |
| Smart Scene Adaptive (SSA) |
Yes |
| Start-up Action |
Auto-restore to previous PTZ/lens status |
| Streaming Method |
Unicast / Multicast |
| Tri-Axis Mounting |
No |
| Ultra Low Light Colour |
Yes |
| Vandal Resistance |
N/A |
| Video Compression |
H.265 / H.264 |
| Weather Resistance |
Yes |
| White Balance |
Auto / ATW / Indoor / Outdoor / Manual |
