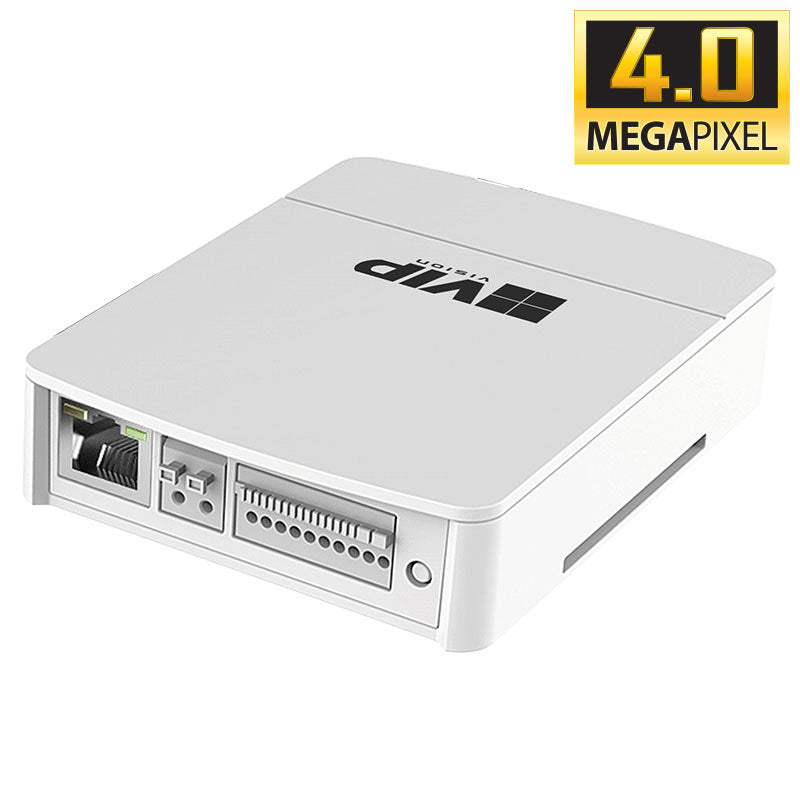

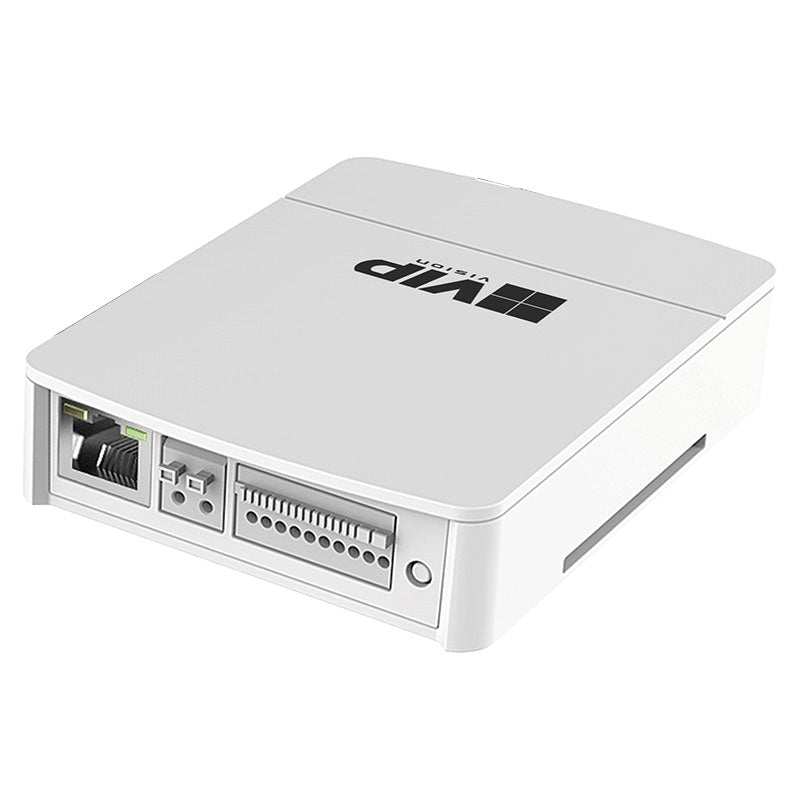

VIP Vision Pinhole Series 4.0MP Pinhole Camera Main Module - VSIPPH-4M
Description
Description
Camera features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.8mm fixed lens with wide 101° viewing angle
• Low light colour at 0.005 lux
• Backlight/highlight compensation with true WDR (120dB)
• Day/night (electronic), 3D noise reduction & auto white balance
• Smart detection support incl. face detection, tripwire & intrusion
• Audio & alarm input/output
• MicroSD card slot for at-the-edge recording, up to 256GB
• Power via 12VDC or Power over Ethernet (802.3af)
*Requires the VSIPPH-4L camera lens.
Tech Specs
Tech Specs
| Alarm Interface | 2 Inputs (5mA 3V-5VDC) / 2 Output (1000mA 30VDC / 500mA 50VDC) |
| Audio Interface | 1 Input, 1 Output (3.5mm jack) / Compression: G.711a; G.711Mu; PCM; G.726; G.723 |
| Bit Rate | H.265: 3~20480Kbps / H.264: 3~20480Kbps |
| Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type | Pinhole |
| Day/Night | Auto (Electronic) / Colour / B&W |
| Detect (25px/m) | 61m |

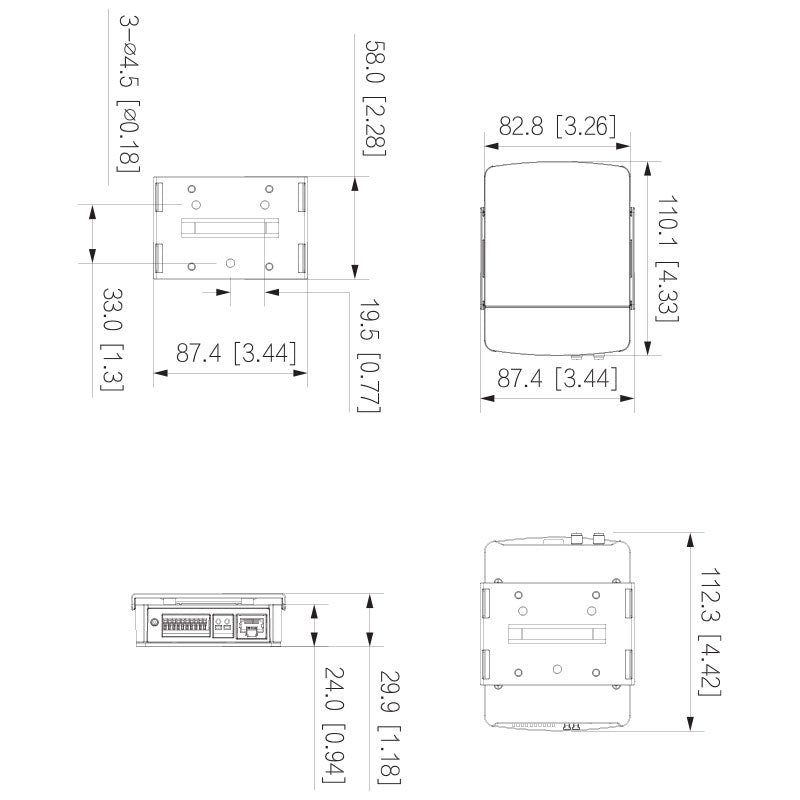

| Dimensions | Camera: Ø30.5 mm x 48.7 mm / Control Unit: 100 x 83 x 24mm |
| Edge Storage | MicroSD Card (up to 256GB) / FTP / SFTP / NAS |
| Effective Pixels | 2688 (H) x 1520 (V) |
| ePoE | No |
| Ethernet | RJ45 (10/100 Base-T) |
| Field of View | Horizontal: 101°, Vertical: 57° |
| Focus | Fixed / 0.8m Min. Focus Distance |
| Frame Rate (Main) | 4.0MP (1 ~ 25fps) |
| Frame Rate (Sub) | D1 (1 ~ 25fps) |
| Frame Rate (Third) | 1080p (1 ~ 25fps) |
| Gain Control | Auto / Manual |
| Housing | Metal |
| Identify (250px/m) | 6m |
| Image Sensor | 1/2.7” 4.0 Megapixel Progressive Scan CMOS |
| Infrared | No |
| Infrared System | N/A |
| Ingress Protection | N/A |
| Intelligent Functions | Face Detection, Tripwire, Intrusion, Fast Moving, Loitering Detection, People Gathering, Parking Detection, Abandoned/Missing Object, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone) |
| Interoperability | ONVIF (Profile S/Profile G/Profile T) / CGI / P2P / Milestone / Genetec |
| IVS | Yes |
| Lens / Iris | 2.8mm F2.0 Fixed Lens |
| Lens Type | Fixed |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| Max. Resolution | 4.0 Megapixel |
| Max. User Access | 10 Users / 20 Users |
| Min Illumination | 0.005 Lux at F2.0 (Colour) / 0.0005 Lux at F2.0 (B&W) |
| Net Weight | 0.21kg |
| Noise Reduction | 3D DNR |
| Observe (63px/m) | 24m |
| Operating Conditions | -40° ~ +60° C / ?95% RH |
| Pan/Tilt/Rotation | N/A |
| Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
| Power Consumption | Basic: 2.4W (12VDC), 3W (PoE) / Max. (AI + WDR): 3.9W (12VDC), 4.8W (PoE) |
| Power Supply | 12VDC / PoE (802.3af) |
| Protocol | IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour |
| RAM / ROM | 1GB / 128MB |
| Recognise (125px/m) | 12m |
| Resolution | 4.0MP (2688 x 1520) to CIF (352 x 288) |
| RS232 | 1 Port |
| RS485 | N/A |
| RTMP Support | No |
| S/N Ratio | > 56dB |
| Series | Pinhole Series |
| Smart Scene Adaptive (SSA) | Yes |
| Streaming Method | Unicast / Multicast |
| Tri-Axis Mounting | No |
| Ultra Low Light Colour | Yes |
| Vandal Resistance | N/A |
| Video Compression | H.265 / H.264 / H.264H / H.264B / MJPEG (sub stream) |
| Video Interface | N/A |
| Weather Resistance | No |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
