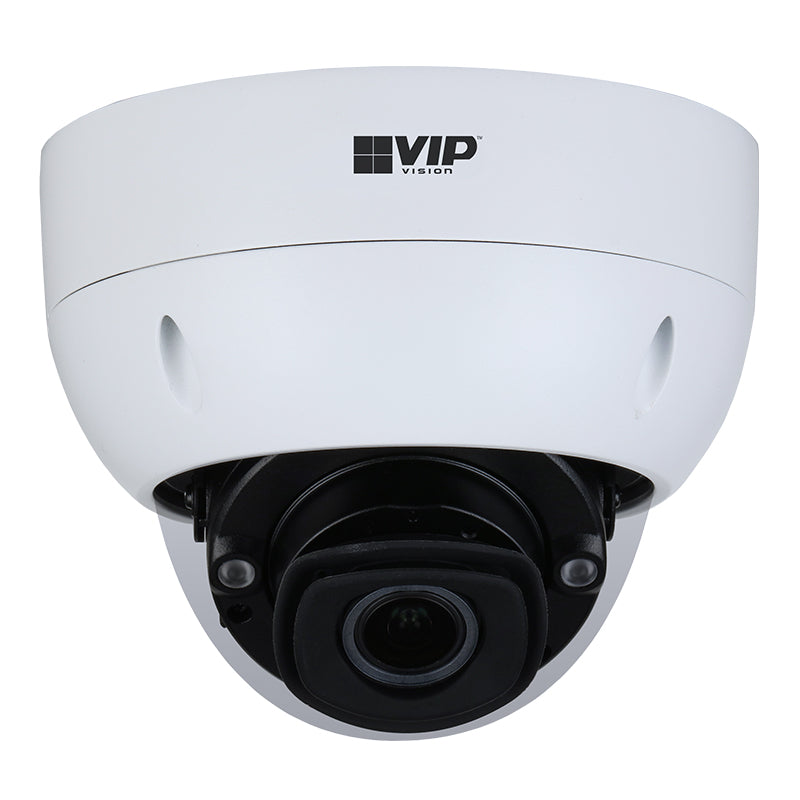

VIP Vision VSIPU-8DIRM-I 8.0MP Ultimate AI Motorised Vandal Dome

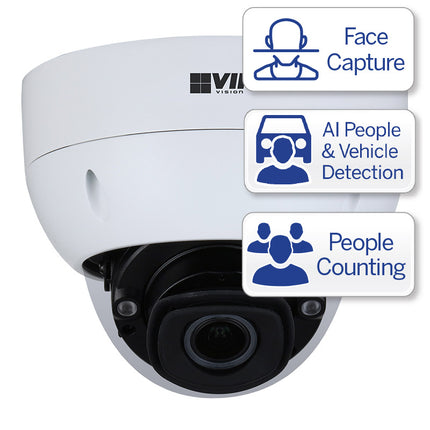

The Ultimate AI Series detects and captures faces from footage using machine-learned algorithms, preparing face data for use with an AI NVR face database. This enables up to 16 channels of face recognition. The series also features intelligent perimeter protection and people counting to provide meaningful video event notifications in real-time.
Product Features:
✔️ 8.0MP (3840 × 2160) resolution at up to 25fps
✔️ Motorised 2.7–12mm F1.2 varifocal lens with auto iris
✔️ Up to 40m smart IR illumination with auto/manual control
✔️ True WDR (120dB), BLC, and HLC for balanced imaging
✔️ AI-powered face detection & capture (up to 10 channels, expandable to 16 with AI NVR)
✔️ Intelligent perimeter protection for human & vehicle recognition
✔️ Advanced people counting and flow control for retail analytics
✔️ ePoE transmission up to 800m (requires compatible NVR/switch)
✔️ Supports edge recording up to 256GB via MicroSD
✔️ Built-in heater for condensation prevention in cold environments
✔️ IK10 vandal-resistant, IP67 weatherproof housing
Downloads
Tech Specs
| Image Sensor |
1/1.8" 8.0MP Progressive Scan CMOS |
| Effective Pixels |
3840 (H) × 2160 (V) |
| Minimum Illumination |
0.003 Lux / F1.2 (Color) |
| Infrared Range |
Up to 40m (3 IR LEDs, Auto/Manual) |
| Lens |
2.7–12mm F1.2 Motorised Varifocal Lens |
| Field of View |
Horizontal: 114°–47°, Vertical: 59°–27° |
| Frame Rate |
Main Stream: 8.0MP (1–25fps) |
| Video Compression |
H.265, H.264, H.264B, H.264H, MJPEG |
| Bit Rate |
H.264: 32Kbps–16384Kbps / H.265: 12Kbps–16384Kbps |
| WDR |
True WDR (120dB) |
| AI Functions |
Face Detection, Perimeter Protection, People Counting |
| Face Attributes |
Age, Gender, Expression, Glasses, Mask, Facial Hair |
| Network Protocols |
IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, FTP, SNMP, NTP, RTSP, ONVIF, P2P |
| Audio Interface |
1 Input / 1 Output (RCA) |
| Alarm Interface |
3 Inputs / 2 Outputs |
| Storage |
MicroSD up to 256GB / NAS / FTP / SFTP |
| Power Supply |
12VDC / 24VAC / PoE (802.3af) |
| Power Consumption |
<15.7W (Heater on) |
| Operating Conditions |
-40°C to +60°C, ≤95% RH |
| Ingress Protection |
IP67 Weatherproof |
| Vandal Resistance |
IK10 |
| Housing Material |
Metal & Plastic |
| Dimensions |
Ø158mm × 129mm |
| Weight |
1.60kg |
