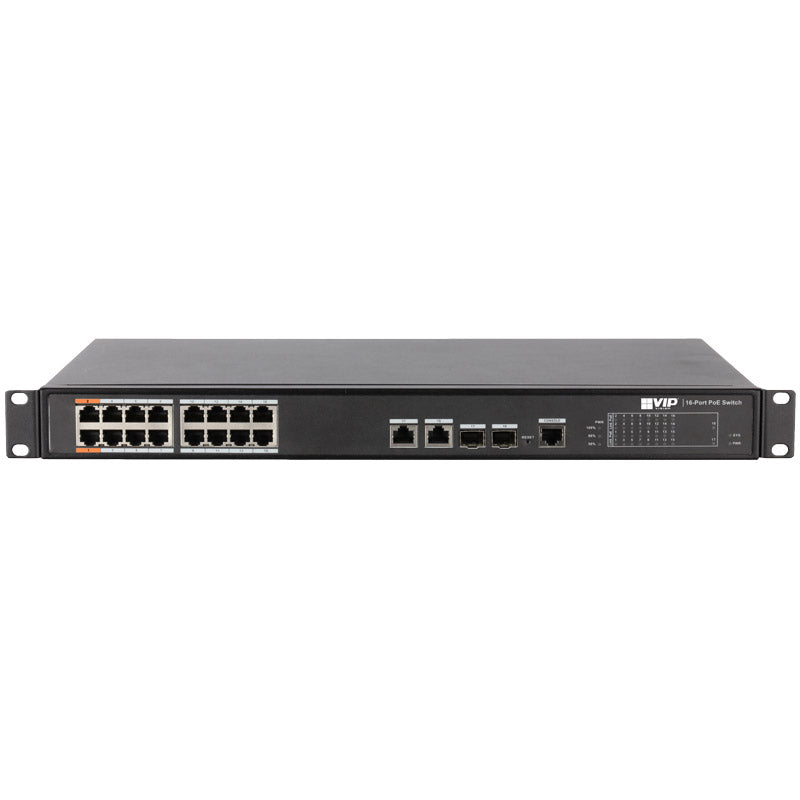

The VSPOE-SWA16 is a rackmount, fast Hi-PoE switch in 16 ports. It is a versatile networking solution with flexibility for a range of high-powered PoE devices & a variety of uplink ports. It is an L2 managed switch, offering configuration of network traffic quality of service, VLAN and a suite of other features.
• 14 x PoE+ device ports with 100Mbps per port
• 2 x Hi-PoE device ports with 100Mbps per port
• 2 x 1000Mbps Gigabit RJ45 (Base-T) uplink ports
• 2 x 1000Mbps Gigabit SFP (Base-X) uplink ports
• 1 x RS232 via RJ45 console port for management access
• Total PoE power load up to 240W
• Extend mode takes Ethernet cable runs up to 250m
• Managed switch for network transmission customisation
• Rackmount tabs included for easy cabinet mounting
• Professional appearance full metal enclosure
Datasheets
Tech Specs
| Device Ports | 16 x 10/100 Base-T (PoE power supply ports) |
| DHCP | DHCP Client |
| Dimensions | 440 x 300 x 44mm |
| Exchange Mode | Store & forward |
| Extend Mode | Up to 250m range at 10Mbps (port configurable via management interface) |
| Flow Control | Half-duplex based on back pressure type control; Full duplex based on PAUSE frame |
| Input Power | 100 ~ 240VAC |
| Lightning Protection | Common Mode: 4kV / Differential Mode: 2kV |
| LLDP | N/A |
| MAC Address Capacity | 4K |
| Mounting Options | Rackmount Tabs (1RU) |
| Network Management | WEB (HTTP and HTTPS protocol) / Support SNMP V1/V2/V3 |
| Network Time Protocol | N/A |
| Operating Environment | -10° ~ 55°C / RH90% (max) |
| Packet Forwarding Rate | 5.36Mbps |
| PoE | Yes |
| PoE Management | PoE setting (real-time port consumption) / PoE event statistics / Green PoE |
| PoE Protocol | PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE |
| Port Aggregation | Static link aggregation / LACP protocol |
| Port Mirroring | Many-to-one port mirroring |
| Ports | 16 ports |
| Quality of Service | High and low priority / WRR / 802.1P / DSCP / Support priority according to protocol |
| Security Features | IP+MAC binding based on port; IEEE802.1x port authentication |
| Spanning Tree Protocol | STP / RSTP |
| Speed | Fast 10/100 |
| Switch Management | Managed |
| Switch Power Load | Port 1-2: ?60W / Port 3-16: ?30W / Total: ?240W |
| Switching Capacity | 8.8Gbps |
| System Maintenance | One-key recovery / Supports updated packet upload / System log |
| Uplink Ports | 2 x 1000 Base-X / 2 x 10/100/1000 Base-T |
| Virtual LAN | 802.1Q Standard VLAN |
| Weight | 3.51kg |
