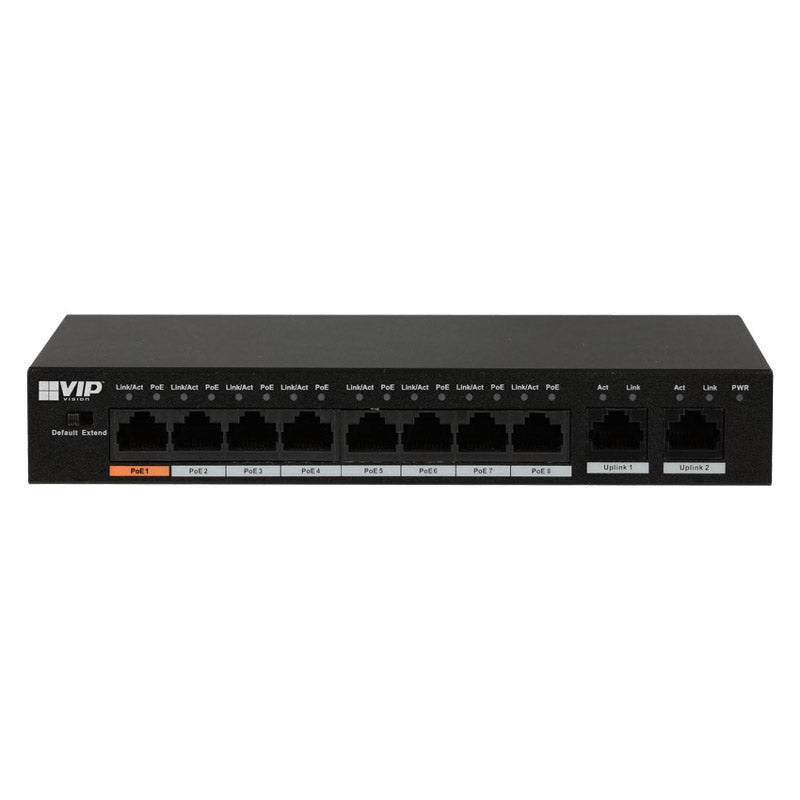

The VSPOE-SWA8G is a desktop mount, fast Hi-PoE switch in 8 ports. It is ideal for building secondary networks - providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.
• 7 x PoE+ device ports with 100Mbps per port
• 1 x Hi-PoE device port with 100Mbps per port
• 2 x 1000Mbps Gigabit RJ45 (Base-T) uplink ports
• Total PoE power load up to 96W
• Extend mode takes Ethernet cable runs up to 250m
• Unmanaged switch for plug & play applications
• Desktop mount for home and SOHO use
• Professional appearance full metal enclosure
Datasheets
Tech Specs
| Device Ports | 8 x 10/100 Base-T (PoE power supply ports) |
| DHCP | N/A |
| Dimensions | 190 x 100 x 42mm |
| Exchange Mode | Store & forward |
| Extend Mode | Up to 250m range at 10Mbps (all ports via device switch) |
| Flow Control | N/A |
| Input Power | 48 ~ 57VDC |
| Lightning Protection | Common Mode 2kV / Differential Mode 0.5kV |
| LLDP | N/A |
| MAC Address Capacity | 2K |
| Mounting Options | Desktop |
| Network Management | N/A |
| Network Time Protocol | N/A |
| Operating Environment | -10° ~ 55°C / RH90% (max) |
| Packet Forwarding Rate | 4.17Mbps |
| PoE | Yes |
| PoE Management | N/A |
| PoE Protocol | PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE |
| Port Aggregation | N/A |
| Port Mirroring | N/A |
| Ports | 8 ports |
| Quality of Service | N/A |
| Security Features | N/A |
| Spanning Tree Protocol | N/A |
| Speed | Fast 10/100 |
| Switch Management | Unmanaged |
| Switch Power Load | Port 1: ?60W / Port 2-8: ?30W / Total: ?96W |
| Switching Capacity | 5.6Gbps |
| System Maintenance | N/A |
| Uplink Ports | 2 x 10/100/1000 Base-T |
| Virtual LAN | N/A |
| Weight | 0.49kg |
