Description

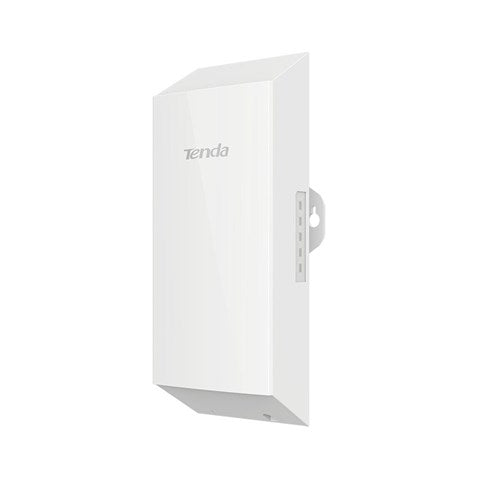

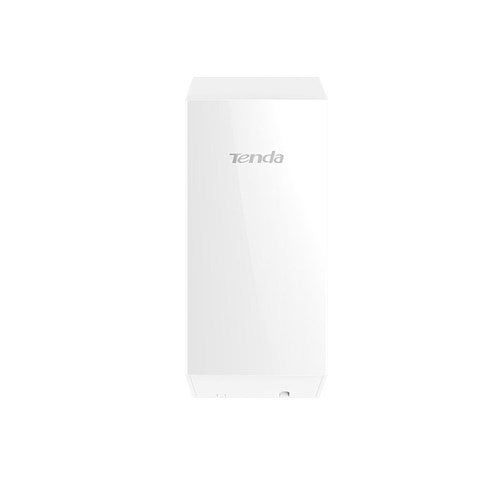

Tenda O2 Point to Point Outdoor CPE is designed to enable long-distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. It features auto-bridging technology, which allows two CPE's to connect to each other automatically for an easier set-up.
Features
- 2 Kilometers+ Transmission Range
- 5GHz Frequency Range
- 300Mbps Maximum Wireless Rate
- 12dbi Antennas Gain
- IP65 Waterproof Level
- 12V1A Passive PoE Power Method
- 6000V Lightning Protection
- Long-Distance Wireless Connection and WISP (Client + Router) Mode
More Info
Tenda O2 Point to Point Outdoor CPE
2km+ Transmission Range O2 utilizes an independent power amplifier and 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 2km.
Super Channel-Extended Frequency O2 utilizes a Qualcomm AR9344 chipset and special software mechanism optimization for radio driven architecture to offer extended frequency support. This feature is designed to help users get out of the congested, unlicensed 5GHz band and into a clean spectrum.
TD-MAX-Tenda TDMA Proprietary Protocol TD-MAX is Tenda TDMA (Time Division Multiple Access) proprietary protocol to improve performance and capacity for wireless WISP outdoor application scenarios. In outdoor environments, the CPE uses highly directional antennas to connect to the Base Station from distances that can span several kilometres. When the CPE can't sense each other, they become "hidden nodes" and cannot coordinate access to the wireless channel. Thus the Base Station experiences frequent collisions from stations transmitting simultaneously. As the network scales, these collisions build up exponentially, increasing latency and lowering throughput. With TD-MAX, it coordinates all the data transmission and allocates time to active clients to provide greater noise immunity performance when compared to the conventional 802.11 CSMA/CA (Carrier Sense Multiple Access / Collision Avoidance) protocols.
10/20/30/40MHz Channel Bandwidth for Better Throughput O2 utilizes special optimization in its software when registering parameters to deliver a 10/20/30/40MHz channel bandwidth option. It provides an extra 10MHz and 30MHz channel bandwidth options to be consumed depending on application scenarios. When you choose the 30MHz channel bandwidth option, it can increase throughput for noisy environments. When you choose the 10MHz channel bandwidth option, it can increase the number of available, non-overlapping channels, so networks can scale better.
Channel Shift to Avoid Interference O2 provides a Channel Shift feature to offset the central frequency 5MHz upper. It can avoid interference from nearby AP and deliver higher throughput.
Multiple Application Scenarios
Long-Distance Wireless Connection One work as AP mode and another work as Station mode to create a long-distance wireless connection for video surveillance and data transmission.
WISP(Client+Router) Mode Wirelessly connect to WISP station/hotspot to share Internet to local wireless and wired network.
Tech Specs
Tenda O2 Point to Point Outdoor CPE
Product Information |
|
Model |
O2 |
Dimensions(L*W*H) |
193.5*80*67.5mm |
Deployment |

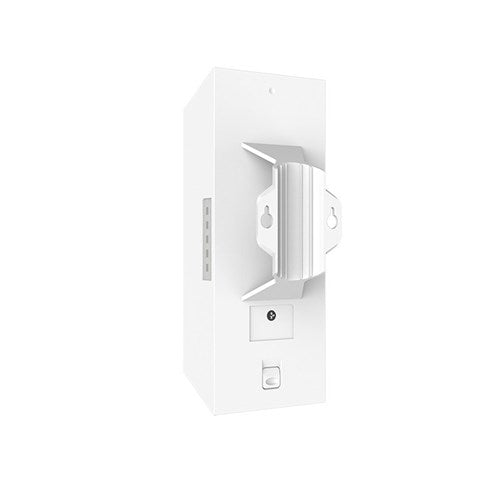

Pole Mount/Wall Mount |
Application Scenarios |
PtP and PtMP wireless connection for Private ISP access or CCTV Surveillance |
Hardware |
|
Frequency Range |
5GHz |
Compliant Standards |
IEEE 802.11a/n |
Maximum Wireless Rate |
300Mbps |

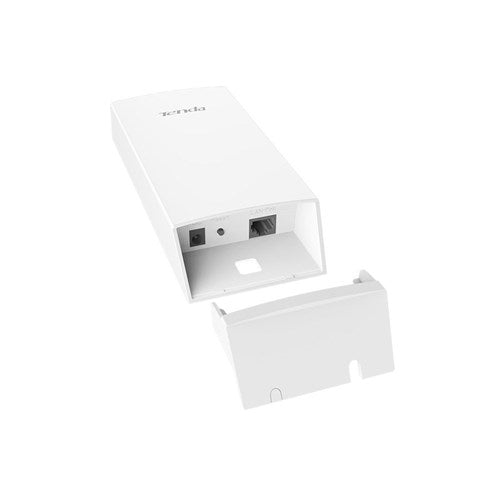

Interfaces |
1*10/100Mbps Ethernet Port |
Antenna |
Dual Polarization |
Antennas Gain |
12dbi |
Antenna Beamwidth |
Horizontal: 30° Vertical: 30° |
GND |
/ |
Reset Button |
1*Reset Button |
Power Consumption |
4.3W |
Waterproof Level |
IP65 |
LED indicator |
PoE/LAN,WiFi, LED1,LED2,LED3 |
Power Method |
12V1A Passive PoE |
|
12V1A DC |
Lightning Protection |
6000V |
Passive PoE |
Passive power over ethernet via PoE/LAN (+4,5pins |
|
-7,8pins) |
|
Voltage range: 9-13.8V DC |
Receiver sensitivity |
11a 6Mbps -96dBm±1.5dBm |
|
11n MCS0: -96±1.5dBm |
|
11n MCS7: -72±1.5dBm |
Software |
|
TDMA |
Support |
Operating mode |
AP/Station/WISP/P2MP/WDS Repeater/Router |
Enable/Disable Wireless Radio |
Support |
SSID Hidden |
Support |
Wireless Client isolation |
Support |
SSID Isolation |
Support |
Channel Bandwidth |
10/20/30/40MHz |
Channel Shift |
Support |
Wireless Access Control |
Support |
Weak Signal Client Limitation |
Support |
Transmission Power |
Adjustable power by 1dBm |
WMM Capable |
Support |
APSD Capable |
Support |
Wireless Security |
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
Transparent Bridge |
Support |
VLAN Tagging for SSID |
Support |
DHCP Server |
Support |
VPN Pass-Through |
PPTP, L2TP |
Remote Web access |
Support |
Scheduled Reboot |
Support |
Page Timeout |
Support |
Ping Watchdog |
Support |
Dyndns |
noip, dyndns.org |
Network Diagnoses |
Ping, Traceroute, Signal Scan |
Time&Date Setting |
Support |
Firmware upgrade |
Support |
Backup/Restore Configuration |
Support |
Username Management |
Support |
System Log |
Support |
Managed By Controller |
PC Software -- CPE Assistant |
Others |
|
Package Contents |
1*5GHz 11n 12dBi 300Mbps outdoor CPE O2 |
|
1*Power Adapter |
|
1*PoE Injector |
|
1*Quick Installation Guide |
Operating Temperature |
-30? ~ 60? |
Storage Temperature |
-40? ~ 70? |
Operating Humidity |
10%~90% non-condensing |
Storage Humidity |
10%~90% non-condensing |
Default login IP |
192.168.2.1 |
Default Login Username |
admin |
Default Login Password |
admin |
Certifications |
FCC/CE/RoHS |
