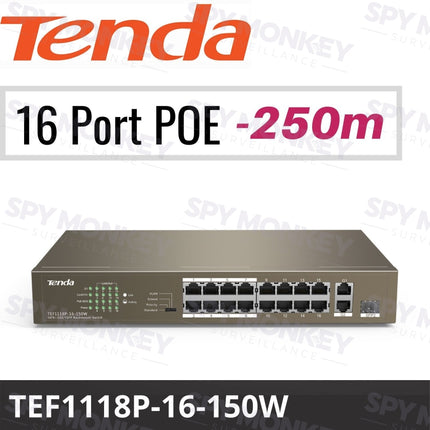

TEF1118P-16-150W not only offers 16 10/100 Mbps Base-TX RJ45 ports, but also 1 10/100/1000 Mbps Base-T RJ45 ports and 1 1000 Mbps Base-X SFP port. Ports 1-16 comply with the IEEE 802.3af standard and 802.3at standard and each port can support a maximum PoE power output of 30 W. The switch offers a maximum PoE power output of 135 W and it can supply power when exchanging data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN, and Extend to help reducing cabling costs of IP terminals.
16-Ports FE ports + 1 GE+1 SFP port Unmanaged PoE+ switch with 16-PoE Ports *IEEE802.3af/at,PoE budgetr: 135W
FEATURES
-
Up to 250m long-distance transmission
- 16 10/100 Mbps Base-TX RJ45 port; 1 10/100/1000 Mbps Base-T RJ45 port; 1 100/1000Base-X SFP port.
- Ports 1-16: IEEE 802.3af/at PoE ports; maximum power output of each PoE port: 30 W; maximum power output of the switch: 135 W
- 13-inch desktop size, 1U height, rack mountable.
- Hardware DIP switch for selection among the CCTV, Standard, VLAN, and
Extend modes. The Extend mode features 1-8 port transmission distance of up to 250m at 10 Mbps.Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP spoofing. -
Lightning Protection 6kV
-
135W PoE power supply
-
CCTV Standard, VLAN and Extend Operation Modes Offered
TEF1118P-16-150W not only offers 16 10/100 Mbps Base-TX RJ45 ports, but also 1 10/100/1000 Mbps Base-T RJ45 ports and 1 1000 Mbps Base-X SFP port. Ports 1-16 comply with the IEEE 802.3af standard and 802.3at standard and each port can support a maximum PoE power output of 30 W. The switch offers a maximum PoE power output of 135 W and it can supply power when exchanging data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN, and Extend to help reducing cabling costs of IP terminals.
16-Ports FE ports + 1 GE+1 SFP port Unmanaged PoE+ switch with 16-PoE Ports *IEEE802.3af/at,PoE budgetr: 135W
FEATURES
-
Up to 250m long-distance transmission
- 16 10/100 Mbps Base-TX RJ45 port; 1 10/100/1000 Mbps Base-T RJ45 port; 1 100/1000Base-X SFP port.
- Ports 1-16: IEEE 802.3af/at PoE ports; maximum power output of each PoE port: 30 W; maximum power output of the switch: 135 W
- 13-inch desktop size, 1U height, rack mountable.
- Hardware DIP switch for selection among the CCTV, Standard, VLAN, and Extend modes. The Extend mode features 1-8 port transmission distance of up to 250m at 10 Mbps.Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP spoofing.
-
Lightning Protection 6kV
-
135W PoE power supply
-
CCTV Standard, VLAN and Extend Operation Modes Offered
| Standards&Protocols | IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、 IEEE 802.3af、IEEE 802.3at |
| Switching capacity | 7.2 Gbps |
| Throughput | 5.36Mpps |
| Dimensions (W × D × H) | 294*178*44mm |
| RAM Data Buffer | 2.75Mb |
| Interfaces | 16 10/100Mbps RJ45 Ports(Data/PoE) 1 10/100/1000Mbps RJ45 Ports(Data) 1 100/1000Mbps SFP Slot(Data) (Auto Negotiation/Auto MDI/MDIX) |
| Port lightning protection | ≥6KV |
| Wire-speed forwarding | Support |
| Capacity Forwarding mode | Store-forward and cut-through |
| Mac Address Table | 4K |
| PoE Supply | Port 1 to Port 16 support standard IEEE802.3at/af power( maximum power for each port is 30W)， PoE power type is end-span(12+, 36- and 45+, 78- line pair) |
| Input Voltage | AC：100-240V～ 50/60Hz |
| Power consumption | in full configuration：<135W Power Supply: 150W |
| Environment | Operating Temperature: 0 ~40 (32 ~104 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| CCTV、Standard, VLAN and Extend Operation Modes Oered |
CCTV: 1-8 ports support QoS，If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device to which the monitoring computer connects. This ensures smoother monitoring video playback. Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. VLAN: In this mode,1-16 portsof the switch cannot communicate with ea ch other, but can communicate with the G1 and SFP1 ports.Solid DIP switch to isolate ports to prevent broadcast st orm and defend DHCP spoofing。 Extend: In this mode, the data rate of 1-8 port of the switch islimited to 10 Mbps, whereasthe maximum transmission distance of the port is increased to 250 meters. All the ports of the sw itch can communicate with each other. |
| Certification | FCC、CE、RoHS |
