What This Product Does

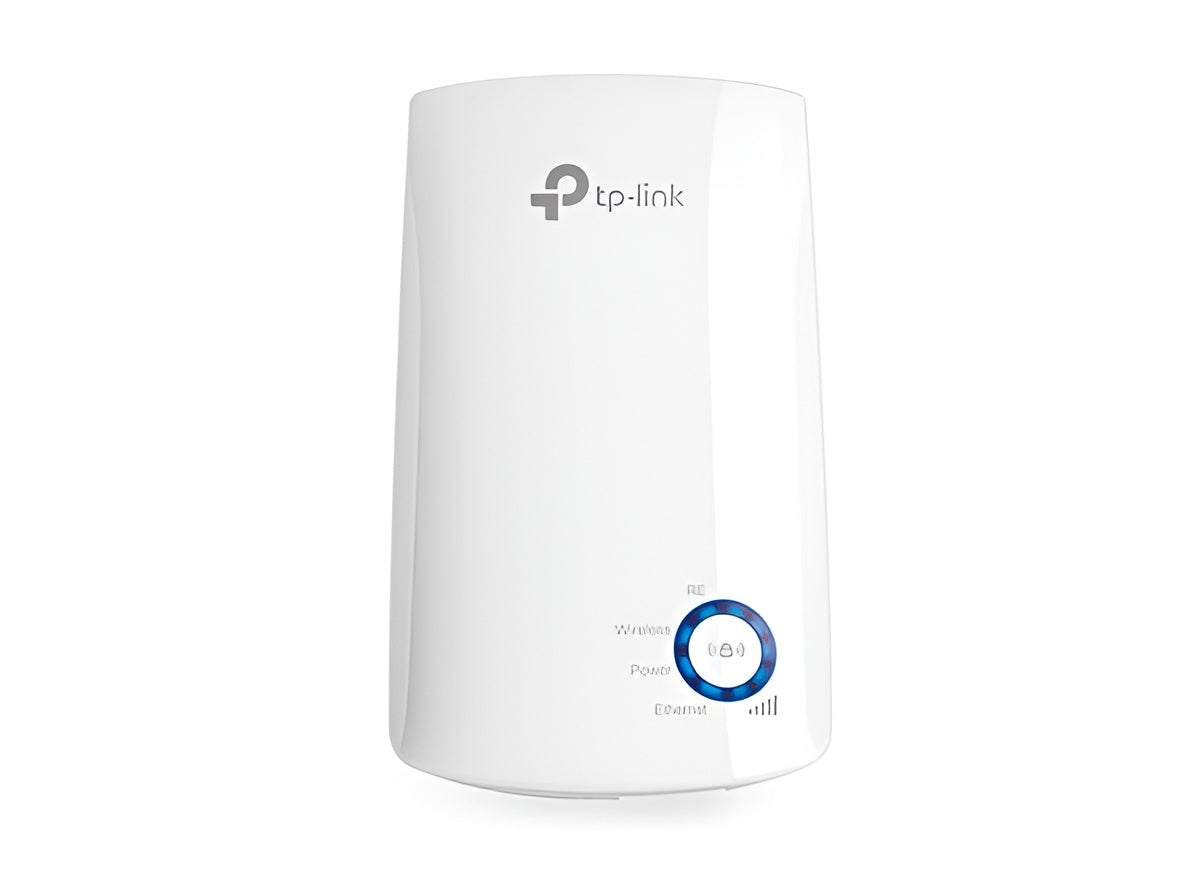

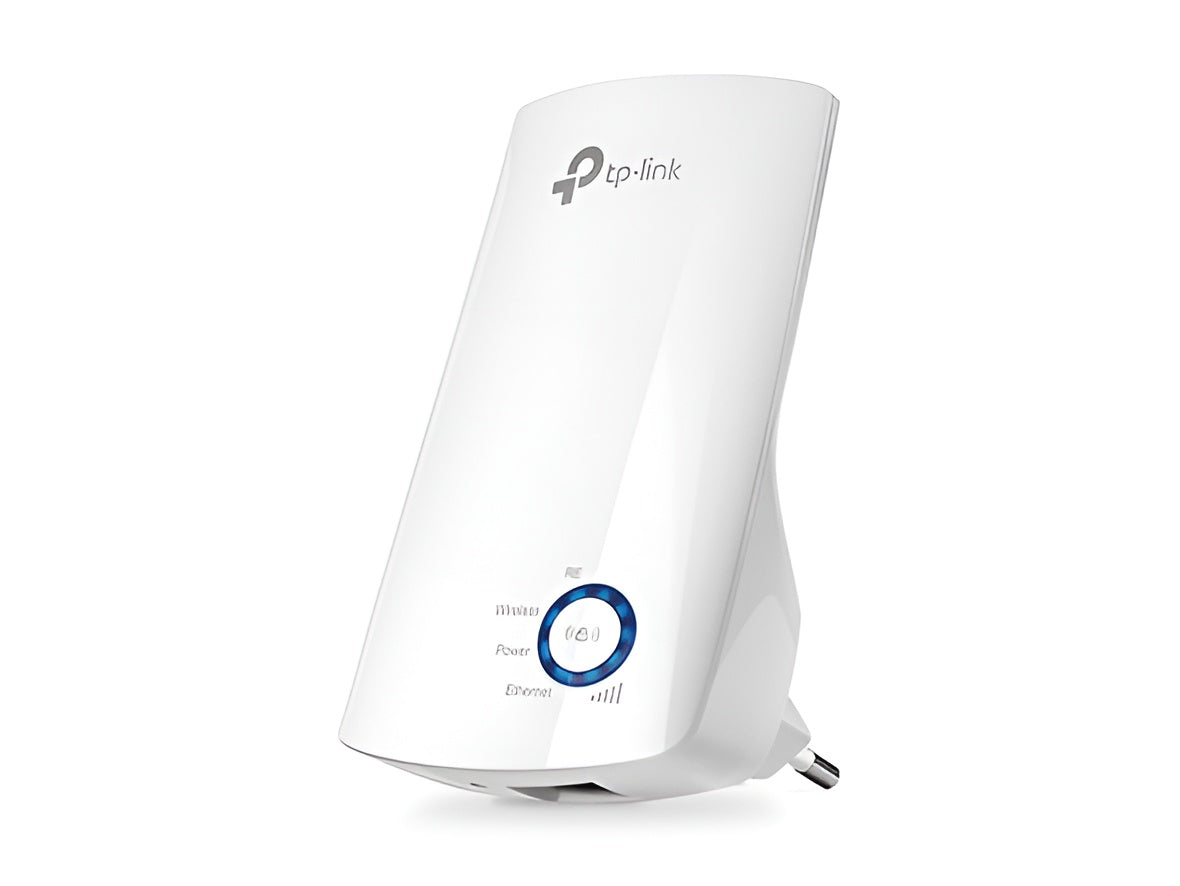

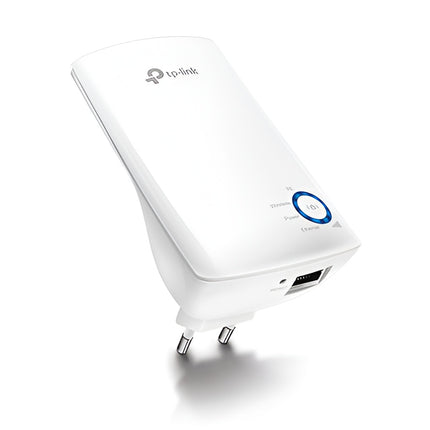

The TP-Link TL-WA850RE conveniently extends coverage and improves the signal strength of your existing wireless network, eliminating dead zones. With 300Mbps wireless N speeds, a Range Extender button, and a compact wall-mounted design, extending your Wi-Fi has never been easier. Its Ethernet port also allows it to function as a wireless adapter to connect wired devices.
Features
- Boosts Wi-Fi signal to previously unreachable areas
- Miniature size and wall-mounted design for flexible use
- Expands coverage with one button press
- Smart Signal Indicator helps find the best location
- Ethernet port connects wired devices wirelessly
- 300Mbps ideal for streaming and online gaming
- Domain-based login at https://tplinkextender.net
- Compatible with 802.11n/g/b wireless devices
- Advanced WEP, WPA/WPA2 encryptions protect your network
300Mbps Range Extender
The TL-WA850RE improves signal strength and extends wireless coverage, maintaining stable connections across your home or office. With 300Mbps 802.11n speeds, it’s ideal for HD streaming, gaming, and music.
Flexible Deployment

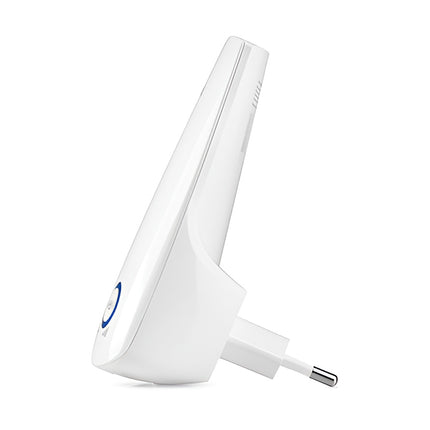

With its miniature size and wall-mounted design, this device is easy to move and deploy. The profile memory function saves paired networks, so there’s no need to reset when changing routers.
Plug and Play
No additional cables required. Simply press the WPS button on your router and the Range Extender button on the TL-WA850RE to expand coverage. An extra push of the Pair button securely connects client devices.
Ethernet Bridge

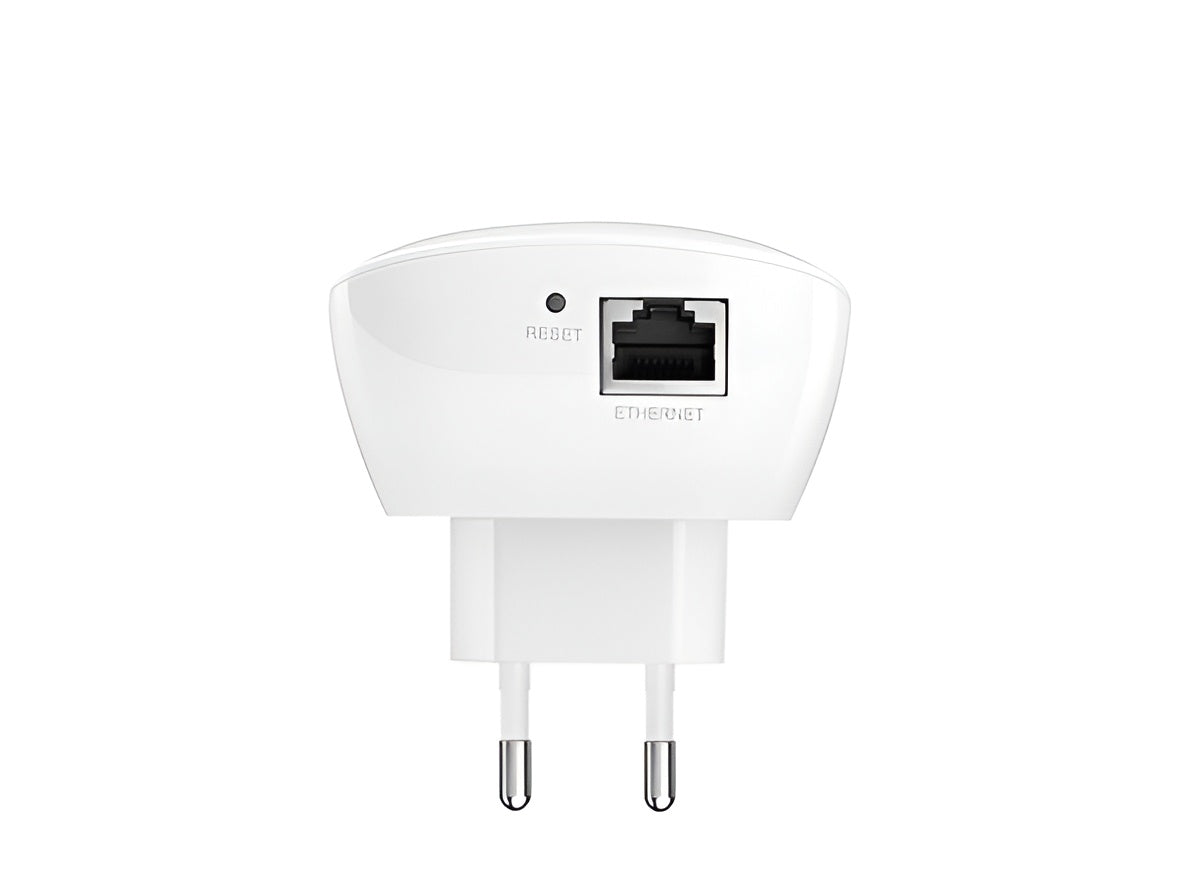

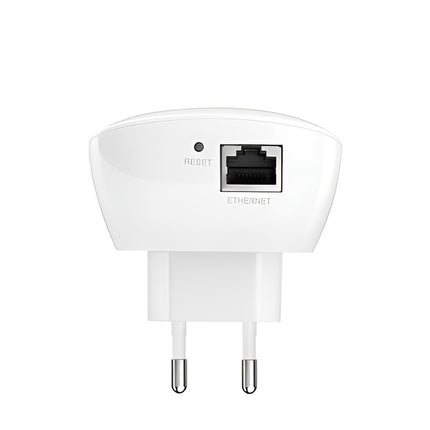

The TL-WA850RE’s Ethernet port allows it to work as a wireless adapter for devices like gaming consoles, DVRs, smart TVs, and Blu-ray® players.
Smart Signal Indicator Light

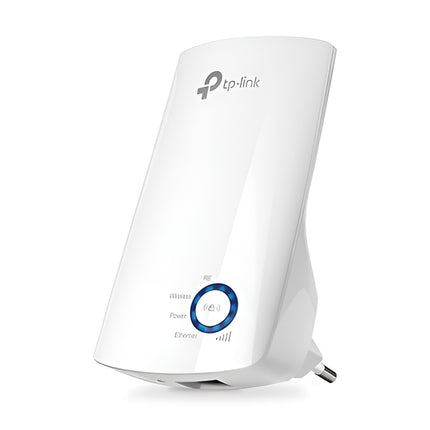

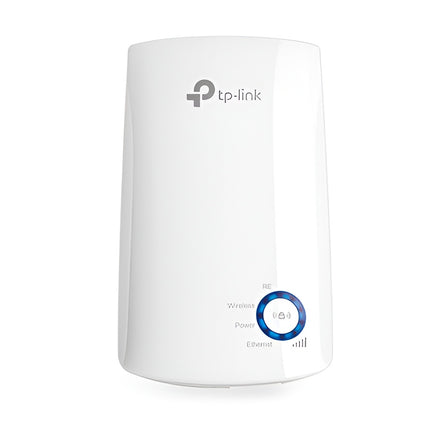

Five LED lights indicate signal strength, helping you find the best spot for maximum performance.
Universal Compatibility
Compatible with all 802.11 b/g/n wireless devices and the latest Windows 8 operating system.
Specifications
HARDWARE FEATURES
|
| Interface |
1 × 10/100M Ethernet Port (RJ45) |
| Plug Type |
EU, UK, US |
| Buttons |
RE (Range Extender), Reset |
| Wireless Standards |
IEEE 802.11n/g/b |
| Antenna |
2 × Internal |
| Dimensions |
110.0 × 65.8 × 75.2 mm (4.3 × 2.6 × 3.0 in.) |
| Power Consumption |
About 3W |
WIRELESS FEATURES
|
| Frequency |
2.4–2.4835GHz |
| Signal Rate |
11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic) |
| EIRP |
< 20 dBm |
| Reception Sensitivity |
270M: -68dBm @10% PER
130M: -68dBm @10% PER
108M: -68dBm @10% PER
54M: -68dBm @10% PER
11M: -85dBm @8% PER
6M: -88dBm @10% PER
1M: -90dBm @8% PER |
| Wireless Modes |
Range Extender |
| Wireless Functions |
WMM, MAC Filtering, Wireless Statistic, Domain Login |
| Wireless Security |
64/128/152-bit WEP, WPA-PSK / WPA2-PSK |
OTHERS
|
| Certification |
CE, RoHS |
| Package Contents |
- TL-WA850RE 300Mbps Range Extender
- RJ-45 Ethernet Cable
- Resource CD
- Quick Installation Guide |
| System Requirements |
Windows 98SE, NT, 2000, XP, Vista, 7, 8
Mac OS, NetWare, UNIX, or Linux |
| Environment |
Operating Temp: 0°C–40°C (32°F–104°F)
Storage Temp: -40°C–70°C (-40°F–158°F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing |
