| Series Model |
NVR128ULT-I |
| Video Input |
128 Channels |
| Processor & OS |
Industrial-grade Processor, Embedded Linux |
| Recording Resolution |
32.0MP (6528×4896) to D1 (704×576) |
| Recording Bandwidth (AI Disabled) |
1024Mbps (incoming/recording), 800Mbps (outgoing) |
| Recording Bandwidth (AI Enabled) |
512Mbps (incoming/recording), 400Mbps (outgoing) |
| Compression |
Video: Smart H.265+, H.265, H.264+, H.264, MJPEG, MPEG4
Audio: G.711a, G.711u, PCM, G726 |
| Playback Channels |
Up to 16 Channels |
| Decoding Capacity |
AI Disabled: 8CH@8MP/25fps, 64CH@720p/25fps
AI Enabled: 8CH@8MP/25fps, 128CH@D1/25fps |
| Storage |
8 × SATA (up to 16TB per bay), RAID 0/1/5/6/10, Hot Swapping |
| Backup Method |
Portable HDD, USB, Network, eSATA |
| Audio I/O |
1 Input (RCA), 2 Output (RCA) |
| Alarm Interface |
16 Inputs, 8 Outputs |
| Display Output |
4 × HDMI (up to 3840×2160), 2 × VGA (up to 1920×1080) |
| Display Split |
1/4/8/9/16/25/36/64 |
| Network Input |
2 × 2500Mbps Ethernet |
| Interoperability |
ONVIF (Profile T/S/G), CGI, SDK, RTSP, Sony, Samsung, Axis, Pelco, Arecont, Canon |
| App Integration |
iOS / Android |
| AI Features (NVR) |
Face Detection, Face Recognition, Human/Vehicle Detection, Video Metadata |
| AI Features (Camera) |
Face Detection, Face Recognition, Human/Vehicle Detection, ANPR, People Counting, Heatmap |
| Face Recognition Capacity |
Up to 40 Databases, 300,000 Face Images |
| Human/Vehicle Detection |
IVS: 24 Channels, SMD: 32 Channels (by NVR) |
| ANPR |
Supports up to 20,000 Plate Numbers |
| Power Supply |
100–240 VAC / 50–60Hz |
| Power Consumption |
≤18W (without HDD) |
| Operating Environment |
-10°C ~ +55°C / 10–93%RH |

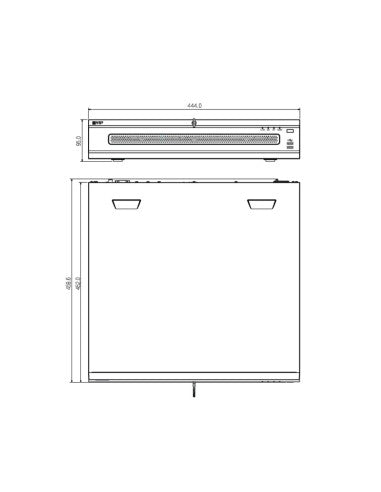

| Dimensions / Rack Units |
440mm × 460mm × 95mm / 2U |
| Weight |
6.4kg (without HDD) |
