| Video Input |
64 Channels |
| PoE |
No |
| HDD Capacity |
8 HDD Bays |
| Processor & Operation |
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI |
| Interoperability |
ONVIF (Profile T, Profile S, Profile G), CGI, SDK. Supports RTSP, Sony, Samsung, Axis, Pelco, Arecont, Canon. Chrome, IE9+, and Firefox. |
| App Integration |
iOS / Android |
| Recording Resolution |
Configurable from 32.0MP (6528 × 4896) to D1 (704 × 576) |
| Network Bandwidth (AI Disabled) |
1024Mbps (incoming/recording), 800Mbps (outgoing) |
| Network Bandwidth (AI Enabled) |
512Mbps (incoming/recording), 400Mbps (outgoing) |
| Video Compression |
Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG / MPEG4 |
| Audio Compression |
G.711a / G.711u / PCM / G726 |
| Playback Channels |
Up to 16 Channels |
| Playback Modes |
General Recording, Motion Detection, Intelligent Events, Alarm Triggers |
| Decoding Capacity (AI Disabled) |
8CH @ 8.0MP / 25fps, 64CH @ 720P / 25fps |
| Decoding Capacity (AI Enabled) |
8CH @ 8.0MP / 25fps, 64CH @ 720P / 25fps |
| Backup Method |
Portable Hard Drive / Burner / USB Device / Network / eSATA |
| Internal HDD |
8 x SATA bays, supports up to 16TB per bay, RAID 0/1/5/6/10, Hot Swappable |
| Audio |
1 x RCA Input, 2 x RCA Outputs |
| Alarm Interface |
16 Alarm Inputs, 8 Alarm Outputs |
| Alarm Types |
General (Motion, Video Loss, Scene Change), Anomalies (Camera Disconnect, Disk Full, IP Conflict), Intelligent AI Alerts |
| Alarm Actions |
Begin Record, Take Snapshot, Camera External Alarm Output, Audio, Buzzer, NVR Log, Camera Preset, Email |
| Display Output |
4 x HDMI (up to 3840 × 2160), 2 x VGA (up to 1920 × 1080) |
| Display Split |
1st Screen: 1/4/8/9/16/25/36/64, 2nd Screen: 1/4/8/9/16/25/36 |
| Display Mode |
Single Source: HDMI1@4K, HDMI2@4K, HDMI3@8K, HDMI4@1080P, VGA1@1080P, VGA2@1080P. Multiple Sources: HDMI1+VGA1 (Mirror), HDMI2+VGA2 (Mirror), HDMI3@4K, HDMI4@1080P. |
| Network Input |
2 x 2500Mbps Ethernet Ports |
| Network Functions |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip |

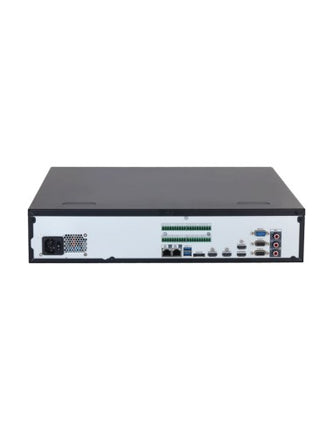

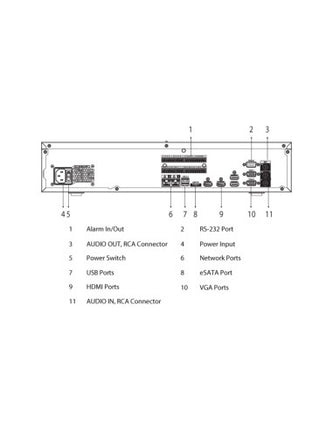

| USB & Other Inputs |
2 x Front USB 2.0, 2 x Rear USB 3.0, 1 x RS-485 A/B, 1 x RS-232, 1 x eSATA |
| NVR Operated AI |
Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata |
| Supported Camera AI |
Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp |
| Face Detection Functions |
Gender, Age Group, Glasses, Expressions, Face Mask, Beard |
| Face Detection (By NVR) |
4 Channels (up to 12 face images per second, per channel) |
| Face Detection (By Camera) |
64 Channels |
| Face Recognition Capacity |
Supports up to 40 Face Databases and 300,000 Face Images |
| Face Recognition (By NVR) |
4 Channels (NVR Video Stream Analysis) or 20 Channels using Face Capture Cameras |
| Face Recognition (By Camera) |
64 Channels |
| Human/Vehicle Detection Functions |
AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD) |
| Human/Vehicle Detection (By NVR) |
IVS: 24 Channels (10 Rules per Channel), SMD: 32 Channels |
| Human/Vehicle Detection (By Camera) |
IVS: 64 Channels, SMD: 64 Channels |
| ANPR Functions |
Supports up to 20,000 Plate Numbers with Allowlist & Blocklist |
| ANPR (By Camera) |
32 Channels |
| Video Metadata Functions |
People (Clothing Colour, Hat, Bag, Umbrella, etc.), Vehicle (Vehicle Colour, Model, Number Plate, etc.) |
| Video Metadata (By NVR) |
8 Channels |
| Video Metadata (By Camera) |
32 Channels |
| Power Supply |
100–240VAC / 50–60Hz |
| Power Consumption |
≤18W (without HDD) |
| Operating Environment |
-10°C ~ +55°C / 10 ~ 93%RH |
| Rackmountable |
Yes |
| Rackmount Units |
2U |

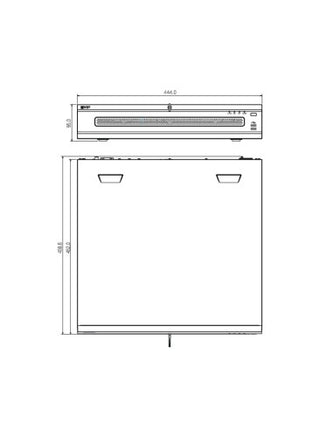

| Dimensions |
440mm × 460mm × 95mm |
| Weight |
6.4kg (without HDD) |
