Engineered by Uniview, one of the world's leading video surveillance innovators, Uniarch devices combine convenience, durability, and cost-efficiency. Designed to provide optimal security solutions to small and medium applications, it is a perfect system for those looking for a simple, reliable, feature-rich, and affordable solution.
Easystar - The Simple Choice for Reliable Night Vision
Easystar is engineered to provide colourful images in low-light environments. Easystar IP cameras adopt the backside-illuminated CMOS Sensor, which greatly improves light utilization. F1.6 iris design improves light gathering capability. The minimum illumination is down to 0.005Lux. Most importantly, UNV's uniquely patented technology U-ISP improves the definition and brightness of images. With a perfect combination of hardware and software, Easystar IP cameras deliver high-quality colourful images at low illumination.
Reliable Performance - Weatherproof and Dustproof
The IP cameras of the Easystar series are also excellent in other environmental conditions. The entire series of products support IP67 waterproof and dustproof levels, which can meet the needs of outdoor environments. They all support long IR distance, combined with lowlight technology to deliver high-quality images around the clock.

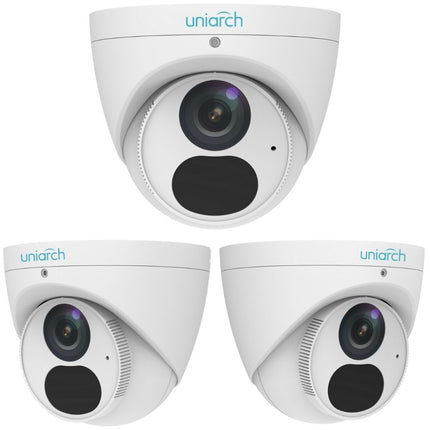

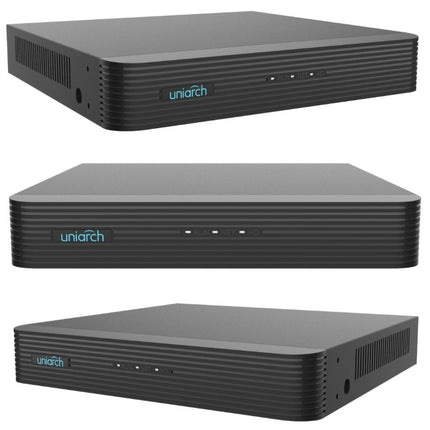

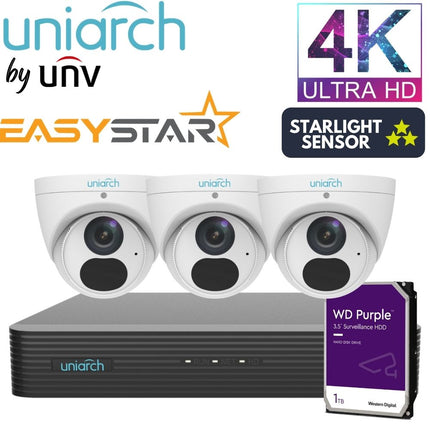

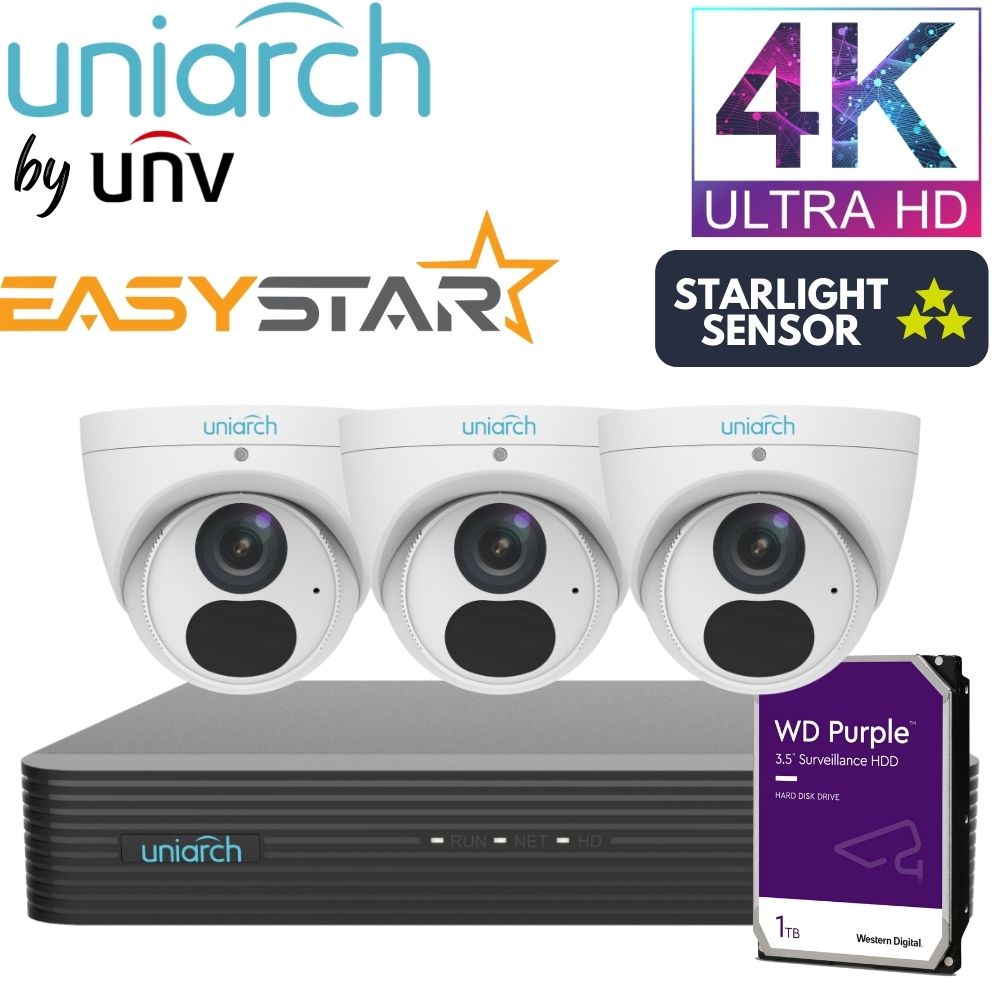

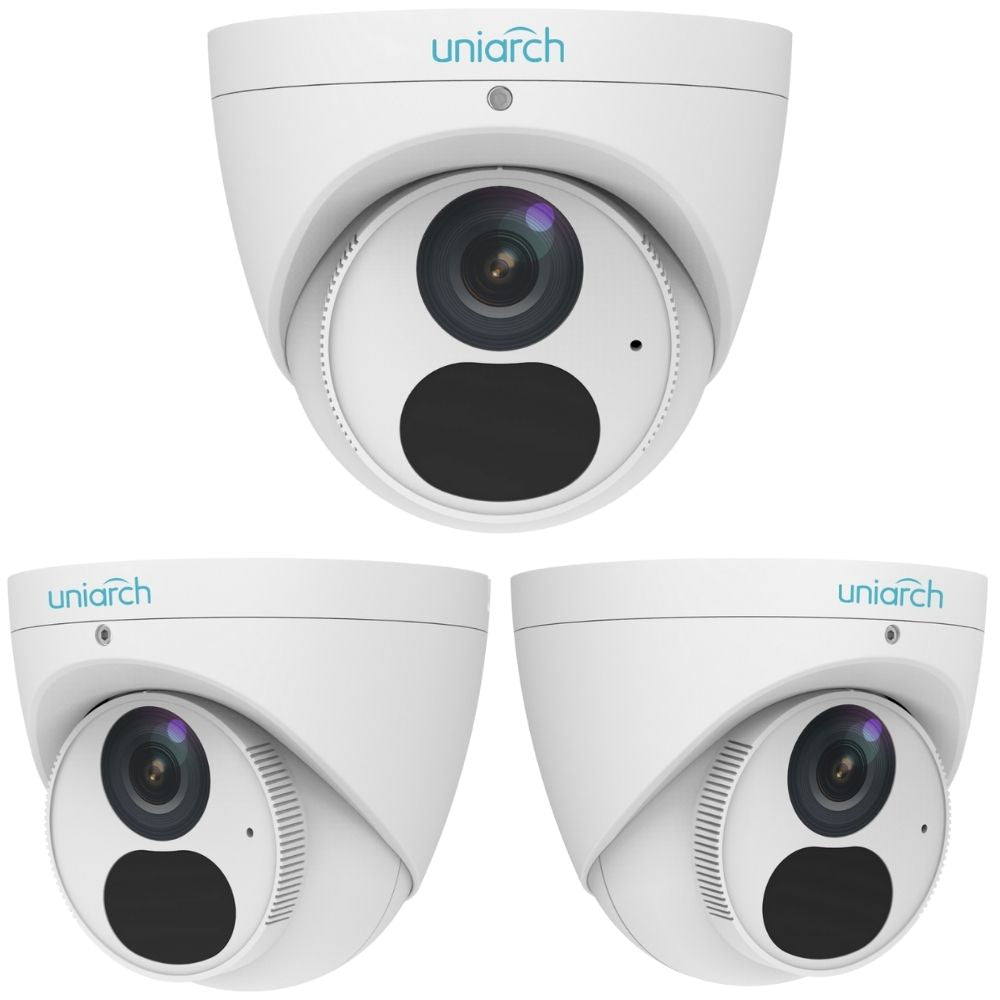

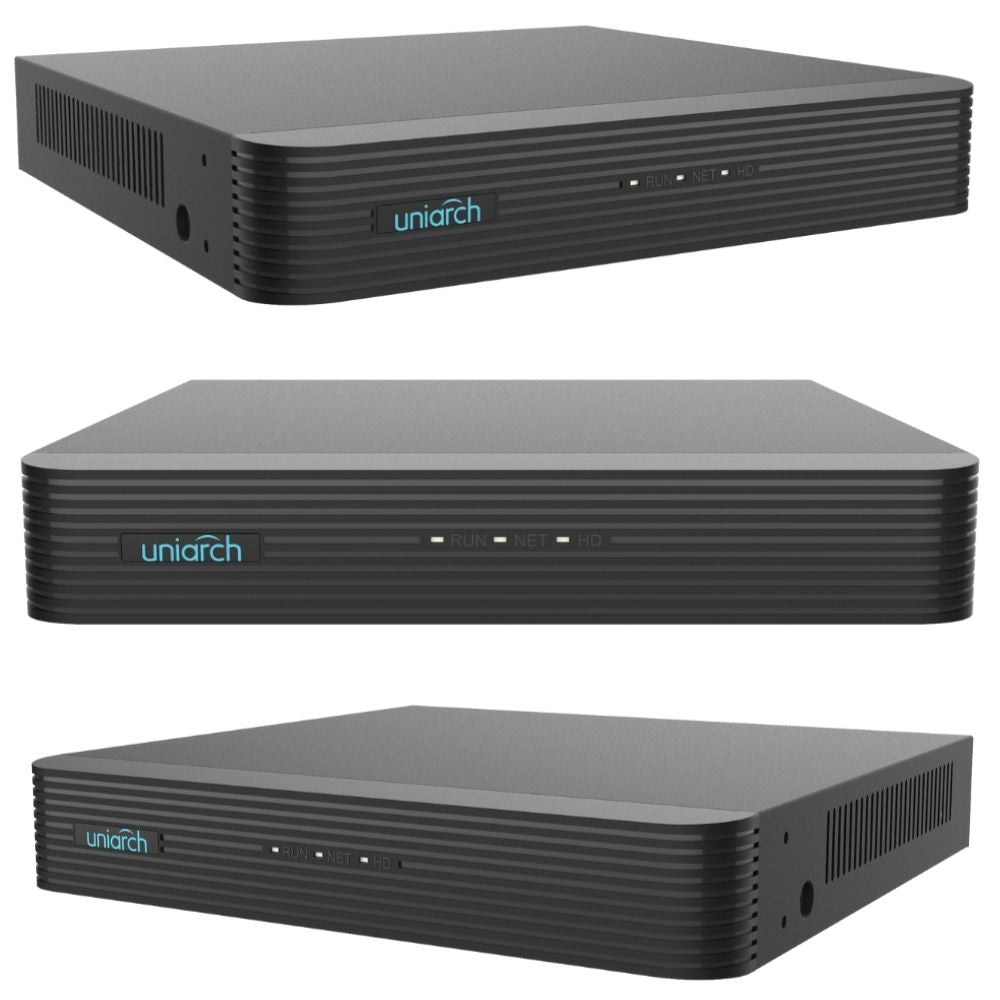

This security system is built around the Uniarch Network Video Recorder: 4-Channel, 4K Ultra HD, Pro - NVR-104X-P4 and comes with 3 x Uniarch Security Camera: 8MP Turret EasyStar - IPC-T1E8-AF28K along with Western Digital Purple Surveillance Hard Drive.
Security Camera Features
Network Video Recorder Features
If you have any questions, please email us at firstname.lastname@example.org and let's build a system customized to your preference.
|Sensor||1/2.7", 8.0 megapixel, progressive scan, CMOS|
|Minimum Illumination||Colour: 0.005Lux (F1.6, AGC ON) 0Lux with IR on|
|Day/Night||IR-cut filter with auto switch (ICR)|
|Shutter||Auto/Manual, 1 ~ 1/100000s|
|Adjustment angle||Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°|
|Lens Type||2.8mm @1.6, Fixed-focal|
|Angle of View (H)||112.9°|
|Angle of View (V)||59.1°|
|Angle of View (O)||121.2°|
|DORI Distance||Lens (mm)||Detect (m)||Observe (m)||Recognize (m)||Identify (m)|
|IR Range||Up to 30m (98 ft) IR range|
|IR On/Off Control||Auto/Manual|
|Video Compression||Ultra 265, H.265, H.264, MJPEG|
|H.264 code profile||Baseline profile, Main profile, High profile|
|Frame Rate||Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;|
|Video Bit Rate||128 Kbps~16 Mbps|
|9:16 Corridor Mode||Supported|
|OSD||Up to 4 OSDs|
|Privacy Mask||Up to 4 areas|
|ROI||Up to 8 areas|
|Motion Detection||Up to 4 areas|
|White Balance||Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2|
|Image Setting||Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser|
|Digital Noise Reduction||2D/3D DNR|
|Basic Detection||Intrusion(based on human body detection)|
|motion detection, tampering alarm, audio detection|
|General Function||Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication|
|Edge Storage||Micro SD, up to 256GB|
|Network Storage||ANR, NAS(NFS)|
|Protocols||IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS , SSL/TLS,|
|Compatible Integration||ONVIF (Profile S, Profile G, Profile T), API, SDK|
|User/Host||Up to 32 users. 2 user levels: administrator and common user|
|Security||Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF|
|Client||Uniarch Client Uniarch APP|
|Web Browser||Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below|
|Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+|
|Network||1 * RJ45 10M/100M Base-TX Ethernet|
|Power||DC 12V±25%, PoE (IEEE 802.3af)|
|Power consumption: Max 4.5W|
|Power Interface||Ø 5.5mm coaxial power plug|
|Dimensions (L × W × H)||Φ111 x 95mm (Φ4.4” x 3.7”)|
|Working Environment||-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)|
|Storage Environment||-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)|
|Ingress Protection||Ingression protection: IP67|
|IP Video Input||4-ch|
|Two-way Audio Input||1-ch, RCA|
|Protocols||TCP/IP, P2P, DHCP, UPnP, HTTP, HTTPS, DNS, DDNS, SMTP|
|3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA:|
|1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz|
|Audio Output||1-ch, RCA|
|Audio Compression||G.711A, G.711U|
|Corridor Mode Screen||44624|
|Decoding format||Ultra 265/H.265/H.264|
|Capability||2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30|
|SATA||1 SATA interface|
|Capacity||up to 6TB for each disk|
|VCA Detection by Camera||Intrusion detection, Cross line detection, Enter area, Leave area|
|VCA Search||Behavior search|
|General Alarm||Motion, Human Body Detection, Video Loss, Alarm input|
|Alert Alarm||IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access|
|Network Interface||1 RJ45 10M/100M self-adaptive Ethernet Interface|
|USB Interface||Rear panel: 1 x USB2.0,1 x USB3.0|
|Interface||4 RJ45 10M/100M self-adaptive Ethernet Interface|
|Max Power||Max 30W for single port|
|Max 54W in total|
|Supported Standard||IEEE 802.3at, IEEE 802.3af|
|Power Supply||48V DC|
|Power Consumption: ≤9 W (without HDD)|
|Working Environment||-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)|
|Dimensions (W×D×H)||260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")|
|Weight (without HDD)||1kg (2.20 lb)|
Our Uniarch products are high-quality and durability-tested by Uniview engineers. Enjoy the peace of mind of a three-year warranty!
