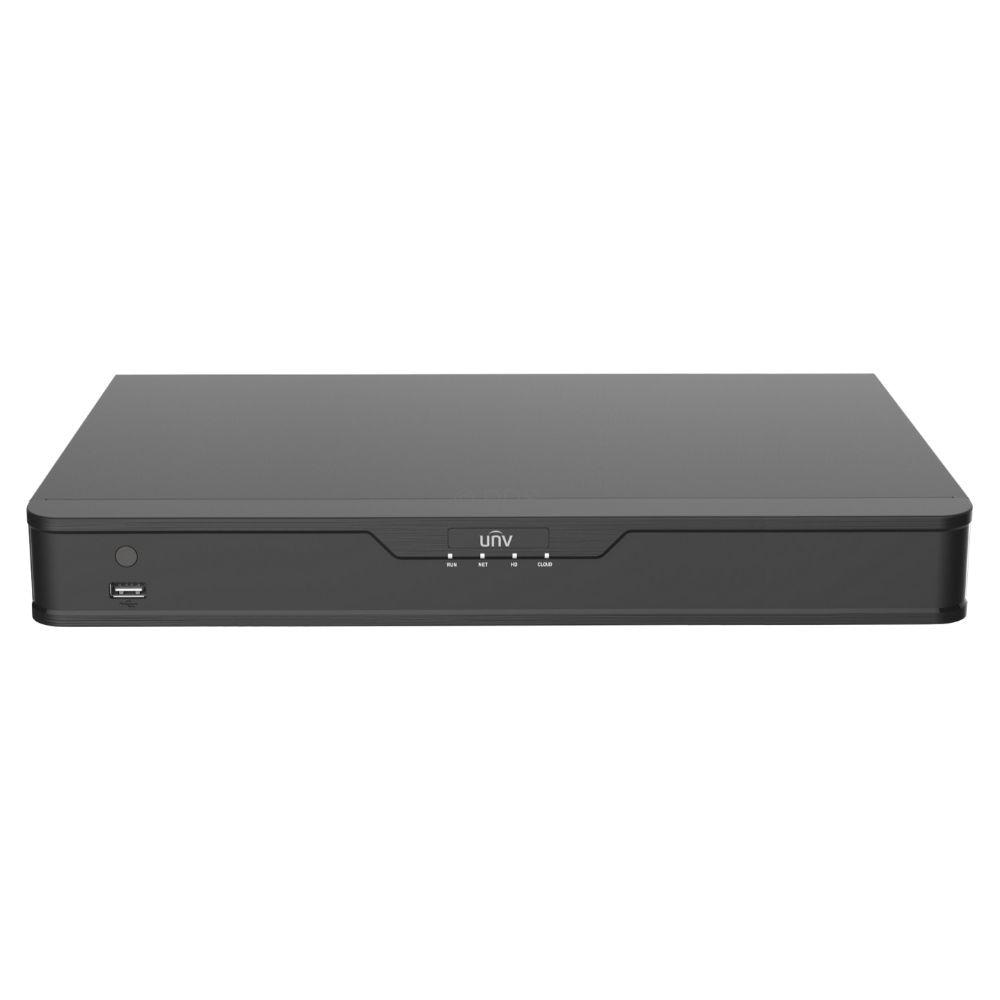

| NVR302-16S-P16 |
| Video/Audio Input |
| IP Video Input |
16-ch |
| Two-way Audio Input |
1-ch, RCA |
| Network |
| Incoming Bandwidth |
160Mbps |
| Outgoing Bandwidth |
96Mbps |
| Remote Users |
128 |
| Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output |
HDMI/VGA
Output |
VGA: 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,1920X1080@60 HDMI:
4k(3840x2160@30), 4k(3840x2160@60), 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,
1920X1080@60 |
| Recording Resolution |
8MP/6MP/5MP/4MP /3MP/1080p/960p/ 720p/D1/2CIF/CIF |
| Audio Output |
1-ch, RCA |
| Synchronous Playback |
16-ch |
| Corridor Mode Screen |
3/4/5/7/9/10/12/16 |
| Decoding |
| Decoding format |
Ultra265/H.265/H.264 |
| Live view/ Playback |
8MP/6MP/5MP/4MP/ 3MP/1080p/960p/ 720p/D1/2CIF/CIF |
| Capability |
1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1 |
| Hard Disk |
| SATA |
2 SATA interfaces |
| Capacity |
up to 10TB for each disk |
| Smart |
| VCA Detection |
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
| VCA Search |
Face search, Behavior search |
| Statistical Analysis |
People counting |

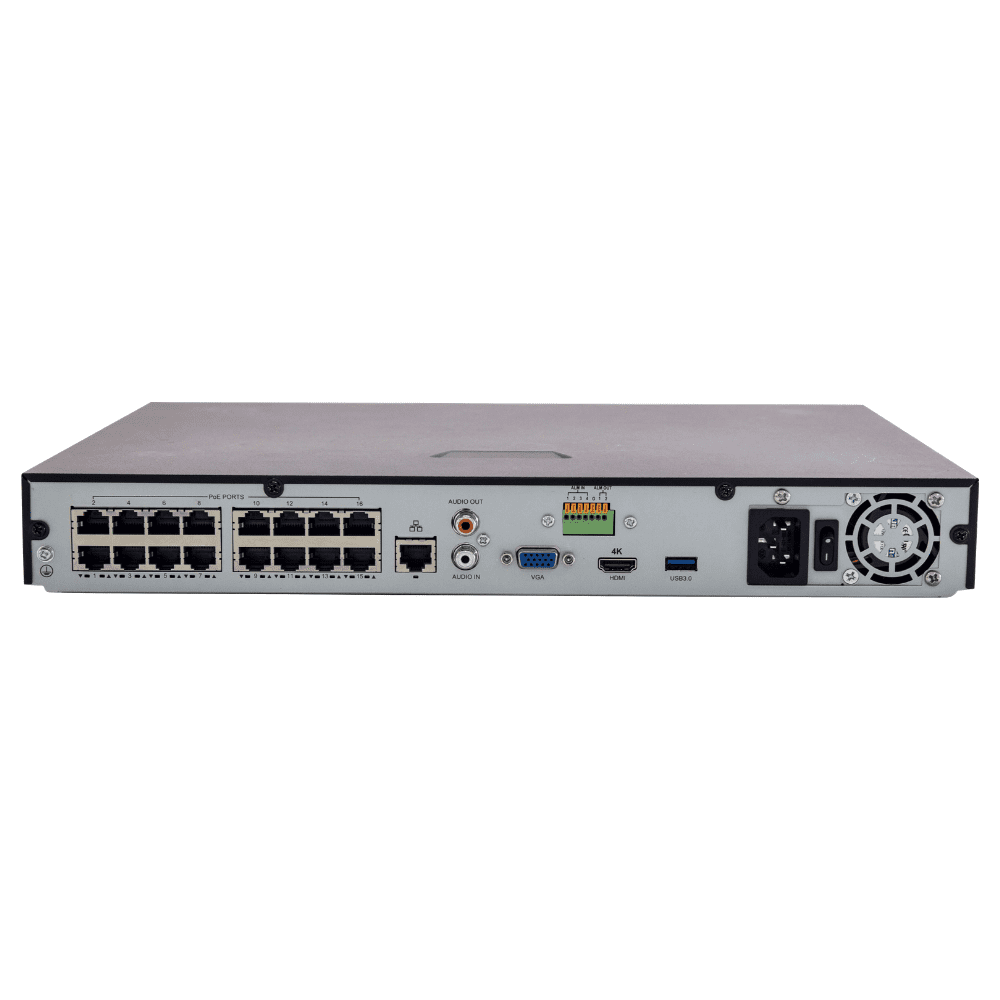

| External Interface |
| Network Interface |
1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface |
Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0 |
| Alarm In |
4-ch |
| Alarm Out |
1-ch |
| PoE |
| Interface |
16 independent 100Mbps PoE network interfaces |
| Max Power |
Max 30W for single port
Max 240W in total ( 15W for each ) |
| Supported Standard |
IEEE 802.3af/at |
| General |
| Power Supply |
220V AC
Power Consumption: ?9 W( without HDD ) |
| Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing) |
| Dimensions(W× D×H) |
380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" ) |
Weight
( without HDD ) |
?2.4kg (5.29 lb) |
