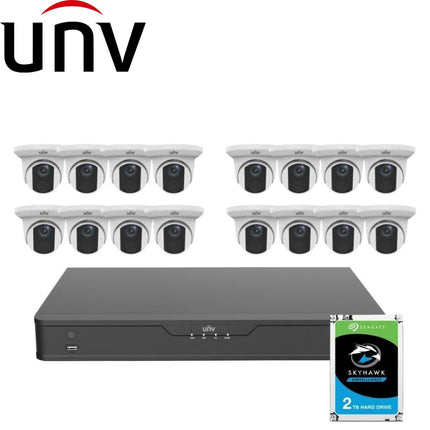

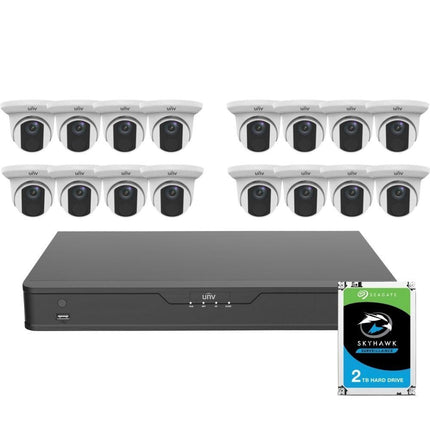

Uniview 16 Channel Security System: 8MP(4K) NVR, 16 x 8MP(4K) Turret Cameras, 2TB HDD

by Uniview
Save up to $548.00 Save $450.00
Original price $2,999.00
Original price $2,999.00 - Original price $3,648.00
Original price $2,999.00
Current price $2,549.00
$2,549.00 - $3,100.00
Current price $2,549.00
Upgrade NVR: 16 Channels (NVR302-16S-P16)
Upgrade Hard Drive: 2TB



Designed by Uniview, a leading innovator in the surveillance industry, this 16-camera kit includes the IPC3618LR3-DPF28-MS, an 8-megapixel, turret camera with exceptional 4K Ultra HD resolution, infrared night vision and advanced inbuilt smart detections that help make it easy to monitor, detect and alert you of intrusions. Image optimisation technology such as WDR and 3D DNR actively minimise noise and balances light. The camera is compatible with most 3rd party digital video recorders and supports power-over-ethernet for simple plug-and-play set up. It can be installed outdoors thanks to its IP67 weatherproof construction.

This kit features a 16 channel NVR (NVR302-16S-P16) capable of recording in 8MP 4K Ultra HD resolution. Or as an optional upgrade you can choose the Prime series 16 channel NVR (NVR302-16E-P16) with higher bandwidth (320Mbps) and decoding capacity as well as the ability to record in 12MP resolution.

Both NVR's support long range Power Over Ethernet connections, capable of connecting, powering and streaming cameras from 250-300 metres away. Both NVR models support 2 SATA Hard Disks up to 10 Terabytes each and Ultra265 video compression, a Uniview innovation that compresses video, maximising efficiency of bandwidth and storage capacity. Viewing your cameras remotely is possible through the EZ View app for smart devices, or by web browser on computer, also allowing set up and control of various functions of your system.

Designed for home or business owners on a moderate budget, this is a professional security investment that can be relied upon for years to come.


  • 16 x 8 megapixel (8MP/4K) IR Turret Cameras, 1/2.5", progressive scan CMOS, 2.8mm @F2.0 fixed lens, 3 Axis Suitable
  • 16 channel NVR (NVR302-16S-P16). Support 8MP (4K) Recording with 16 independent POE ports (Plug and Play)
  • OPTIONAL UPGRADE: Prime Series 12MP Network Video Recorder (NVR302-16E-P16). Supports Higher Bandwidth (320Mbps), Higher Decoding Capability and 12MP Recording

  • 2 Terabyte Seagate Skyhawk Surveillance Hard Drive (Upgradable to 8TB)
  • Supports Power Over Ethernet POE
  • Up to 120 dB WDR (Wide Dynamic Range), 3D DNR noise reduction, digital defog, IR auto cut filter, ROI, corridor mode
  • Smart Detections include Motion Detection, Intrusion Detection, Tampering Alarm
  • Smart IR night vision, up to 30m (98 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Video Compression Ultra 265,H.265, H.264, MJPEG - Triple Stream
  • IP67 weather protection, Wide Temperature -30C to +60C
  • WARRANTY: 2 years back-to-base manufacturer warranty

More Info

More Info

Easy Set-up

  • POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to the camera, making installation fast and easy. Typically it's possible to run 100 metres of POE cable from NVR to camera. This kit supports POE distances of 250-300 metres of Cat5E or Cat6 cable without the need for repeaters or extenders.

    DC12V - The camera has a DC12V connector as well as POE so that it can be powered by a 12V power supply if POE connectivity is unavailable.


  • Day/night functionality - Designed to operate just as good in total darkness as well as light.
  • Smart IR night vision, up to 30m (98 ft) IR distance
  • Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.

  • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.

  • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
  • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.
  • Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.


    • Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra H.265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.
    • Embedded smart algorithm
    • Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
    • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
    • 9:16 corridor mode - For narrow, vertical scenarios such as hallways, that reduces wasted video compression, transmission and storage. The 9:16 aspect ratio rotates the image by 90 degrees and reduce the proportion of blank walls in the picture allowing the camera to focus on the most valuable areas—the doorway.
    • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.


    • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.


    • Wide temperature range: -30°C to 60°C
    • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
    • IP67 - Cameras are sealed against extreme weather, water and dust.


    • Intrusion Detection - You can draw a box or an area of interest within the screen for the camera to monitor. When the camera identifies an intrusion it will prompt the NVR to send you an email or notification with snapshots.
    • Scene Change - The camera can identify if it is being tampered with if there is a change in scenery it is actively monitoring. It will be prompted to send you an email with snapshots of the incident.
    • Defocus Detection - The camera can detect when it is out of focus and alert you.

    Tech Specs

    Tech Specs

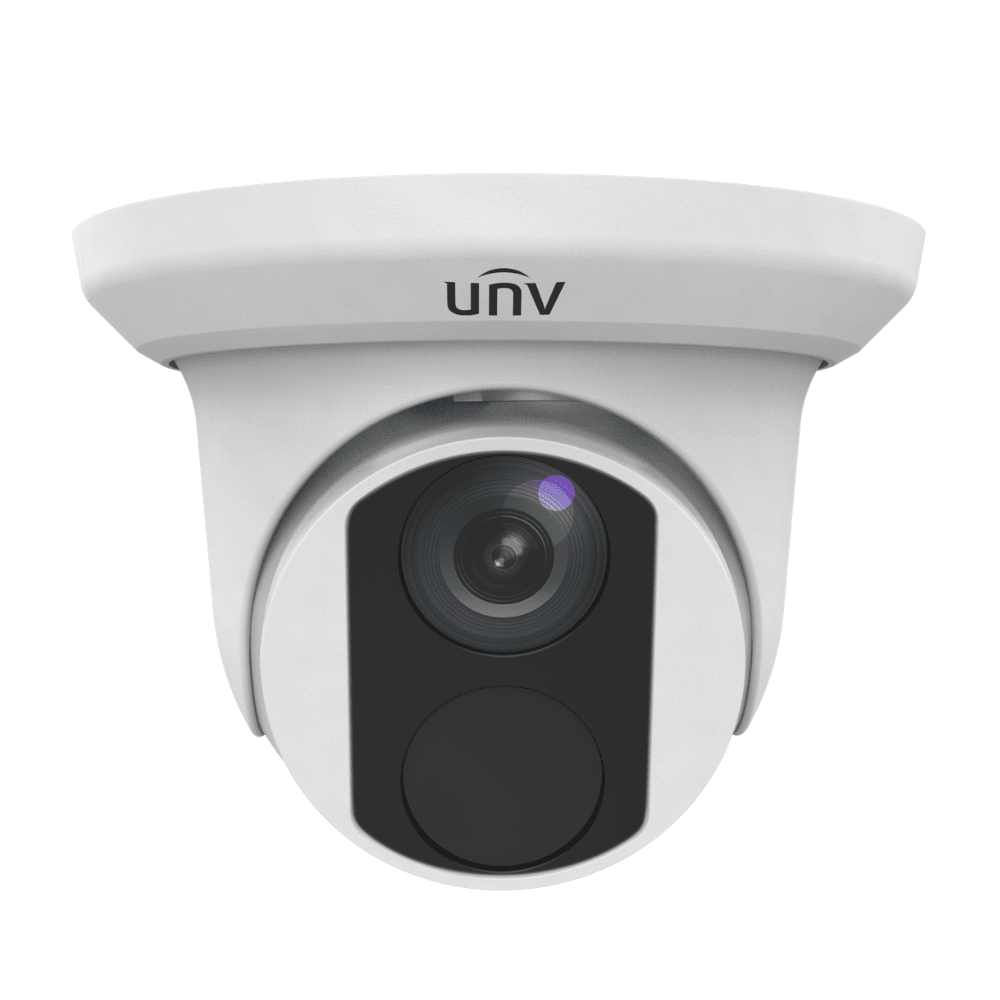

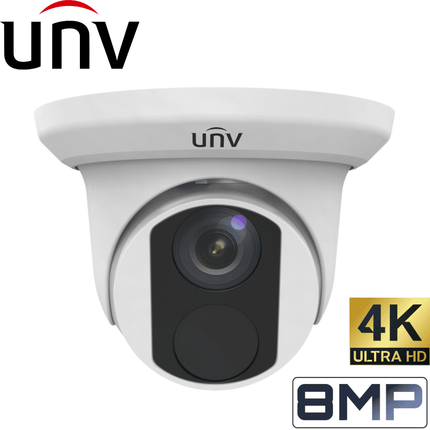

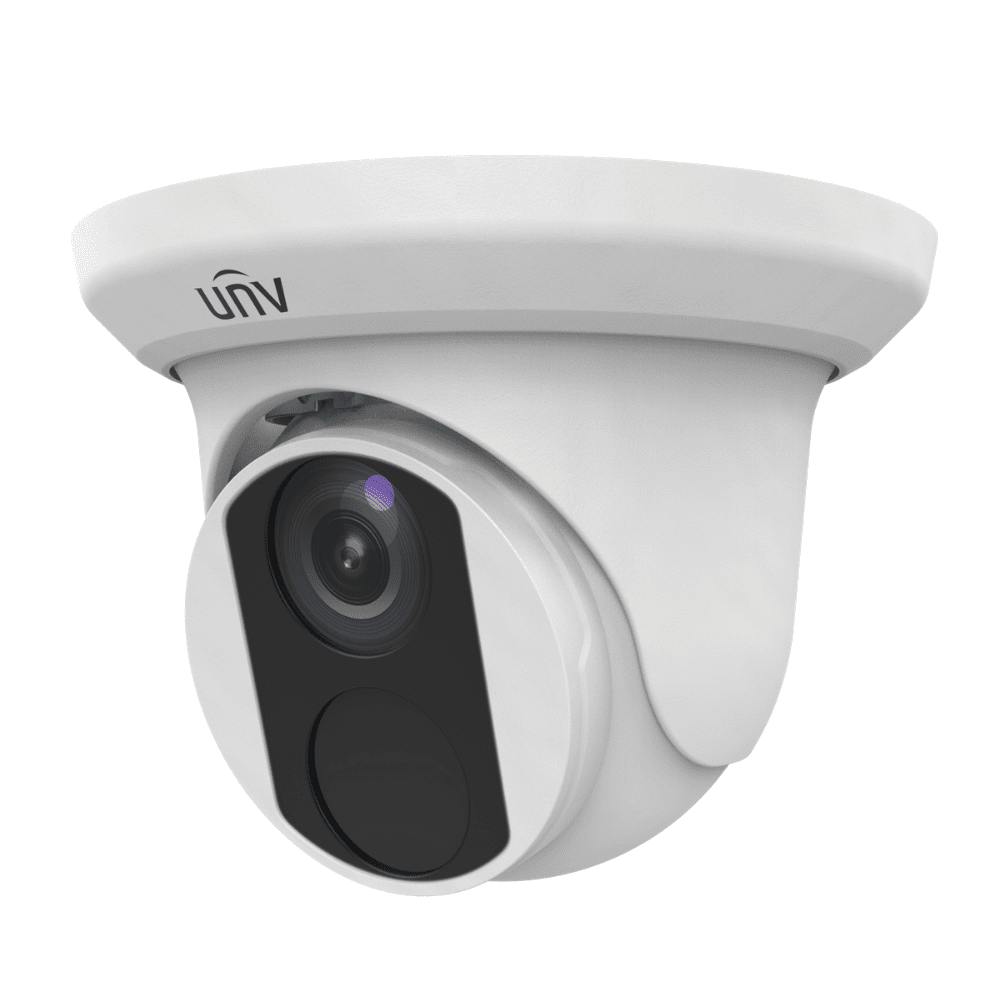

    Uniview 8MP (4K) Fixed Lens Turret Camera - IPC3618LR3-DPF28-MS

    Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS
    Lens 2.8mm@F2.0
    Angle of view (H) 118.5°
    Angle of view (V) 64.0°
    Angle of view (O) 154.1°
    Adjustment Range Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
    Shutter Auto/Manual, 1 ~ 1/100000s
    Minimum Illumination Color: 0.05Lux (F2.0, AGC ON)
    0Lux with IR
    Day/Night IR-cut filter with auto switch (ICR)
    Digital noise reduction 2D/3D DNR
    S/N >56dB
    IR Range Up to 30m (98ft) IR range
    Defog Digital Defog
    WDR 120dB
    Video Compression Ultra 265, H.264, MJPEG
    H.264 code profile Baseline profile, Main Profile, High Profile
    Frame Rate Main Stream: 8MP (3840*2160), Max 15fps;
    Sub Stream: 1080P (1920*1080), Max 30fps;
    Third Stream: D1 (720*576), Max 30fps
    HLC Supported
    BLC Supported
    9:16 Corridor Mode Supported
    OSD Up to 8 OSDs
    Privacy Mask Up to 8 areas
    ROI Up to 8 areas
    Motion Detection Up to 4 areas
    Behavior Detection motion detection
    Intrusion Enter and loiter in a pre-defined virtual region
    Intelligent Identification Defocus, Scene Change

    General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
    Compatible Integration ONVIF (Profile S, Profile T), API
    Network 10M/100M Base-TX Ethernet
    Power DC 12V±25%, PoE (IEEE 802.3af)
    Power consumption: Max 5.5W
    Dimensions (Ø x H) ?126 x 94mm (Ø5.0” x 3.7”)
    Weight 0.45kg (0.99lb)
    Operating Conditions -30? ~ 60? (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
    Ingress Protection IP67

    Uniview 16 Channel 8MP (4K) Network Video Recorder - NVR302-16S-P16

    Video/Audio Input
    IP Video Input 16-ch
    Two-way Audio Input 1-ch, RCA
    Incoming Bandwidth 160Mbps
    Outgoing Bandwidth 96Mbps
    Remote Users 128
    Protocols P2P, UPnP, NTP, DHCP, PPPoE
    Video/Audio Output
    VGA: 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,1920X1080@60 HDMI:
    4k(3840x2160@30), 4k(3840x2160@60), 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,
    Recording Resolution 8MP/6MP/5MP/4MP /3MP/1080p/960p/ 720p/D1/2CIF/CIF
    Audio Output 1-ch, RCA
    Synchronous Playback 16-ch
    Corridor Mode Screen 3/4/5/7/9/10/12/16
    Decoding format Ultra265/H.265/H.264
    Live view/ Playback 8MP/6MP/5MP/4MP/ 3MP/1080p/960p/ 720p/D1/2CIF/CIF
    Capability 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1
    Hard Disk
    SATA 2 SATA interfaces
    Capacity up to 10TB for each disk
    VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
    VCA Search Face search, Behavior search
    Statistical Analysis People counting
    External Interface
    Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
    USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0
    Alarm In 4-ch
    Alarm Out 1-ch
    Interface 16 independent 100Mbps PoE network interfaces
    Max Power Max 30W for single port
    Max 240W in total ( 15W for each )
    Supported Standard IEEE 802.3af/at
    Power Supply 220V AC
    Power Consumption: ?9 W( without HDD )
    Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing)
    Dimensions(W× D×H) 380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" )
    ( without HDD )
    ?2.4kg (5.29 lb)
