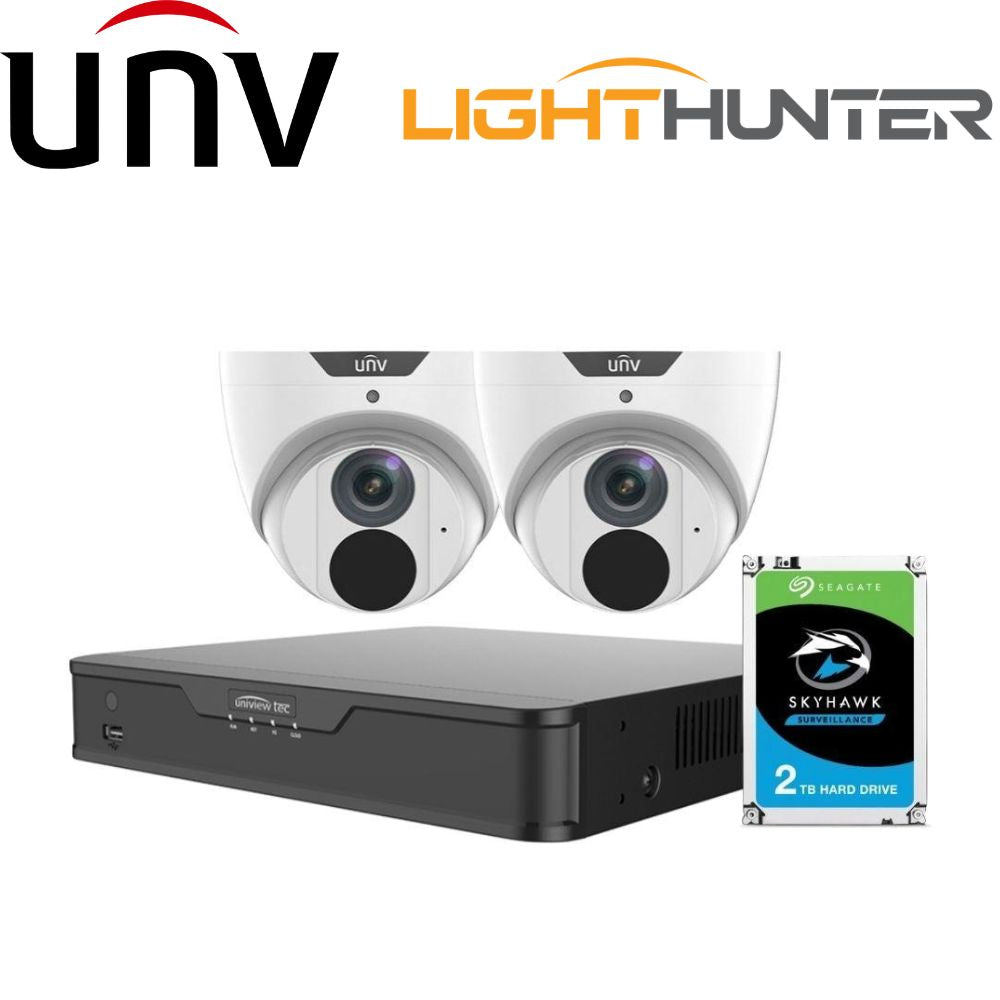

Uniview 4 Channel Security System: 4K NVR, 2 x 5MP Starlight Turret Cameras, 2TB HDD
Rated 3.5/5 based on 11 customer reviews

Uniview 4 Channel Security System: 4K NVR, 2 x 5MP Starlight Turret Cameras, 2TB HDD

  • 4 Channel Compact 4K (8MP) NVR with 4 independent POE+ network interfaces
  • 2 x 5 megapixel (5MP) Starlight Illumination Turret Cameras, 2.8mm lens
  • 2 Terabyte pre-installed hard drive (upgradable to 8TB) 1 HDD capacity only
  • Access your Live video feed on your smart device with EZView app. Supports android and ios
  • Third-party IP cameras supported with ONVIF conformance
  • Starlight Illumination - Record crisp, colour images in low light conditions, even as low as 0.0005 Lux/lumens
  • Accurate retrieval, instant playback
  • Video Compression Ultra H.265,H.265, H.264, MJPEG - Triple Streams
  • 120 dB WDR (Wide Dynamic Range), 3D DNR
  • Smart IR night vision, up to 30m IR distance
  • Includes Face Detection, Cross-Line detection, Intrusion Detection, Audio Detection, People Counting
  • 4 KV surge protection, IP67 weather protection
  • Product SKU: NVR301-04-P4 2 Camera
  • Order within
Available: In Stock
Login to view price.
The Uniview 4-channel 2-camera kit is an ideal choice for apartments and smaller homes. The two 5 megapixel security cameras (IPC3615ER3-ADUPF28M) deliver high clarity resolution utilising WDR and 3DDNR technology, and can be adjusted easily with 360 degree rotation and pan, and 0-90 degrees of tilt for easy positioning. Enjoy weatherproof construction with excellent night vision quality up to 30 metres, along with plug and play features for easy, straightforward setup. Starlight Illumination permits full colour recording in very dim environments, as low as 0.005Lux. In-built smart detection technology include Intrusion and Cross-Line detection, Motion Detection and Face Detection, which can be setup to trigger recording, alarms or email notifications with snapshots. An inbuilt mic makes it possible to record audio.

The NVR301-04-P4 is a 4 Channel NVR capable of recording in 8 megapixel (4K) resolution. Enjoy plug and play functionality and long range PoE+, capable of connecting, powering and streaming cameras from 250-300 metres away. It supports 1 SATA Hard Disk up to 8 Terabytes and Ultra265 video compression, a Uniview innovation that compresses video, maximising efficiency of bandwidth and storage capacity. Viewing your cameras remotely is possible through the EZ View app for smart devices, or by web browser on desktop computer, also allowing set up and control of various functions of your system.

Designed by market leaders in innovation, Uniview’s quality cameras are popular with professional CCTV installers worldwide, often being used for large commercial projects.

FEATURES

  • 4 Channel Compact 4K (8MP) NVR with 4 independent POE+ network interfaces
  • 2 x 5 megapixel (5MP) Starlight Illumination Turret Cameras, 2.8mm lens
  • 2 Terabyte pre-installed hard drive (upgradable to 8TB) 1 HDD capacity only
  • Access your Live video feed on your smart device with EZView app. Supports android and ios
  • Third-party IP cameras supported with ONVIF conformance
  • Starlight Illumination - Record crisp, colour images in low light conditions, even as low as 0.0005 Lux/lumens
  • Accurate retrieval, instant playback
  • Video Compression Ultra H.265,H.265, H.264, MJPEG - Triple Streams
  • 120 dB WDR (Wide Dynamic Range), 3D DNR
  • Smart IR night vision, up to 30m IR distance
  • Includes Face Detection, Cross-Line detection, Intrusion Detection, Audio Detection, People Counting
  • 4 KV surge protection, IP67 weather protection



The Uniview 4-channel 2-camera kit is an ideal choice for apartments and smaller homes. The two 5 megapixel security cameras (IPC3615ER3-ADUPF28M) deliver high clarity resolution utilising WDR and 3DDNR technology, and can be adjusted easily with 360 degree rotation and pan, and 0-90 degrees of tilt for easy positioning. Enjoy weatherproof construction with excellent night vision quality up to 30 metres, along with plug and play features for easy, straightforward setup. Starlight Illumination permits full colour recording in very dim environments, as low as 0.005Lux. In-built smart detection technology include Intrusion and Cross-Line detection, Motion Detection and Face Detection, which can be setup to trigger recording, alarms or email notifications with snapshots. An inbuilt mic makes it possible to record audio.

The NVR301-04-P4 is a 4 Channel NVR capable of recording in 8 megapixel (4K) resolution. Enjoy plug and play functionality and long range PoE+, capable of connecting, powering and streaming cameras from 250-300 metres away. It supports 1 SATA Hard Disk up to 8 Terabytes and Ultra265 video compression, a Uniview innovation that compresses video, maximising efficiency of bandwidth and storage capacity. Viewing your cameras remotely is possible through the EZ View app for smart devices, or by web browser on desktop computer, also allowing set up and control of various functions of your system.

Designed by market leaders in innovation, Uniview’s quality cameras are popular with professional CCTV installers worldwide, often being used for large commercial projects.

FEATURES

  • 4 Channel Compact 4K (8MP) NVR with 4 independent POE+ network interfaces
  • 2 x 5 megapixel (5MP) Starlight Illumination Turret Cameras, 2.8mm lens
  • 2 Terabyte pre-installed hard drive (upgradable to 8TB) 1 HDD capacity only
  • Access your Live video feed on your smart device with EZView app. Supports android and ios
  • Third-party IP cameras supported with ONVIF conformance
  • Starlight Illumination - Record crisp, colour images in low light conditions, even as low as 0.0005 Lux/lumens
  • Accurate retrieval, instant playback
  • Video Compression Ultra H.265,H.265, H.264, MJPEG - Triple Streams
  • 120 dB WDR (Wide Dynamic Range), 3D DNR
  • Smart IR night vision, up to 30m IR distance
  • Includes Face Detection, Cross-Line detection, Intrusion Detection, Audio Detection, People Counting
  • 4 KV surge protection, IP67 weather protection



Easy Set-up

  • POE+ Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to camera, making installation fast and easy. This kit has an NVR that supports POE+ Typically its possible to run 100 metres of POE cable from NVR to camera. Camera’s and NVR’s in the building kit can be connected with up to 250 metres of Cat5E or Cat6 cable without the need for repeaters or extenders.

  • DC12V Output - No need for extra cable to run a microphone, light or siren. Camera's with the Building Pack have DC12V output built into the camera so no need for an additional power supply.

Optics

  • Day/night functionality - Designed to operate just as good in total darkness as well as light.
  • Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.

  • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.

  • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
  • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.
  • Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.

Audio

  • Supports Audio recording - Camera has built-in mic and the NVR can support recording audio.

Compression

  • Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra H.265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.
  • Embedded smart algorithm
  • Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
  • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
  • 9:16 corridor mode - For narrow, vertical scenarios such as hallways, that reduces wasted video compression, transmission and storage. The 9:16 aspect ratio rotates the image by 90 degrees and reduce the proportion of blank walls in the picture allowing the camera to focus on the most valuable areas—the doorway.
  • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

Network

  • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
  • IP67 - Cameras are sealed against extreme weather, water and dust.

Intelligence

  • Face detection - The camera takes a snapshot of the face and stores it in the NVR. When you need to identify a person the system will take you to the specific moment the person appeared on the screen.
  • Intrusion Detection - You can draw a box or an area of interest within the screen for the camera to monitor. When the camera identifies an intrusion it will prompt the NVR to send you an email or notification with snapshots.
  • Scene Change - The camera can identify if it is being tampered with if there is a change in scenery it is actively monitoring. It will be prompted to send you an email with snapshots of the incident.
  • Cross Line Detection - Similar to intrusion by drawing lines, however this works best for identifying point A to point B intrusion. For example, a car may be permitted to enter an area from point A but prohibited to exit at point B. The system will only alert you if both point A and point B are triggered in that order.
  • People Counting - Pointed at a door (or by drawing a line) the camera will count person by person. It can also identify how many people enter and how many exit. You can review the results by specific time periods on a graph. Suitable for stores or places with high traffic.
  • Defocus Detection - The camera can detect when it is out of focus and alert you.
  • Audio Detection - An audio detection alarm occurs when a camera detects a sudden change in sound volume.



    2TB SKYHAWK SURVEILLANCE HARD DRIVE - ST2000VX008

    • Built to record 90% of the time — supports up to 64 cameras
    • Up to 10 TB or 2,000+1 hours of HD video
    • 180 TB/year workload rating, 3× the workload of a desktop drive and backed by a 3-year limited warranty
    • NVR ready drives deliver robust drive design for multi-drive environments

    UNIVIEW 4 CHANNEL COMPACT 8MP (4K) NVR - NVR301-04-P4

    Model NVR301-04-P4
    Video/Audio Input
    IP Video Input 4-ch
    Two-way Audio Input 1-ch, RCA
    Network
    Incoming Bandwidth 40Mbps
    Outgoing Bandwidth 64Mbps
    Remote Users 128
    Protocols P2P, UPnP, NTP, DHCP, PPPoE
    Video/Audio Output
    HDMI/VGA
    Output
    HDMI:
    4K (3840 x 2160) /30Hz, 1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720
    /60Hz, 1024 x 768 /60Hz VGA:
    1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
    Recording Resolution 8MP/6MP/5MP/ 4MP/3MP/1080p /960p/720p /D1/2CIF/CIF
    Audio Output 1-ch, RCA
    Synchronous Playback 4-ch
    Corridor Mode Screen 1/3
    Decoding
    Decoding format Ultra 265, H.265, H.264
    Live view
    /Playback
    8MP/6MP/ 5MP/4MP/ 3MP/1080p /960p/720p /D1/2CIF/CIF
    Capability 1 x 4K@30, 2 x 4MP @30, 4 x 1080p @30, 8 x 720p @30, 16 x D1
    Hard Disk
    SATA 1 SATA interface
    Capacity up to 8TB for each disk
    Smart
    VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
    VCA Search Face search, Behavior search
    Statistical Analysis People counting
    External Interface
    Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
    USB Interface Rear panel:2 x USB2.0, Front panel:1 x USB2.0
    Alarm In 4-ch
    Alarm Out 1-ch
    PoE
    Interface 4 independent 100 Mbps PoEnetwork interfaces
    Max Power Max 30W for single port
    Max 54W in total ( 13.5W for each )
    Supported Standard IEEE 802.3at, IEEE 802.3af
    General
    Power Supply 48V DC
    Power Consumption: ≤ 5 W ( without HDD )
    Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH (non-condensing)
    Dimensions(W× D×H) 260mm × 240mm × 44mm    (10.2" ×9.4" ×1.7")
    Weight
    ( without HDD )
    ≤ 1.12 Kg ( 2.47 lb )


    UNIVIEW 5MP IP STARLIGHT TURRET CAMERA - IPC3615ER3-ADUPF28

      IPC3615ER3-ADUPF28M
    Camera
    Sensor 1/2.7", progressive scan, 5.0 megapixel, CMOS
    Lens 2.8mm@F1.6

    Angle of view(H) 105.3°
    Angle of View (V) 69.5°
    Angle of View (O) 136.8°
    Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
    Shutter Auto/Manual, 1/6~1/100000 s
    Minimum Illumination Colour: 0.005Lux (F1.6, AGC ON)
    0 Lux with IR
    Day/Night IR-cut filter with auto switch (ICR)
    Digital noise reduction 2D/3D DNR
    S/N >52 dB
    IR Range Up to 30m (98 ft) IR range
    Defog Digital Defog
    WDR 120dB
    Video
    Video Compression Ultra 265,H.265, H.264, MJPEG
    H.264 code profile Baseline profile, Main Profile, High Profile
    Frame Rate Main Stream: 5MP(2592 x 1944): Max. 20 fps, 4MP(2560 x 1440): Max. 30 fps, 3MP(2048x 1536): Max. 30 fps, 2MP(1920 x
    1080): Max. 30 fps;
    Sub Stream:2MP(1920 x 1080): Max. 30 fps; Third Stream: D1(720 x 576): Max.30 fps;
    HLC Supported
    BLC Supported
    9:16 Corridor Mode Supported
    OSD Up to 8 OSDs
    Privacy Mask Up to 8 areas
    ROI Up to 8 areas
    Motion Detection Up to 4 areas
    Smart
    Behavior Detection Intrusion, cross line, motion detection
    Intrusion Enter and loiter in a pre-defined virtual region
    cross line Cross a pre-defined virtual line
    motion detection Moving within a pre-defined virtual region
    Recognition Face detection、Audio detection
    2
    Intelligent Identification Defocus, Scene Change
    Statistical Analysis People counting
    General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
    Audio
    Audio Compression G.711
    Suppression Supported
    Sampling Rate 8 KHZ
    Network
    Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
    Compatible Integration ONVIF(Profile S), API
    Interface
    Network 1 RJ45 10M/100M Base-TX Ethernet
    Built-in Mic Supported
    General
    Power 12 V DC±25%, PoE (IEEE802.3 af)
    Power consumption: Max 8.9W
    Dimensions (Ø x H) Φ126 x 94 mm (Ø5.0” x 3.7”)
    Weight 0.41 kg(0.90 lb)
    Operating Conditions -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
    Ingress Protection IP67



    DORI Distance

    Lens Detect
    2.8mm 63m
    4mm 90m



    Observe Recognize Identify
    25.2m 12.6m 6.3m
    36m 18m 9m
