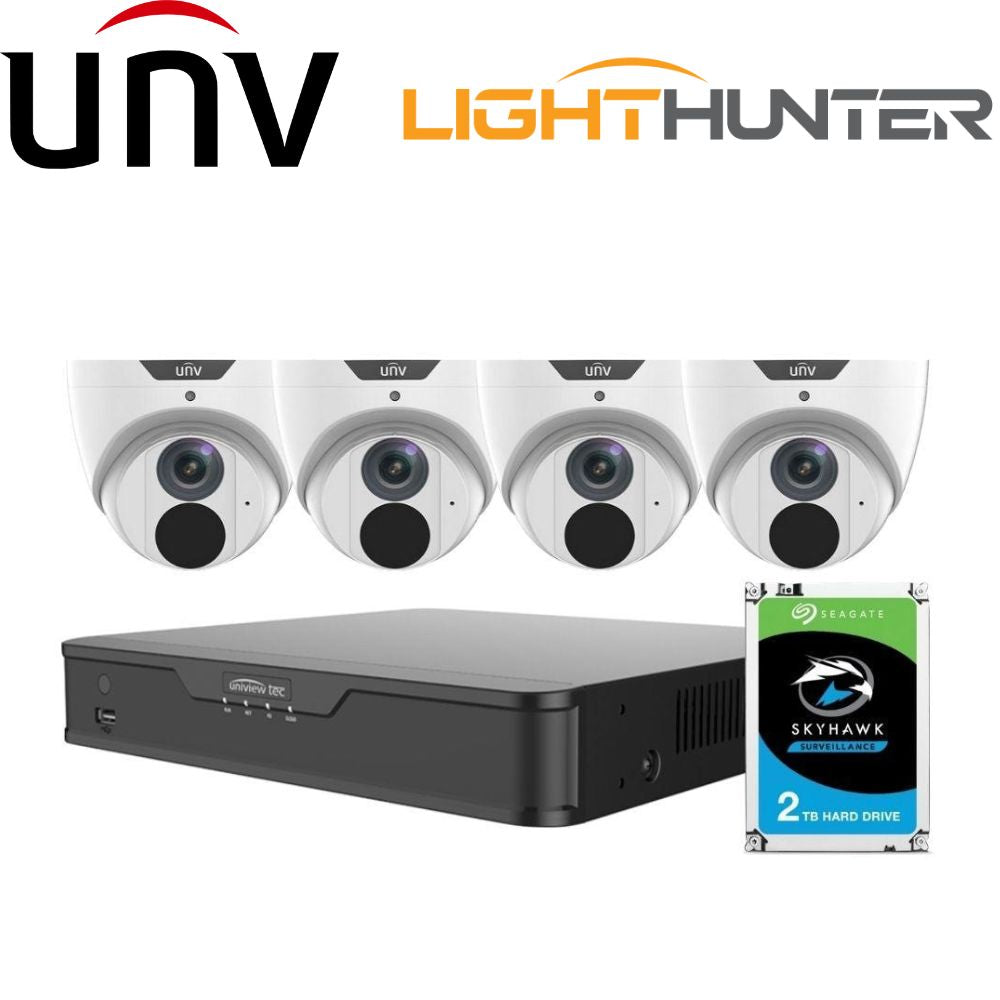

Uniview 4/8/16 Channel Security System: 4K NVR, 4 x 5MP LightHunter Turret Cameras, 2TB HDD

Description

Description

This Kit has been superseded by the new Lighthunter Series Security Kits using IPC3616SB-ADF28KM-I0

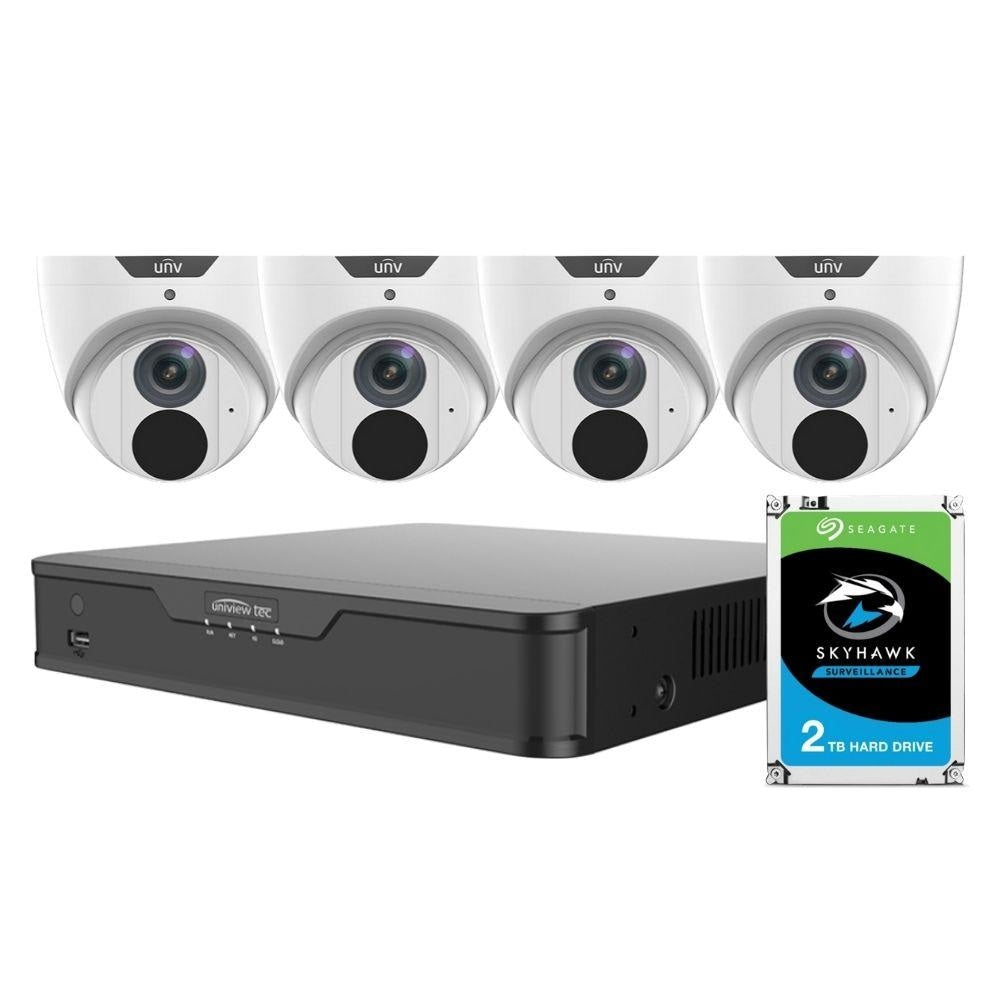

The Uniview 4-camera starlight security kit offers excellent value, and an array of innovations to help protect your home or business. IPC3615SB-ADF28(40)KM-I0 is a 5-megapixel LightHunter IP camera. It comes with an exceptional high-clarity resolution, infrared night vision, and LightHunter illumination technology that ensures ultra-high image quality in a low illumination environment.

In addition to 4 starlight turret cameras is your choice of a Uniview 4 channel (NVR301-04-P4), 8 channel (NVR301-08X-P8) or 16 channel (NVR302-16S-P16) network video recorder, all capable of recording in 8 megapixel (4K) resolution. The more channels you have the more cameras you can add, allowing you to expand your security system as needed.

Enjoy plug and play functionality and long range PoE+, capable of connecting, powering and streaming cameras from 250-300 metres away. Ultra265 video compression, a Uniview innovation that compresses video, maximises efficiency of bandwidth and storage capacity.

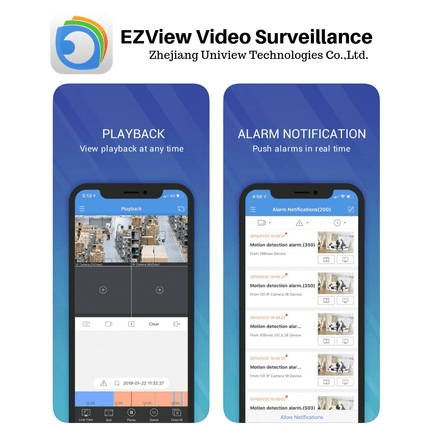

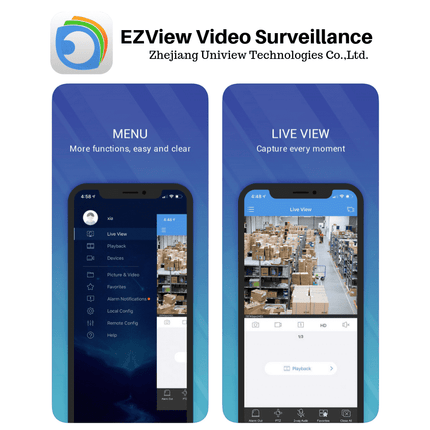

Viewing your cameras remotely is possible through the EZ View app for smart devices (iOS, Android), by internet explorer web browser or free video management software for mac or PC (EZStation), allowing set up and control of various functions of your system as well as Live viewing.

Uniview’s quality-build cameras and innovative technology make them a popular choice among security professionals around the world.

Features

  • 4 x 5 megapixel (5MP) LightHunter Illumination Turret Cameras, with Optional 2.8mm (Standard) or 4mm fixed lens
  • OPTIONAL 4 Channel, 8 channel or 16 channel NVR. All support 8MP (4K) Recording with 4 - 16 independent POE ports (Plug and Play)
  • NVR Options are NVR301-04-P4, NVR301-08X-P8 or NVR302-16S-P16
  • 2 Terabyte Skyhawk surveillance hard drive (upgradable to 10TB)
  • Access your Live video feed on your smart device with EZView app. Supports android and ios
  • Smart Functions include Motion Detection, Intrusion Detection, Cross-Line Detection and Audio Detection.
  • Supports Audio Recording and comes with Built-In Mic.
  • LightHunter Technology ensures ultra-high image quality in a low illumination environment.
  • Accurate retrieval, instant playback
  • 120 dB WDR (Wide Dynamic Range), 3D DNR
  • Smart IR night vision, up to 30m IR distance
  • Video Compression Ultra H.265,H.265, H.264, MJPEG - Supports Triple Streams
  • 4 KV Surge Protection, IP67 Weather-Proof Housing
  • WARRANTY: 3 years back-to-base manufacturer warranty


More Info

Easy Set-up

  • POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to the camera, making installation fast and easy. Typically it's possible to run 100 metres of POE cable from NVR to camera. This kit supports POE distances of 250-300 metres of Cat5E or Cat6 cable without the need for repeaters or extenders.

    DC12V - The camera has a DC12V connector as well as POE so that it can be powered by a 12V power supply if POE connectivity is unavailable.

    Optics

  • Day/night functionality - Designed to operate just as good in total darkness as well as light.

  • Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.

  • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.

  • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
  • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.

  • Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.

Audio

  • Supports Audio recording - Camera has built-in mic and the NVR can support recording audio.

Compression

  • Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra H.265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.
  • Embedded smart algorithm
  • Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
  • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
  • 9:16 corridor mode - For narrow, vertical scenarios such as hallways, that reduces wasted video compression, transmission and storage. The 9:16 aspect ratio rotates the image by 90 degrees and reduce the proportion of blank walls in the picture allowing the camera to focus on the most valuable areas—the doorway.

  • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

Network

  • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

Structure

  • Wide temperature range: -30°C to 60°C
  • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
  • IP67 - Cameras are sealed against extreme weather, water and dust.

2TB SKYHAWK SURVEILLANCE HARD DRIVE - ST2000VX008

  • Built to record 90% of the time — supports up to 64 cameras
  • Up to 10 TB or 2,000+1 hours of HD video
  • 180 TB/year workload rating, 3× the workload of a desktop drive and backed by a 3-year limited warranty
  • NVR ready drives deliver robust drive design for multi-drive environments
Tech Specs

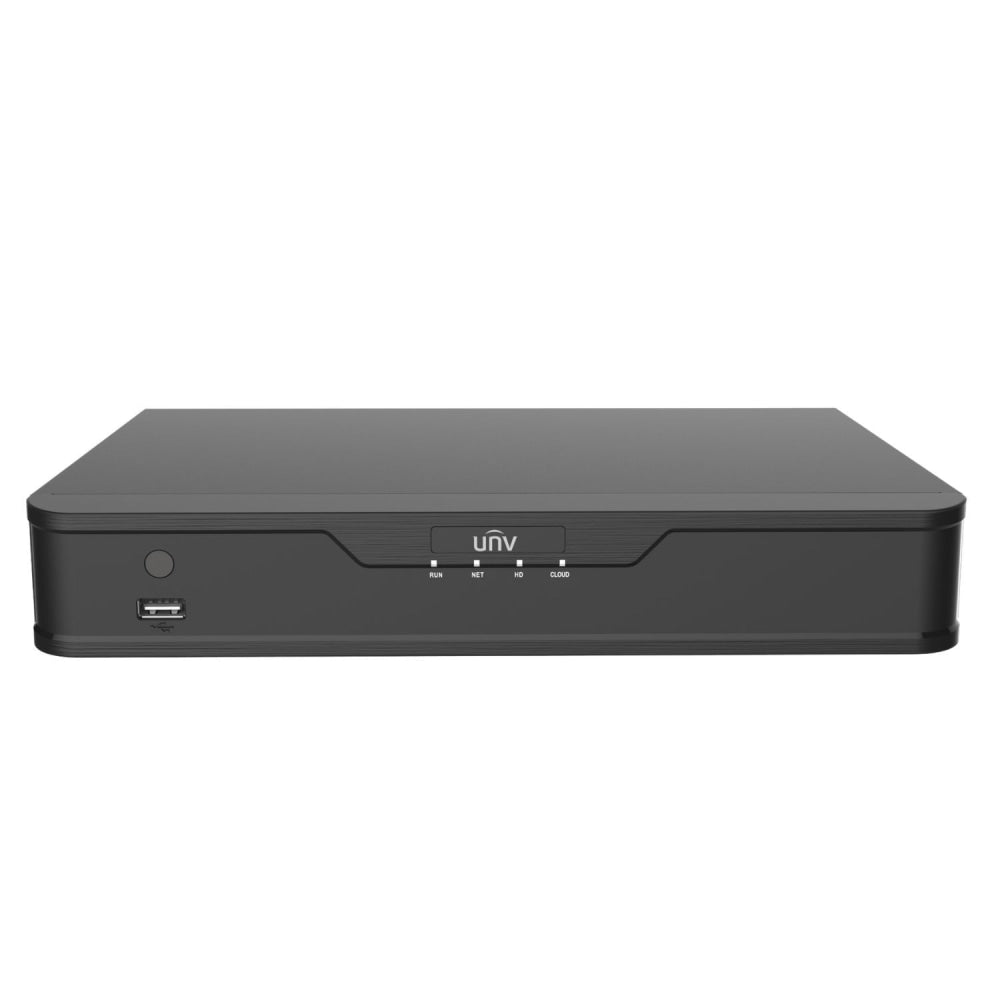

UNIVIEW 4 CHANNEL COMPACT 8MP (4K) NVR - NVR301-04-P4

Model NVR301-04-P4
Video/Audio Input
IP Video Input 4-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA
Output		 HDMI:
4K (3840 x 2160) /30Hz, 1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720
/60Hz, 1024 x 768 /60Hz VGA:
1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
Recording Resolution 8MP/6MP/5MP/ 4MP/3MP/1080p /960p/720p /D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 4-ch
Corridor Mode Screen 1/3
Decoding
Decoding format Ultra 265, H.265, H.264
Live view
/Playback		 8MP/6MP/ 5MP/4MP/ 3MP/1080p /960p/720p /D1/2CIF/CIF
Capability 1 x 4K@30, 2 x 4MP @30, 4 x 1080p @30, 8 x 720p @30, 16 x D1
Hard Disk
SATA 1 SATA interface
Capacity up to 8TB for each disk
Smart
VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search Face search, Behavior search
Statistical Analysis People counting
External Interface
Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel?2 x USB2.0, Front panel?1 x USB2.0
Alarm In 4-ch
Alarm Out 1-ch
PoE
Interface 4 independent 100 Mbps PoEnetwork interfaces
Max Power Max 30W for single port
Max 54W in total ( 13.5W for each )
Supported Standard IEEE 802.3at, IEEE 802.3af
General
Power Supply 48V DC
Power Consumption: ? 5 W ( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH (non-condensing)
Dimensions(W× D×H) 260mm × 240mm × 44mm (10.2" ×9.4" ×1.7")
Weight
( without HDD )		 ? 1.12 Kg ( 2.47 lb )


OPTIONAL: UNIVIEW NVR301-08X-P8 | 8 CHANNEL 8MP (4K) NVR

Model NVR301-08X-P8
Video/Audio Input
IP Video Input 8-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 80Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output HDMI:
3840x2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 8-ch
Corridor Mode Screen 3/4/5/7/9
Decoding
Decoding format Ultra 265/H.265/H.264
Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30
Hard Disk
SATA 1 SATA interface
Capacity up to 10TB for each disk
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 1 x USB2.0,1 x USB3.0
PoE
Interface 8 independent 100 Mbps PoE network interfaces
Max Power Max 30W for single port
Max 108W in total (13.5W for each)
Supported Standard IEEE 802.3at, IEEE 802.3af
General
Power Supply 52V DC
Power Consumption: ?8 W (without HDD)
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ? 90% RH (non-condensing)
Dimensions (W×D×H) 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
Weight (without HDD) 1kg (2.20 lb)

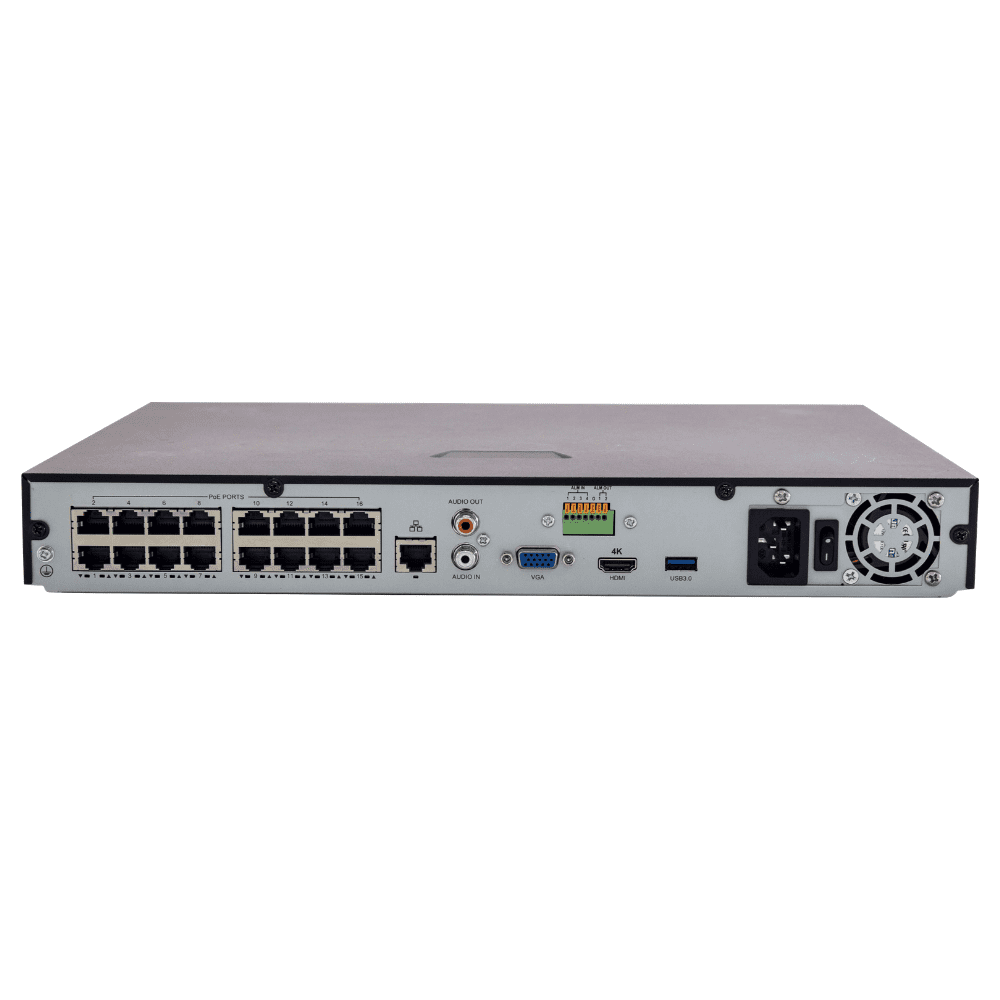

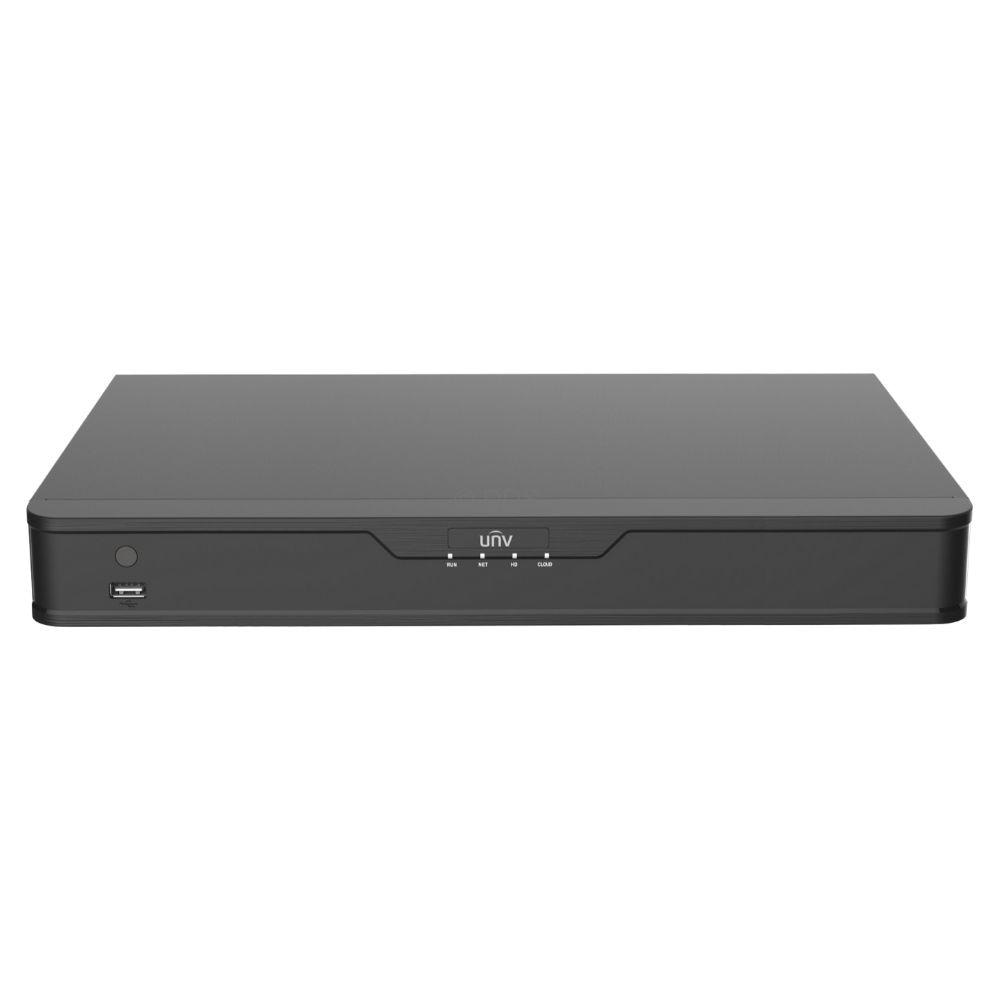

OPTIONAL: Uniview 16 Channel 8MP (4K) Network Video Recorder - NVR302-16S-P16

NVR302-16S-P16
Video/Audio Input
IP Video Input 16-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 96Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA
Output		 VGA: 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,1920X1080@60 HDMI:
4k(3840x2160@30), 4k(3840x2160@60), 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,
1920X1080@60
Recording Resolution 8MP/6MP/5MP/4MP /3MP/1080p/960p/ 720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16
Decoding
Decoding format Ultra265/H.265/H.264
Live view/ Playback 8MP/6MP/5MP/4MP/ 3MP/1080p/960p/ 720p/D1/2CIF/CIF
Capability 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1
Hard Disk
SATA 2 SATA interfaces
Capacity up to 10TB for each disk
Smart
VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search Face search, Behavior search
Statistical Analysis People counting
External Interface
Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0
Alarm In 4-ch
Alarm Out 1-ch
PoE
Interface 16 independent 100Mbps PoE network interfaces
Max Power Max 30W for single port
Max 240W in total ( 15W for each )
Supported Standard IEEE 802.3af/at
General
Power Supply 220V AC
Power Consumption: ?9 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing)
Dimensions(W× D×H) 380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" )
Weight
( without HDD )		 ?2.4kg (5.29 lb)

Uniview IPC3615SB-ADF28(40)KM-I0 Security Camera

Camera
Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F1.6 / 4.0mm@F1.6
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON)
0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital Noise Reduction 2D/3D DNR
S/N >56dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High profile
Frame Rate Main Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP
Compatible Integration ONVIF (Profile S, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.0W
Dimensions (Ø x H) ?110.5 x 94.1mm (?4.4” x 3.7”)
Net Weight 0.425kg (0.93lb)
Material Metal
Operating Conditions -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Surge Protection 2KV
Ingress Protection IP67
Reset Button N/A


Videos

UNV 5MP Starlight Turret + Built-in Microphone Unboxing

Uniview Company Introduction

Downloads

Datasheets (Click on the links to open)

Read more

Product form

Uniview 4/8/16 Channel Security System: 4K NVR, 4 x 5MP LightHunter Turret Cameras, 2TB HDD

SKU: 4CH4STARLIGHT-2TB Datasheet

🟡 LOW STOCK— Contact us for inquiry.

$947.00 Incl. GST

    American Express Apple Pay Google Pay MastercardPayPalShop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    3-Year Uniview Warranty

    Official Dahua Online Reseller | Australia’s #1 Dahua Specialist | Backed by Real Support

    We Sell Australian Stock Only, No Grey Import Products
    Order before 2pm for same day dispatch
    Click & Collect Learn More
    Bulk Pricing Available—Message Us On Whatsapp | Get a Quote

    Description

    Description

    This Kit has been superseded by the new Lighthunter Series Security Kits using IPC3616SB-ADF28KM-I0

    The Uniview 4-camera starlight security kit offers excellent value, and an array of innovations to help protect your home or business. IPC3615SB-ADF28(40)KM-I0 is a 5-megapixel LightHunter IP camera. It comes with an exceptional high-clarity resolution, infrared night vision, and LightHunter illumination technology that ensures ultra-high image quality in a low illumination environment.

    In addition to 4 starlight turret cameras is your choice of a Uniview 4 channel (NVR301-04-P4), 8 channel (NVR301-08X-P8) or 16 channel (NVR302-16S-P16) network video recorder, all capable of recording in 8 megapixel (4K) resolution. The more channels you have the more cameras you can add, allowing you to expand your security system as needed.

    Enjoy plug and play functionality and long range PoE+, capable of connecting, powering and streaming cameras from 250-300 metres away. Ultra265 video compression, a Uniview innovation that compresses video, maximises efficiency of bandwidth and storage capacity.

    Viewing your cameras remotely is possible through the EZ View app for smart devices (iOS, Android), by internet explorer web browser or free video management software for mac or PC (EZStation), allowing set up and control of various functions of your system as well as Live viewing.

    Uniview’s quality-build cameras and innovative technology make them a popular choice among security professionals around the world.

    Features

    • 4 x 5 megapixel (5MP) LightHunter Illumination Turret Cameras, with Optional 2.8mm (Standard) or 4mm fixed lens
    • OPTIONAL 4 Channel, 8 channel or 16 channel NVR. All support 8MP (4K) Recording with 4 - 16 independent POE ports (Plug and Play)
    • NVR Options are NVR301-04-P4, NVR301-08X-P8 or NVR302-16S-P16
    • 2 Terabyte Skyhawk surveillance hard drive (upgradable to 10TB)
    • Access your Live video feed on your smart device with EZView app. Supports android and ios
    • Smart Functions include Motion Detection, Intrusion Detection, Cross-Line Detection and Audio Detection.
    • Supports Audio Recording and comes with Built-In Mic.
    • LightHunter Technology ensures ultra-high image quality in a low illumination environment.
    • Accurate retrieval, instant playback
    • 120 dB WDR (Wide Dynamic Range), 3D DNR
    • Smart IR night vision, up to 30m IR distance
    • Video Compression Ultra H.265,H.265, H.264, MJPEG - Supports Triple Streams
    • 4 KV Surge Protection, IP67 Weather-Proof Housing
    • WARRANTY: 3 years back-to-base manufacturer warranty


    More Info

    Easy Set-up

    • POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to the camera, making installation fast and easy. Typically it's possible to run 100 metres of POE cable from NVR to camera. This kit supports POE distances of 250-300 metres of Cat5E or Cat6 cable without the need for repeaters or extenders.

      DC12V - The camera has a DC12V connector as well as POE so that it can be powered by a 12V power supply if POE connectivity is unavailable.

      Optics

    • Day/night functionality - Designed to operate just as good in total darkness as well as light.

    • Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.

    • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.

    • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
    • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.

    • Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.

    Audio

    • Supports Audio recording - Camera has built-in mic and the NVR can support recording audio.

    Compression

    • Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra H.265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.
    • Embedded smart algorithm
    • Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
    • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
    • 9:16 corridor mode - For narrow, vertical scenarios such as hallways, that reduces wasted video compression, transmission and storage. The 9:16 aspect ratio rotates the image by 90 degrees and reduce the proportion of blank walls in the picture allowing the camera to focus on the most valuable areas—the doorway.

    • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

    Network

    • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

    Structure

    • Wide temperature range: -30°C to 60°C
    • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
    • IP67 - Cameras are sealed against extreme weather, water and dust.

    2TB SKYHAWK SURVEILLANCE HARD DRIVE - ST2000VX008

    • Built to record 90% of the time — supports up to 64 cameras
    • Up to 10 TB or 2,000+1 hours of HD video
    • 180 TB/year workload rating, 3× the workload of a desktop drive and backed by a 3-year limited warranty
    • NVR ready drives deliver robust drive design for multi-drive environments
    Tech Specs

    UNIVIEW 4 CHANNEL COMPACT 8MP (4K) NVR - NVR301-04-P4

    Model NVR301-04-P4
    Video/Audio Input
    IP Video Input 4-ch
    Two-way Audio Input 1-ch, RCA
    Network
    Incoming Bandwidth 40Mbps
    Outgoing Bandwidth 64Mbps
    Remote Users 128
    Protocols P2P, UPnP, NTP, DHCP, PPPoE
    Video/Audio Output
    HDMI/VGA
    Output    		 HDMI:
    4K (3840 x 2160) /30Hz, 1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720
    /60Hz, 1024 x 768 /60Hz VGA:
    1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
    Recording Resolution 8MP/6MP/5MP/ 4MP/3MP/1080p /960p/720p /D1/2CIF/CIF
    Audio Output 1-ch, RCA
    Synchronous Playback 4-ch
    Corridor Mode Screen 1/3
    Decoding
    Decoding format Ultra 265, H.265, H.264
    Live view
    /Playback    		 8MP/6MP/ 5MP/4MP/ 3MP/1080p /960p/720p /D1/2CIF/CIF
    Capability 1 x 4K@30, 2 x 4MP @30, 4 x 1080p @30, 8 x 720p @30, 16 x D1
    Hard Disk
    SATA 1 SATA interface
    Capacity up to 8TB for each disk
    Smart
    VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
    VCA Search Face search, Behavior search
    Statistical Analysis People counting
    External Interface
    Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
    USB Interface Rear panel?2 x USB2.0, Front panel?1 x USB2.0
    Alarm In 4-ch
    Alarm Out 1-ch
    PoE
    Interface 4 independent 100 Mbps PoEnetwork interfaces
    Max Power Max 30W for single port
    Max 54W in total ( 13.5W for each )
    Supported Standard IEEE 802.3at, IEEE 802.3af
    General
    Power Supply 48V DC
    Power Consumption: ? 5 W ( without HDD )
    Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH (non-condensing)
    Dimensions(W× D×H) 260mm × 240mm × 44mm (10.2" ×9.4" ×1.7")
    Weight
    ( without HDD )    		 ? 1.12 Kg ( 2.47 lb )


    OPTIONAL: UNIVIEW NVR301-08X-P8 | 8 CHANNEL 8MP (4K) NVR

    Model NVR301-08X-P8
    Video/Audio Input
    IP Video Input 8-ch
    Two-way Audio Input 1-ch, RCA
    Network
    Incoming Bandwidth 80Mbps
    Outgoing Bandwidth 64Mbps
    Remote Users 128
    Protocols P2P, UPnP, NTP, DHCP, PPPoE
    Video/Audio Output
    HDMI/VGA Output HDMI:
    3840x2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    VGA:
    1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    Audio Output 1-ch, RCA
    Synchronous Playback 8-ch
    Corridor Mode Screen 3/4/5/7/9
    Decoding
    Decoding format Ultra 265/H.265/H.264
    Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    Capability 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30
    Hard Disk
    SATA 1 SATA interface
    Capacity up to 10TB for each disk
    External Interface
    Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
    USB Interface Rear panel: 1 x USB2.0,1 x USB3.0
    PoE
    Interface 8 independent 100 Mbps PoE network interfaces
    Max Power Max 30W for single port
    Max 108W in total (13.5W for each)
    Supported Standard IEEE 802.3at, IEEE 802.3af
    General
    Power Supply 52V DC
    Power Consumption: ?8 W (without HDD)
    Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ? 90% RH (non-condensing)
    Dimensions (W×D×H) 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
    Weight (without HDD) 1kg (2.20 lb)

    OPTIONAL: Uniview 16 Channel 8MP (4K) Network Video Recorder - NVR302-16S-P16

    NVR302-16S-P16
    Video/Audio Input
    IP Video Input 16-ch
    Two-way Audio Input 1-ch, RCA
    Network
    Incoming Bandwidth 160Mbps
    Outgoing Bandwidth 96Mbps
    Remote Users 128
    Protocols P2P, UPnP, NTP, DHCP, PPPoE
    Video/Audio Output
    HDMI/VGA
    Output    		 VGA: 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,1920X1080@60 HDMI:
    4k(3840x2160@30), 4k(3840x2160@60), 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,
    1920X1080@60
    Recording Resolution 8MP/6MP/5MP/4MP /3MP/1080p/960p/ 720p/D1/2CIF/CIF
    Audio Output 1-ch, RCA
    Synchronous Playback 16-ch
    Corridor Mode Screen 3/4/5/7/9/10/12/16
    Decoding
    Decoding format Ultra265/H.265/H.264
    Live view/ Playback 8MP/6MP/5MP/4MP/ 3MP/1080p/960p/ 720p/D1/2CIF/CIF
    Capability 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1
    Hard Disk
    SATA 2 SATA interfaces
    Capacity up to 10TB for each disk
    Smart
    VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
    VCA Search Face search, Behavior search
    Statistical Analysis People counting
    External Interface
    Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
    USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0
    Alarm In 4-ch
    Alarm Out 1-ch
    PoE
    Interface 16 independent 100Mbps PoE network interfaces
    Max Power Max 30W for single port
    Max 240W in total ( 15W for each )
    Supported Standard IEEE 802.3af/at
    General
    Power Supply 220V AC
    Power Consumption: ?9 W( without HDD )
    Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing)
    Dimensions(W× D×H) 380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" )
    Weight
    ( without HDD )    		 ?2.4kg (5.29 lb)

    Uniview IPC3615SB-ADF28(40)KM-I0 Security Camera

    Camera
    Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
    Lens 2.8mm@F1.6 / 4.0mm@F1.6
    Shutter Auto/Manual, 1 ~ 1/100000s
    Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON)
    0Lux with IR on
    Day/Night IR-cut filter with auto switch (ICR)
    Digital Noise Reduction 2D/3D DNR
    S/N >56dB
    IR Range Up to 30m (98ft) IR range
    Wavelength 850nm
    IR On/Off Control Auto/Manual
    Defog Digital Defog
    WDR 120dB
    Video
    Video Compression Ultra 265, H.265, H.264, MJPEG
    H.264 code profile Baseline profile, Main Profile, High profile
    Frame Rate Main Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps;
    Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    Video Bit Rate 128 Kbps~16 Mbps
    OSD Up to 8 OSDs
    Privacy Mask Up to 4 areas
    ROI Up to 8 areas
    Motion Detection Up to 4 areas
    White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
    Digital noise reduction 2D/3D DNR
    Smart IR Support
    Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
    Dewarping N/A
    HLC Supported
    BLC Supported
    Audio
    Audio Compression G.711
    Suppression Supported
    Sampling Rate 8KHZ
    Storage
    Edge Storage Micro SD, up to 256 GB
    Network Storage ANR
    Network
    Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP
    Compatible Integration ONVIF (Profile S, Profile T), API
    Client EZStation
    EZView
    EZLive
    Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
    Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
    Interface
    Network 1 RJ45 10M/100M Base-TX Ethernet
    Built-in Mic Supported
    Certifications
    Certifications CE: EN 60950-1
    UL: UL60950-1
    FCC: FCC Part 15
    General
    Power DC 12V±25%, PoE (IEEE 802.3af)
    Power consumption: Max 4.0W
    Dimensions (Ø x H) ?110.5 x 94.1mm (?4.4” x 3.7”)
    Net Weight 0.425kg (0.93lb)
    Material Metal
    Operating Conditions -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
    Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
    Surge Protection 2KV
    Ingress Protection IP67
    Reset Button N/A


    Videos

    UNV 5MP Starlight Turret + Built-in Microphone Unboxing

    Uniview Company Introduction

    Downloads

    Datasheets (Click on the links to open)

    Read more

    Recently viewed products

    © 2025 Spy Monkey Surveillance, Powered by Shopify

      • American Express
      • Apple Pay
      • Google Pay
      • Mastercard
      • PayPal
      • Shop Pay
      • Union Pay
      • Visa

      Login

      Forgot your password?

      Don't have an account yet?
      Create account
