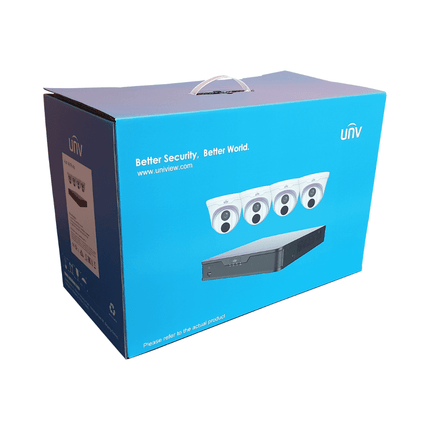

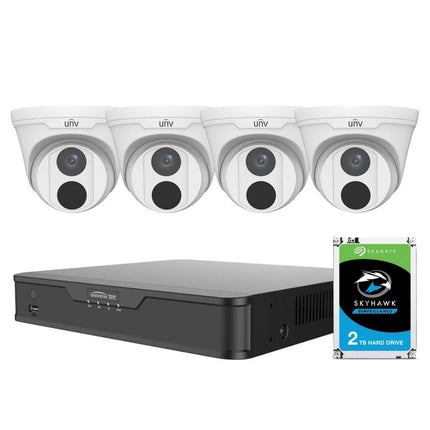

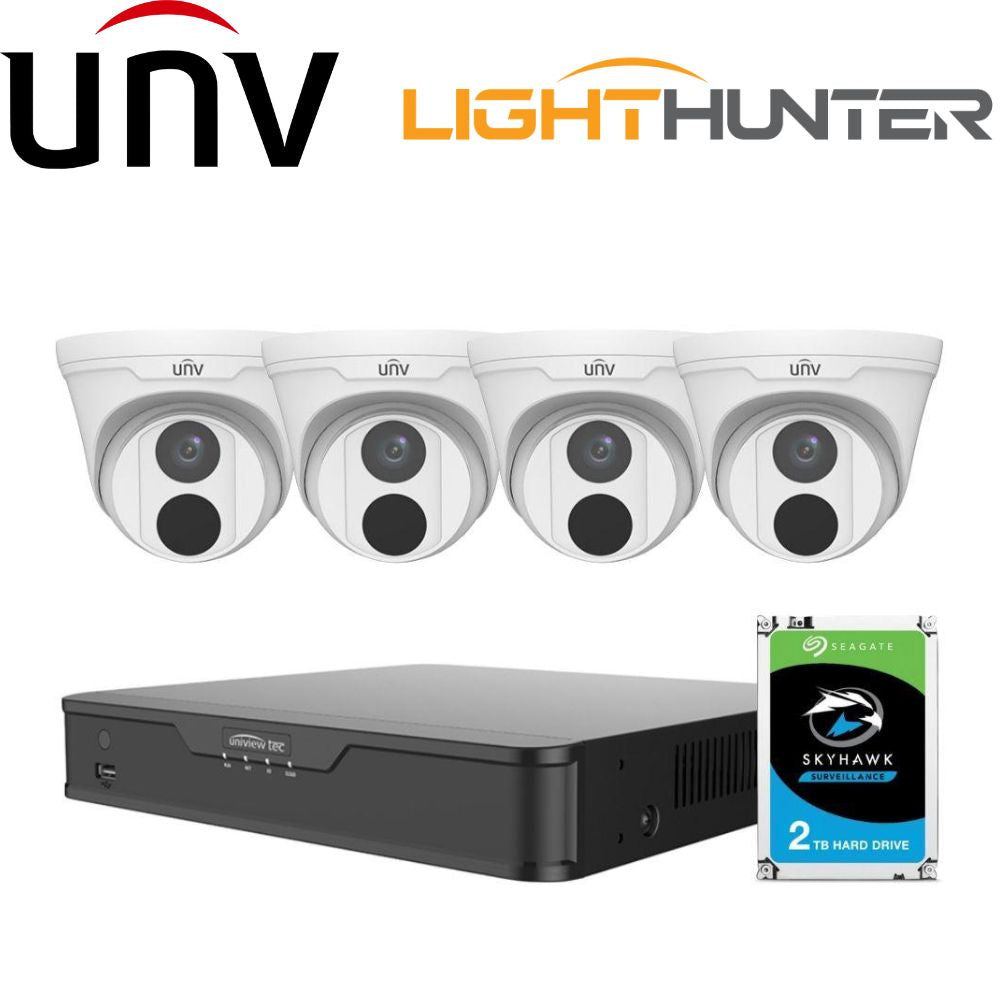

Description Designed by Uniview, a leading innovator in the surveillance industry, the 5 megapixel 4-Camera Security Kit is an easy to install pre-made package for home or business surveillance. It includes the IPC3615LR3-PF28, an Easy Series 5-megapixel IP camera that comes with high clarity resolution, infrared night vision, and image optimisation technology such as DWDR and 3D DNR, for actively minimising noise and balancing light. The cameras support power-over-ethernet for simple plug-and-play set up and can be installed outdoors thanks to its IP67 weatherproof construction. Search and playback recorded footage easily thanks to fast and accurate file retrieval. Uniview exclusive Ultra 265 video compression allows for highly efficient video compression capability, saving both bandwidth and storage . The kit also supports motion detection and comes with a 2 terabyte Seagate Skyhawk surveillance hard drive.
Enjoy complete access to your cameras remotely via the Uniview smart device app for both Android and iOS. As with the cameras, the app is easy to set up and user-friendly.
Uniview’s exceptional quality cameras and innovative technology make them a popular choice among security professionals around the world.
Features
4 x 5 megapixel (5MP) Turret Cameras - Easy Series, 1/2.7", progressive scan CMOS, 2.8mm Fixed Lens @F2.0
4 Channel Compact 4K (8MP) NVR with 4 independent POE network interfaces
2 Terabyte Seagate Skyhawk Surveillance Hard Drive 2TB
Supports Power Over Ethernet POE & DC12V Output

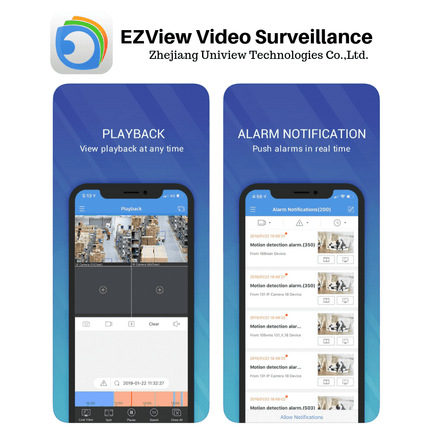

Access your Live video feed on your smart device with EZView app . Supports android and ios
Accurate retrieval, instant playback
3 Axis Control, Horozontal Field Of View 105.3°
Up to 120 dB DWDR (Digital Wide Dynamic Range), 3D DNR noise reduction, IR auto cut filter, ROI
Supports Motion Detection
Smart IR night vision , up to 30m (98 ft) IR distance
Video Compression Ultra 265 ,H.265, H.264, MJPEG - Dual Stream
Wide temperature range: -30°C to 60°C, Wide voltage range of ±25%
IP67 Weather Proof
WARRANTY: 3 years back-to-base manufacturer warranty

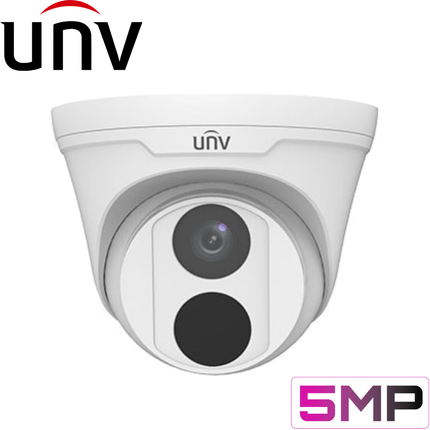

More Info UNIVIEW 5MP TURRET CAMERA Easy Series 2.8mm - IPC3615LR3-PF28 Easy Set-up
POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to camera, making installation fast and easy.
DC12V Output - No need for extra cable to run a microphone, light or siren. Camera's with the Building Pack have DC12V output built into the camera so no need for an additional power supply.
Optics
Day/night functionality - Designed to operate just as good in total darkness as well as light.
Smart IR night vision, up to 30m (98 ft) IR distance
Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.
IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.
Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.
Compression
Network
ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other. Structure
Wide temperature range: -30°C to +60°C
Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
IP67 - Cameras are sealed against extreme weather, water and dust.

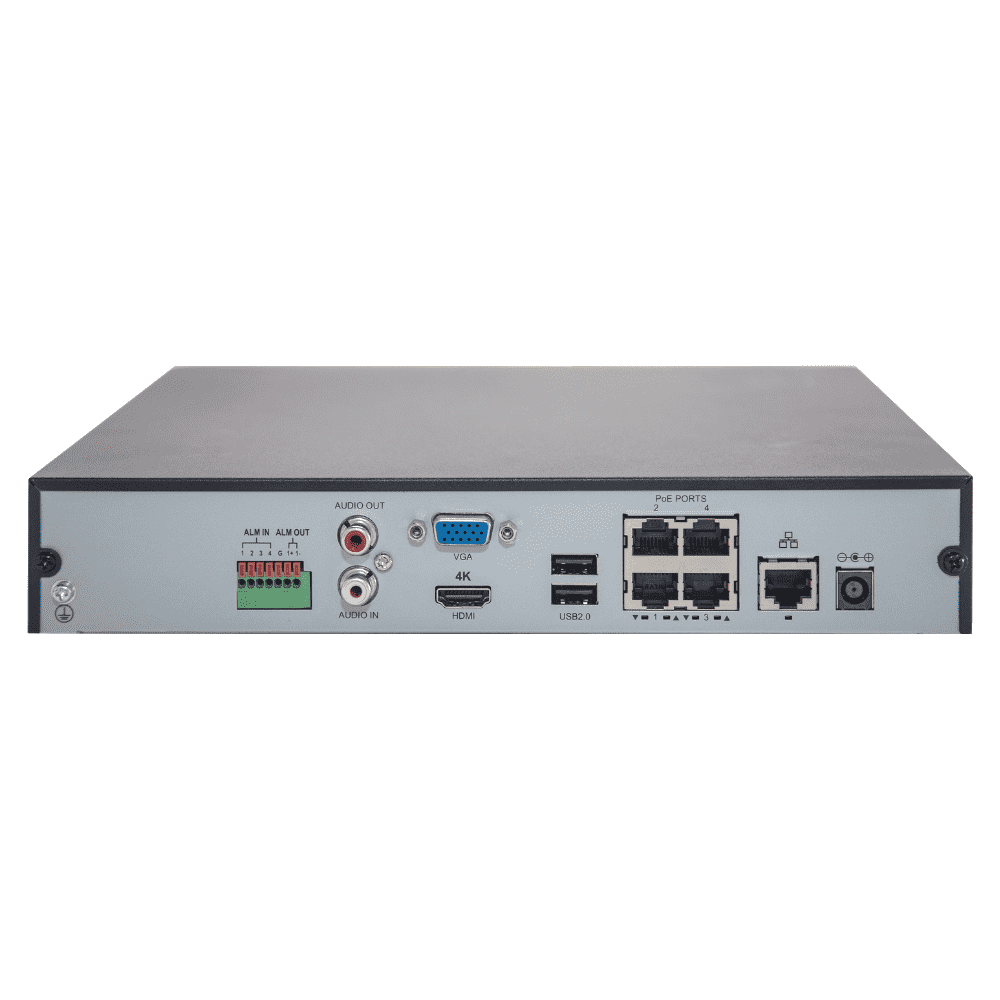

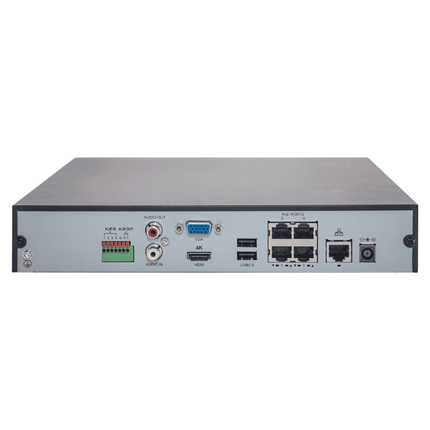

UNIVIEW 4 CHANNEL COMPACT 8MP (4K) NVR - NVR301-04-P4 This 4 channel network video recorder can support recording in up to 8 Megapixel (4K Ultra HD) resolution. It also supports mobile client access, so you can access your Live camera footage through a smart device, using the EZ View app.

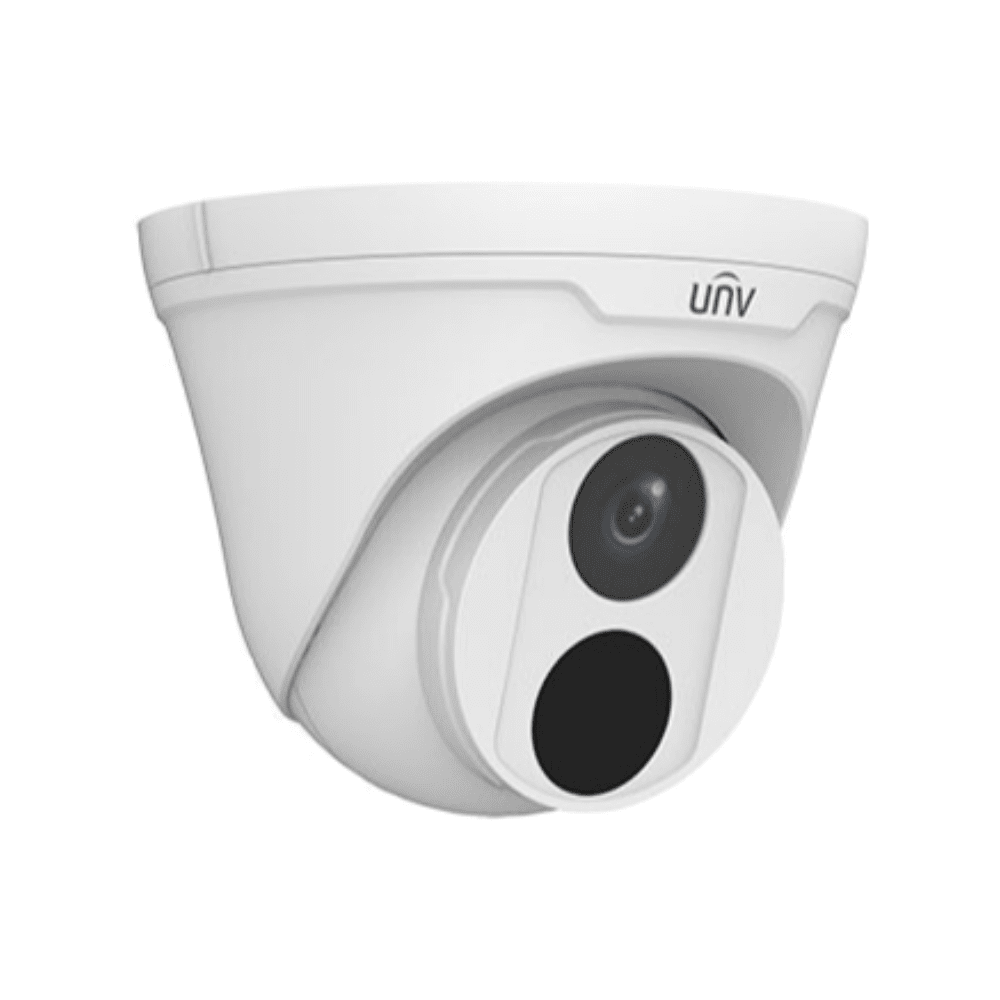

Tech Specs UNIVIEW 5MP IP TURRET CAMERA Easy Series - IPC3615LR3-PF28
Camera
Sensor
1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens
2.8mm@F2.0
Angle of view (H)
105.3°
Angle of View (V)
69.5°
Angle of View (O)
136.9°
Shutter
Auto/Manual, 1 ~ 1/100000s
Adjustment angle
Pan: 0° ~ 360° Tilt: 0° ~ 75°
Min. Illumination
Colour: 0.01Lux (F2.0, AGC ON)
IR Range
Up to 30m (98ft) IR range
Day/Night
IR-cut filter with auto switch (ICR)
Noise Reduction
2D/3D
S/N
>52dB
WDR
DWDR
Video
Max. Resolution
2592*1944
Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main Profile
Frame Rate
Main Stream: 5MP (2592*1944), Max 20fps;
HLC
Supported
BLC
Supported
OSD
Up to 4 OSDs
Privacy Mask
Up to 8 areas
ROI
Up to 2 areas
Motion Detection
Up to 4 areas
Smart
Behavior Detection
Intrusion, Motion detection,Tampering alarm
Intrusion
Enter and loiter in a pre-defined virtual region
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration
ONVIF (Profile S, Profile T), API
Interface
Network
10/100M Base-TX Ethernet
General
Power
DC 12V±25%,PoE (IEEE 802.3af)
Power consumption: Max 4W
Dimensions (Ø x H)
?118 x 96mm (?4.6” x 3.8”)
Weight
0.35kg (0.77lb)
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Ingress Protection
IP67
UNIVIEW 4 CHANNEL COMPACT 8MP (4K) NVR - NVR301-04-P4
Model
NVR301-04-P4
Video/Audio Input
IP Video Input
4-ch
Two-way Audio Input
1-ch, RCA
Network
Incoming Bandwidth
40Mbps
Outgoing Bandwidth
64Mbps
Remote Users
128
Protocols
P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA
HDMI:
Recording Resolution
8MP/6MP/5MP/ 4MP/3MP/1080p /960p/720p /D1/2CIF/CIF
Audio Output
1-ch, RCA
Synchronous Playback
4-ch
Corridor Mode Screen
1/3
Decoding
Decoding format
Ultra 265, H.265, H.264
Live view
8MP/6MP/ 5MP/4MP/ 3MP/1080p /960p/720p /D1/2CIF/CIF
Capability
1 x 4K@30, 2 x 4MP @30, 4 x 1080p @30, 8 x 720p @30, 16 x D1
Hard Disk
SATA
1 SATA interface
Capacity
up to 8TB for each disk
Smart
VCA Detection
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search
Face search, Behavior search
Statistical Analysis
People counting
External Interface
Network Interface
1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB Interface
Rear panel?2 x USB2.0, Front panel?1 x USB2.0
Alarm In
4-ch
Alarm Out
1-ch
PoE
Interface
4 independent 100 Mbps PoEnetwork interfaces
Max Power
Max 30W for single port
Supported Standard
IEEE 802.3at, IEEE 802.3af
General
Power Supply
48V DC
Working Environment
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH (non-condensing)
Dimensions(W× D×H)
260mm × 240mm × 44mm (10.2" ×9.4" ×1.7")
Weight
? 1.12 Kg ( 2.47 lb )
Videos Introduction of EZview App
VIDEO
Uniview Company Introduction
VIDEO
Downloads Datasheets
Uniview 5MP Turret Camera Easy Series - IPC3615LR3-PF28
Uniview 4 Channel Compact 8MP (4K) NVR - NVR301-04-P4
