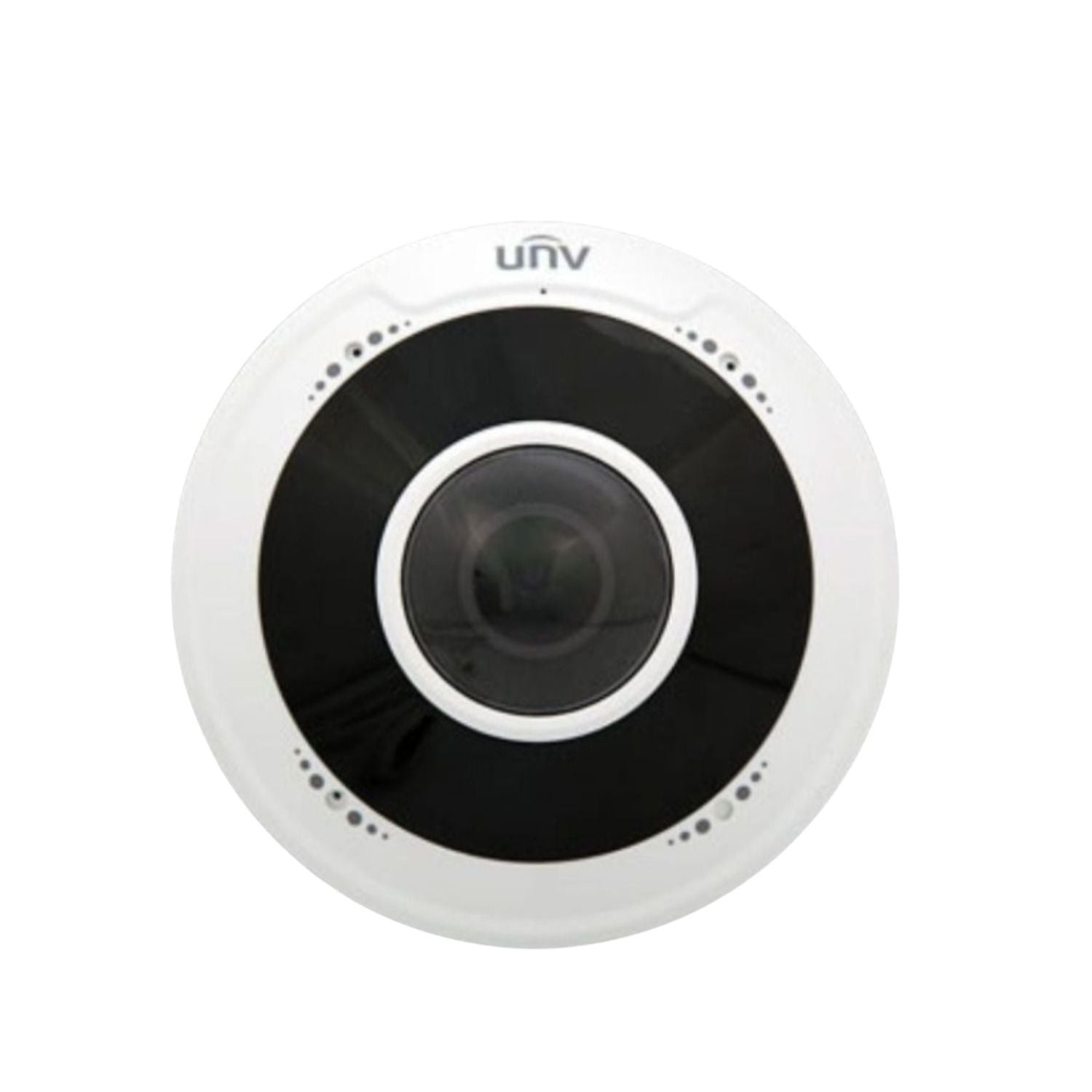

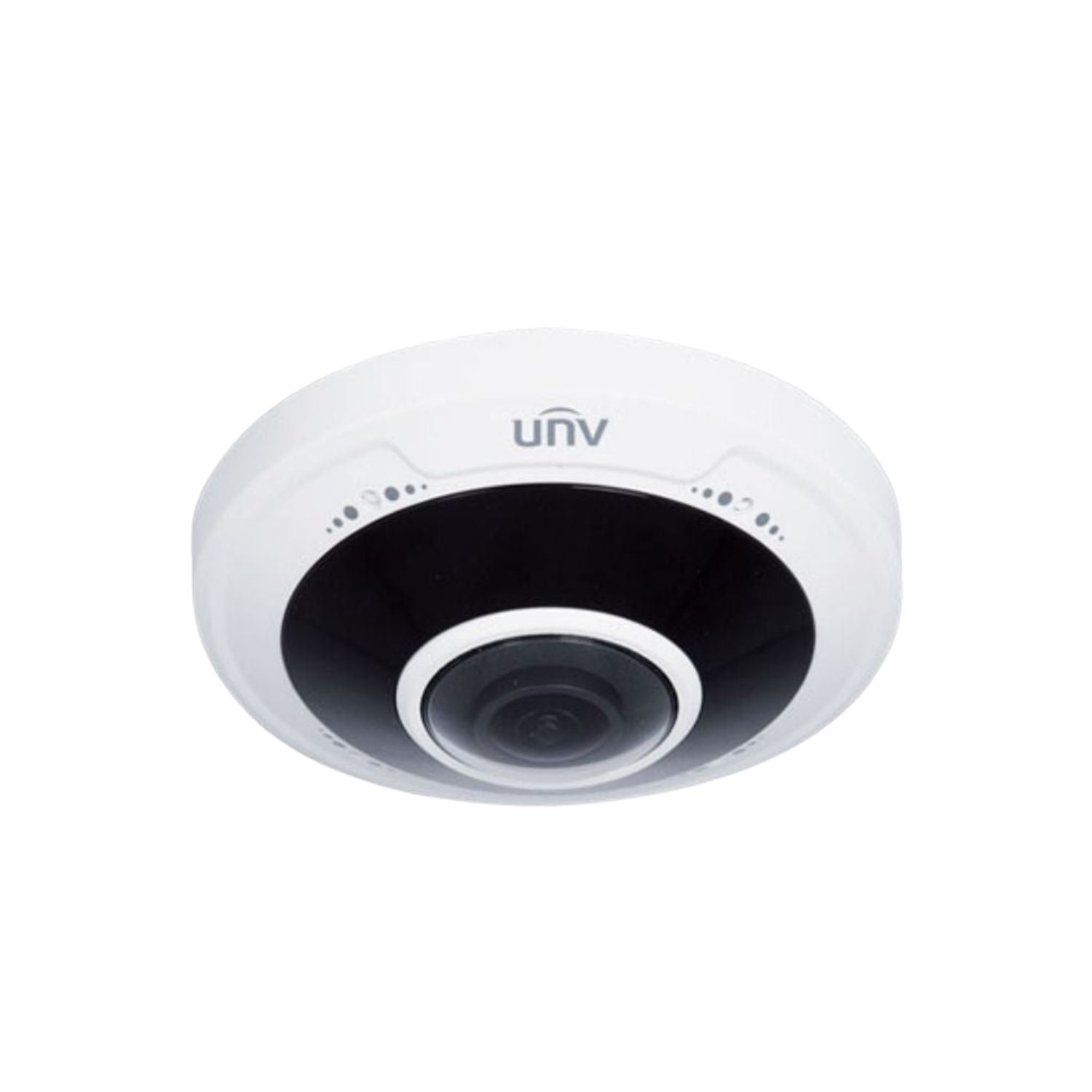

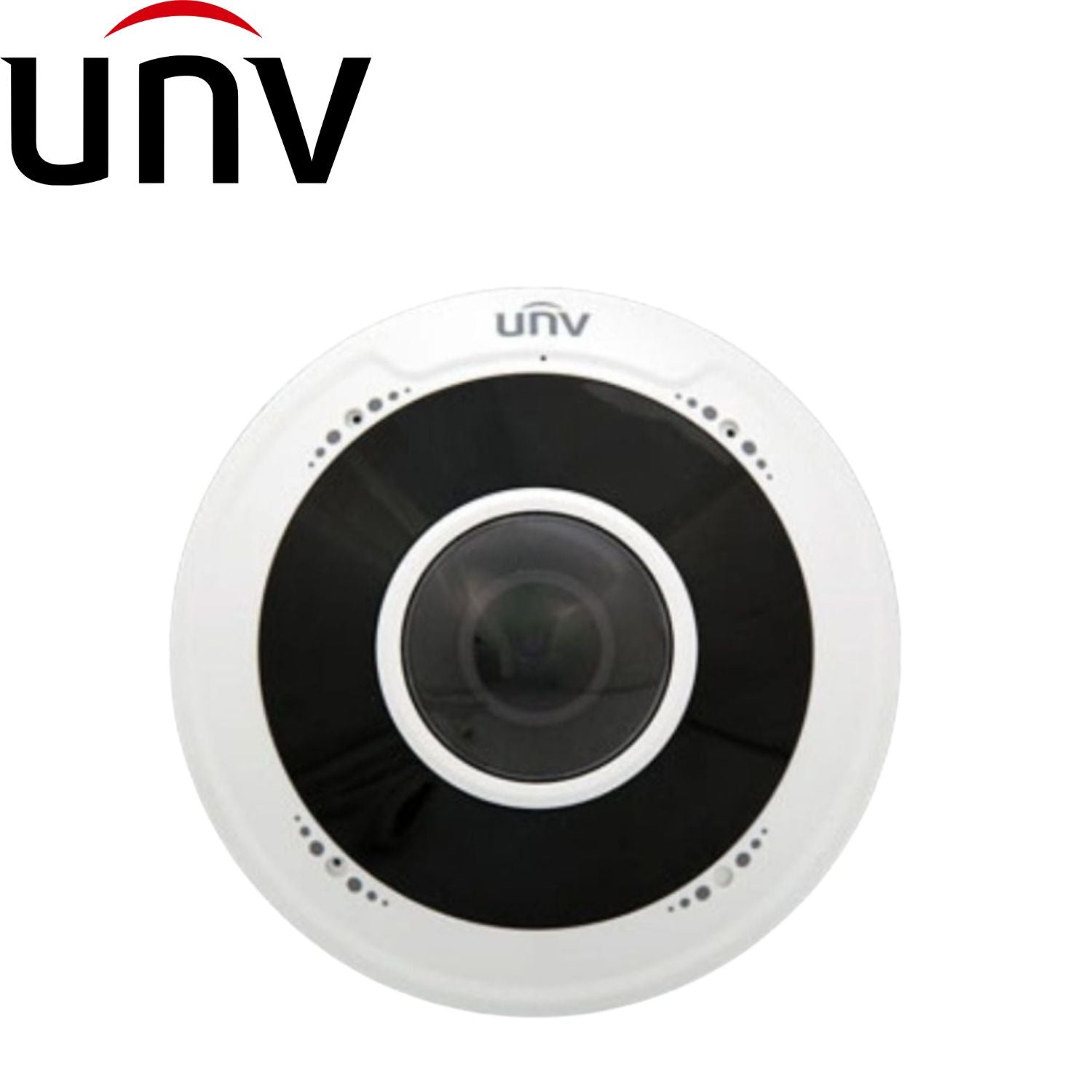

| IPC815SR-DVPF14 |
|
| Camera |
|
| Image sensor |
1/2.8", progressive scan, 5.0 megapixel, CMOS |
| Lens |
1.4mm@F2.0 |
| DORI Distance |
Lens |
|
1.4mm |
| Angle of View |
360° |
| Shutter |
Auto/Manual, shutter time: 1~1/100000 s |
| Minimum Illumination |
Colour: 0.01 Lux (F2.0, AGC ON) |
|
0 Lux with IR |
| Day/Night |
IR-cut filter for day & night function |
| S/N |
>55dB |
| IR Range |
UP to 10m (33ft) |
| wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Defog |
Digital Defog |
| WDR |
120dB |
| Video |
|
| Compression |
Ultra265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile, High Profile |
| Frame Rate |
Main Stream: (2592×1944): Max.30fps; |
|
Sub Stream: (1920×1080): Max.30fps; |
|
Third Stream: D1(720 x 576): Max.30 fps |
| Video Bit Rate |
128 Kbps~16 Mbps |
| OSD |
Up to 8 OSDs |
| ROI |
Up to 8 areas |
| Privacy Mask |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| General Function |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Image |
|
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Flip Vertical/ Flip Horizontal/180° |
| Dewarping |
N/A |
| HLC |
N/A |
| BLC |
Support |
| Audio |
|
| Audio Compression |
G.711 |
| Two-way audio |
Supported |
| Suppression |
Supported |
| Sampling Rate |
8 kHz |
| Storage |
|
| Edge Storage |
Micro SD, up to 256GB |
| Network Storage |
ANR, NAS(NFS) |
| Network |
|
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Client |
EZStation |
|
EZView |
|
EZLive |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
|
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Live View Display |
|
| Mount Type |
Support table, wall, and ceiling |
| Interface |
|
| Audio I/O |
Input: impedance 35 k?; amplitude 2 V [p-p] |
|
Output: impedance 600 ?; amplitude 2 V [p-p] |
| Alarm I/O |
1-Jan |
| Built-in Mic |
Supported |
| Video Output |
1 BNC, impedance 75 ?; amplitude 1 V [p-p] |
| Network |
1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet |
| Certifications |
|
| Certifications |
CE: EN 60950-1 |
|
UL: UL60950-1 |
|
FCC: FCC Part 15 |
| General |
|
| Power |
DC12V±25%,PoE (IEEE 802.3af) |
|
Power consumption: Max. 8.9 W |
| Dimensions (? × H) |
?125 × 43.7 mm (?4.9" × 1.7") |
| Net Weight |
0.39kg (0.86lb) |
| Material |
Shield?plastic |
|
Body?metal |
|
Bottom plate?metal |
|
decorative cover?plastic |
| Working Environment |
-40°C~60°C (-40°F~140°F), Humidity: ?95% RH |
| Storage Environment |
-40°C~60°C (-40°F~140°F), Humidity: ?95% RH |
| surge protection |
6KV |
| Ingress Protection |
IP66 |
| Vandal Resistant |
IK10 |
| Reset Button |
Supported |
