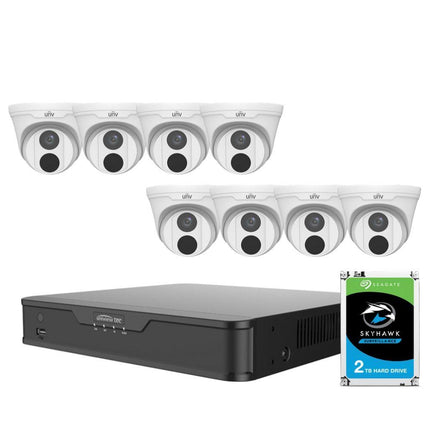

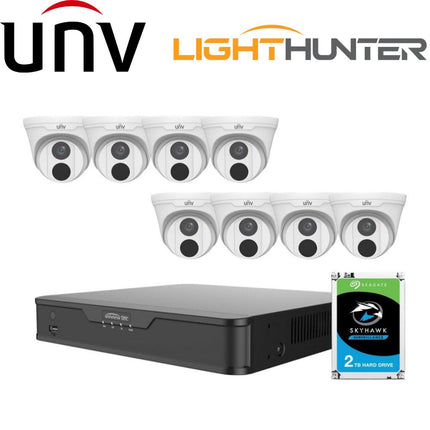

Uniview 8/16 Channel Security System: 8MP NVR, 8 x 5MP (Super HD) Easy Turret Cams, 2TB HDD

Description

Description

This product has been superseded by the Uniview 8 Channel Security System: 8MP NVR, 8 x 5MP LightHunter Turret Cameras, 2TB HDD.

Designed by Uniview, a leading innovator in the surveillance industry, the 5 megapixel 8-Camera Security Kit is an easy to install pre-made package for home or business surveillance. It includes the IPC3615LR3-PF28, an Easy Series 5-megapixel IP camera that comes with exceptional clarity resolution, infrared night vision, and image optimisation technology such as DWDR and 3D DNR, for actively minimising noise and balancing light. The cameras support power-over-ethernet for simple plug-and-play set up and can be installed outdoors thanks to its IP67 weatherproof construction. Search and playback recorded footage easily thanks to fast and accurate file retrieval. Uniview's Ultra 265 video compression allows for highly efficient video compression capability, saving both bandwidth and storage. The kit also supports motion detection and comes with a 2 terabyte Seagate Skyhawk surveillance hard drive.

Enjoy complete access to your cameras remotely via the Uniview smart device app for both Android and iOS. As with the cameras, the app is easy to set up and user-friendly.

Uniview’s exceptional quality cameras and innovative technology make them a popular choice among security professionals around the world.

Features

  • 8 x 5 megapixel (5MP) Turret Cameras - Easy Series, 1/2.7", progressive scan CMOS, 2.8mm Fixed Lens @F2.0
  • 8 Channel Compact 4K (8MP) NVR with 8 independent POE+ network interfaces for plug-and-play setup
  • Skyhawk Surveillance Hard Drive 2000GB (2 Terabyte)
  • Supports 2 SATA HDD Capacity of 8TB Each
  • Supports Power Over Ethernet POE & DC12V Output

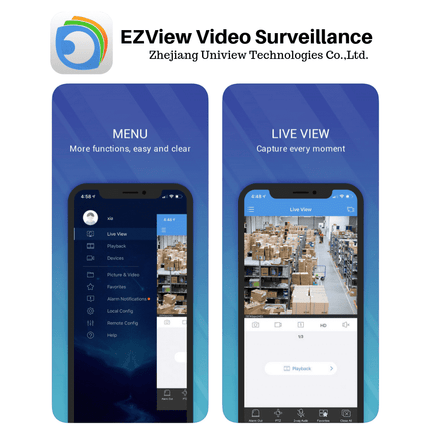

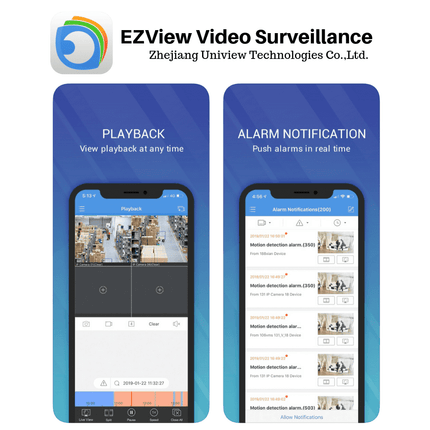

  • Access your Live video feed on your smart device with EZView app. Supports android and ios
  • Accurate retrieval, instant playback
  • 3 Axis Control, Horozontal Field Of View 105.3°
  • Up to 120 dB DWDR (Digital Wide Dynamic Range), 3D DNR noise reduction, IR auto cut filter, ROI
  • Supports Motion Detection
  • Smart IR night vision, up to 30m (98 ft) IR distance
  • Video Compression Ultra 265,H.265, H.264, MJPEG - Dual Stream
  • Wide temperature range: -30°C to 60°C, Wide voltage range of ±25%
  • IP67 Weather Proof
  • WARRANTY: 3 years back-to-base manufacturer warranty

More Info

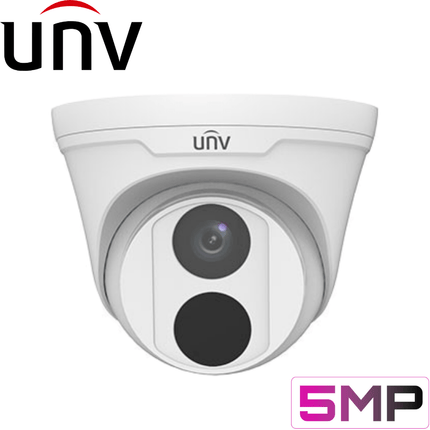

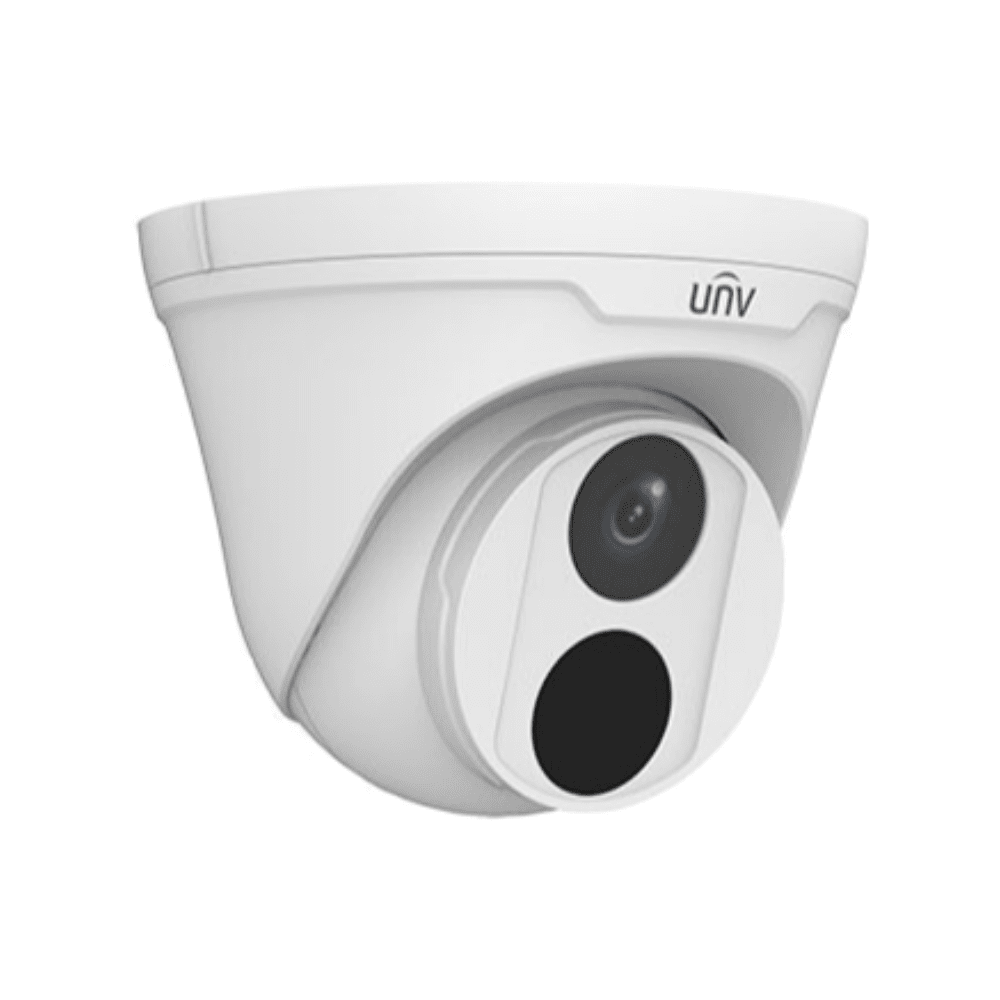

UNIVIEW 5MP TURRET CAMERA Easy Series 2.8mm - IPC3615LR3-PF28

Easy Set-up

  • POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to camera, making installation fast and easy.

  • DC12V - The camera has a DC12V connector as well as POE so that it can be powered by a 12V power supply if POE connectivity is unavailable.

    Optics

  • Day/night functionality - Designed to operate just as good in total darkness as well as light.
  • Smart IR night vision, up to 30m (98 ft) IR distance
  • Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.

  • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.

  • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
  • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.

Compression

  • Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra H.265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.
  • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
  • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

Network

  • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

Structure

  • Wide temperature range: -30°C to +60°C
  • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
  • IP67 - Cameras are sealed against extreme weather, water and dust.

Tech Specs

UNIVIEW 5MP IP TURRET CAMERA Easy Series - IPC3615LR3-PF28

Camera
Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0
Angle of view (H) 105.3°
Angle of View (V) 69.5°
Angle of View (O) 136.9°
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 75°
Min. Illumination Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR
IR Range Up to 30m (98ft) IR range
Day/Night IR-cut filter with auto switch (ICR)
Noise Reduction 2D/3D
S/N >52dB
WDR DWDR
Video
Max. Resolution 2592*1944
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream: 5MP (2592*1944), Max 20fps;
Sub Stream:720P (1280*720), Max 20fps
HLC Supported
BLC Supported
OSD Up to 4 OSDs
Privacy Mask Up to 8 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, Motion detection,Tampering alarm
Intrusion Enter and loiter in a pre-defined virtual region
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration ONVIF (Profile S, Profile T), API
Interface
Network 10/100M Base-TX Ethernet
General
Power DC 12V±25%,PoE (IEEE 802.3af)
Power consumption: Max 4W
Dimensions (Ø x H) ?118 x 96mm (?4.6” x 3.8”)
Weight 0.35kg (0.77lb)
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Ingress Protection IP67

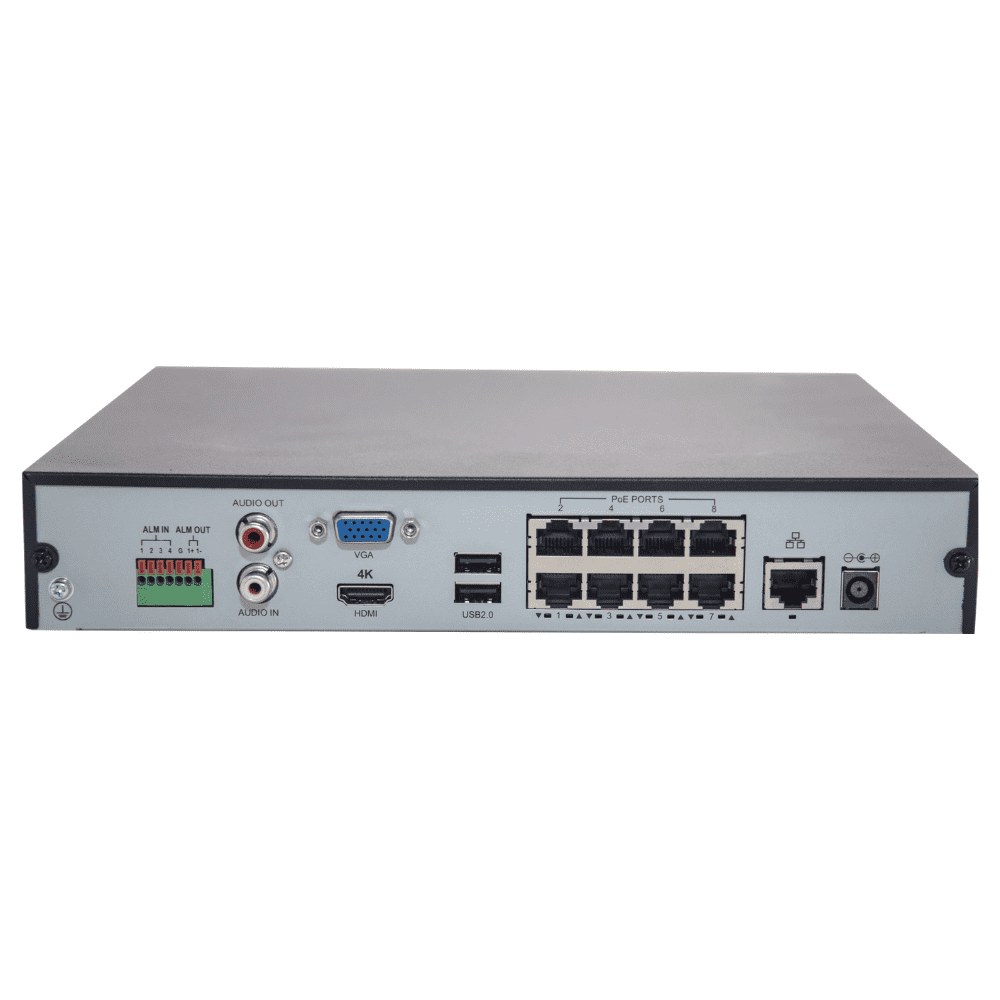

UNIVIEW NVR301-08X-P8 | 8 CHANNEL 8MP (4K) NVR

Model NVR301-08X-P8
Video/Audio Input
IP Video Input 8-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 80Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output HDMI:
3840x2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 8-ch
Corridor Mode Screen 3/4/5/7/9
Decoding
Decoding format Ultra 265/H.265/H.264
Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30
Hard Disk
SATA 1 SATA interface
Capacity up to 10TB for each disk
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 1 x USB2.0,1 x USB3.0
PoE
Interface 8 independent 100 Mbps PoE network interfaces
Max Power Max 30W for single port
Max 108W in total (13.5W for each)
Supported Standard IEEE 802.3at, IEEE 802.3af
General
Power Supply 52V DC
Power Consumption: ?8 W (without HDD)
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ? 90% RH (non-condensing)
Dimensions (W×D×H) 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
Weight (without HDD) 1kg (2.20 lb)

OPTIONAL:

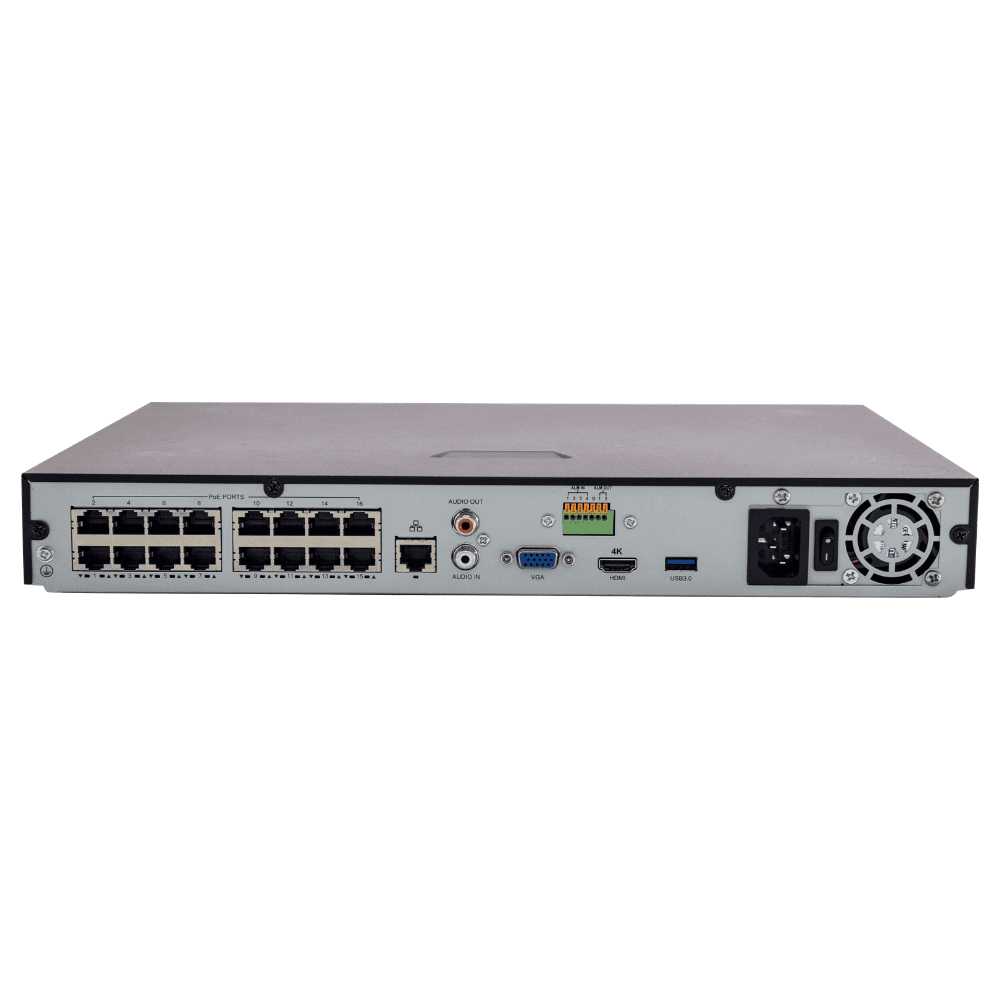

Uniview 16 Channel 8MP (4K) Network Video Recorder - NVR302-16S-P16

NVR302-16S-P16
Video/Audio Input
IP Video Input 16-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 96Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA
Output
VGA: 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,1920X1080@60 HDMI:
4k(3840x2160@30), 4k(3840x2160@60), 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,
1920X1080@60
Recording Resolution 8MP/6MP/5MP/4MP /3MP/1080p/960p/ 720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16
Decoding
Decoding format Ultra265/H.265/H.264
Live view/ Playback 8MP/6MP/5MP/4MP/ 3MP/1080p/960p/ 720p/D1/2CIF/CIF
Capability 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1
Hard Disk
SATA 2 SATA interfaces
Capacity up to 10TB for each disk
Smart
VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search Face search, Behavior search
Statistical Analysis People counting
External Interface
Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0
Alarm In 4-ch
Alarm Out 1-ch
PoE
Interface 16 independent 100Mbps PoE network interfaces
Max Power Max 30W for single port
Max 240W in total ( 15W for each )
Supported Standard IEEE 802.3af/at
General
Power Supply 220V AC
Power Consumption: ?9 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing)
Dimensions(W× D×H) 380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" )
Weight
( without HDD )
?2.4kg (5.29 lb)
