Description

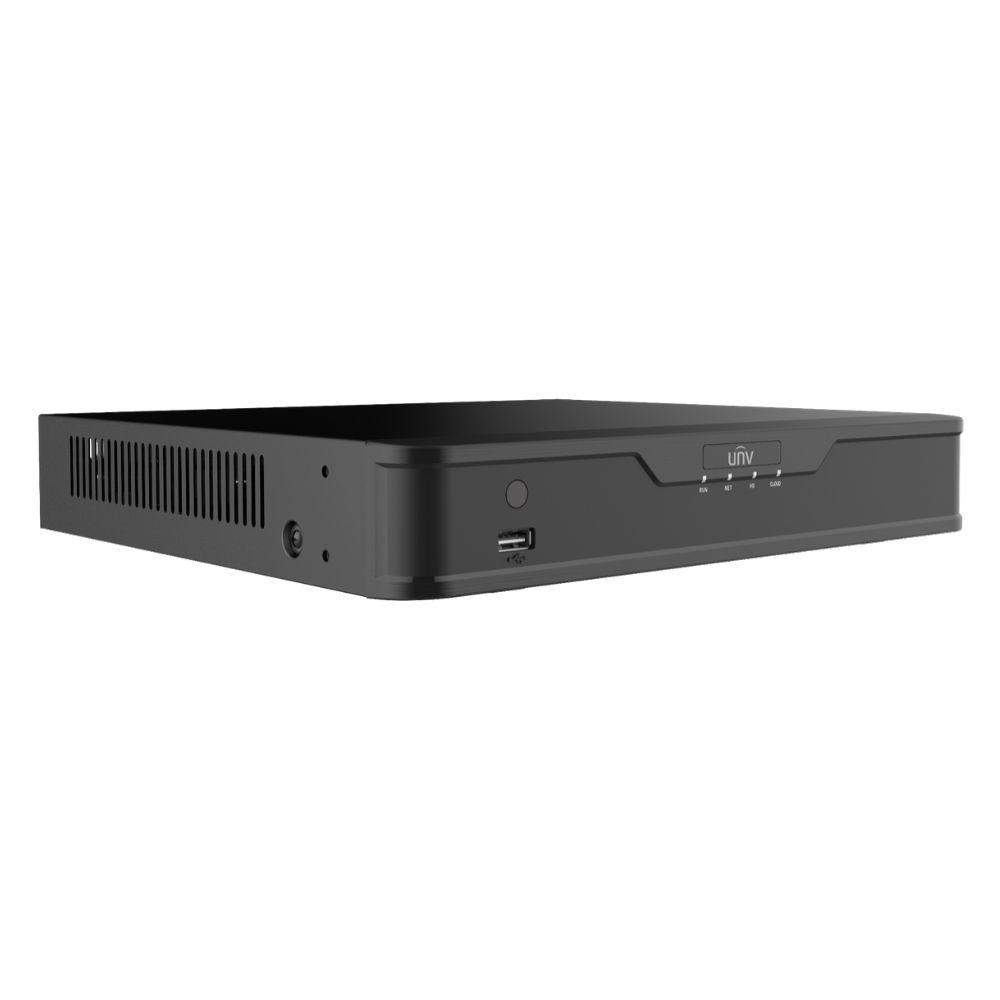

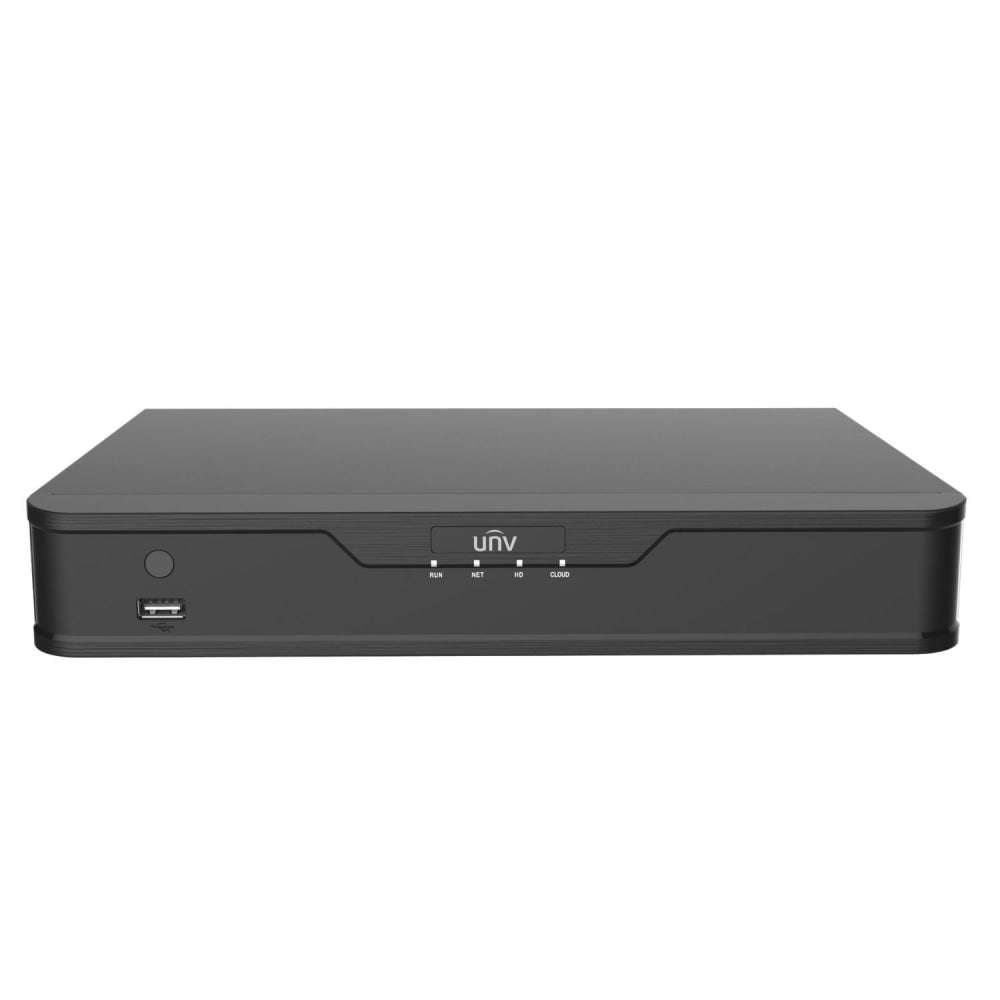

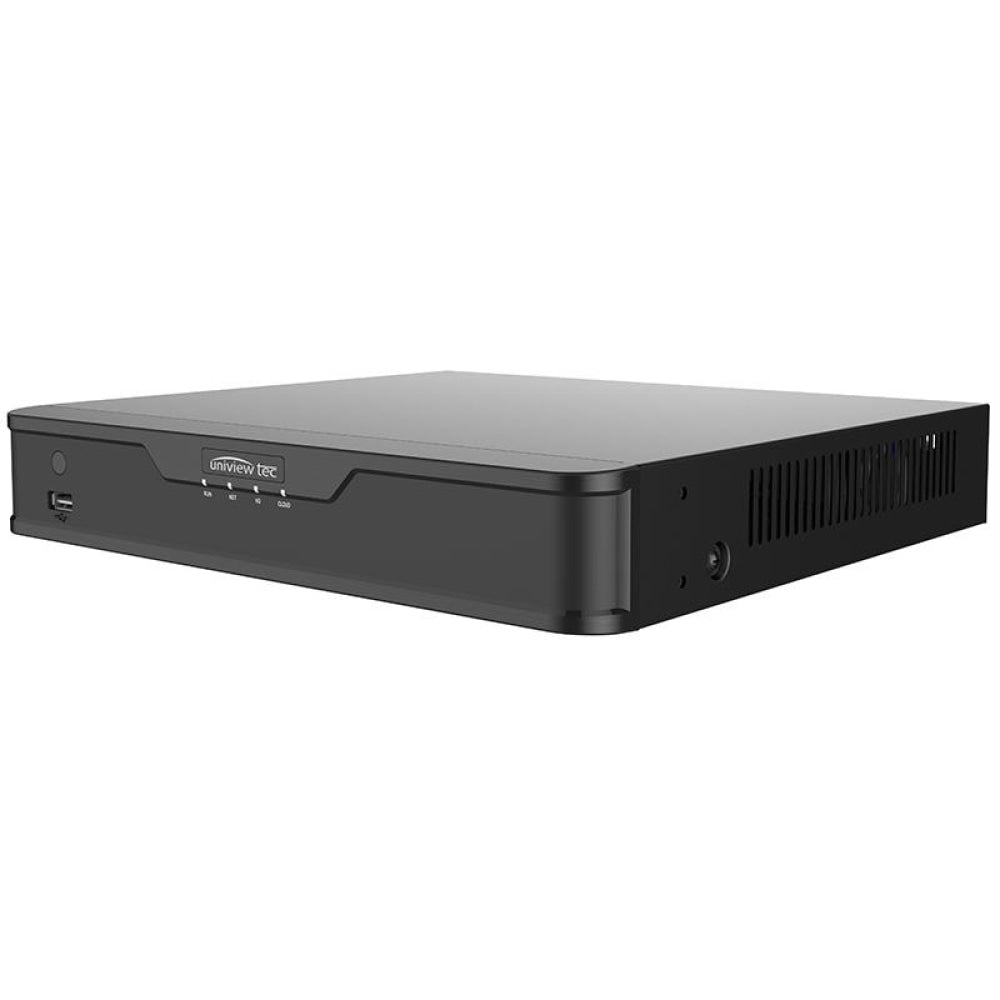

The Uniview NVR301-04-P4 is a 4 Channel Network Video Recorder that supports high resolution security cameras up to 8MP (4K Ultra HD). It has 4 PoE power over ethernet inputs.

The NVR supports 1 SATA hard drive up to a maximum size of 8 Terabytes. You can also connect a mouse and/or USB storage to the recorder using the 2 USB connectors.

Access your recorded footage using the free Uniview smartphone application called EZview. The app is suitable for iOS or Android and allows you to view Live video and playback, as well as be alerted to smart detection events.

Product Features:

4-channel input
Plug & Play with 4 independent PoE network interfaces
Third-party IP cameras supported with ONVIF conformance
Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
Up to 8 Megapixels resolution recording
Support H.265/H.264 video formats
Accurate retrieval, instant playback
1 SATA HDD up to 10TB
Support for P2P, UPnP, NTP, DHCP, PPPoE
Support for mobile client access
WARRANTY: 3 years back-to-base manufacturer warranty

Tech Specs

Uniview 4 Channel 8MP 4K Ultra HD Network Video Recorder: NVR301-04-P4

Model	NVR301-04-P4
Video/Audio Input
IP Video Input	4-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	40Mbps
Outgoing Bandwidth	64Mbps
Remote Users	128
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output	HDMI:
	4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
	VGA:
	1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Synchronous Playback	4-ch
Corridor Mode Screen	3-Apr
Decoding
Decoding format	Ultra 265, H.265, H.264
Live view	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
/Playback	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30, 16 x D1
Hard Disk
SATA	1 SATA interface
Capacity	up to 10TB for each disk
Smart
VCA Detection	Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search	Face search, Behavior search
Statistical Analysis	People counting

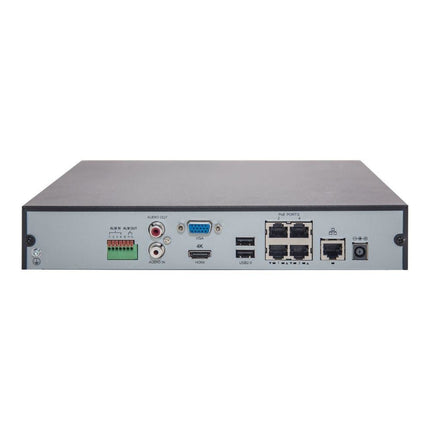

External Interface
Network Interface	1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel?2 x USB2.0, Front panel?1 x USB2.0
Alarm In	4-ch
Alarm Out	1-ch
PoE
Interface	4 independent 100 Mbps PoEnetwork interfaces
Max Power	Max 30W for single port
Max Power	Max 54W in total ( 13.5W for each )
Supported Standard	IEEE 802.3at, IEEE 802.3af
General
Power Supply	48V DC
Power Supply	Power Consumption: ? 5 W( without HDD )
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing)
Dimensions(W×D×H)	260mm ×240mm × 44mm (10.2" ×9.4" ×1.7")
Weight ( without HDD )	? 1.12 Kg ( 2.47 lb )
