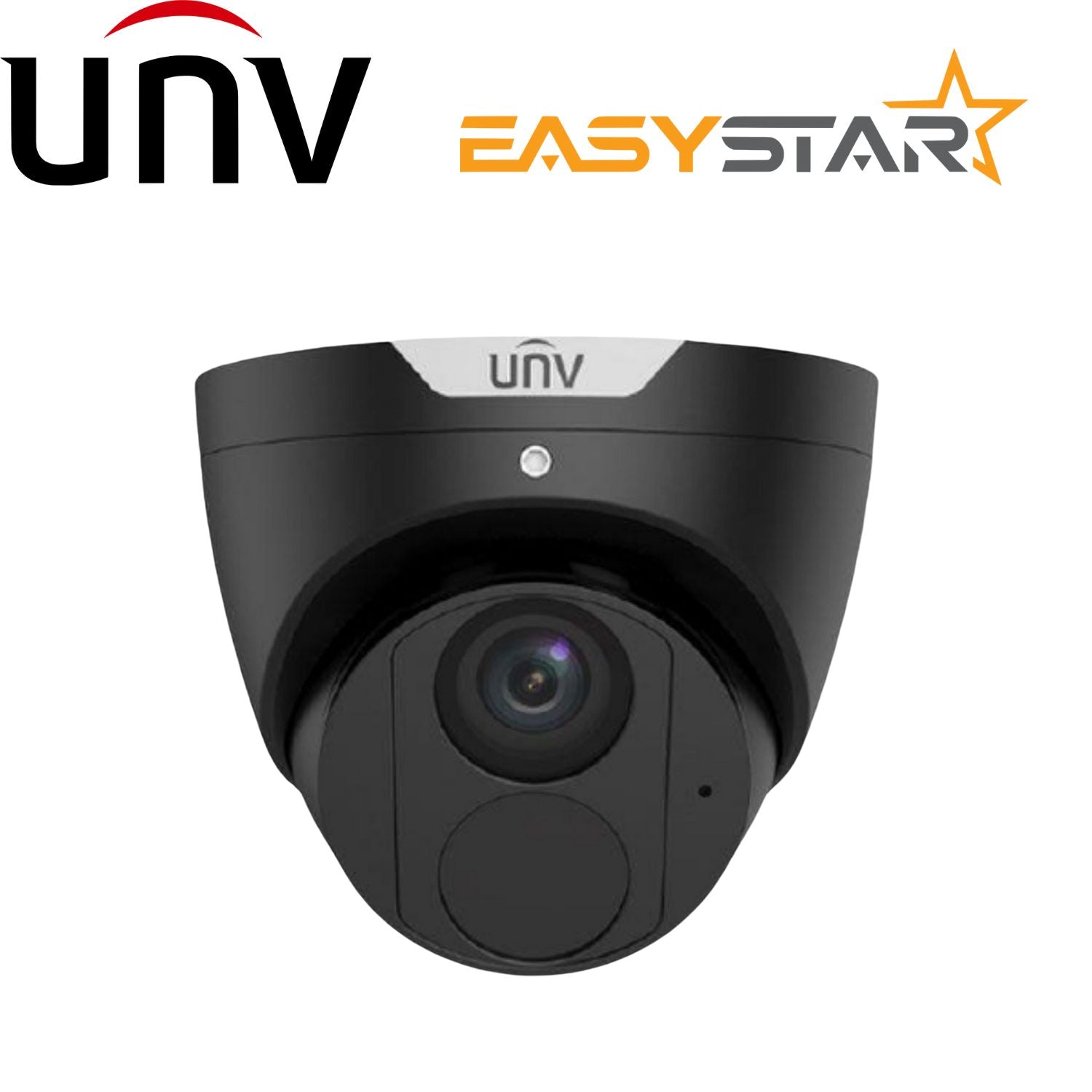

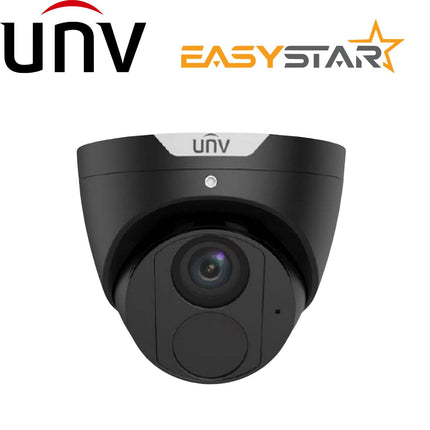

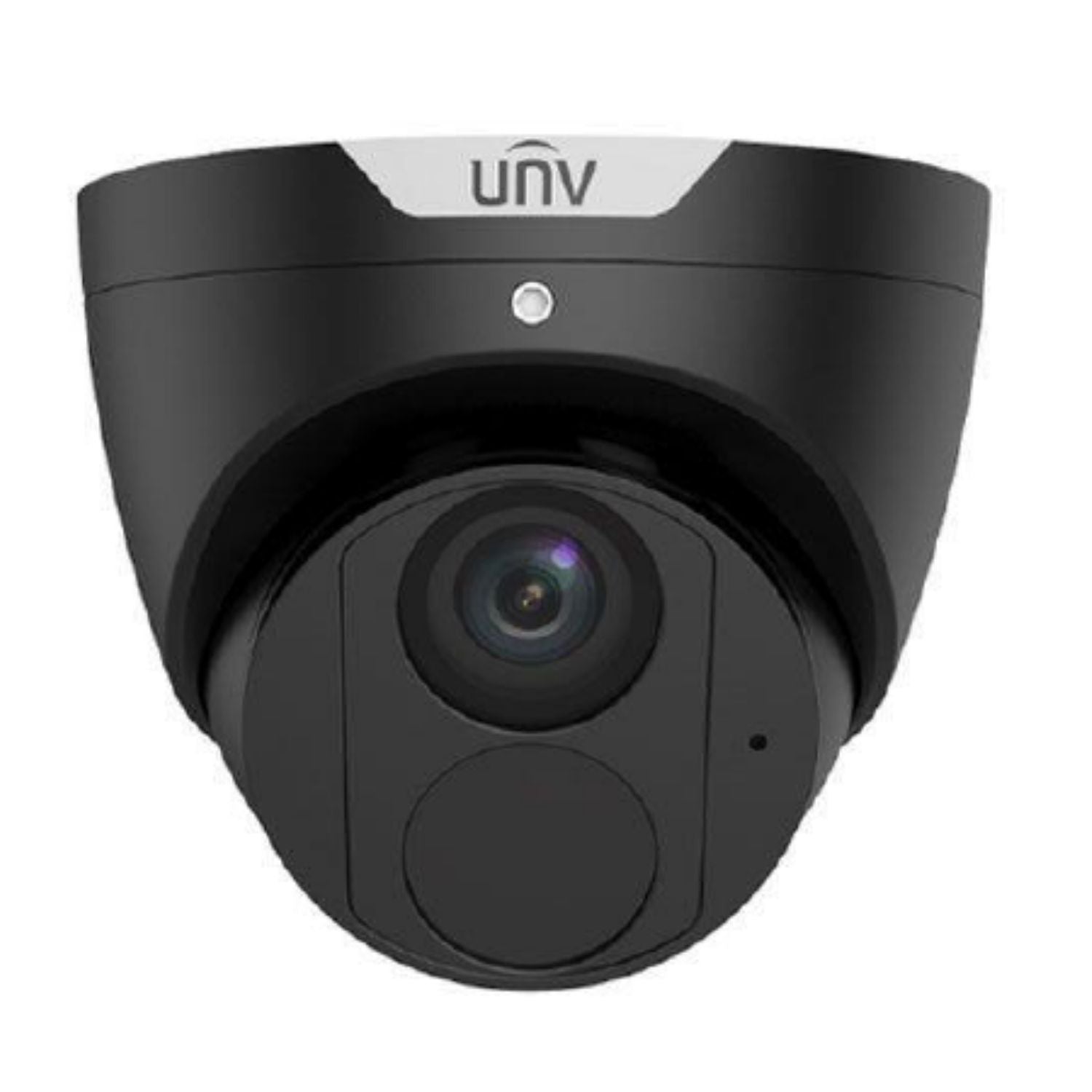

The UNV IPC3616LE-ADF28KM-G Easystar 6MP Eyeball camera offers high quality images with 6 megapixels, 1/2.7″CMOS sensor. With Easystar technology this camera ensures high image quality in low illumination environment. This 6MP Eyeball network camera features a built in microphone and intrusion detection.
This UNV 6MP Eyeball camera has Smart IR of up to 30 meters IR distance and has a protection rating of IP67 which means this camera is resistant to water and dust. This camera would be suitable for an outdoor application.
Key Features
- High quality image with 6MP, 1/2.7"CMOS sensor
- 6MP (3072*2048)@25fps; 5.3M (3072*1728)@30/25fps; 5MP (2880*1620)@25/20fps; 4MP (2560*1440)@25/20fps; 3MP
- (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Easystar technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
Perfect For:
- Outdoor perimeters and gates
- Residential property monitoring
- Retail store entrances and interiors
- Warehouses and corridors
- Parking lots and open outdoor spaces
- Small to large enterprise security systems
Installer Tips
-
Adjust Smart IR – Fine-tune IR settings to avoid overexposure when objects approach the camera.
-
Optimal Placement – Mount at a height that covers wide areas (2.8mm lens is ideal for general monitoring).
-
Use PoE for Clean Setup – Reduces cabling complexity and improves reliability.
-
Enable WDR – Essential for installations facing windows, gates, or bright outdoor areas.
-
Consider Onboard Storage – Add a microSD card as backup in case of network outage.
Downloads
Quick-Read Specs
|
BRAND
|
UNIVIEW
|
|
SERIES
|
EASY
|
|
TYPE OF CAMERA
|
IP CAMERA
|
|
COLOUR
|
WHITE, BLACK
|
|
FEATURES
|
BUILT IN MIC, IP67
|
|
MEGAPIXELS
|
6MP
|
|
CAMERA STYLE
|
TURRET
|
|
LENS SIZE
|
2.8MM
|
|
LENS TYPE
|
FIXED
|
|
NIGHTVISION
|
EASYSTAR, IR
|
|
IR/WHITE LED DISTANCE
|
30M
|
