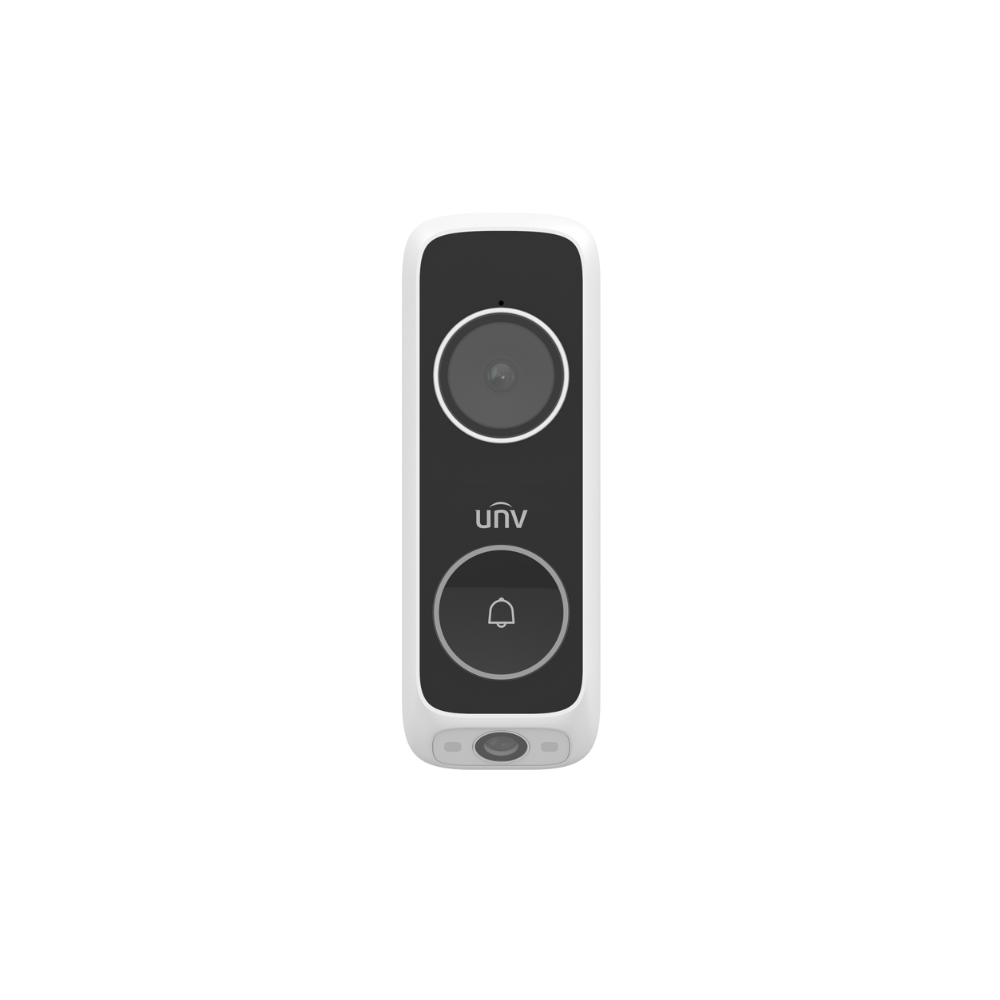

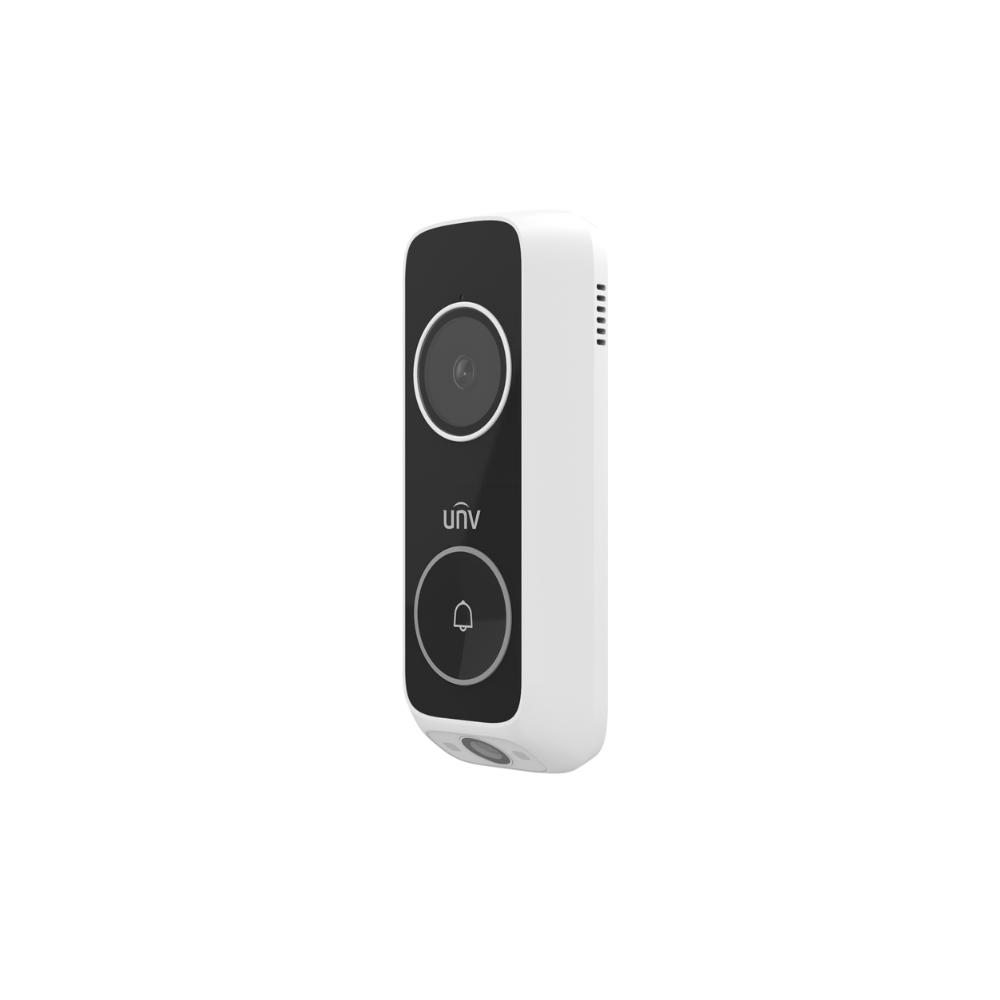

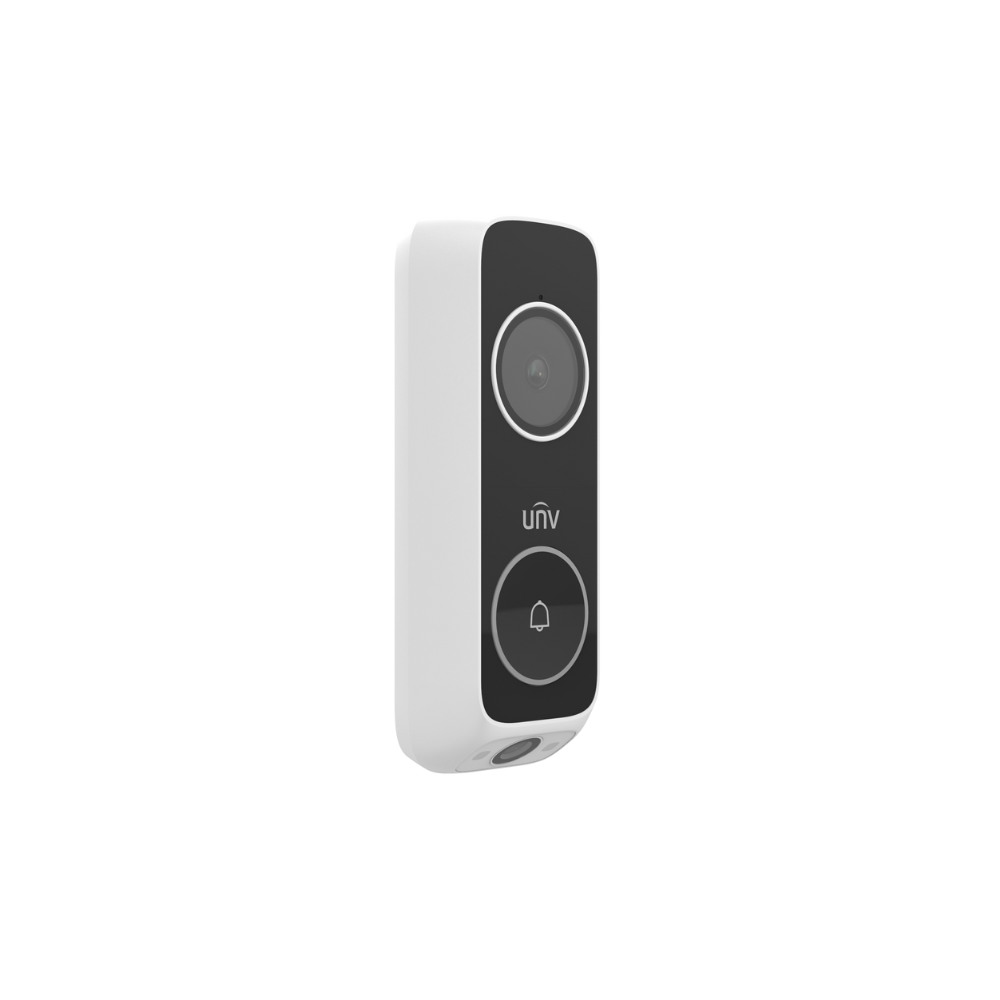

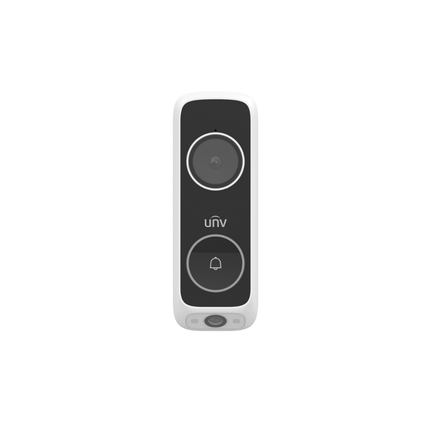

Uniview ED-525B-WB 3MP + 2MP Dual Camera Video Doorbell

Description

The Uniview ED-525B-WB Dual-Lens Video Doorbell is equipped with two high-definition ultra-wide-angle cameras to provide an expanded view of the front door area. The device supports motion detection, human body detection, and package detection, and can report alarms to the mobile app and a connected Uniview NVR. It supports remote answering through the UNV-Link app, allowing users to respond to visitors anytime and anywhere.

Key Features:

  • Supports mechanical chime and wireless chime
  • Supports connection to Uniview NVR for live view, playback, and alarm search
  • Supports motion detection, human body detection, and package detection alarms
  • 3 MP + 2 MP dual cameras for wider coverage
  • Supports noise suppression
  • Supports true HDR and DWDR
  • Supports calling the UNV-Link app
  • Supports Sub-1GHz wireless chime
  • Supports dual-band Wi-Fi (2.4 GHz and 5 GHz) and Wi-Fi 6
  • Supports Bluetooth-assisted network configuration
  • Built-in 8 GB eMMC storage

Downloads

Datasheet Datasheet UNV ED-525B-WB Dual-Lens Video Doorbell
Quick Guide Quick Guide ED-525B-WB


Tech Specs

Category Specification
General
Model ED-525B-WB
Dimensions 55.8 × 156.5 × 27.9 mm
Weight Net: 142 g / Gross: 295 g
Ingress Protection IP65
Operating Temperature -30 °C to +60 °C
Camera & Illumination
Illuminator IR + White Light
Illumination Distance IR: 5 m / White light: 2 m
Minimum Illumination 0.02 lux
Video & Audio
Video Compression H.265, H.264
Audio Compression G.711, MP3, PCM
Audio Bitrate 128 Kbps
Audio Sampling Rate 8 kHz
Protocols
Interface Protocol UNV private protocol
Network Protocols TCP/IP, IPv4, HTTP, RTP, RTSP, NTP
Certification & Compliance
Certifications CB, CE LVD, CE EMC, CE RED, FCC SDOC, FCC ID
Compliance NDAA Compliant
