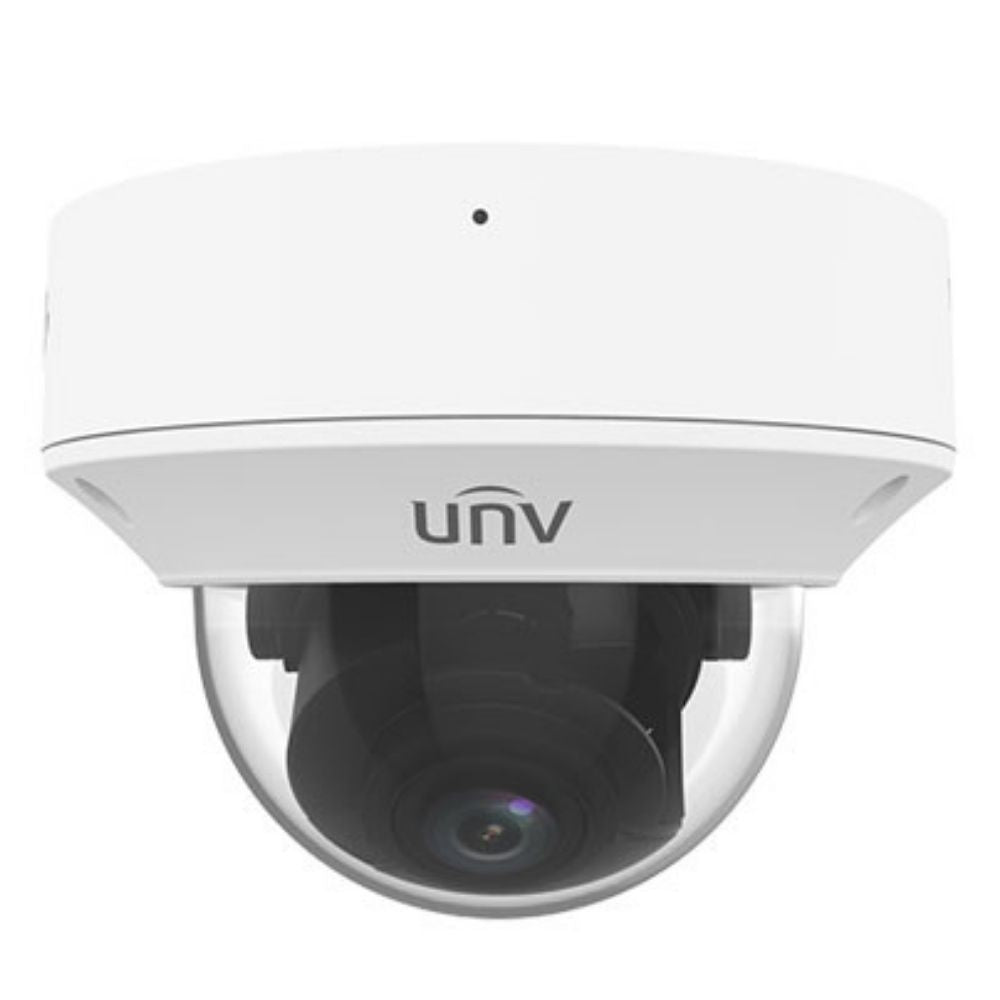

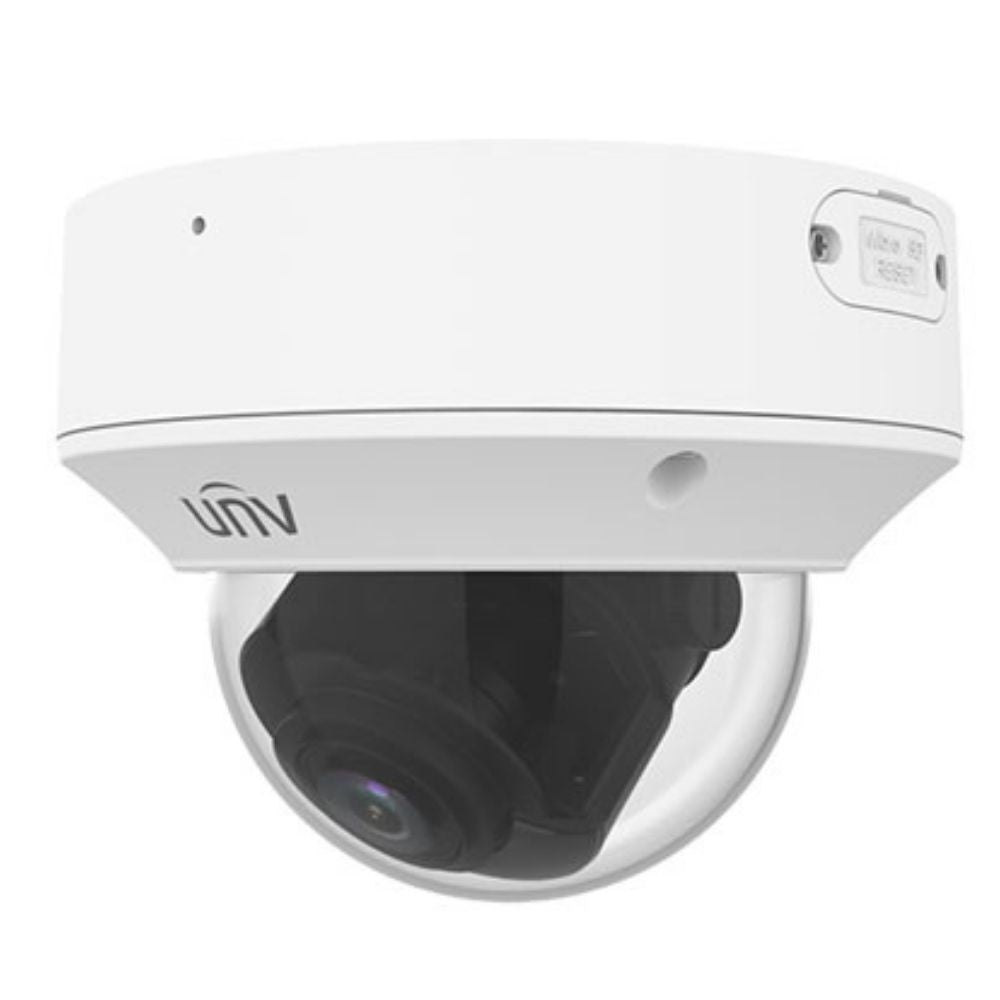

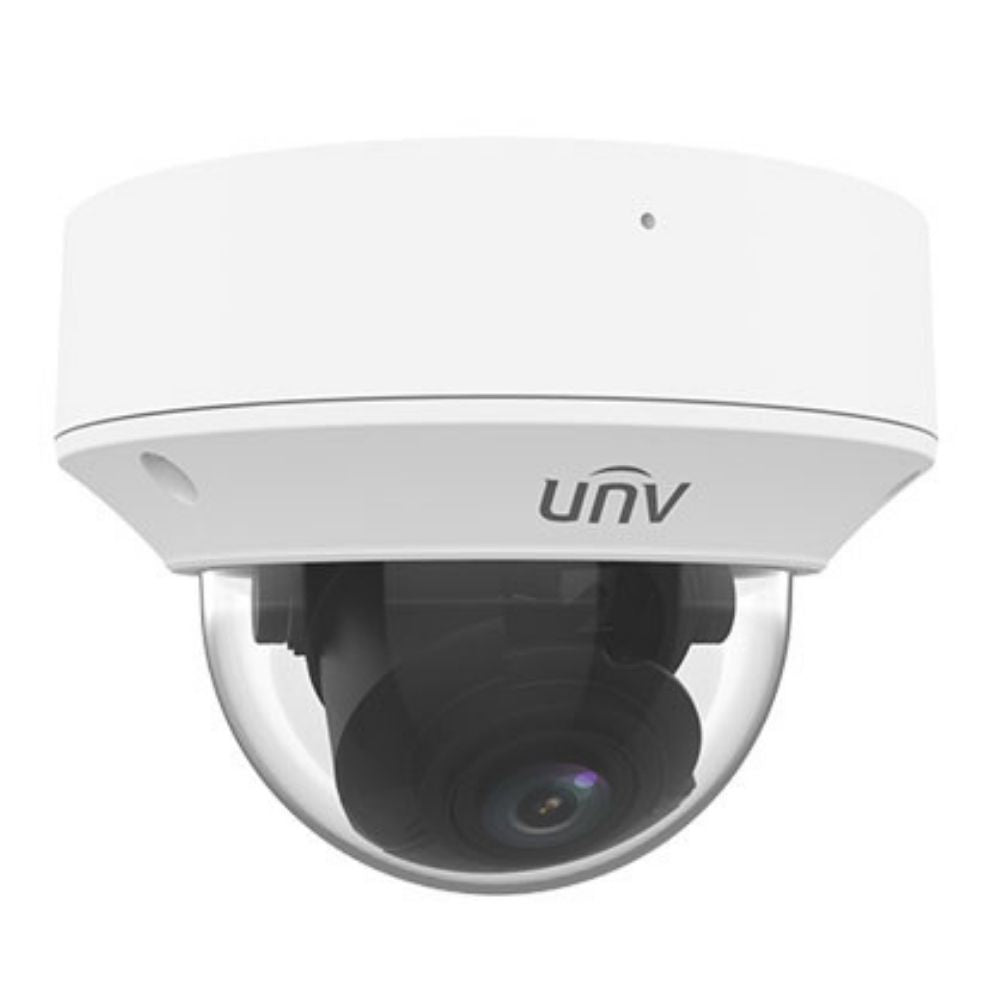

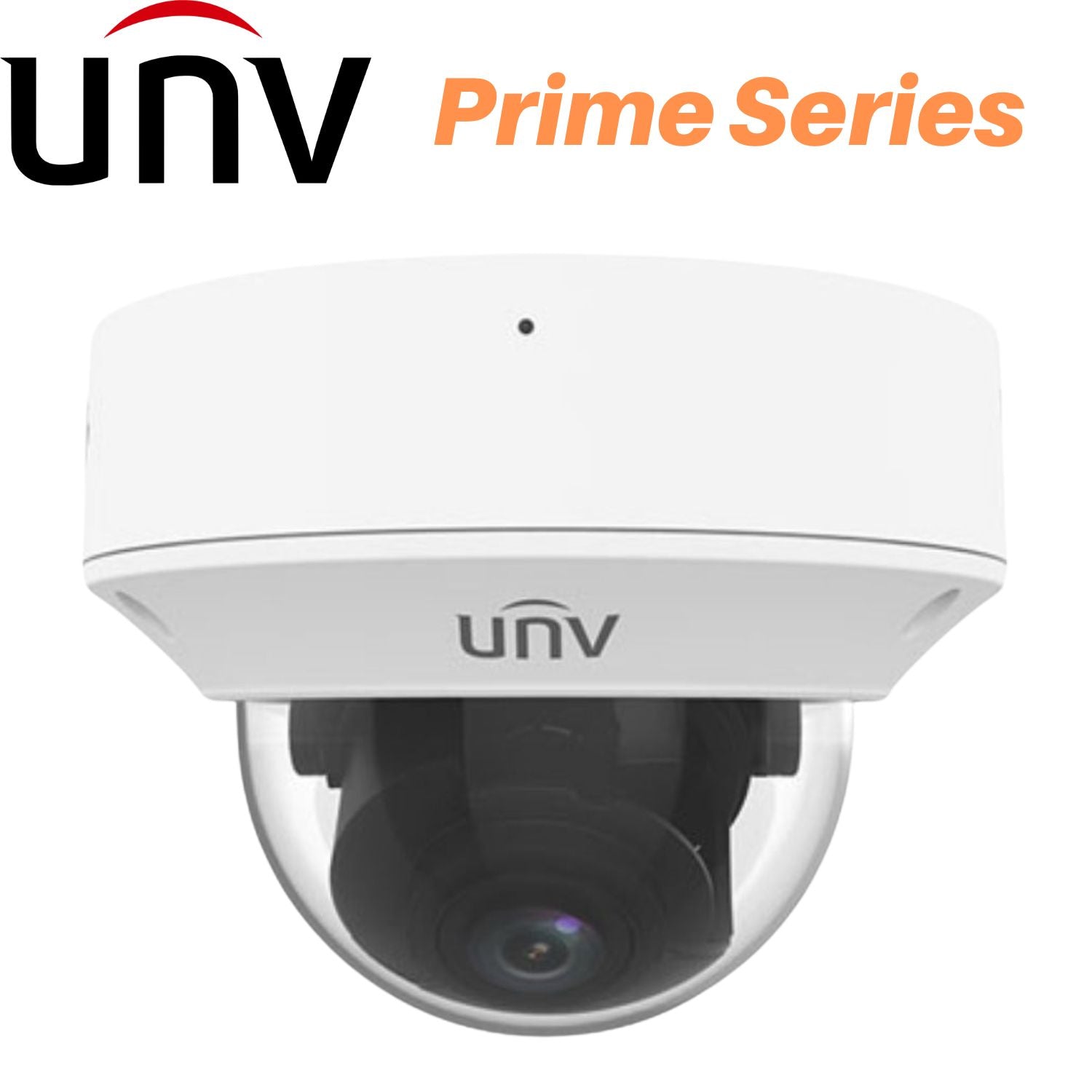

Uniview IPC3235SB-ADZK-I0 Security Camera: 5MP Dome, Prime Series, 2.7~13.5mm

Description

Description

Uniview IPC3235SB-ADZK-I0 Security Camera: 5MP Dome, Prime Series, 2.7~13.5mm is part of Uniview's Prime Series designed for Smart functions, StarView, and reliable storage. Suitable to commercial building, park and small project. LightHunter technology ensures ultra-high image quality in a low illumination environment. Remote and 24/7 Live View and Playback on mobile devices via the EZView App for iOS and Android.

Features:

  • Equipped with a 1/2.7", 5.0 megapixel, progressive scan, CMOS Sensor.
  • Records up to 5MP (2880*1620)@ 30/25fps.
  • 2.7~13.5mm, Automatic Focusing and Motorized Zoom Lens.
  • Ultra 265, H.264, MJPEG, Triple streams.
  • Plug and Play installation via Power-over-Ethernet PoE.
  • 120dB true Wide Dynamic Range technology enables clear image in a strong light scene.
  • LightHunter technology ensures ultra-high image quality in a low illumination environment.
  • Remote and 24/7 Live View and Playback on mobile devices via the EZView App for iOS and Android.
  • Smart IR, up to 40m (131ft) IR distance.
  • Supports Audio Detection via Built-in Mic.
  • Micro SD, up to 256 GB, ONVIF Conformance
  • Durable and weather-resistant IK10 and IP67 enclosure.
  • Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F) and Wide voltage range of ±25%, 2KV Surge Protection
  • WARRANTY: 3 Years "Back-to-Base" Manufacturer Warranty!


Tech Specs

Uniview IPC3235SB-ADZK-I0 Security Camera

Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour:0.002 Lux (F1.2, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital Noise Reduction 2D/3D DNR
S/N >56dB
IR Range Up to 40m (131ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR?NAS(NFS)
Events
Basic Detection Motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O Input: impedance 35k?; amplitude 2V [p-p]
Output: impedance 600?; amplitude 2V [p-p]
Alarm I/O 1/1
Built-in Mic Supported
Network 1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.0 W
Dimensions (Ø x H) ?148.0 x 111.4mm (Ø5.8” x 4.4”)
Net Weight 0.97kg (2.12lb)
Material Metal + Plastic
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Surge Protection 6KV
Reset Button Supported
Ingress Protection IP67
Vandal Resistant IK10
Reset Button Supported

Downloads

These downloadable files should provide more details regarding this product.

Videos

The videos presented on this product tab may not reflect all the available options and capabilities of this specific product. Some are included to illustrate features and procedures which may be relevant.
