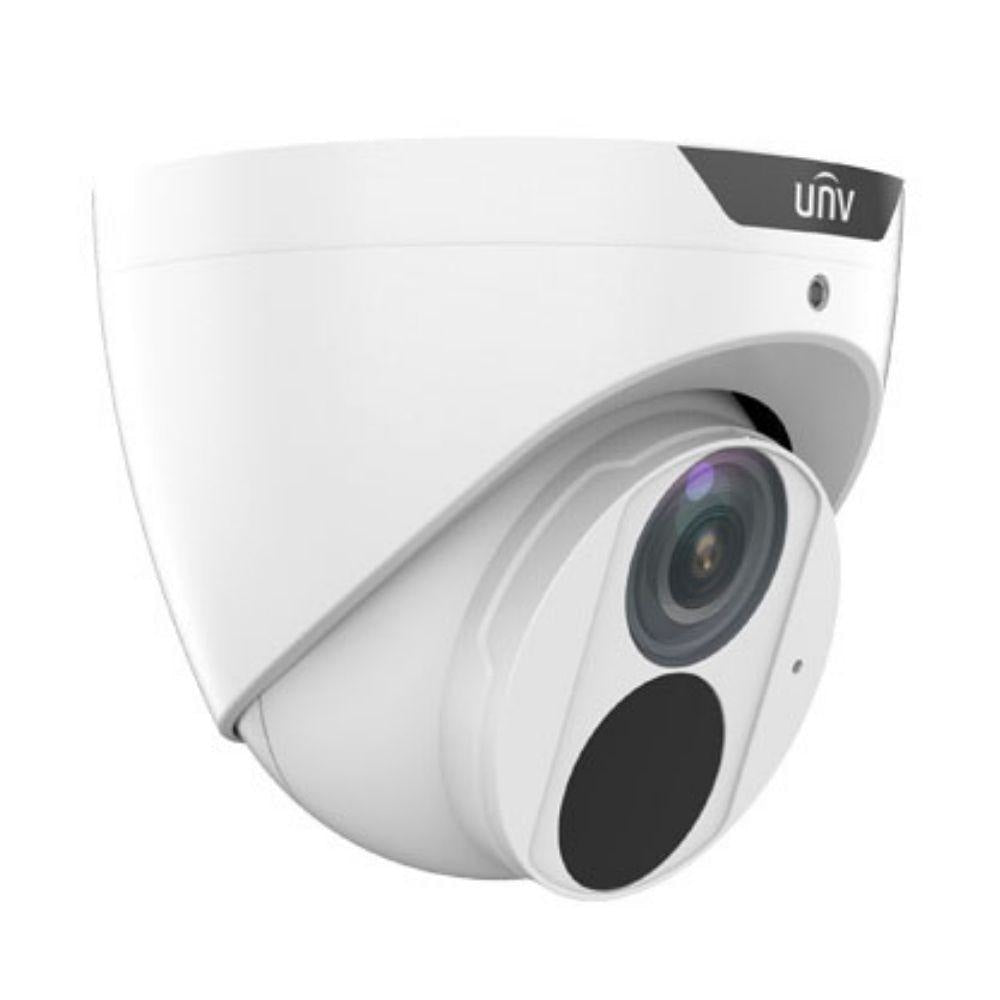

Uniview IPC3615SB-ADF28(40)KM-I0 Security Camera: 5MP LightHunter Turret, IP67

Uniview IPC3615SB-ADF28(40)KM-I0 Security Camera: 5MP LightHunter Turret, IP67

  • 5 Megapixel (5MP) IR turret camera, 1/2.7", progressive scan CMOS, 2.8mm (Optional 4.0mm) @F1.6 fixed lens, Up to 1920×1080 resolution, 30fps
  • Supports Power Over Ethernet POE & DC12V Output
  • LightHunter Technology ensures ultra-high image quality in a low illumination environment.
  • Up to 120 dB WDR (Wide Dynamic Range), 3D DNR noise reduction, digital defog, IR auto cut filter, ROI, corridor mode
  • Smart Functions include Motion Detection, Intrusion Detection, Cross-Line Detection, Face Detection, People Counting, Audio Detection, Loiter Detection
  • Supports audio recording with built-in mic
  • Smart IR night vision, up to 30m (98 ft) IR distance
  • Video Compression Ultra 265, H.265, H.264, MJPEG - Triple Stream
  • Supports 256 G Micro SD card. ONVIF conformance.
  • 2 KV surge protection, IP67 weather protection
  • WARRANTY: 3 years back-to-base manufacturer warranty!
  • Product SKU: IPC3615SB-ADF28KM-I0
  • Order within
Available: In Stock
$174.00 $190.00

Designed by Uniview, a leading innovator in the surveillance industry, the Uniview IPC3615SB-ADF28(40)KM-I0 is a 5-megapixel LightHunter IP camera. It comes with an exceptional high-clarity resolution, infrared night vision, and LightHunter illumination technology that ensures ultra-high image quality in a low illumination environment. Image optimisation techniques such as WDR and 3D DNR actively minimise noise and balances light. The camera is compatible with most 3rd party digital video recorders and supports power-over-ethernet for simple plug-and-play set up. It also supports audio recording and can be installed outdoors thanks to its IP67 weatherproof construction.

FEATURES

  • 5 Megapixel (5MP) IR turret camera, 1/2.7", progressive scan CMOS, 2.8mm (Optional 4.0mm) @F1.6 fixed lens, Up to 1920×1080 resolution, 30fps
  • Supports Power Over Ethernet POE & DC12V Output
  • LightHunter Technology ensures ultra-high image quality in a low illumination environment.
  • Up to 120 dB WDR (Wide Dynamic Range), 3D DNR noise reduction, digital defog, IR auto cut filter, ROI, corridor mode
  • Smart Functions include Motion Detection, Intrusion Detection, Cross-Line Detection, Face Detection, People Counting, Audio Detection, Loiter Detection
  • Supports audio recording with built-in mic
  • Smart IR night vision, up to 30m (98 ft) IR distance
  • Video Compression Ultra 265, H.265, H.264, MJPEG - Triple Stream
  • Supports 256 G Micro SD card. ONVIF conformance.
  • 2 KV surge protection, IP67 weather protection
  • WARRANTY: 3 years back-to-base manufacturer warranty!



Designed by Uniview, a leading innovator in the surveillance industry, the Uniview IPC3615SB-ADF28(40)KM-I0 is a 5-megapixel LightHunter IP camera. It comes with an exceptional high-clarity resolution, infrared night vision, and LightHunter illumination technology that ensures ultra-high image quality in a low illumination environment. Image optimisation techniques such as WDR and 3D DNR actively minimise noise and balances light. The camera is compatible with most 3rd party digital video recorders and supports power-over-ethernet for simple plug-and-play set up. It also supports audio recording and can be installed outdoors thanks to its IP67 weatherproof construction.

FEATURES

  • 5 Megapixel (5MP) IR turret camera, 1/2.7", progressive scan CMOS, 2.8mm (Optional 4.0mm) @F1.6 fixed lens, Up to 1920×1080 resolution, 30fps
  • Supports Power Over Ethernet POE & DC12V Output
  • LightHunter Technology ensures ultra-high image quality in a low illumination environment.
  • Up to 120 dB WDR (Wide Dynamic Range), 3D DNR noise reduction, digital defog, IR auto cut filter, ROI, corridor mode
  • Smart Functions include Motion Detection, Intrusion Detection, Cross-Line Detection, Face Detection, People Counting, Audio Detection, Loiter Detection
  • Supports audio recording with built-in mic
  • Smart IR night vision, up to 30m (98 ft) IR distance
  • Video Compression Ultra 265, H.265, H.264, MJPEG - Triple Stream
  • Supports 256 G Micro SD card. ONVIF conformance.
  • 2 KV surge protection, IP67 weather protection
  • WARRANTY: 3 years back-to-base manufacturer warranty!



Uniview IPC3615SB-ADF28(40)KM-I0 Security Camera

Uniview IPC3615SB-ADF28(40)KM-I0 Security Camera

Easy Set-up

  • POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to the camera, making installation fast and easy.

  • DC12V Output - No need for an extra cable to run a microphone, light or siren. DC12V output built into the camera so no need for an additional power supply.

Optics

  • LightHunter Technology ensures ultra-high image quality in a low illumination environment.
  • Day/night functionality - Designed to operate just as good in total darkness as well as light.
  • Smart IR night vision, up to 30m (98 ft) IR distance
  • Smart IR - Works by auto-balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.
  • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.
  • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image is unstable lighting conditions, such as when the background is bright and the foreground is dark.
  • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology that enables noise to be filtered even more effectively from the image, even in low light conditions.
  • Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.

Audio

  • Supports Audio recording - Built-in mic can support recording audio.

Compression

  • Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra H.265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.
  • Embedded smart algorithm
  • Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
  • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example, the sky.
  • 9:16 corridor mode - For narrow, vertical scenarios such as hallways, that reduces wasted video compression, transmission and storage. The 9:16 aspect ratio rotates the image by 90 degrees and reduces the proportion of blank walls in the picture allowing the camera to focus on the most valuable areas—the doorway.
  • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

Network

  • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically it's only +-10% with competitor products.
  • IP67 - Cameras are sealed against extreme weather, water and dust.

Intelligence

  • Face detection - The camera takes a snapshot of the face and stores it in the NVR. When you need to identify a person the system will take you to the specific moment the person appeared on the screen.
  • Intrusion Detection - You can draw a box or an area of interest within the screen for the camera to monitor. When the camera identifies an intrusion it will prompt the NVR to send you an email or notification with snapshots.
  • Scene Change - The camera can identify if it is being tampered with if there is a change in scenery it is actively monitoring. It will be prompted to send you an email with snapshots of the incident.
  • Cross Line Detection - Similar to intrusion by drawing lines, however, this works best for identifying point A to point B intrusion. For example, a car may be permitted to enter an area from point A but prohibited to exit at point B. The system will only alert you if both points A and point B are triggered in that order.
  • People Counting - Pointed at a door (or by drawing a line) the camera will count person by person. It can also identify how many people enter and how many exit. You can review the results by specific time periods on a graph. Suitable for stores or places with high traffic.
  • Defocus Detection - The camera can detect when it is out of focus and alert you.
  • Audio Detection - An audio detection alarm occurs when a camera detects a sudden change in sound volume.

Uniview IPC3615SB-ADF28(40)KM-I0 Security Camera

Camera
Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F1.6 / 4.0mm@F1.6
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON)
0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital Noise Reduction 2D/3D DNR
S/N >56dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High profile
Frame Rate Main Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP
Compatible Integration ONVIF (Profile S, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.0W
Dimensions (Ø x H) Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
Net Weight 0.425kg (0.93lb)
Material Metal
Operating Conditions -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 2KV
Ingress Protection IP67
Reset Button N/A
