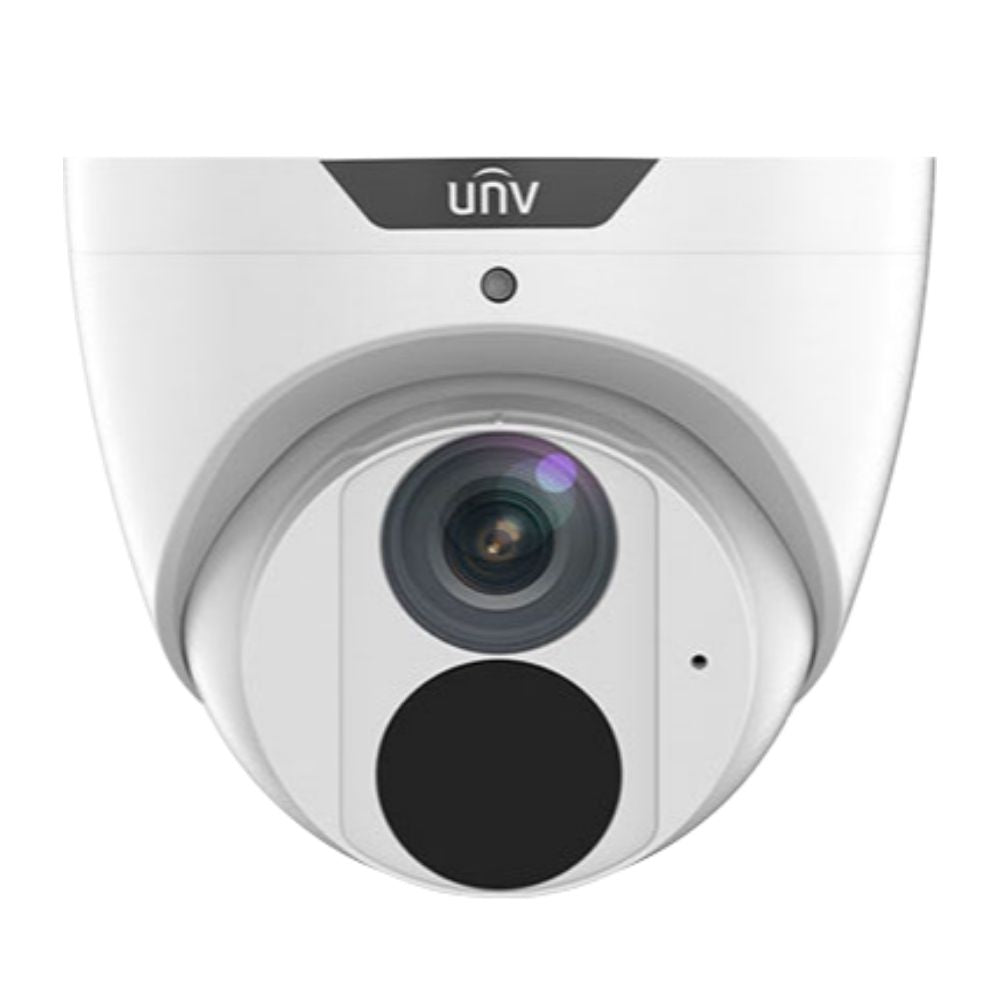

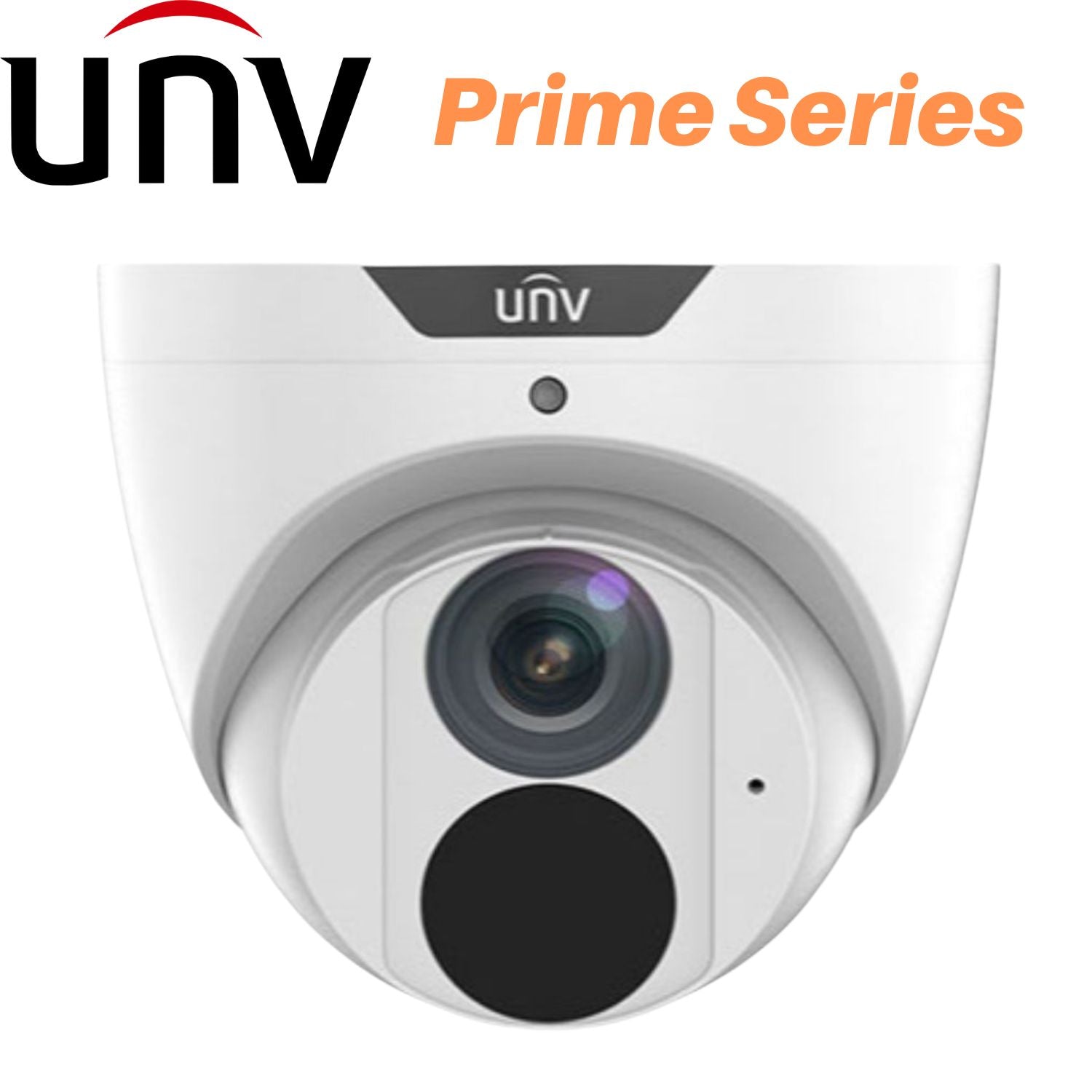

Uniview IPC3615SR3-ADPF28(40)-FM Security Camera: 5MP Turret, Prime Series

Description

Description

Uniview IPC3615SR3-ADPF28(40)-FM Security Camera: 5MP Dome, Prime Series, 2.8mm is part of Uniview's Prime Series designed for Smart functions and reliable storage. Suitable to commercial building, park and small project. Remote and 24/7 Live View and Playback on mobile devices via the EZView App for iOS and Android. Dome cameras feature greater resistance to vandalism and are generally one of the more popular camera types. They are easy to secure and tend to easier to conceal or blend in most environments. This camera also features Human Body Detection and Ultra H.265 encoding technology.

Features:

  • Equipped with a 1/2.7", 5.0-Megapixel, progressive scan, CMOS Sensor.
  • Records up to 2592x1944 resolution. 2.8mm (4.0mm) @F2.0 fixed lens.
  • Ultra 265, H.264, MJPEG, Triple streams. Built-in Mic.
  • Plug and Play installation via Power-over-Ethernet PoE.
  • 120dB Wide Dynamic Range, BLC/HLC, Auto White Balance, Digital Defog, 2D/3D DNR, Day/Night Functionality
  • Smart Behavior Detection: Intrusion, Human Body Detection, Motion detection, Tampering alarm, Audio Detection
  • Remote and 24/7 Live View and Playback on mobile devices via the EZView App for iOS and Android.
  • Smart IR, up to 30m (98ft) IR distance.
  • Micro SD, up to 128 GB, ONVIF Conformance
  • Durable and weather-resistant IP67 enclosure.
  • Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F) and Wide voltage range of ±25%, 2KV Surge Protection
  • WARRANTY: 3 years back-to-base manufacturer warranty

Tech Specs

Uniview IPC3615SR3-ADPF28(40)-FM Security Camera

Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >56dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream: 5MP (2592*1944), Max 25fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 25fps;
Third Stream: 4CIF (704*576), Max 25fps
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 4 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping NA
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 128 GB
Network Storage ANR
Smart
Behaviour Detection Intrusion, Human Body Detection, Motion detection, Tampering alarm, Audio Detection
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible Integration ONVIF (Profile S, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W
Dimensions (Ø x H) ?110.5 x 94.1mm (Ø4.4” x 3.7”)
Net Weight 0.44kg (0.97lb)
Material Metal
Operating Conditions -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Surge Protection 2KV
Ingress Protection IP67

Downloads

These downloadable files should provide more details regarding this product.

Videos

The videos presented on this product tab may not reflect all the available options and capabilities of this specific product. Some are included to illustrate features and procedures which may be relevant.

Uniview High-Quality Products
