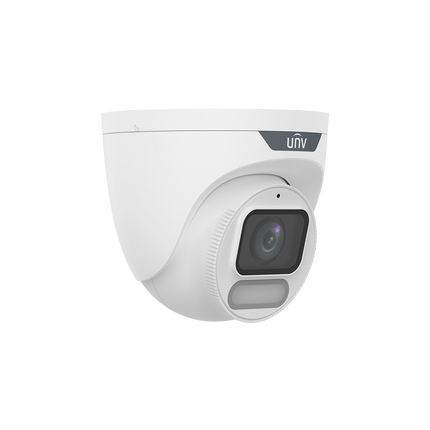

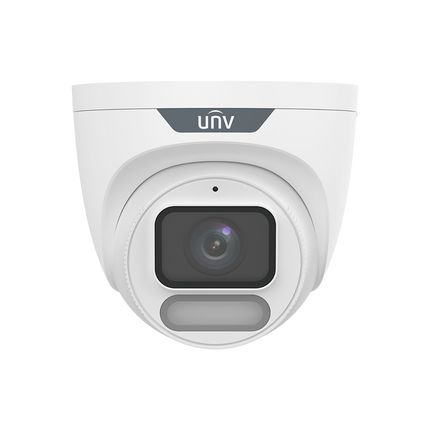

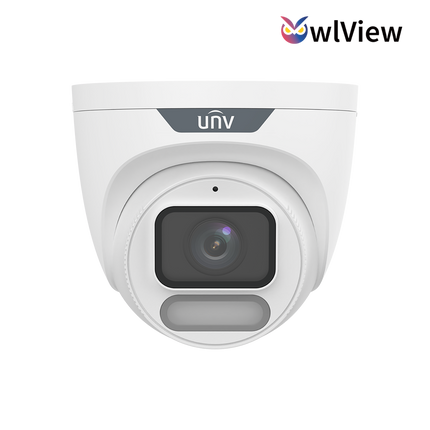

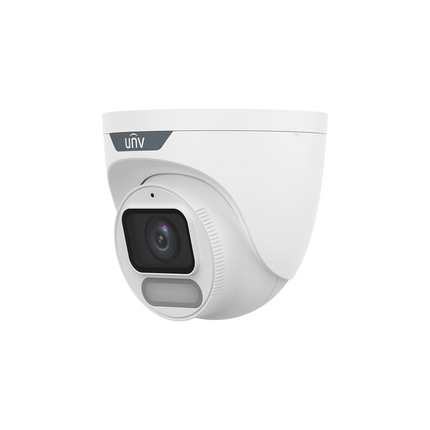

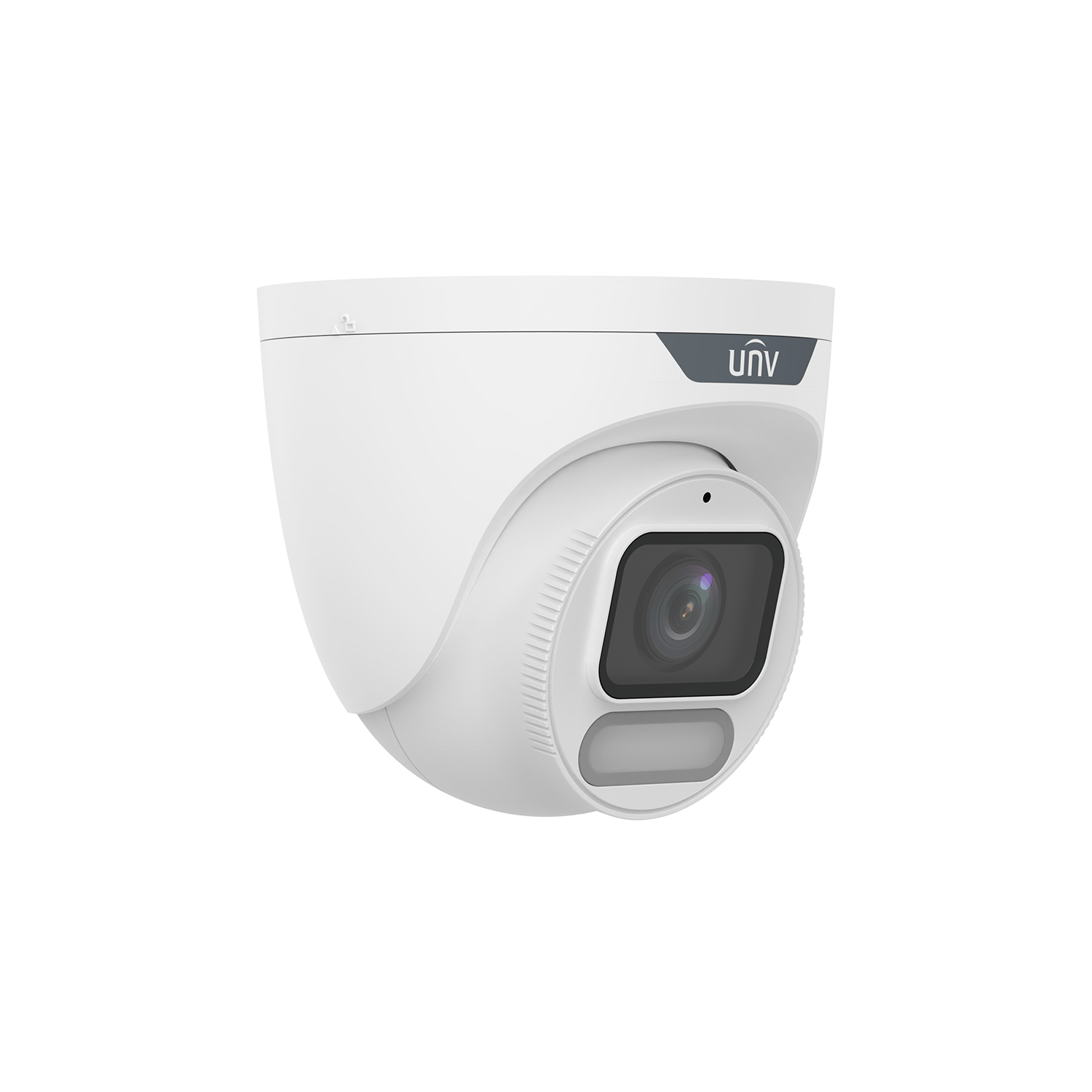

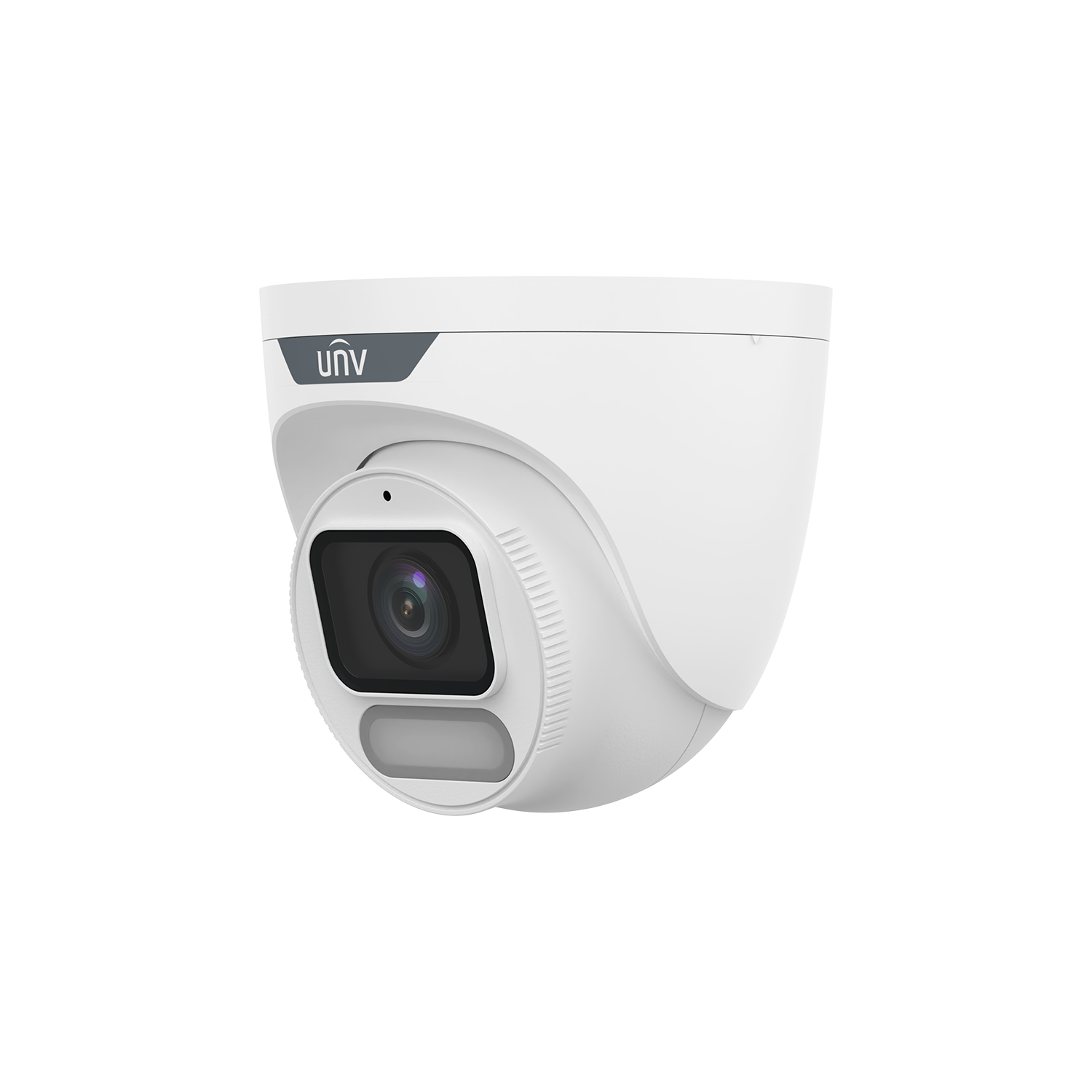

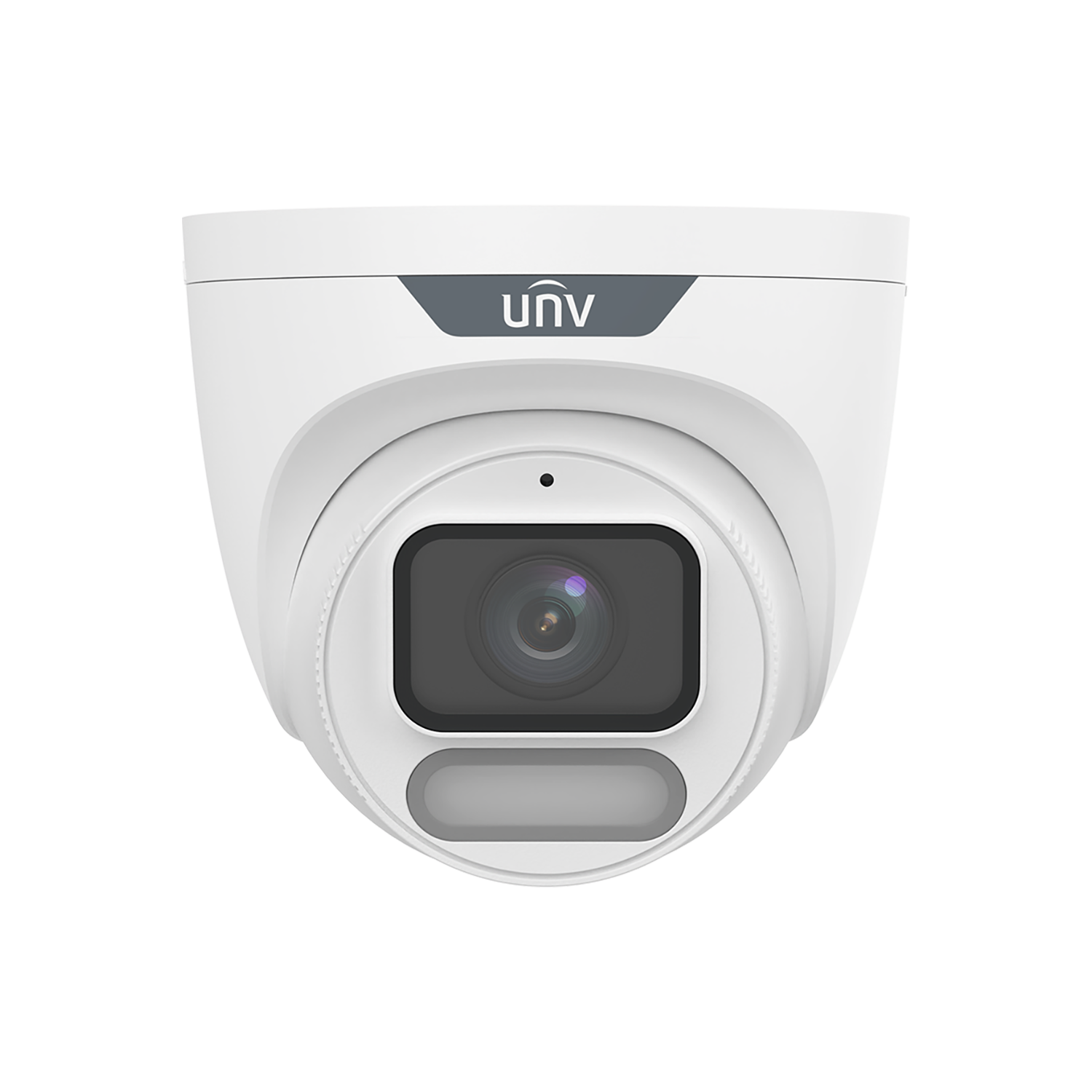

The Uniview IPC3624LE-ADF28K-WP is a high-performance ColorHunter network camera designed to deliver excellent image clarity and vivid color reproduction, even in extremely low-light conditions. Equipped with a large-aperture F1.0 lens, advanced Wise-ISP technology, and IP67 weatherproof housing, it’s ideal for users seeking reliable, round-the-clock surveillance without compromising detail or accuracy.
Key Features
-
ColorHunter with Wise-ISP Technology – Optimizes color accuracy, detail, and reduces smear effects in extremely low-light scenes, ensuring full-color images 24/7 without the need for infrared-only night vision.
-
High-Resolution Imaging – Captures sharp video at up to 4MP (2688 × 1520) resolution, with multiple frame rate options to suit different surveillance needs.
-
Large-Aperture F1.0 Lens – Maximizes light intake for superior low-light performance, delivering bright and clear images in near darkness (minimum illumination: 0.003 lux).
-
True 120dB WDR – Balances exposure in challenging lighting conditions, ensuring clear visibility in scenes with both bright and dark areas.
-
Built-in Microphone – Records high-quality audio alongside video for better situational awareness.
-
Smart Warm Light Illumination – Integrated white light provides up to 30m (98ft) illumination range, with auto/manual control for enhanced nighttime color imaging.
-
Versatile Video Compression – Supports Ultra 265, H.265, H.264, and MJPEG, reducing storage and bandwidth usage while maintaining video quality.
-
Weather-Resistant Design – IP67-rated housing ensures reliable operation in harsh outdoor environments.
Perfect For:
- Residential driveways and gardens
- Retail store entrances and interiors
- Office building lobbies and corridors
- Parking lots and outdoor perimeters
- Warehouses and loading bays
- Public facilities and community areas
Installer Tips
-
Maximize Low-Light Performance – Place the camera in areas where ambient lighting is minimal to let the ColorHunter and F1.0 lens showcase their full capabilities.
-
Optimal Mounting Angle – Use the 3-axis adjustment to perfectly align the field of view — especially important for covering both wide and targeted areas.
-
Leverage PoE – Use PoE for simplified wiring and reduced installation costs.
-
Warm Light Settings – Adjust the smart illumination settings to prevent unnecessary light pollution while maintaining evidential quality video.
-
Pair with a Compatible NVR – For optimal performance, integrate with Uniview NVRs to take advantage of smart search and efficient video management.
Downloads
Quick-Read Specs
| Specification |
Detail |
| Resolution |
4MP (2688 × 1520) |
| Sensor |
1/3" CMOS |
| Lens |
2.8 mm fixed, F1.0 |
| Field of View (H/V/D) |
96.7° / 52.7° / 112.3° |
| Minimum Illumination |
0.003 lux (Color, F1.0, AGC ON) |
| WDR |
120dB True WDR |
| Night Vision |
Warm Light up to 30m |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Audio |
Built-in Mic (no two-way audio) |
| Storage |
Micro SD card up to 256 GB |
| Power |
12V DC ±25%, PoE (IEEE 802.3af) |
| Weather Rating |
IP67 |
| Dimensions / Weight |
Ø118 × 106 mm / 0.48 kg |
Extra Info
ColorHunter Technology
ColorHunter is Uniview’s advanced low-light imaging solution designed to deliver vivid, full-color video 24/7. Unlike traditional IR night vision that produces only black-and-white images in the dark, ColorHunter uses a combination of a large-aperture F1.0 lens, a high-sensitivity CMOS sensor, and integrated warm-light LEDs to capture natural color in even the dimmest conditions (down to 0.003 lux). This ensures you can clearly identify clothing colors, vehicle details, and other critical information at any time of day.
The system intelligently controls illumination, switching the warm light on only when needed — conserving energy, minimizing light pollution, and maintaining a low profile while still capturing clear color details when it matters most.
Wise-ISP Technology
Wise-ISP is Uniview’s advanced image processing engine that optimizes sharpness, contrast, and color balance in real time. It reduces noise, enhances fine detail, and eliminates motion smear that often occurs in low-light environments. This ensures moving subjects remain clear and identifiable, even in challenging lighting conditions.
Large-Aperture F1.0 Lens
Compared to the more common F1.4–F2.0 apertures, this model’s F1.0 lens allows significantly more light to hit the sensor, boosting brightness, preserving color, and minimizing noise in dark scenes — a key advantage for night surveillance.
True 120dB WDR
Handles complex lighting situations by merging multiple exposures in real time, balancing bright and dark areas for a more evenly lit image.
Built-in Microphone
Captures clear audio to complement video footage without requiring an external mic.
Smart Warm Light Illumination
Provides natural color rendering at night with up to 30m coverage, with Auto or Manual modes for flexibility.
Advanced Video Compression – Ultra 265
Efficiently reduces storage and bandwidth usage while maintaining high video quality, enabling longer recordings and smoother remote playback.
Event Detection & Alerts
Supports human body-based motion detection, intrusion detection, cross-line detection, tamper alarms, and audio detection to minimize false alarms and improve situational awareness.
Edge Storage
Supports Micro SD cards up to 256 GB for standalone operation or backup in case of network outages.
Rugged Outdoor Design
IP67-rated housing ensures dust and water resistance, while surge protection helps safeguard against electrical damage.
Integration & Remote Access
Compatible with Uniview NVRs, EZStation software, and UNV-Link mobile apps for easy remote monitoring, playback, and alerts.
Q&A
Q: Can this camera record in complete darkness?
A: Yes. Thanks to its ColorHunter technology, large F1.0 aperture, and built-in warm-light LEDs, it can capture vivid full-color video even in extremely low-light or no-light conditions.
Q: Does it have black-and-white night vision as well?
A: No, this model is designed for full-color imaging at night rather than traditional infrared.
Q: How far can the warm light illuminate at night?
A: Up to 30 meters (approximately 98 feet), with adjustable Auto or Manual settings.
Q: Can I use this camera outdoors?
A: Yes. It has an IP67 rating, making it fully weatherproof.
Q: Does it have a built-in microphone?
A: Yes. The built-in microphone records audio alongside video.
Q: Is this camera compatible with my existing NVR?
A: Yes. It is ONVIF-compatible and works best with Uniview NVRs for full feature support.
Q: Can I use it without an NVR?
A: Yes. It supports Micro SD cards up to 256 GB for standalone operation.
Q: Does it support remote viewing?
A: Yes. You can use Uniview’s EZStation software or UNV-Link apps for live viewing, playback, and alerts.
