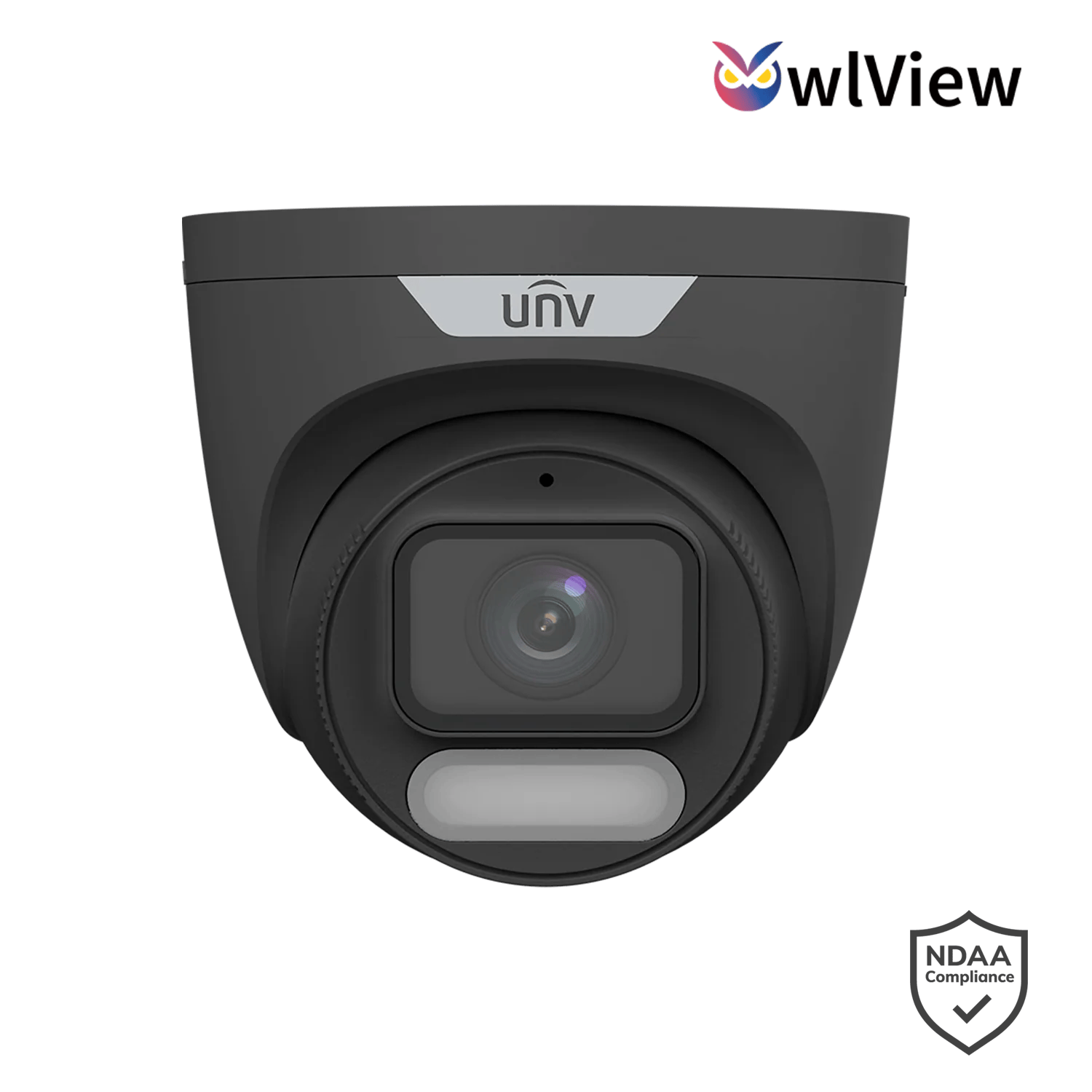

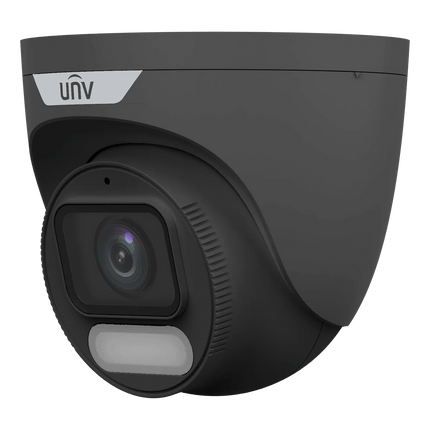

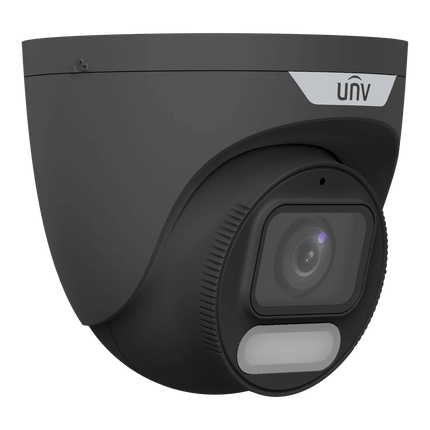

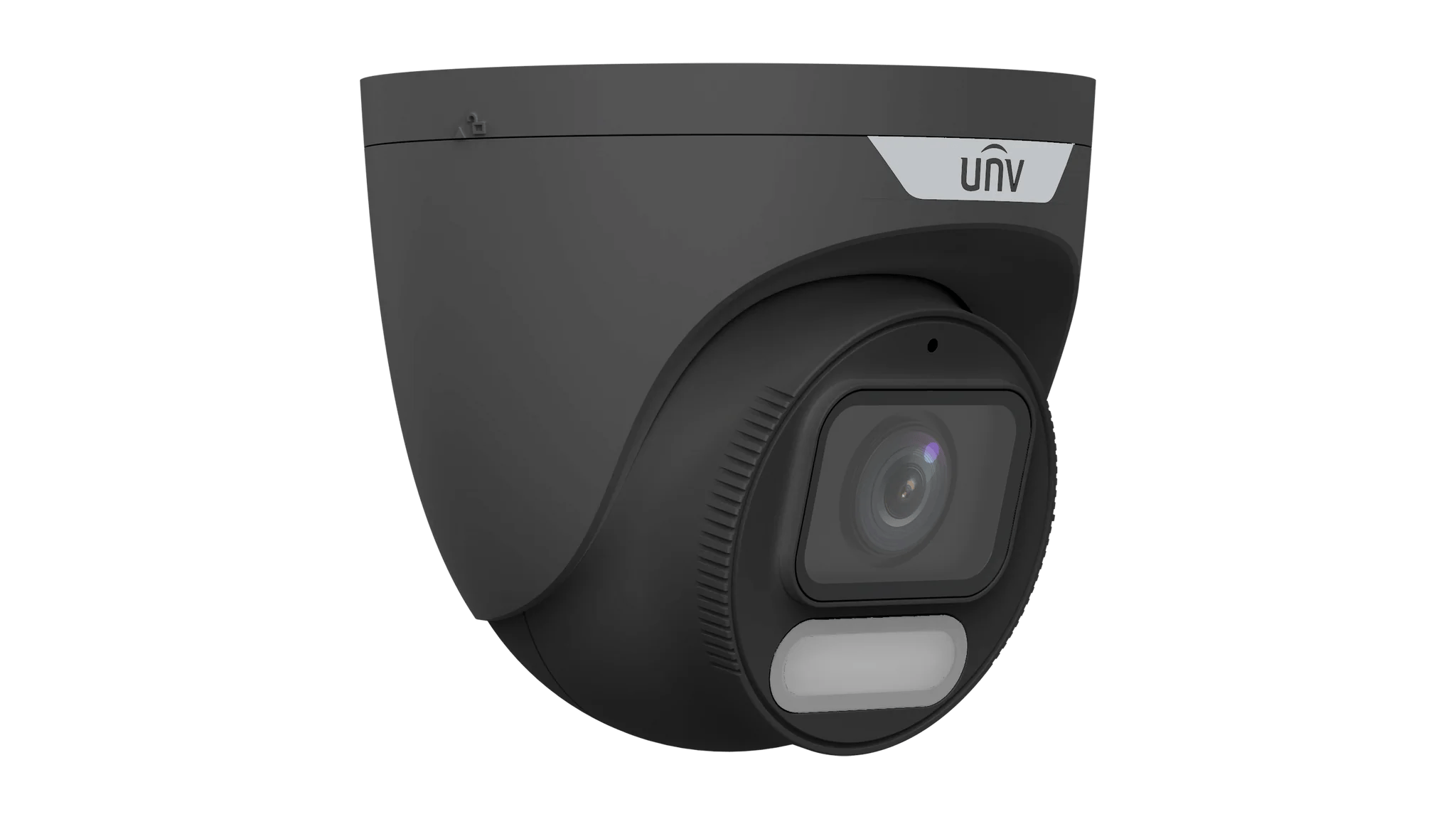

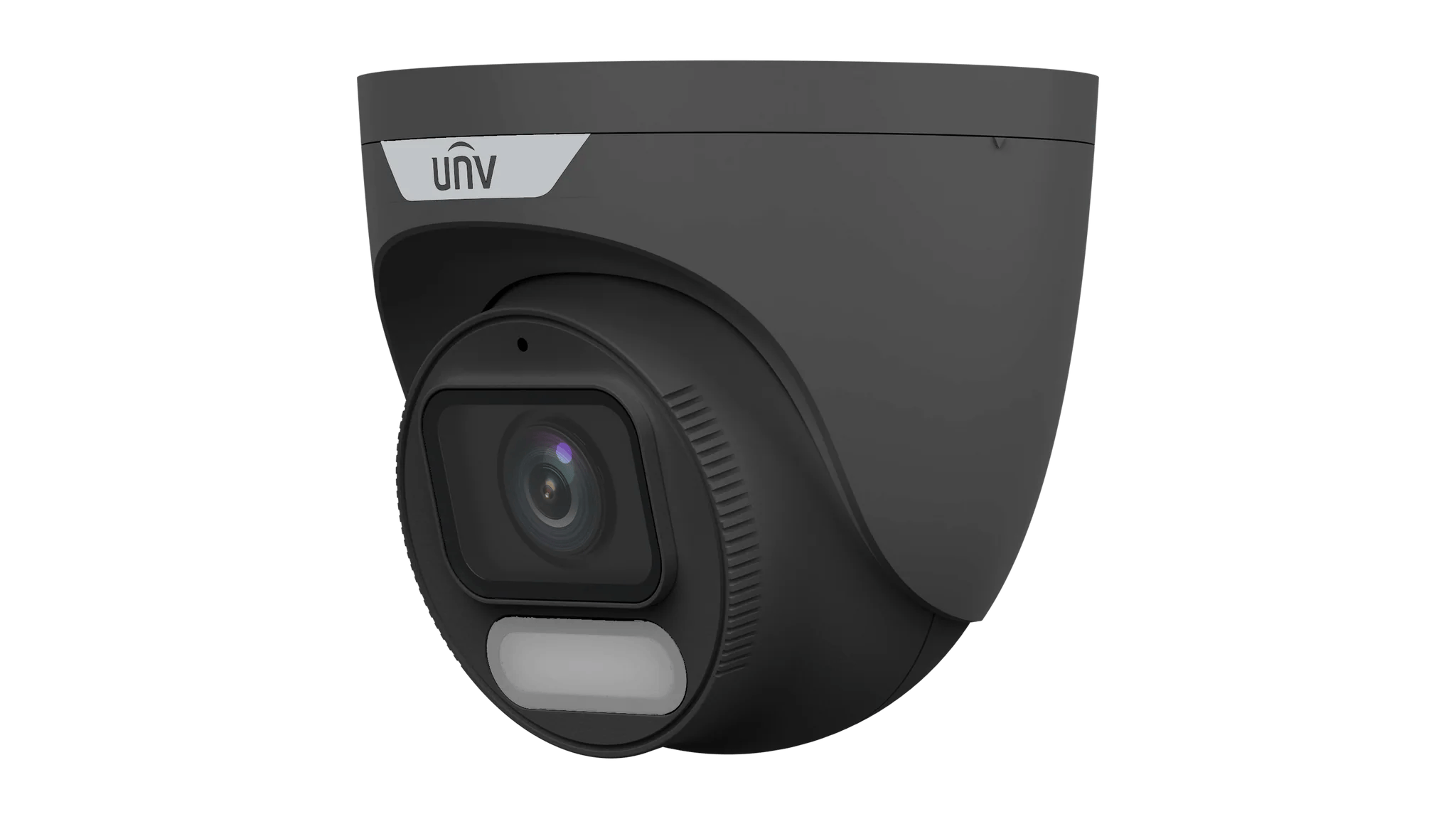

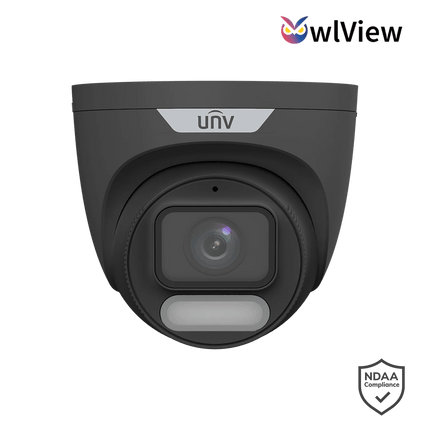

The Uniview IPC3628LE-ADF28K-WP-BK is an ultra-high-definition ColorHunter fixed eyeball network camera built for maximum clarity and true-to-life color, day or night. Featuring an 8MP 1/1.8" CMOS sensor, an ultra-bright F1.0 aperture lens, and advanced Wise-ISP technology, it delivers full-color imaging 24/7 — even in near-total darkness. Its IP67-rated housing, smart warm light illumination, and multiple focal length options (2.8mm or 4.0mm) make it an ideal choice for residential, commercial, and industrial surveillance.
Key Features
-
8MP ColorHunter with Wise-ISP – Delivers crystal-clear, vivid color video in all lighting conditions, maintaining accurate detail without switching to black-and-white night mode.
-
High-Resolution Recording – Supports 8MP (3840×2160) at 20fps, 5MP at 30fps, and lower resolutions up to 1080p at 30fps.
-
Large-Aperture F1.0 Lens – Exceptional light intake for superior low-light performance with a minimum illumination of 0.0003 lux.
-
True 120dB WDR – Ensures balanced exposure in high-contrast lighting environments.
-
Smart Warm Light Illumination – Integrated LEDs provide up to 30m (98ft) color illumination at night with Auto/Manual control.
-
Built-in Microphone – Captures high-quality audio alongside video for better event context.
-
Flexible Viewing Angles – Available in 2.8mm (111° HFOV) or 4.0mm (94° HFOV) fixed lenses to suit wide-area or focused coverage needs.
-
Corridor Mode Support – Ideal for hallways, aisles, and narrow monitoring spaces.
-
Robust Outdoor Design – IP67 weatherproofing and 4kV surge protection for reliable operation in harsh conditions.
Perfect For:
- Home driveways, gardens, and entrances
- Retail storefronts and interiors
- Building lobbies and corridors
- Parking lots and perimeter monitoring
- Warehouses and loading areas
- Public spaces and community facilities
Installer Tips
-
Choose the Right Lens – Use 2.8mm for wide coverage or 4.0mm for more focused areas.
-
Maximize Low-Light Performance – Install where ambient lighting is minimal to let the F1.0 lens and ColorHunter tech excel.
-
Leverage PoE – Simplifies wiring and reduces installation complexity.
-
Smart Illumination Control – Set warm light to Auto for energy savings and minimal light pollution.
-
Use with Uniview NVRs – Ensures full smart features, efficient storage, and smooth integration.
Downloads
Quick-Read Specs
| Specification |
Detail |
| Resolution |
8MP (3840×2160) |
| Sensor |
1/1.8" CMOS |
| Lens |
2.8mm or 4.0mm fixed, F1.0 |
| Field of View (H/V/D) |
2.8mm: 111° / 63° / 131° 4.0mm: 94.2° / 51° / 111.7° |
| Minimum Illumination |
0.0003 lux (Color, F1.0, AGC ON) |
| WDR |
120dB True WDR |
| Night Vision |
Warm Light up to 30m |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Audio |
Built-in Mic |
| Storage |
Micro SD card up to 512GB |
| Power |
12V DC ±25%, PoE (IEEE 802.3af) |
| Weather Rating |
IP67 |
| Dimensions / Weight |
Ø118 × 106 mm / 0.48 kg |
Extra Info
ColorHunter Technology
Uniview’s ColorHunter technology delivers vivid, full-color video in all lighting conditions. Unlike infrared night vision, which produces black-and-white images, ColorHunter uses a large-aperture F1.0 lens, high-sensitivity 1/1.8" sensor, and integrated warm-light LEDs to reproduce natural colors down to 0.0003 lux. Smart illumination control only activates the LEDs when needed, reducing light pollution and saving power.
Wise-ISP Image Processing
The Wise-ISP engine enhances sharpness, reduces noise, and improves color balance in real time. It prevents motion blur in dim environments, ensuring moving objects remain detailed and identifiable.
True 120dB WDR
This feature captures multiple exposures and merges them for perfectly balanced images, even when shadows and bright light coexist in the same frame.
Smart Intrusion Prevention (Lite)
Supports human and vehicle detection for intrusion and cross-line alerts, reducing false alarms caused by animals, weather, or background movement.
Edge Storage
Supports up to 512GB Micro SD cards for standalone operation or backup recording.
Rugged Outdoor Design
IP67-rated with metal and plastic construction for durability, plus 4kV surge protection for lightning-prone areas.
Integration & Remote Access
ONVIF-compliant and fully compatible with Uniview’s NVRs, EZStation, UNV-Link, and UNV-Link Pro for live viewing, push notifications, and remote management.
Q&A
Q: Can this camera capture color video at night?
A: Yes. With ColorHunter, F1.0 lens, and warm-light LEDs, it records full-color video 24/7 — even in total darkness.
Q: Does it have black-and-white night mode?
A: No. This model is designed to stay in full color at all times.
Q: How far does the warm light reach?
A: Up to 30 meters (98 feet).
Q: Is it weatherproof?
A: Yes. It is IP67-rated for outdoor use.
Q: Does it have a built-in microphone?
A: Yes. It records high-quality audio with the video.
Q: Is it compatible with non-Uniview NVRs?
A: Yes. It is ONVIF-compliant but works best with Uniview NVRs.
Q: Can it operate without an NVR?
A: Yes. It supports Micro SD cards up to 512GB for standalone operation.
Q: Does it support remote viewing?
A: Yes. Through UNV-Link apps or EZStation software.
