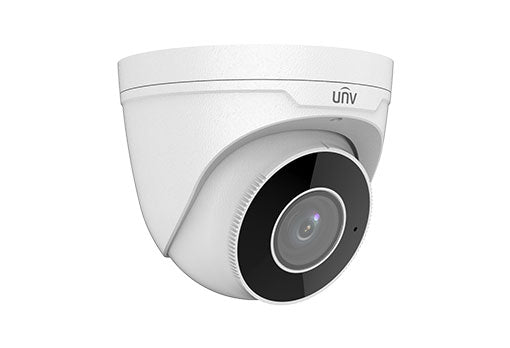

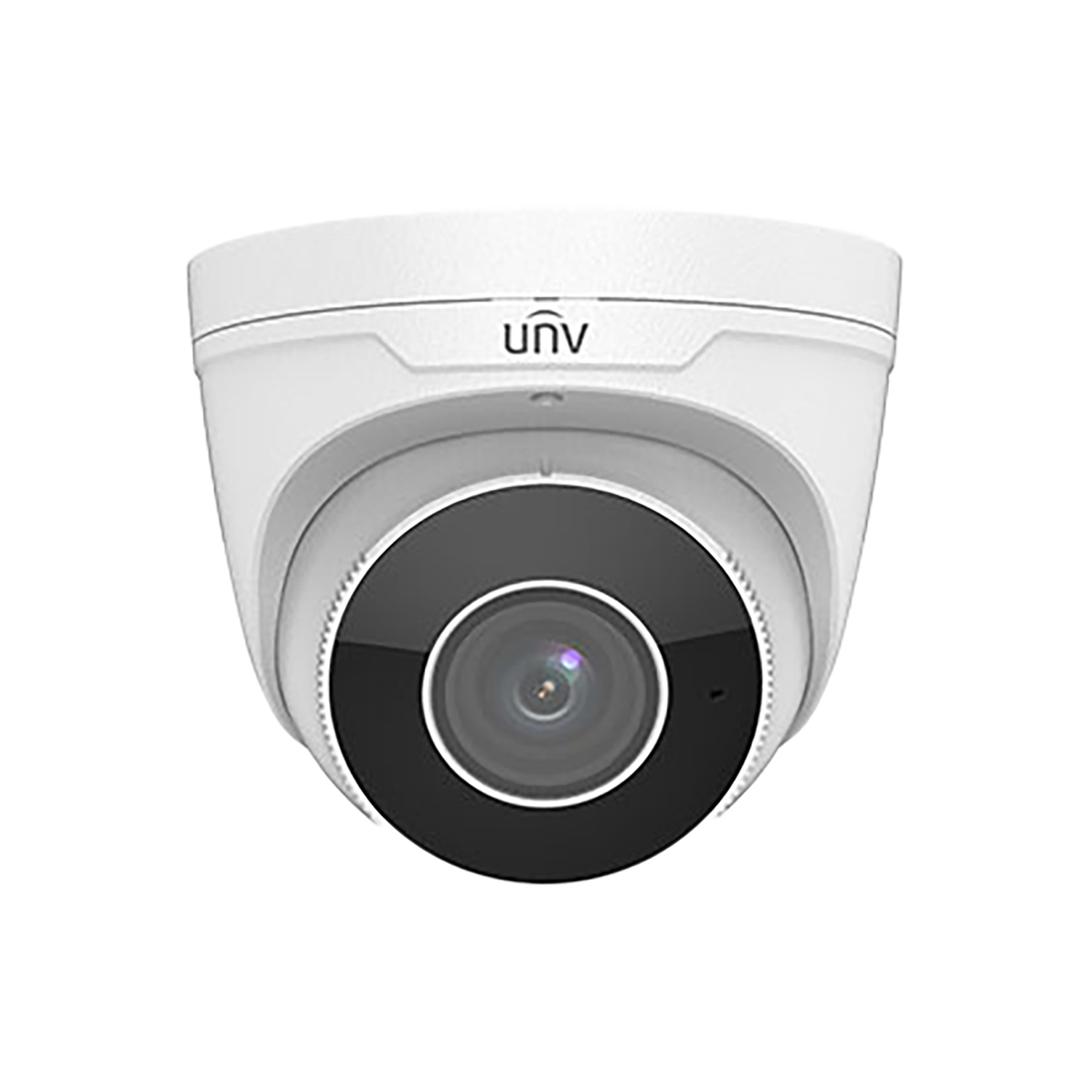

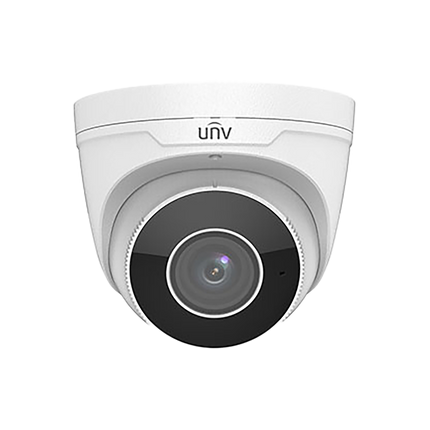

Uniview IPC3636LE-ADZK-G is a high-performance 6MP IR Varifocal Eyeball Network Camera designed for flexible surveillance, delivering crystal-clear imaging, wide dynamic range, Smart IR up to 40 m, motorized zoom, and durable IP67 outdoor protection. With a 1/2.7" CMOS sensor, 120 dB True WDR, built-in microphone, and corridor mode support, it provides reliable performance for both professional indoor and outdoor installations.
Key Features
-
High-Quality 6MP Imaging – Captures 3072 × 2048 resolution at up to 25 fps for clear, detailed surveillance.
-
1/2.7" CMOS Sensor – Ensures excellent performance in various lighting conditions.
-
Motorized Varifocal Lens (2.8–12 mm) – Auto-focus + optical zoom for flexible field of view.
-
True 120 dB WDR – Maintains clarity in scenes with both bright and dark areas.
-
Smart IR up to 40 m – Prevents overexposure and optimizes night imaging.
-
Built-in Microphone – Captures synchronized audio with video footage.
-
256 GB microSD Support – Enables edge storage for redundancy and offline recording.
-
IP67 Rated – Fully weatherproof for reliable outdoor operation.
-
3-Axis Adjustment – Easy positioning for flexible mounting.
Perfect For:
- Indoor/outdoor commercial surveillance
- Building entrances and hallways
- Parking areas and perimeter monitoring
- Retail, offices, industrial facilities
- Any site needing flexible zoom and wide dynamic range
Installer Tips
-
Use PoE to simplify cabling and reduce installation time.
-
Adjust zoom remotely using the motorized varifocal lens for perfect framing.
-
Mount at 2.5–3 m height for optimal face capture and general coverage.
-
Enable Smart IR to avoid overexposure when objects come close at night.
-
Use corridor mode for hallways, aisles, and vertical fields of view.
-
Outdoor mounting: use a waterproof junction box for cable protection.
Downloads
Quick-Read Specs
| Category |
Specification |
| Model |
IPC3636LE-ADZK-G |
| Max Resolution |
6MP (3072 × 2048) |
| Sensor |
1/2.7" CMOS, progressive scan |
| Lens |
Motorized 2.8–12 mm, AF auto-focusing |
| DORI Distance |
2.8 mm – Detect 63 m, Observe 25.2 m, Recognize 12.6 m, Identify 6.3 m
12 mm – Detect 270 m, Observe 108 m, Recognize 54 m, Identify 27 m |
| Angle of View (H / V / D) |
108.79°–33.23° / 56.90°–18.33° / 112.56°–37.46° |
| Minimum Illumination |
Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| IR Range |
Up to 40 m (131 ft), 850 nm, Auto/Manual control |
| Day/Night |
IR-cut filter (ICR) |
| WDR |
120 dB True WDR |
| Shutter |
1 – 1/100000 s, Auto/Manual |
| Noise Reduction |
2D/3D DNR |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Frame Rates |
6MP(25fps), 5MP(25fps), 4MP(25fps), 3MP(30fps), 1080p(30fps)
Sub-stream: 720p, D1, 640×360, CIF up to 30fps |
| Video Bitrate |
128 Kbps ~ 16 Mbps |
| OSD / Privacy Mask / ROI |
4 OSDs / 4 masks / 8 ROI areas |
| Audio |
G.711 codec, built-in mic, 8 kHz sampling |
| Edge Storage |
microSD up to 256 GB |
| Network Protocols |
IPv4, TCP, UDP, DHCP, RTP/RTSP, HTTP/HTTPS, NTP, FTP, 802.1x, SNMP, QoS |
| ONVIF Compatibility |
Profile S, G, T |
| Power |
DC 12V±25% or PoE (802.3af), Max 8W |
| Construction |
Metal housing |
| Operating Conditions |
−30°C ~ 60°C, ≤95% RH |
| Ingress Protection |
IP67 |
| Dimensions |
Φ129 × 110 mm (5.1" × 4.3") |
| Net Weight |
0.67 kg (1.48 lb) |
