| Camera |

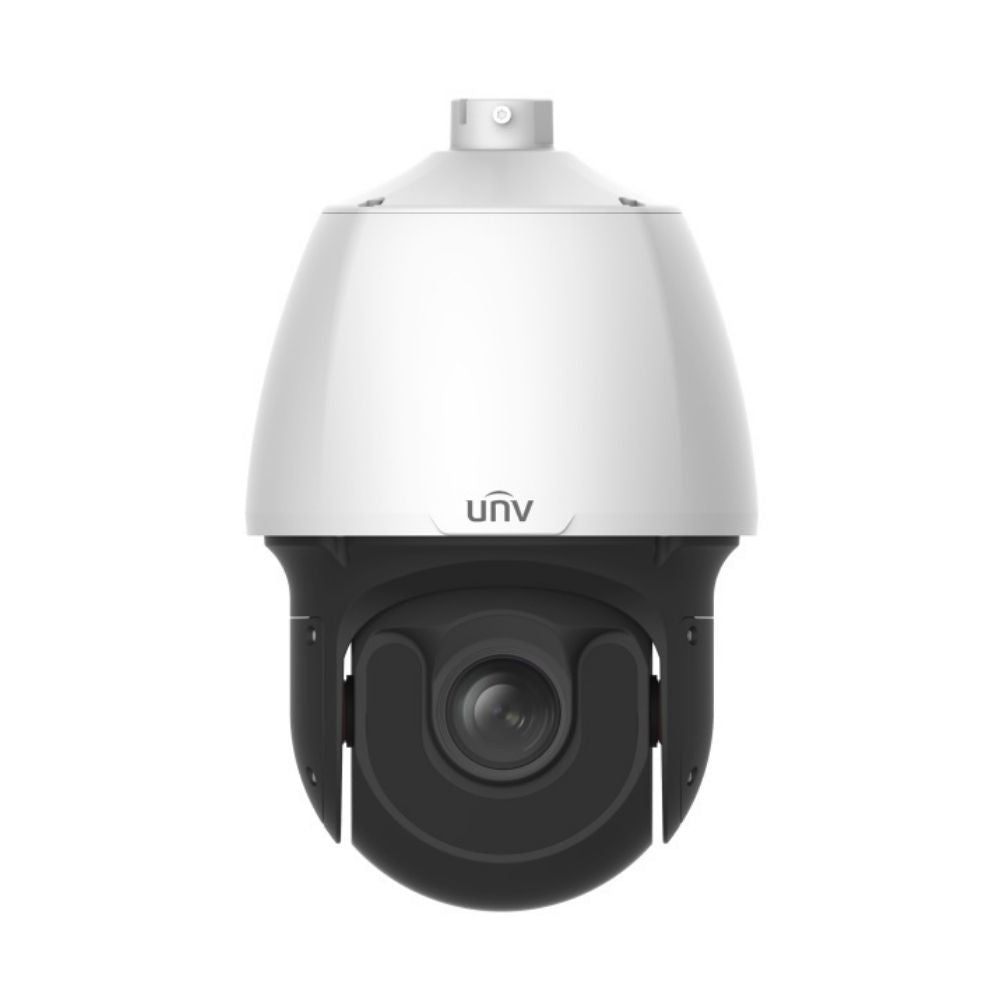

IPC6258SR-X22DUP |
| Sensor |
1/1.8", progressive scan, 8megapixel, CMOS |
| Lens |
6.5~ 143 mm (22x optical zoom) , AF automatic focusing and motorized zoom lens |
| DORI Distance |
Lens |
Detect(m) |
Observe(m) |
Recognize(m) |
Identify(m) |
| 6.5mm |
146.3 |
58.5 |
29.3 |
14.6 |
| 143mm |
3217.5 |
1287 |
643.5 |
321.8 |
| Angle of View (H) |
58.9°~3.4° |
| Angle of View (V) |
35.2°~1.9° |
| Angle of View (O) |
72.5°~4.1° |
| Shutter |
Auto/Manual, shutter time: 1 ~ 1/100000 s |
| Minimum Illumination |
Colour: 0.003 lux (F1.5,AGC ON)
0 lux with IR |
| Iris |
Auto/Manual, F1.5 ~ F3.4 |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Digital noise reduction |
2D/3D DNR |
| S/N |
>55 dB |
| IR Range |
UP to 200m (656ft) |
| Defog |
Digital Defog |
| WDR |
120dB |
| Video |
| Video Compression |
Ultra 265,H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile, High Profile |
| Frame Rate |
Main Stream:8MP(3840 × 2160): Max.30fps, 2MP(1920×1080)@30fps?
Sub Stream:2MP(1920×1080) : Max. 25fps?
Third Stream: D1 (720×576): Max. 20fps |
| HLC |
Supported |
| BLC |
Supported |
| EIS |
Supported |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 24 areas |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Smart |
| General Function |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression |
G.711 |
| Two-way Audio |
Supported |
| Suppression |
Supported |
| Sampling Rate |
8 KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration |
ONVIF(Profile S, Profile G, Profile T),API |
| Pan & Tilt |
| Pan Range |
360° |
| Pan Speed |
0.1°/s ~ 74°/s |
| Preset speed: 300°/s |
| Tilt Range |
–15° ~ +90° (auto reverse) |
| Tilt Speed |
0.1° ~74°/s |
| Preset speed: 240°/s |
| Number of Presets |
1024 |
| Patrol |
Preset patrol, route patrol, recorded patrol |
| Home Position |
Supported |
| Interface |
| Audio I/O |
Audio cable |
| 1 Input: impedance 35 k?; amplitude 2 V [p-p] |
| 1 Output: impedance 600 ?; amplitude 2 V [p-p] |
| Alarm I/O |
1 / 1 |
| Network |
1 RJ45 10M/100M Base-TX Ethernet |
| General |
| Power |
24 V AC±25%, 24 V DC±25%, PoE(PSE Required) |
| Power consumption: 60W |
| Dimensions (Ø x H) |
Ø227x359.4 mm (Ø8.9” x 14.2”) |
| Weight |
5.55 kg (12.24 lb) |
| Working Environment |
–40°C ~ +70°C (-40°F ~ 158°F), Humidity: ?95% RH(non-condensing) |
| Ingress Protection |
IP66 |
| Reset Button |
Supported |
