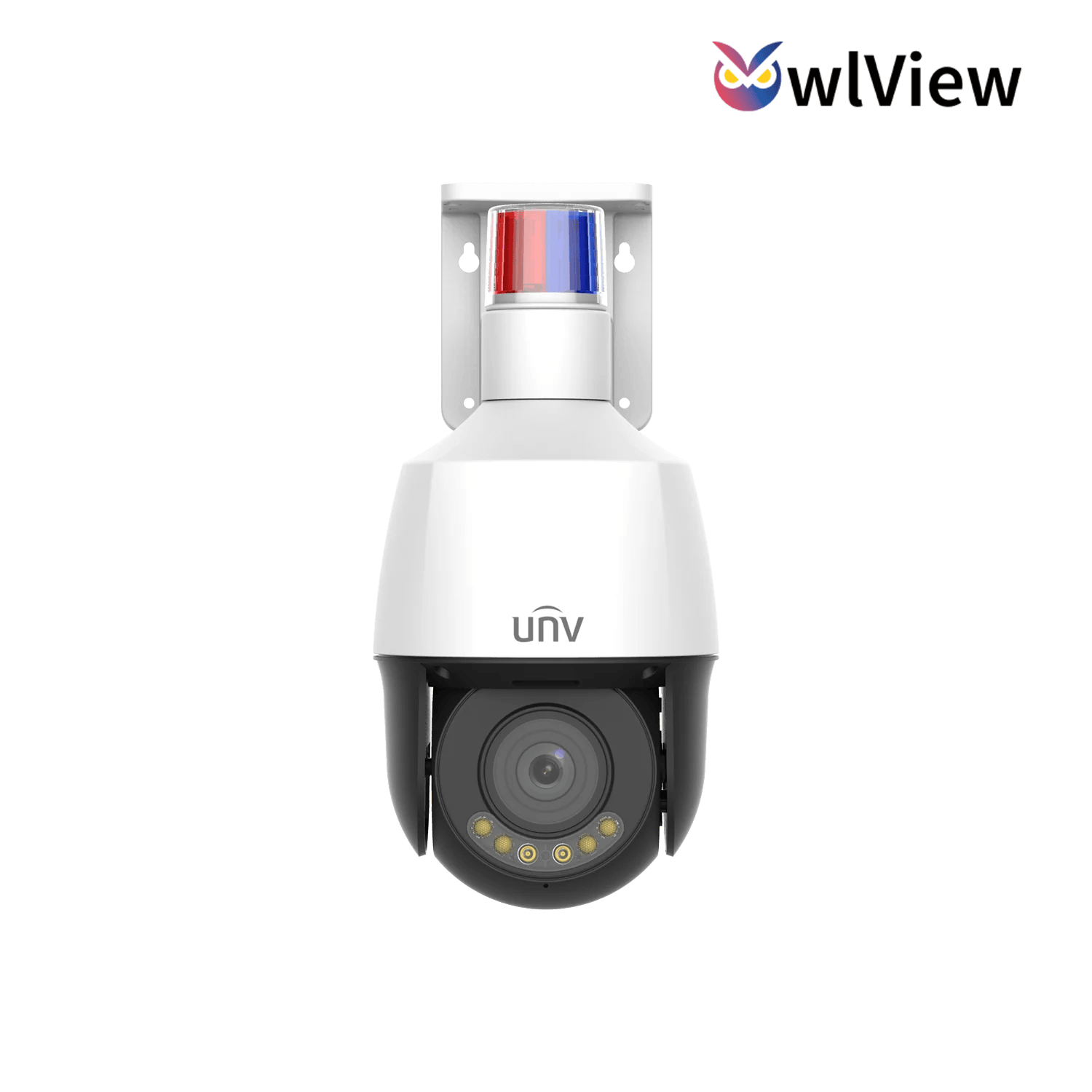

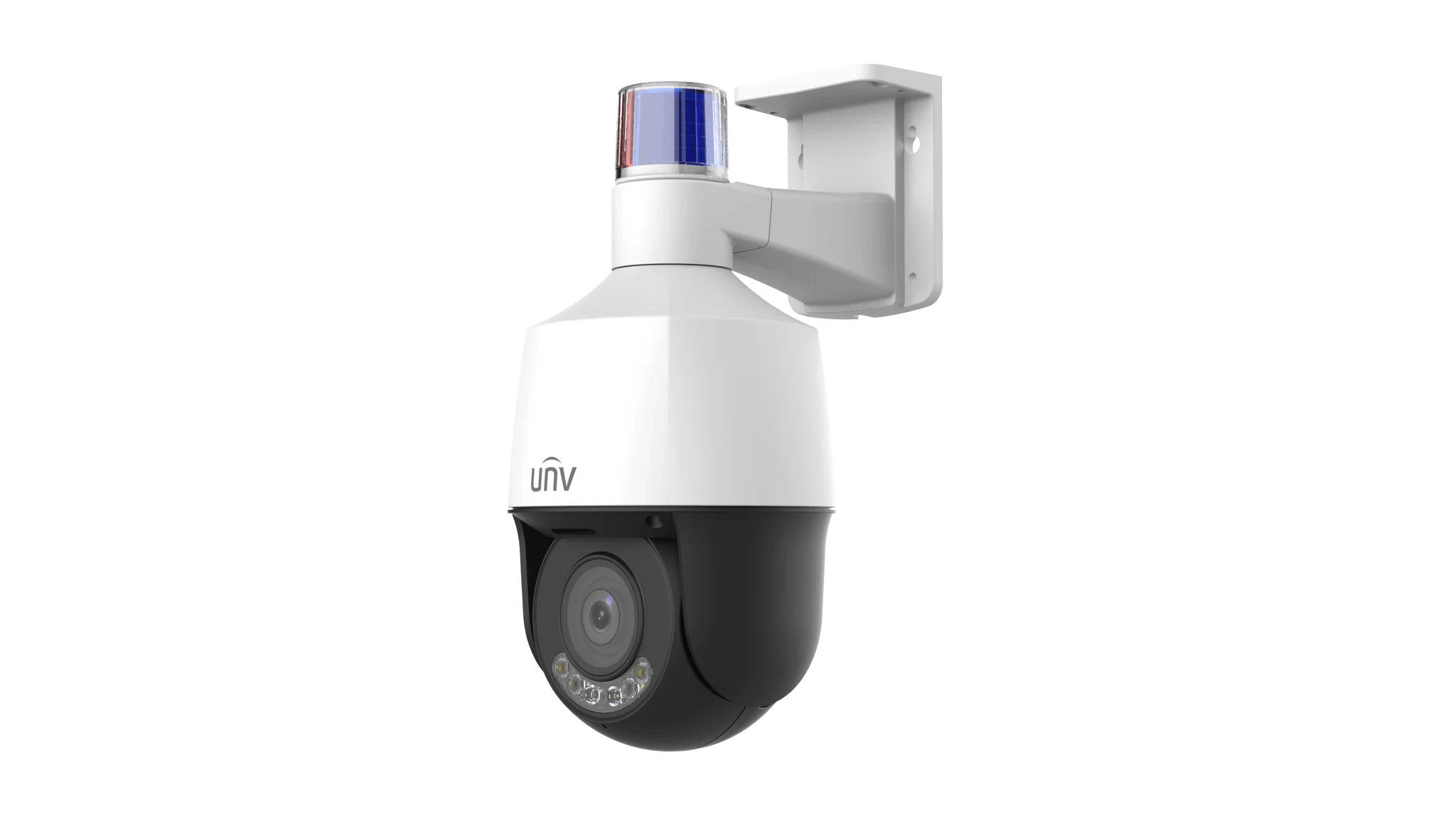

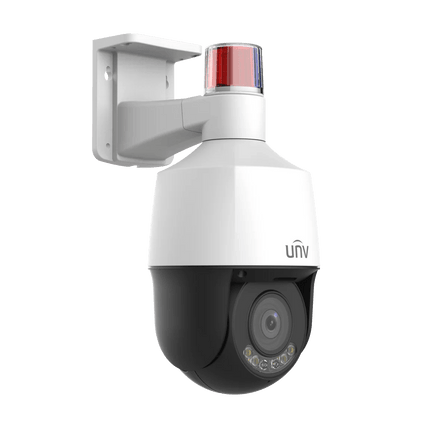

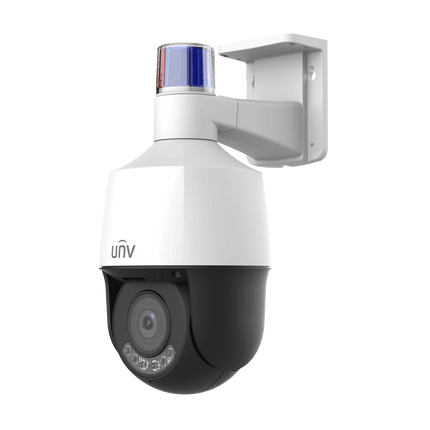

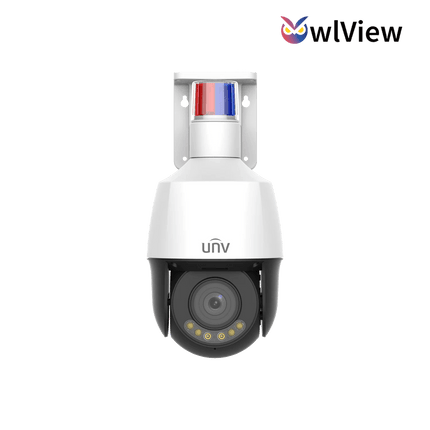

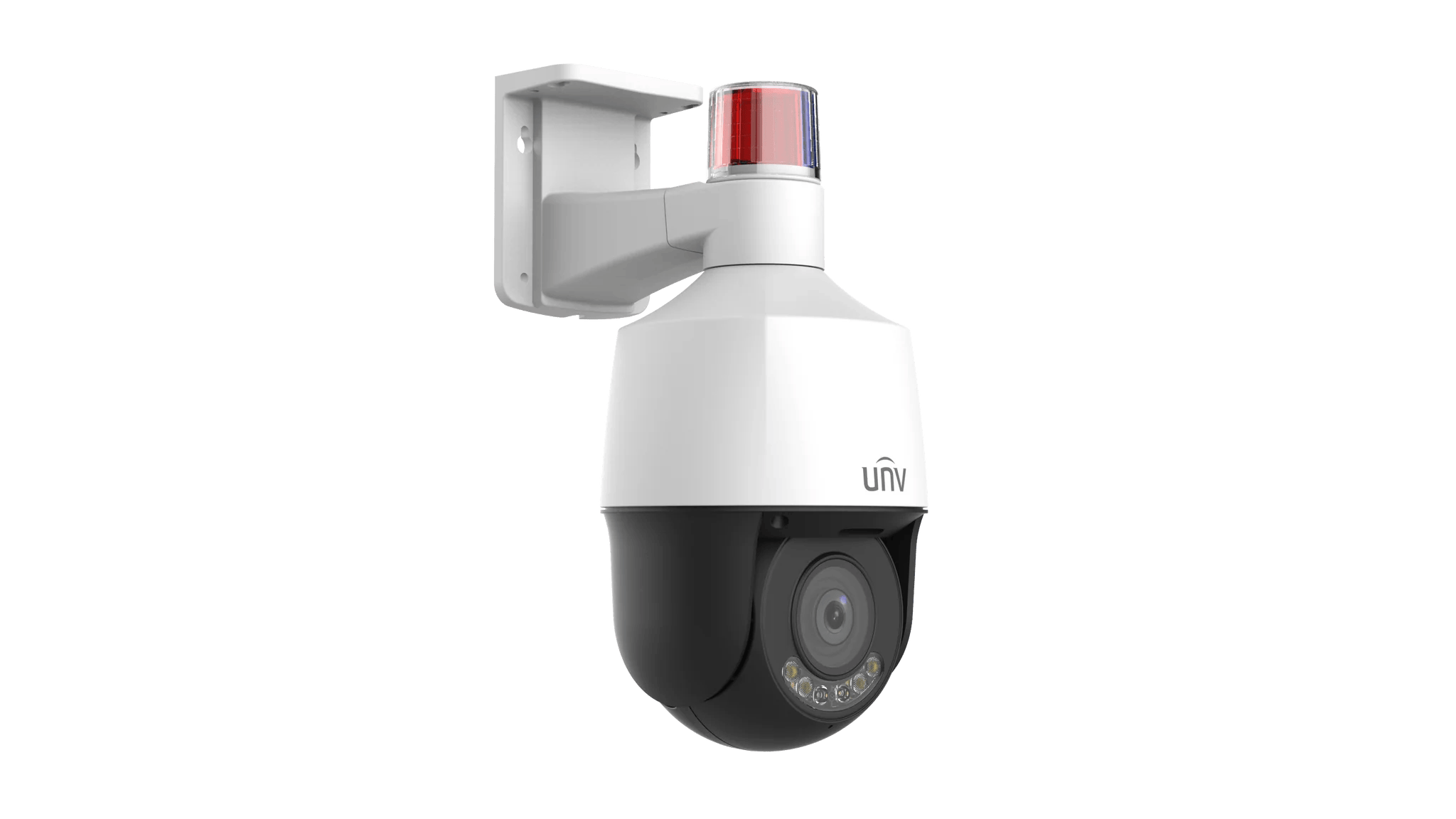

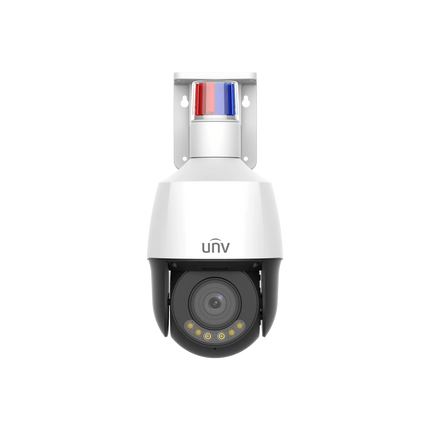

The Uniview IPC6324LWH-AX5C-VG2 is a versatile 4MP ColorHunter Tri-Guard PTZ camera designed for high-performance 24/7 surveillance in all lighting conditions. Featuring a large 1/1.8" CMOS sensor, 5× optical zoom, and Wise-ISP image optimization, it delivers crystal-clear, full-color video even in extremely low-light environments. Integrated warm light LEDs, smart intrusion prevention, and two-way audio make it a powerful all-in-one solution for both security and deterrence.
Key Features
-
4MP ColorHunter with Wise-ISP – Captures vivid color video day and night, optimizing detail and reducing noise in ultra-low-light scenes.
-
5× Optical Zoom – 2.7–13.5 mm motorized lens allows wide-area coverage or close-up detail capture.
-
Tri-Guard Technology – Combines full-color imaging, active deterrence (light & audio), and AI-powered intrusion prevention.
-
High-Resolution Recording – Supports 2688×1520 at 30fps with Ultra 265, H.265, H.264, and MJPEG compression.
-
True 120dB WDR – Balances exposure in challenging backlight and shadow conditions.
-
Smart Warm Light Illumination – Integrated LEDs provide up to 40m (131ft) of color illumination at night with Auto/Manual control.
-
Built-in Mic & Speaker – Enables high-quality two-way audio for live communication and deterrence.
-
AI Smart Detection – Supports human and vehicle detection, cross-line, and intrusion alerts with false alarm filtering.
-
Edge Storage – Micro SD card support up to 512GB for local recording.
-
Rugged Outdoor Design – IP66-rated housing and metal construction for harsh environments.
Perfect For:
- Perimeter security for industrial and commercial sites
- Parking lots and vehicle entry points
- Public spaces requiring both monitoring and deterrence
- School and campus security
- Building entrances and gated communities
Installer Tips
-
Position for Coverage – Mount high for wide PTZ sweeps; use zoom to capture details.
-
Enable Auto Tracking – Ideal for following moving vehicles or people automatically.
-
Use PoE+ (IEEE 802.3at) – Required for PTZ power and functionality over a single cable.
-
Adjust Smart Illumination – Auto mode balances visibility and energy efficiency.
-
Pair with Uniview NVRs – Ensures full smart function compatibility and streamlined setup.
Downloads
Quick-Read Specs
| Specification |
Detail |
| Resolution |
4MP (2688×1520) @30fps |
| Sensor |
1/1.8" CMOS |
| Lens |
2.7–13.5 mm motorized, 5× optical zoom |
| Field of View (H/V/D) |
113.69°–50.29° / 59.46°–28.45° / 156.23°–59.34° |
| Minimum Illumination |
0.0005 lux (Color, F1.2, AGC ON) |
| WDR |
120dB True WDR |
| Night Vision |
Warm Light up to 40m |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Audio |
Built-in Mic & Speaker, two-way audio |
| Storage |
Micro SD card up to 512GB |
| Power |
12V DC ±25%, PoE+ (IEEE 802.3at) |
| Weather Rating |
IP66 |
| PTZ Range |
Pan: 0°–345°, Tilt: -10°–100° |
| Presets |
Up to 1024 |
| Auto Tracking |
Yes (human/vehicle filtering) |
| Dimensions / Weight |
[Manufacturer spec] |
Extra Info
ColorHunter Technology
Uniview’s ColorHunter technology ensures rich, full-color images around the clock. A large-aperture lens, high-sensitivity 1/1.8" sensor, and integrated warm-light LEDs allow identification of people, vehicles, and objects in near-total darkness.
Wise-ISP Image Processing
This advanced processing engine reduces noise, enhances clarity, and improves motion capture in low light, ensuring subjects remain sharp and detailed.
Tri-Guard Functionality
This camera integrates full-color imaging, AI-powered detection, and active deterrence features — including lights and two-way audio — to prevent incidents before they escalate.
Smart Intrusion Prevention
Supports human and vehicle-based detection for intrusion and cross-line rules, significantly reducing false alarms from weather, animals, or moving foliage.
Rugged Outdoor Design
With IP66 protection, wide temperature tolerance, and metal construction, the camera is built for reliable outdoor use in challenging conditions.
Integration & Remote Access
Fully ONVIF-compliant and compatible with Uniview’s NVRs, EZStation, EZView, and UNV-Link apps for easy remote access and system integration.
Q&A
Q: Can this camera track moving targets?
A: Yes. It supports AI-based auto tracking for humans and vehicles.
Q: Does it capture color video at night?
A: Yes. ColorHunter with warm light LEDs provides full-color video even in complete darkness.
Q: How far does the warm light reach?
A: Up to 40 meters (131 feet).
Q: Is it weatherproof?
A: Yes. IP66-rated for outdoor use.
Q: Does it support two-way audio?
A: Yes. It has a built-in microphone and speaker.
Q: Does it require PoE+?
A: Yes. It needs PoE+ (IEEE 802.3at) for full PTZ operation.
Q: Is it compatible with non-Uniview NVRs?
A: Yes, via ONVIF, but works best with Uniview NVRs.
Q: Can it operate without an NVR?
A: Yes. It supports local recording to Micro SD cards up to 512GB.
