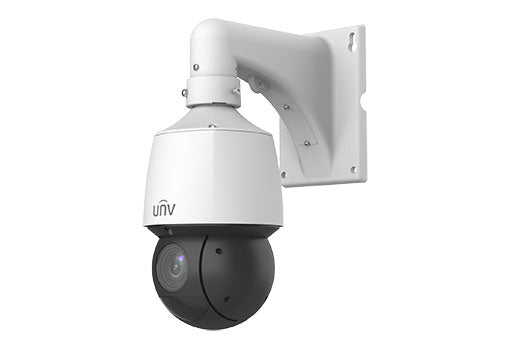

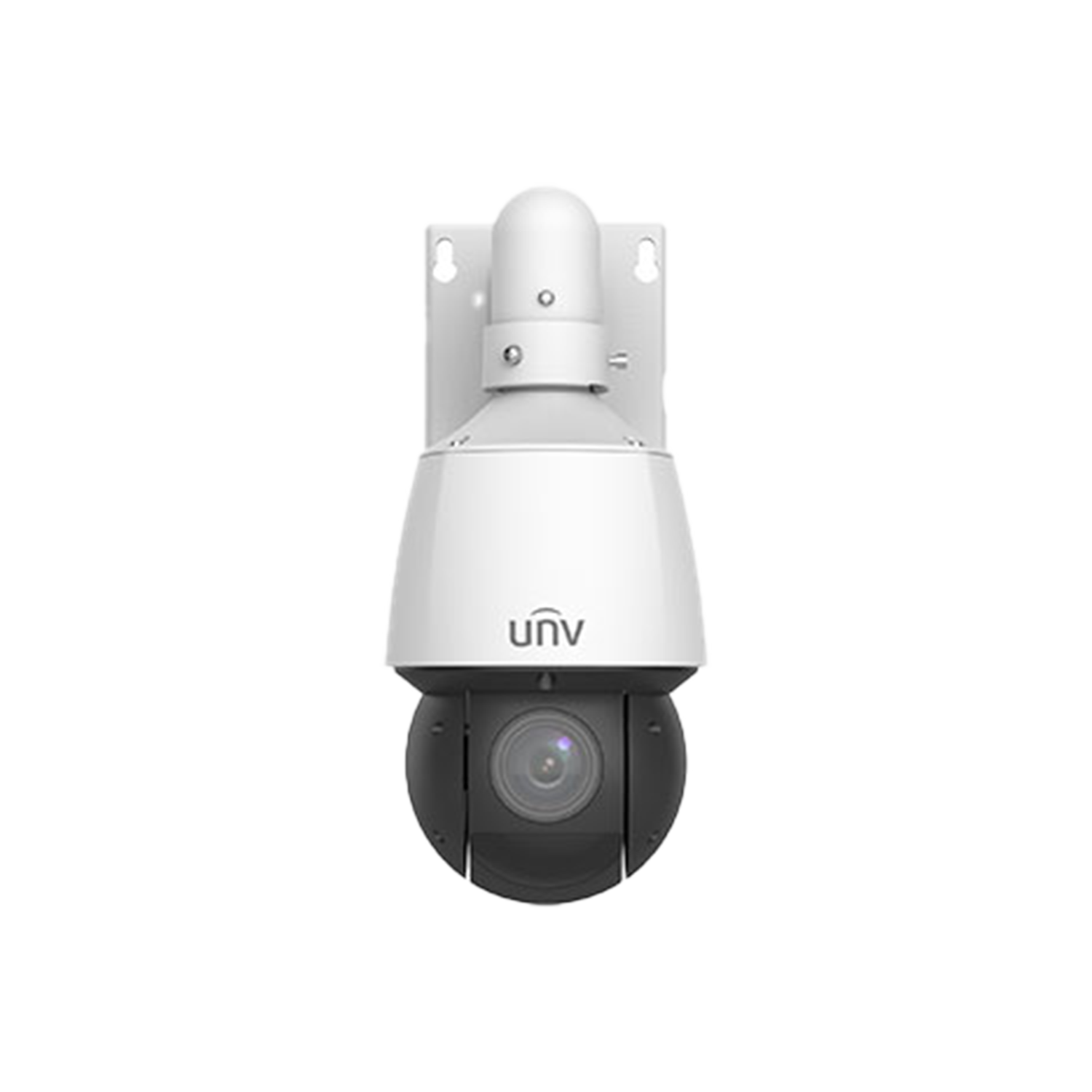

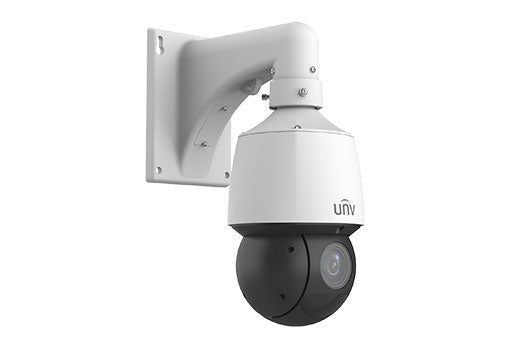

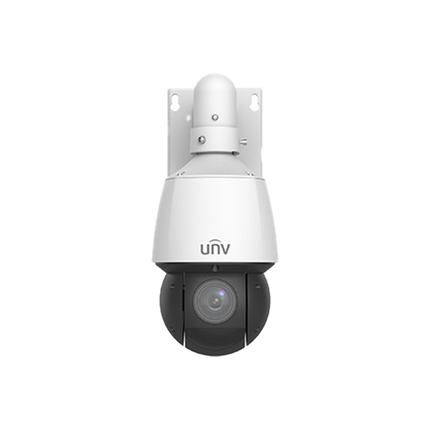

Uniview IPC6424SR-X25-VF-B is a professional-grade 4MP 25× LightHunter PTZ Dome Camera designed for long-range monitoring, low-light performance, and precise PTZ control. With a 1/2.8” CMOS sensor, 25× optical zoom, Smart IR up to 100 m, and robust IP67 & IK10 protection, it delivers reliable surveillance for outdoor and high-security environments.
Key Features
-
4MP Ultra-Clear Imaging – Captures 2688 × 1520 resolution at 30fps for crisp and detailed video.
-
1/2.8" CMOS Sensor – Ensures clean and accurate image reproduction in all lighting conditions.
-
LightHunter Technology – Produces bright, color-rich footage even in extremely low illumination.
-
25× Optical Zoom – Enables long-distance identification without loss of clarity.
-
Smart IR up to 100m – Maintains balanced night vision and prevents IR overexposure.
-
120dB True WDR – Enhances visibility in challenging light with strong shadows or glare.
-
Durable Outdoor Protection – Rated IP67 and IK10 for harsh weather and vandal-resistant installation.
-
Flexible Power Options – Supports DC12V ±25% or PoE+ (IEEE 802.3at).
-
Audio & Alarm Interfaces – Includes 1-in/1-out audio and 2-in/1-out alarm connections.
Downloads
Quick-Read Specs
| Model |
IPC6424SR-X25-VF-B |
| Image Sensor |
1/2.8" 4MP Progressive Scan CMOS |
| Minimum Illumination |
Color: 0.003 Lux (F1.5, AGC ON); 0 Lux with IR |
| Optical Zoom |
25× (4.8–120 mm) |
| Digital Zoom |
16× |
| IR Distance |
Up to 100 m (328 ft) |
| WDR |
120 dB |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Main Stream |
4MP (2688×1520) @ 30fps |
| Lens Type |
Motorized AF Zoom; F1.5–F3.8 |
| Field of View |
H: 52.20°–2.74°; V: 30.81°–1.54° |
| Pan Range |
360° Endless |
| Tilt Range |
-15° to 90° (Auto-Reverse) |
| Pan Speed |
0.1°–200°/s; Preset: 240°/s |
| Tilt Speed |
0.1°–120°/s; Preset: 200°/s |
| Presets |
Up to 1024 |
| Audio |
G.711U / G.711A; 1 in / 1 out |
| Alarms |
2 in / 1 out |
| Storage |
MicroSD up to 256GB |
| Network |
RJ45 (10/100M), ONVIF S/G/T |
| Operating Temp |
-40°C ~ 70°C; ≤95% RH |
| Power |
DC12V ±25% / PoE+; Max 21W |
| Protection |
IP67, IK10, 6kV Surge |
| Dimensions |
Ø166 × 295 mm |
| Weight |
3.05 kg |
