Description

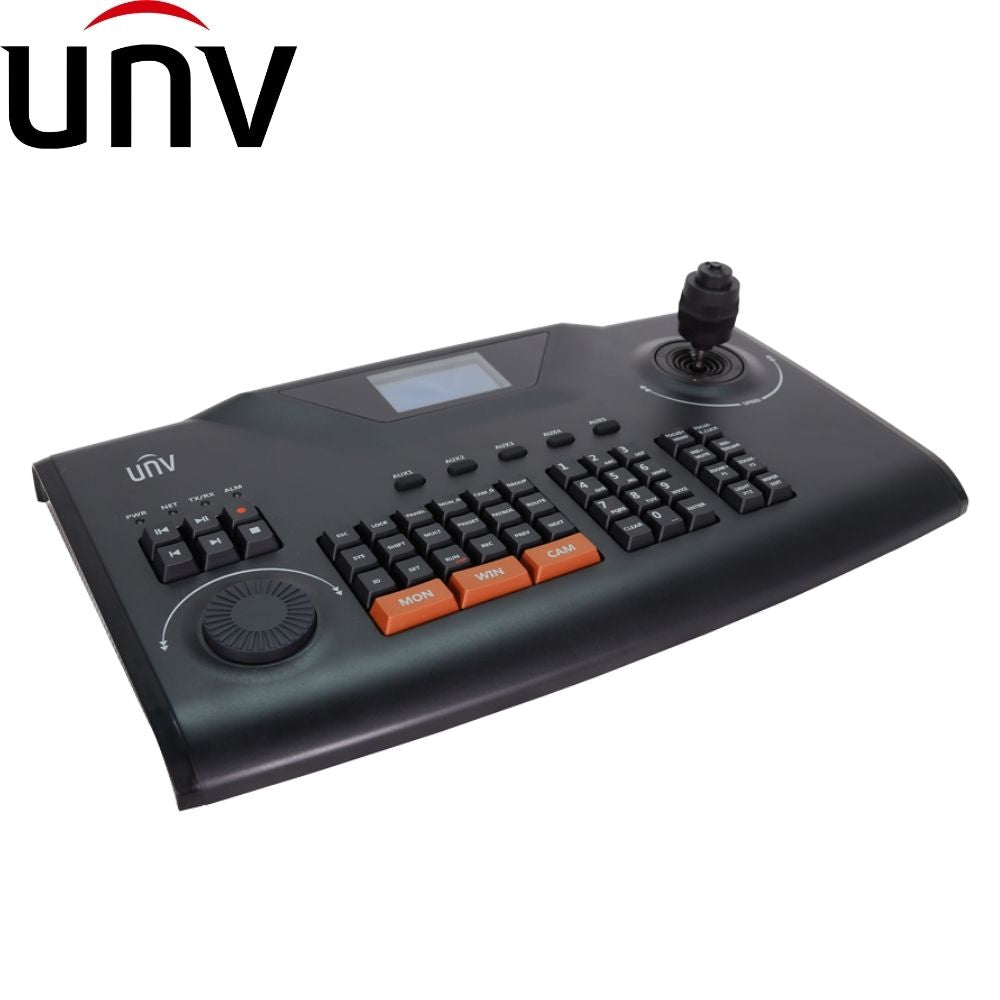

The Uniview KB-1100 Network Control Keyboard features a 4-Dimensional Joystick Control, LCD Screen Display, and supports multiple devices and user permissions. This provides greater convenience and serves as a better way to interface with Uniview PTZ cameras.
Features
- LCD screen display
- Four-dimensional joystick control
- Based on the IP network
- Support multiple user permissions
- Connectable to NVR to control NVR menu and PTZ operations
- Multiple devices can be connected
Tech Specs
| Product model |
KB-1100 |
| Joystick |
four-dimensional joystick |

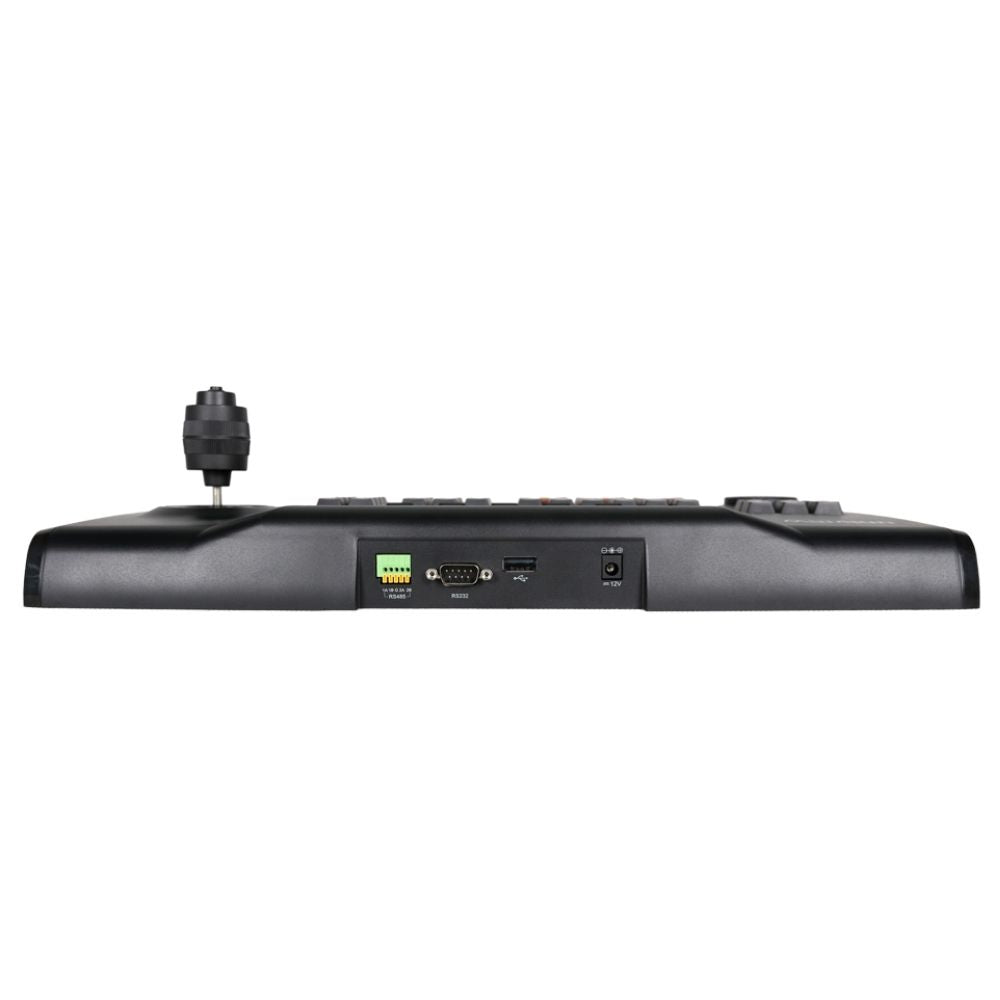

| Ethernet port |
1 RJ-45 10 M / 100 M adaptive Ethernet port |
| USB Interface |
1 USB2.0 interface |
| Serial Interface |
1 RS-232, 2 RS-485 |
| Power Supply |
12V DC |
| Consumption |
5W |
| Working Temperature |
-10°C ~ + 55°C |
| Working Humidity |
10% ~ 90% |
| Dimensions |
47mm×270mm×440mm(1.9"×10.6"×17.3") |
| Weight |
<1kg |
Downloads
These datasheets may provide more information regarding the product.
Videos
The videos presented on this product tab may not reflect all the available options and capabilities of this specific product. Some are included to illustrate features and procedures which may be relevant.
KB-1100 Quick Start Guide | Uniview's NVR Keyboard & PTZ Control Joystick
Uniview Company Introduction
