Name: Uniview KIT/201S/372S/NSW2020 IP Intercom Kit
Brand: Uniview
SKU: KIT/201S/372S/NSW2020
Price: 445.0 AUD

Uniview KIT/201S/372S/NSW2020 IP Intercom Kit

VendorUniview
Share
- WhatsApp
- Deel
- Messenger
- Email

Description

The Uniview KIT/201S/372S/NSW2020 is a complete IP video intercom solution designed for residential villas, apartments, and small commercial properties. The kit combines a 2 MP outdoor door station, a 7″ touchscreen indoor monitor, and a PoE switch to deliver secure two-way audio and video communication, remote door unlocking, and reliable network connectivity. With Wi-Fi support, IC card access, alarm integration, and PoE power, this kit provides a robust and scalable access control solution.

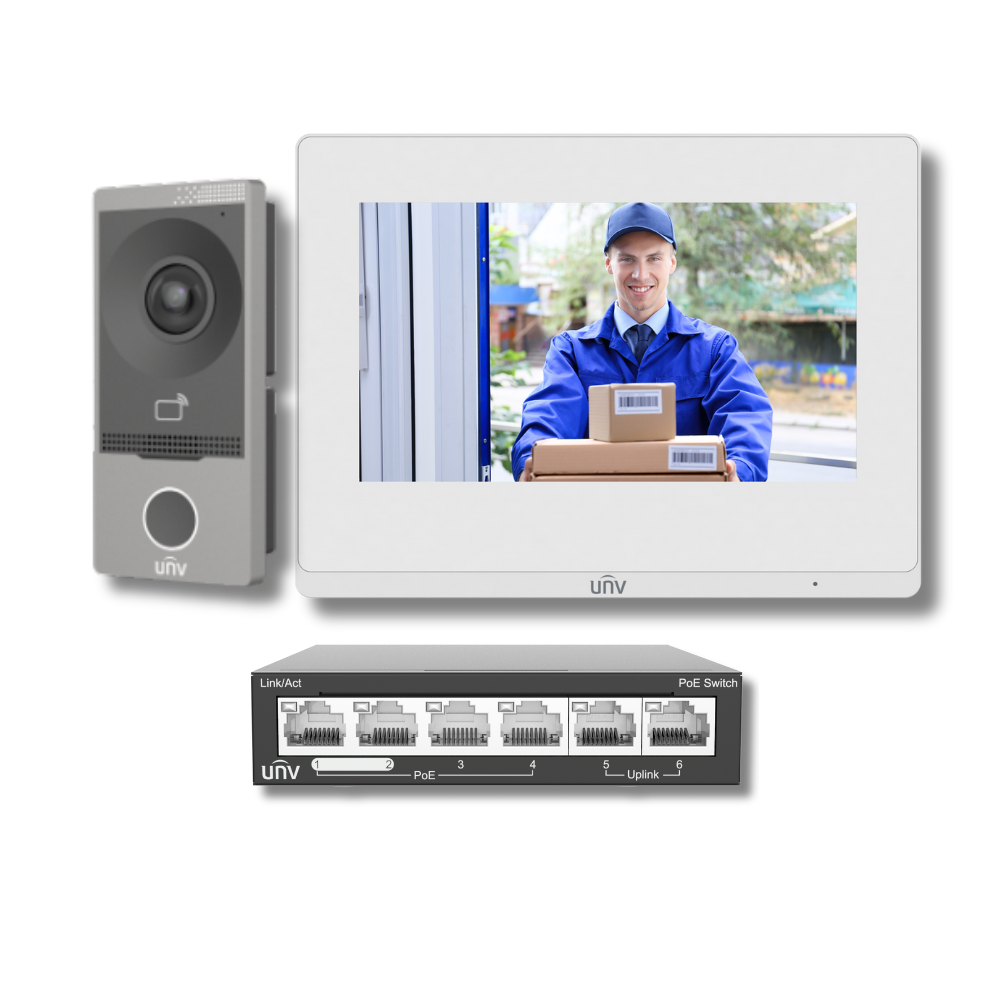

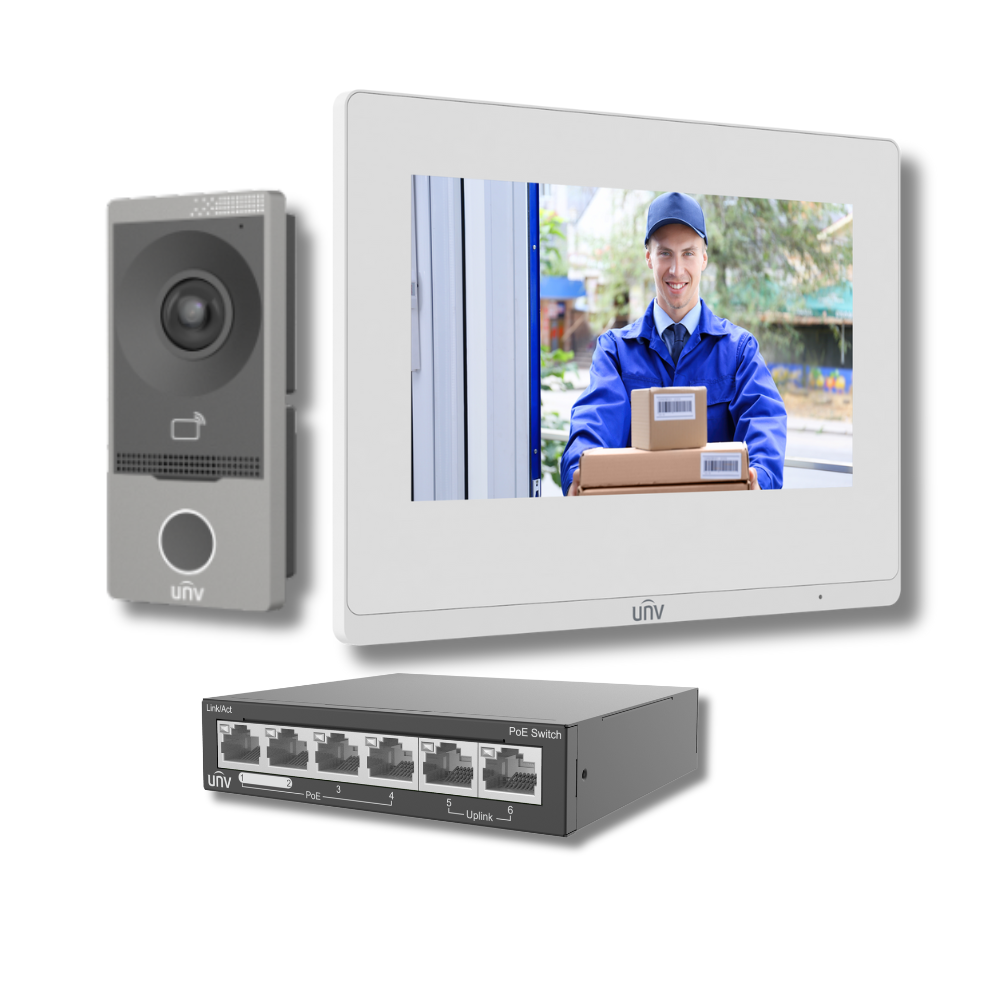

Kit Contents:

1 × Indoor Monitor (OEI-372S-H-W)

7″ ultra-thin TFT LCD touchscreen
1024 × 600 HD resolution
Two-way audio with noise suppression and echo cancellation
Live video viewing from connected door stations and network cameras
Remote door unlock via connected door station
Supports PoE (IEEE 802.3af) or 12 VDC power
Dimensions: 193 × 143 × 25 mm

1 × Outdoor Door Station (OEU-201S-HMK-W)

2 MP camera with adaptive IR illumination
Wide field of view: H 124.3° / V 67.5° / D 147.2°
Two-way audio with built-in microphone and speaker
Built-in IC card reader
Supports call, intercom, and mobile app connection
Supports door magnet, infrared, tamper, and security alarms
Metal casing with IK08 and IP65 protection
Powered via DC 12 V or PoE (IEEE 802.3af)
Dimensions: 79 × 171 × 34 mm

1 × PoE Switch (NSW2020-6T-POE-IN)

6 × 10/100 Mbps RJ45 ports
4 × PoE ports, 2 × uplink ports
Supports IEEE 802.3af / 802.3at PoE
Maximum PoE power: 60 W (30 W per port)
Supports VLAN isolation and Extend mode (up to 250 m transmission)
All-metal casing, fanless design
Plug-and-play installation
Dimensions: 107 × 101 × 25 mm

Intercom Functions

Two-way audio communication
Live video monitoring from door station
Remote door unlocking
Alarm and tamper detection support
Supports multiple indoor stations and extensions
Wi-Fi connectivity for flexible installation

Includes

1 × OEI-372S-H-W Indoor Monitor
1 × OEU-201S-HMK-W Outdoor Door Station
1 × NSW2020-6T-POE-IN PoE Switch
1 × 32 GB TF Card

Downloads

Datasheet	KIT/201S/372S/NSW2020 Datasheet
Quick Guide	Quick Guide 3101C1M2-UNV-OEI-372S-H-W-Indoor Station
Quick Guide	Quick Guide 3101C1LF-UNV-OEU-201B-HMK-W-Villa Door Station

Tech Specs

Category	Specification
Indoor Monitor (OEI-372S-H-W)
Display	7″ TFT LCD touchscreen, 1024 × 600
Audio	Built-in speaker and omnidirectional microphone, two-way audio
Network	100 Mbps Ethernet, Wi-Fi 2.4 GHz
Interfaces	Power ×1, Network ×1, Wi-Fi ×1, RS485 ×1, IO Output ×2, IO Input ×8, TF Card ×1
Power Supply	DC 12 V ±25% or PoE (IEEE 802.3af)
Power Consumption	< 10 W
Operating Temperature	-10 °C to +55 °C (Indoor)
Dimensions	193 × 143 × 25 mm
Outdoor Door Station (OEU-201S-HMK-W)
Camera	2 MP
Field of View	H 124.3° / V 67.5° / D 147.2°
Audio	Built-in microphone and speaker, noise suppression, echo cancellation
Protection	IP65, IK08
Network	100 Mbps Ethernet, Wi-Fi
Power Supply	DC 12 V ±25% or PoE (IEEE 802.3af)
Operating Temperature	-30 °C to +60 °C (Outdoor)
Dimensions	79 × 171 × 34 mm
PoE Switch (NSW2020-6T-POE-IN)
Ports	6 × 100 Mbps RJ45 (4 × PoE)
PoE Power	Total 60 W, 30 W per port
Switching Capacity	1.2 Gbps
Operating Modes	Default, VLAN, Extend (up to 250 m)
Power Supply	DC 48/51 V via adapter (AC 100–240 V)
Dimensions	107 × 101 × 25 mm
