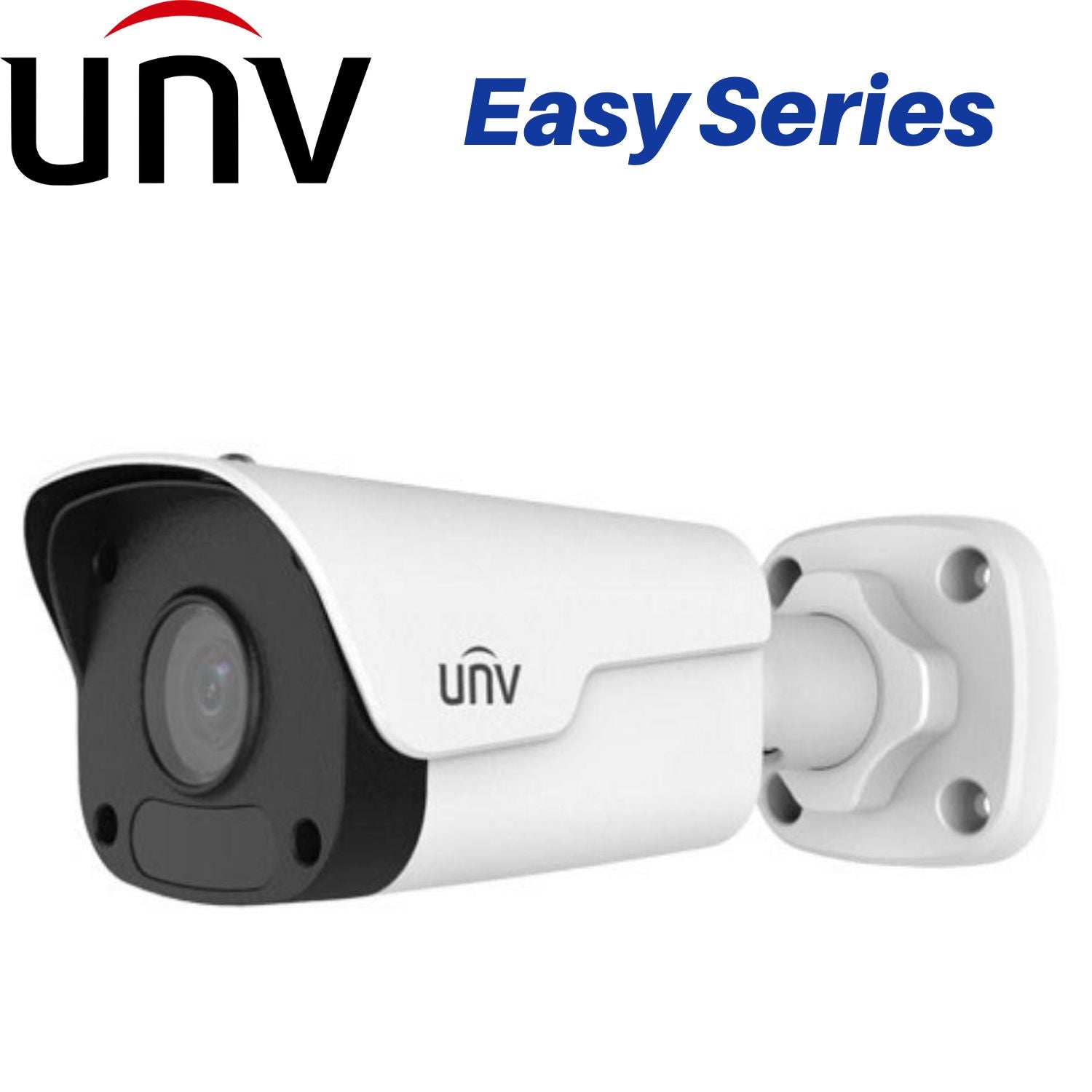

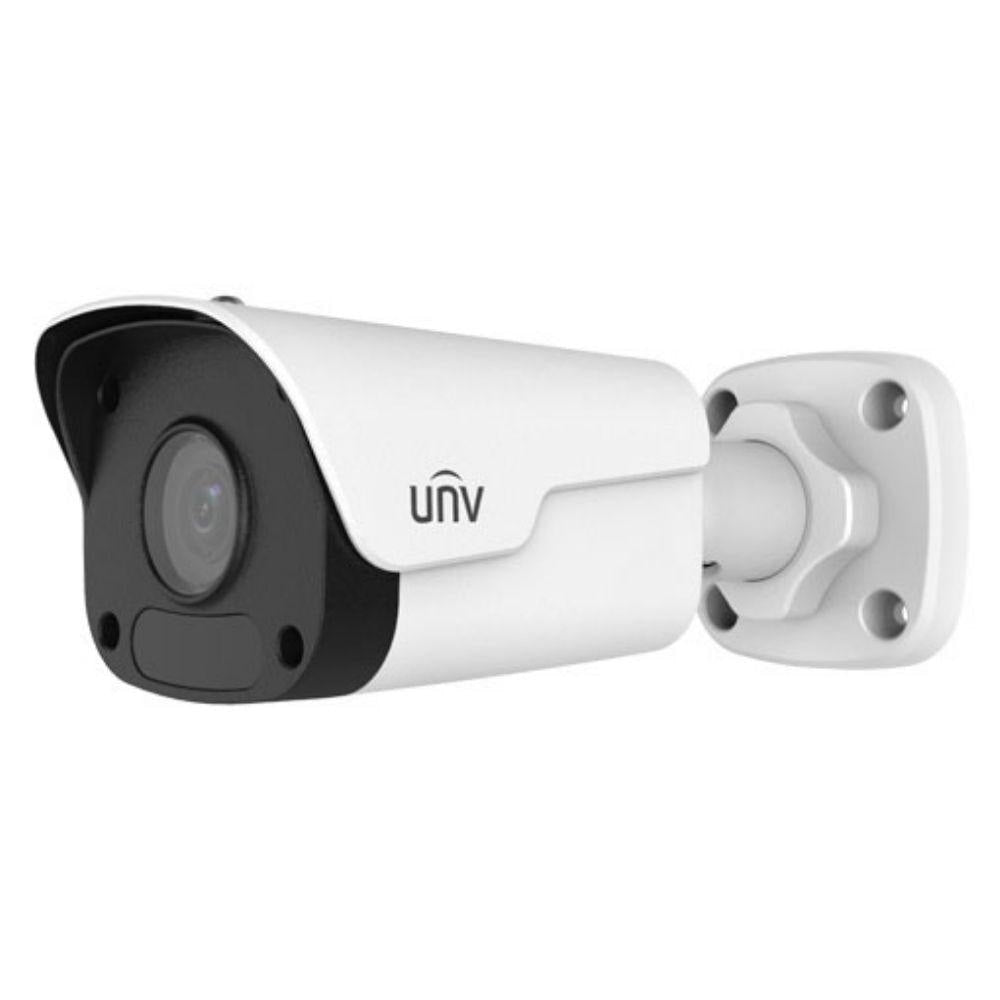

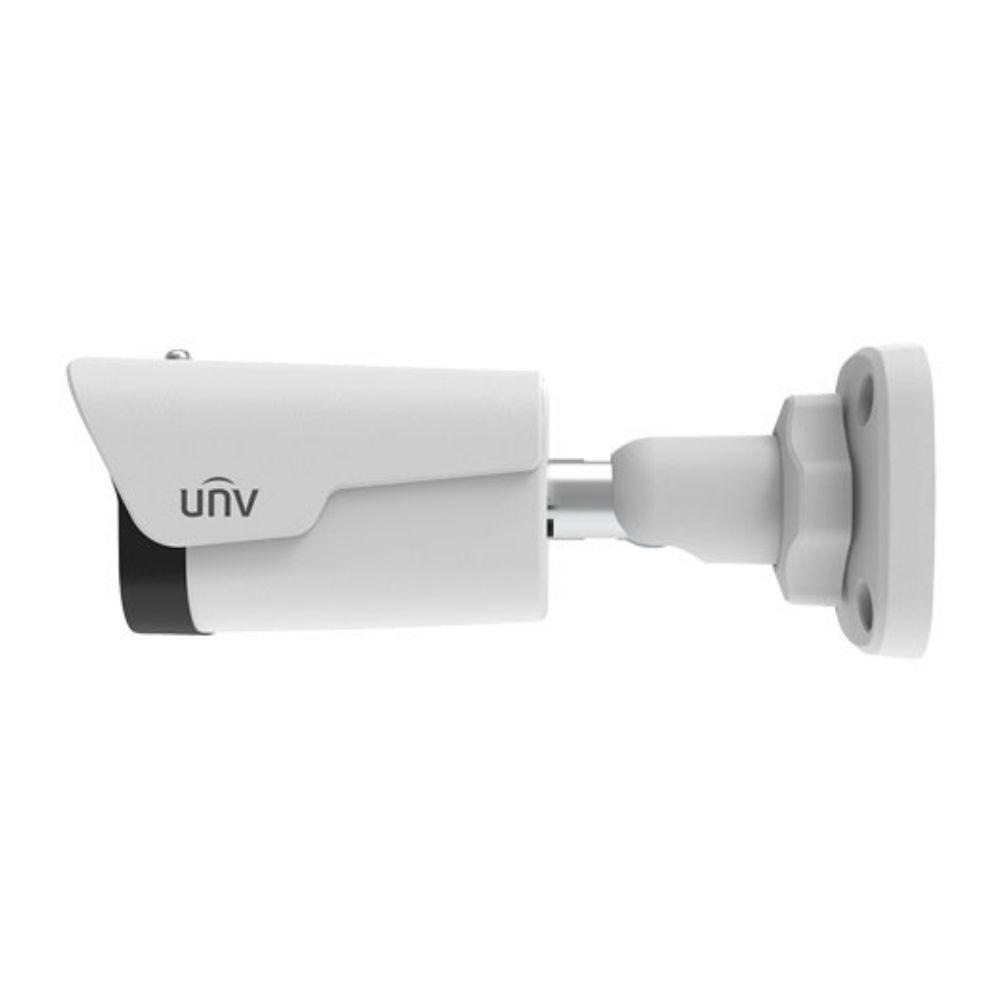

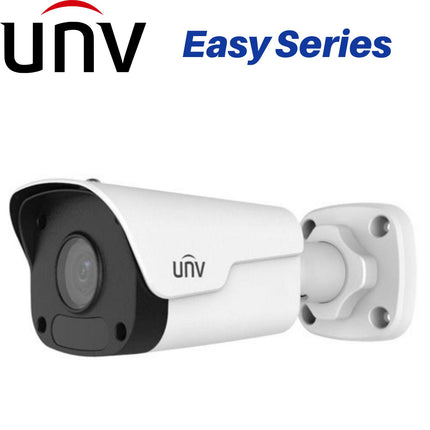

Uniview IPC2125LR3-PF40(60)M-D is a reliable 5MP Mini Fixed Bullet Network Camera designed for clear day and night surveillance. Featuring Smart IR up to 30m, advanced 2D/3D noise reduction, Ultra 265 compression, and durable IP67 weatherproof housing, this camera ensures dependable outdoor performance even in extreme temperatures.
Key Features
-
Day/Night Functionality – Delivers clear imaging 24/7 with IR-cut filter switching (ICR).
-
Smart IR (Up to 30m) – Prevents overexposure and enhances night visibility.
-
Optical Glass Window – Higher light transmittance for improved image clarity.
-
IR Anti-Reflection Design – Increases infrared transmittance for stronger night illumination.
-
2D/3D DNR – Reduces image noise in low-light environments.
-
Ultra 265 / H.265 / H.264 / MJPEG – Saves bandwidth and storage while maintaining image quality.
-
ONVIF Compatible – Ensures easy integration with third-party systems.
-
IP67 Weatherproof – Built for harsh outdoor environments.
-
Wide Temperature Range – Operates reliably from -30°C to 60°C.
Perfect For:
- Residential and commercial perimeters
- Driveways, gates, and entrances
- Warehouses and industrial sites
- Outdoor parking areas
- Shops and small businesses
Installer Tips
-
Use Smart IR Effectively – Place the camera where IR reflection from nearby surfaces is minimal for clearer night images.
-
Adjust the 3-Axis Bracket – Easily fine-tune pan, tilt, and rotation for perfect alignment.
-
Leverage PoE – Simplifies installation using a single Ethernet cable for data + power.
-
Select the Right Lens – 4mm for wider coverage; 6mm for longer-distance viewing.
Downloads
Quick-Read Specs
| Specification |
Detail |
| Camera Resolution |
5MP (2592 × 1944) |
| Sensor |
1/2.7" Progressive Scan CMOS |
| Lens Options |
4.0mm F2.0 (PF40) or 6.0mm F2.0 (PF60) |
| Field of View |
4.0mm: 79.7°(H) / 51.8°(V) / 98.0°(O)
6.0mm: 50.5°(H) / 35.9°(V) / 62.1°(O) |
| DORI Distance |
4.0mm: Detect 60m / Observe 24m / Recognize 12m / Identify 6m
6.0mm: Detect 90m / Observe 36m / Recognize 18m / Identify 9m |
| Minimum Illumination |
0.01 Lux (Color), 0 Lux (IR On) |
| IR Range |
Up to 30m (850nm) |
| Shutter Speed |
1–1/100000s (Auto/Manual) |
| WDR |
DWDR |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: 5MP at 20fps
Sub Stream: 720P at 20fps |
| Power |
DC 12V ±25%, PoE (802.3af), Max 4W |
| Material |
Metal |
| Protection |
IP67, Surge Protection 2KV |
| Operating Temperature |
-30°C to 60°C (≤95% RH) |
| Dimensions |
167.3 × 62.9 × 62.7mm |
| Weight |
0.45kg |
3-Years Warranty
Uniview 3-Years Manufacturer Warranty!
Our Uniarch products are high-quality and durability-tested by Uniview engineers. Enjoy the peace of mind of a three-year warranty!
✔️ Authorised Uniview Dealer!
✔️ Australian Stock, No Grey Imports!
✔️ 3-Years Manufacturer Warranty!
Uniview offers a 2-year manufacturer warranty and SECSOURCE offer an additional 1-year warranty which covers defects in materials or broken components that could affect the normal operation of the product. In the event of a device being faulty, Uniview and SECSOURCE will repair or replace the faulty product at no cost.
The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft. SECSOURCE will facilitate any warranty claims on the customers' behalf with the manufacturer. If you think you have a faulty product, please contact our support team and we will gladly help you troubleshoot and determine that the product is indeed faulty. We aim to do so in a manner that is as fast and efficient as possible.
Once determined faulty you will need to return the product to us first so that we can pass it on to the manufacturer. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock. Please note, we do not cover inbound shipping to us however if a replacement is to be sent we will cover outbound shipping to the customer.
We may need the serial number of the product and your order number. Please don’t ship us anything until you have had confirmation from one of our team and they have given you a return address.
You can contact us by email at support@secsource.com.au or phone on 1300 049 519.
