Description
UNV NVR has high quality genes to ensure the reliability of devices and the whole system, focusing on user experience to simplify every operation process.
Pro Series
With large enough capacity, function and expansibility, Pro series provide the highest level of performance for vertical market.
Features
- Support Ultra 265/H.265/H.264 video formats
- 256-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
- Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI1, HDMI2 and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Redundant power supply optional
- Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
- 24 SATA HDDs, up to 10TB for each HDD
- Support 2 miniSAS Interfaces
- Support 12V power output
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Support N+1 Hot spare
Datasheet
Tech Specs

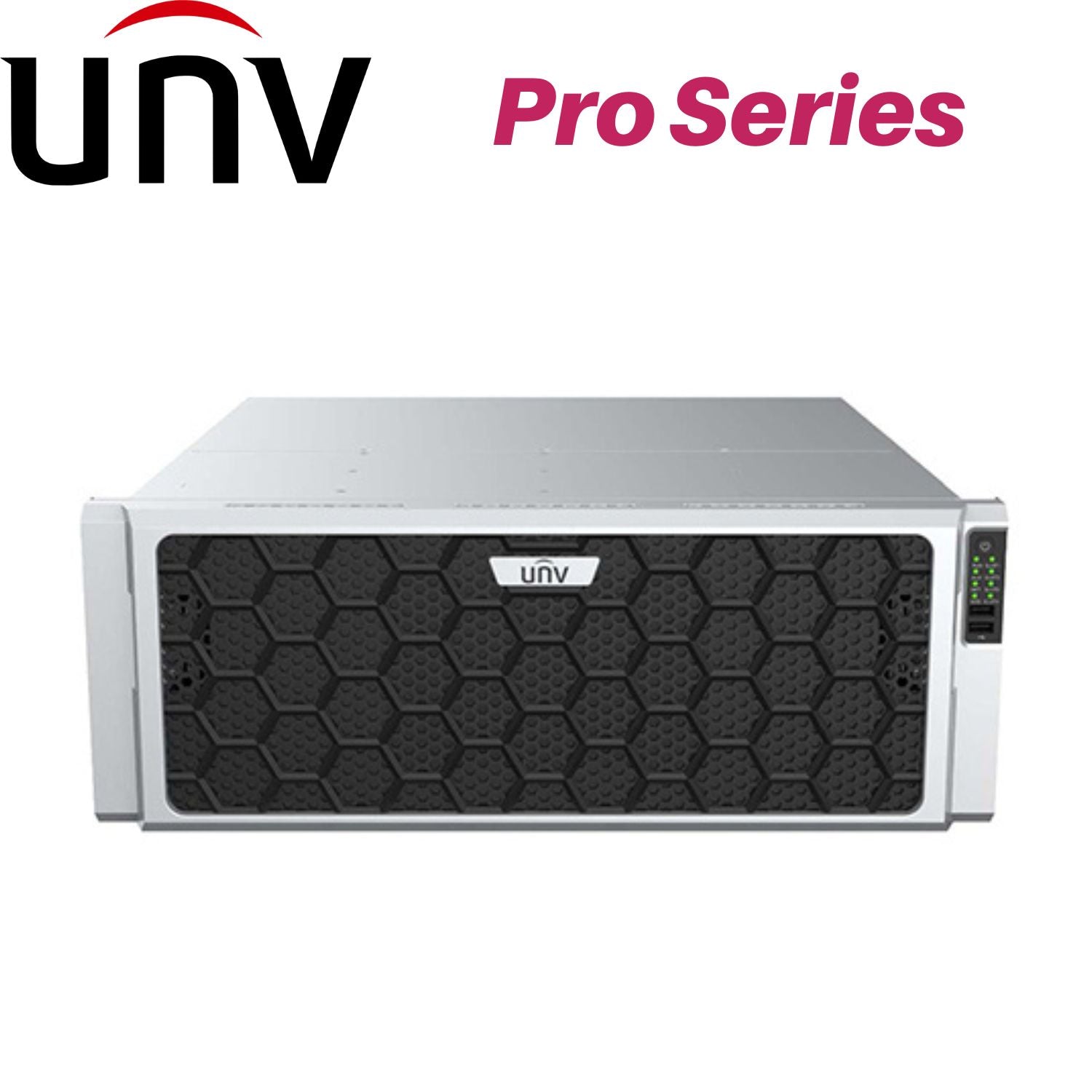

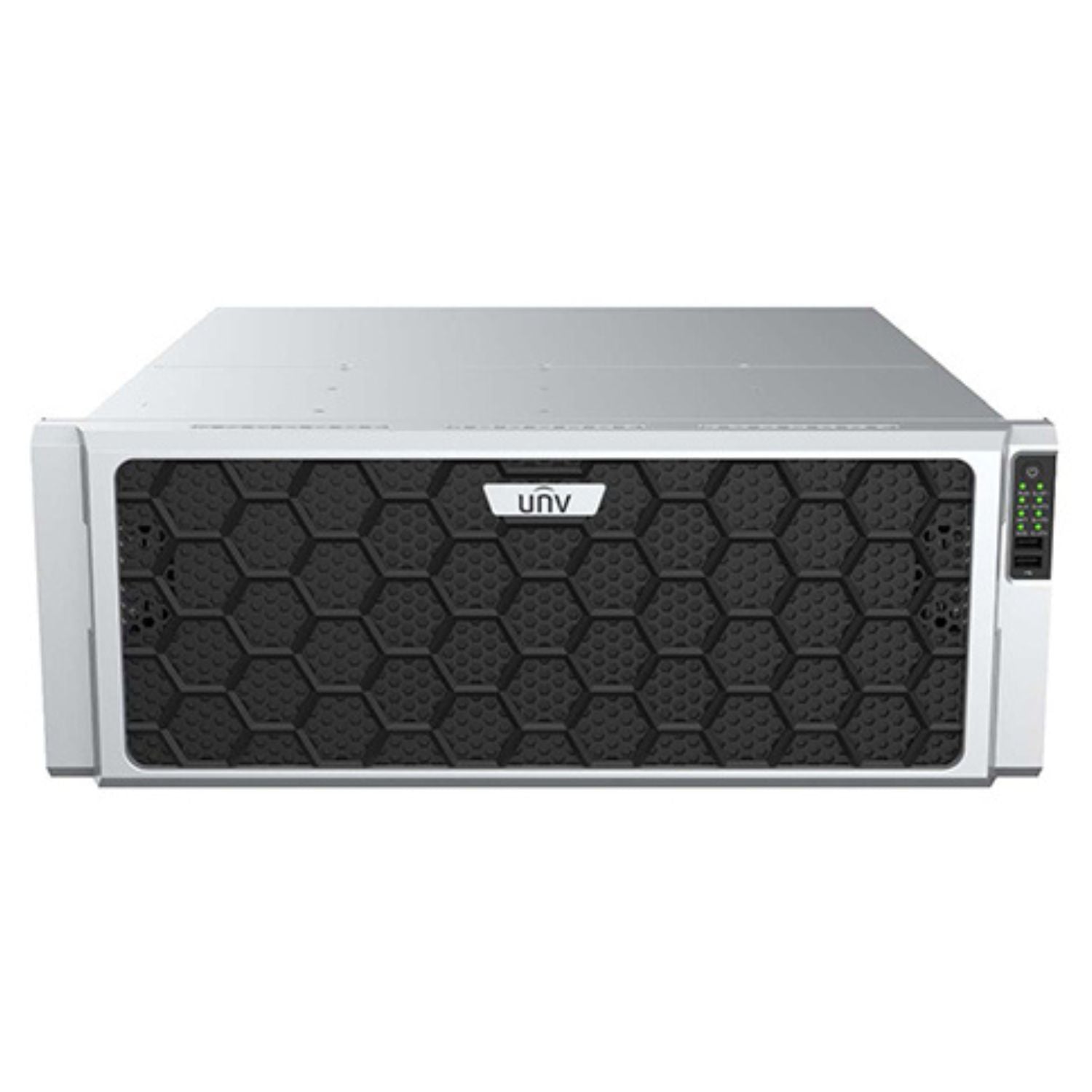

Uniview Network Video Recorder: 256 Channel 24 HDDs RAID NVR, Pro - NVR824-256R
| Model |
NVR824-128R |
NVR824-256R |
| Video/Audio Input |
| IP Video Input |
128-ch |
256-ch |
| Two-way Audio Input |
1-ch, RCA |
| Network |
| Incoming Bandwidth |
768Mbps |
| Outgoing Bandwidth |
768Mbps |
| Remote Users |
128 |
256 |
| Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output |
| HDMI/VGA Output |
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI1/HDMI2:
4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output |
1-ch, RCA |
| Synchronous Playback |
16-ch |
| Corridor Mode Screen |
3/4/5/7/9/10/12/16/32 |
| Decoding |
| Decoding format |
Ultra 265, H.265, H.264 |
| Live view/Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability |
5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1 |
| Hard Disk |
| SATA |
24 SATA interfaces |
| Capacity |
up to 10TB for each HDD |
| Extension board |
4 |
| miniSAS*
|
2 miniSAS ports |
| eSATA |
1 |
| Disk Array |
| Array Type |
RAID 0/1/5/6/10/50/60 |
| External Interface |
| Network Interface |
4 RJ-45 10M/100M/1000M adaptive Ethernet Interface |
| Serial Interface |
1 x RS232, 1 x RS485 |
| USB Interface |
Front panel: 2 x USB2.0, Rear panel: 2 x USB3.0 |
| Alarm In |
24-ch |
| Alarm Out |
8-ch |
| Power Output |
12V |
| General |
| Power Supply |
100 ~ 240V AC
Power Consumption: ≤ 70 W (without HDD) |
| Working Environment |
-10°C ~ + 50°C (+14°F ~ +122°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions |
533mm ×484.6mm × 175.5mm (21.0 "×19.1" ×6.9") |
| Weight (without HDD) |
≤ 12.5 Kg (27.56 lb) |
